Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE / UL / ROHS / REACH , Company: ISO9001 / ISO14001
Model Number:
FC MM OM2 / OM3 / OM4 / OM5 LSZH / PVC 1.6-4.0mm
Contact Us

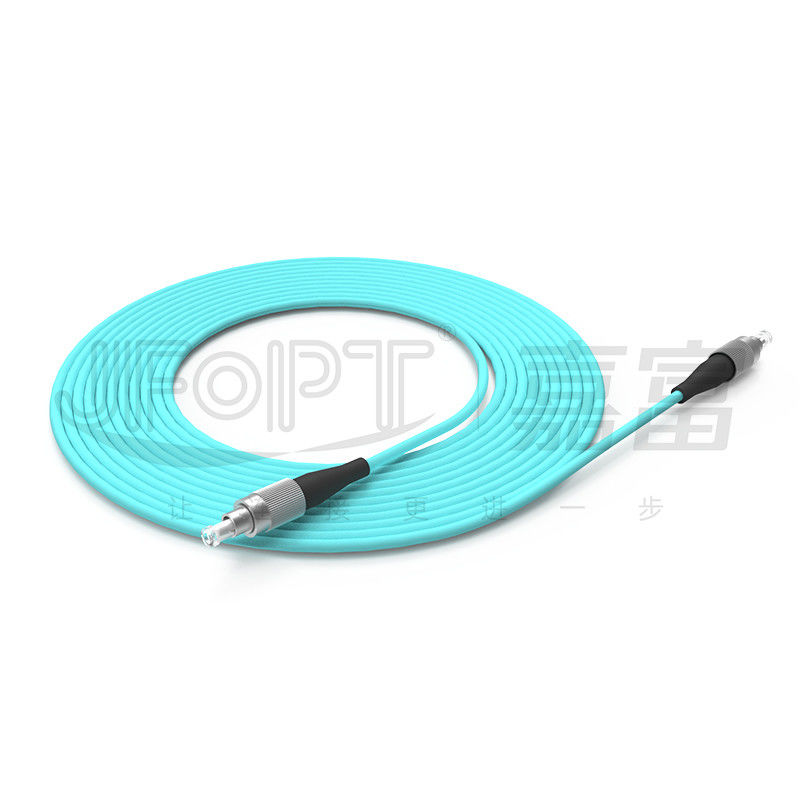

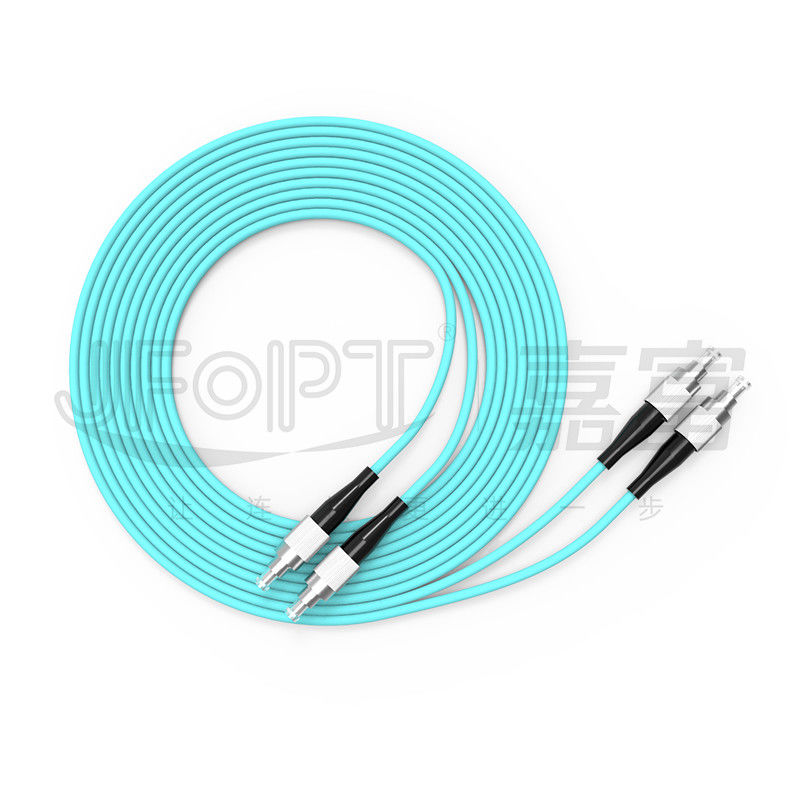

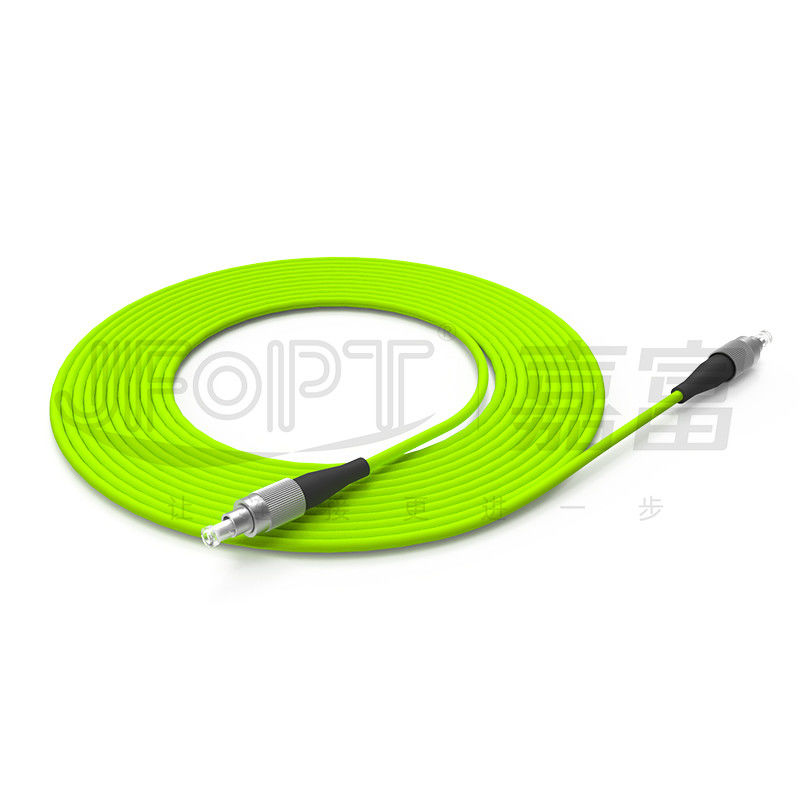

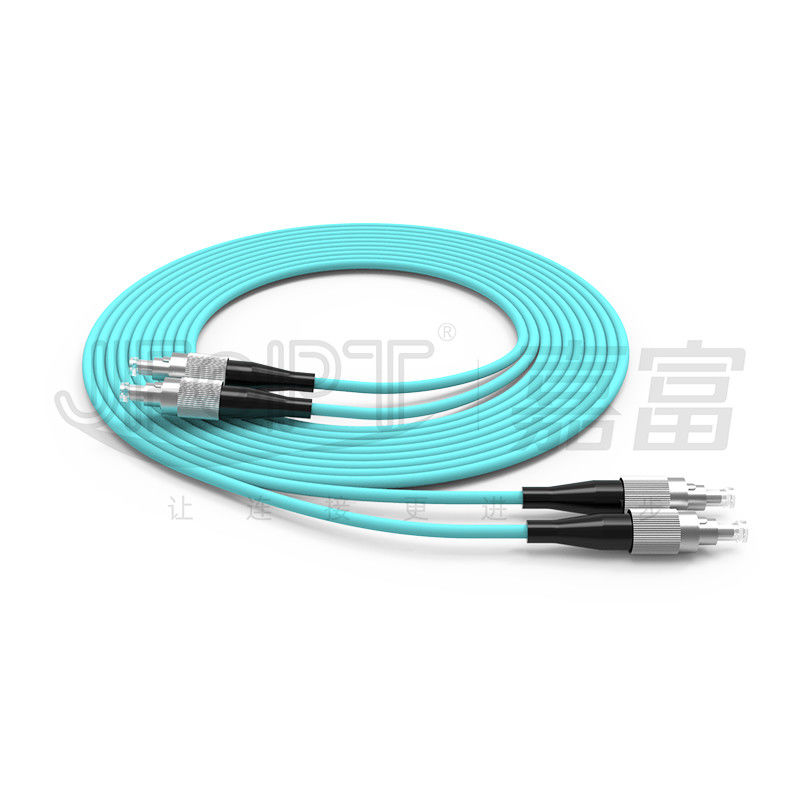

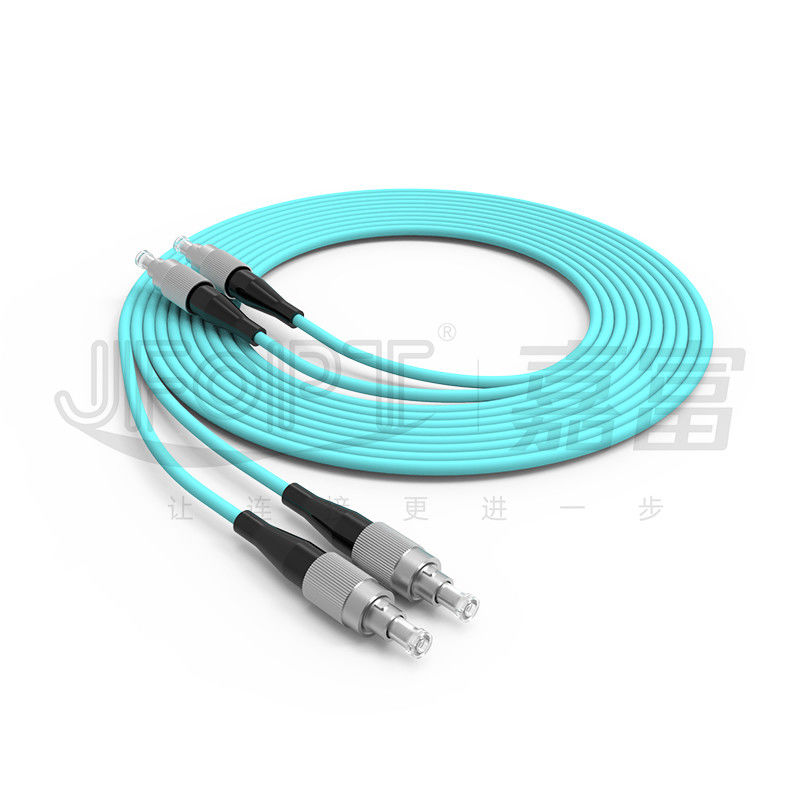

FC - FC Fiber Optic Patch Cord Multimode 50 / 125 LSZH / PVC Jacket OD 1.6 / 1.8 / 2.0 / 3.0 / 4.0 Optical Cable
Compared to standard jumpers, multimode jumpers using bend-insensitive fibers have lower attenuation when the cable is bent, making installation and maintenance more efficient. FC jumpers can be installed in data centers, telecom rooms, cloud storage networks, and other multi-space environments where fiber jumpers are required. The FC jumper's secure connection is achieved through thread tightening, which helps prevent connector disconnection and provides enhanced security. JFOPT typically maintains sufficient inventory and, with its own fiber cable production lines, can quickly deliver various customized requirements. JFOPT has established comprehensive production and quality inspection processes, including 100% inspection of connector endfaces, loss data, appearance, and packaging, ensuring the quality of products delivered to end customers.
♦ Features
|
①Grade-A precision ceramic ferrule ensures low loss |
②Bend-insensitive multimode fiber for improved transmission stability |
||||
|
|
|
||||
|
③ Optional PVC/LSZH/OFNP flame-retardant cable jacket |
④ FC connectors pass salt spray testing |
||||
|
|
|
||||
|
⑤ Compliant with TIA/EIA standards |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
FC |
|||
|
Polishing Type |
Multimode: UPC |
||||
|
Ferrule Type |
Grade - A Zirconia Ceramic Ferrule |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Simplex/Duplex |
||||
|
Outer Diameter |
1.6mm/1.8mm/2.0mm/3.0mm/4.0mm |
||||
|
Jacket Material |
PVC/LSZH or Customized |
||||
|
Cable Color |
Orange/Green/Violet/Lime Green/Customized |
||||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ Ordering Information
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Standard boot |
|
|
|
3.0mm |
Standard boot |
|
|
♦ Connector Housing Color Options
|
FC connector |
||||
|
|
|
|
|
|
|
Blue |
Green |
Black |
Red |
White |
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been specializing in fiber jumpers production for over 20 years, possessing professional manufacturing techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing Capability: With 5 production lines and equipment, JFOPT can rapidly and efficiently produce a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, conducting professional quality inspections and monitoring at every stage from raw material procurement to production processes, including return loss testing and endface inspections to ensure product quality. |
|
||||
|
Standards Compliance: JFOPT can customize and strictly adhere to fiber jumper production standards according to user requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team constantly developing advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Customization requirements may include the length of the fiber optic patch cord, cable material, fiber type and count, duplex polarity, color, labeling, and other specific requirements.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords through a rigorous testing process. All standard patch cords undergo 100% insertion loss testing and end-face inspection, ensuring consistent quality through multiple inspections.
3.What other advantageous products do we offer besides FC patch cords?
In addition to FC patch cords, we also manufacture standard patch cords with LC, SC, ST connectors, various connector adapter patch cords, MPO to standard connector (e.g., LC) patch cords, outdoor waterproof fiber optic cables and patch cords, as well as various custom-made specialty fiber optic connectors.
4.What is our delivery lead time?
For standard products, we can control the delivery lead time within 2 working days, ensuring quick shipment and meeting your urgent demands.
