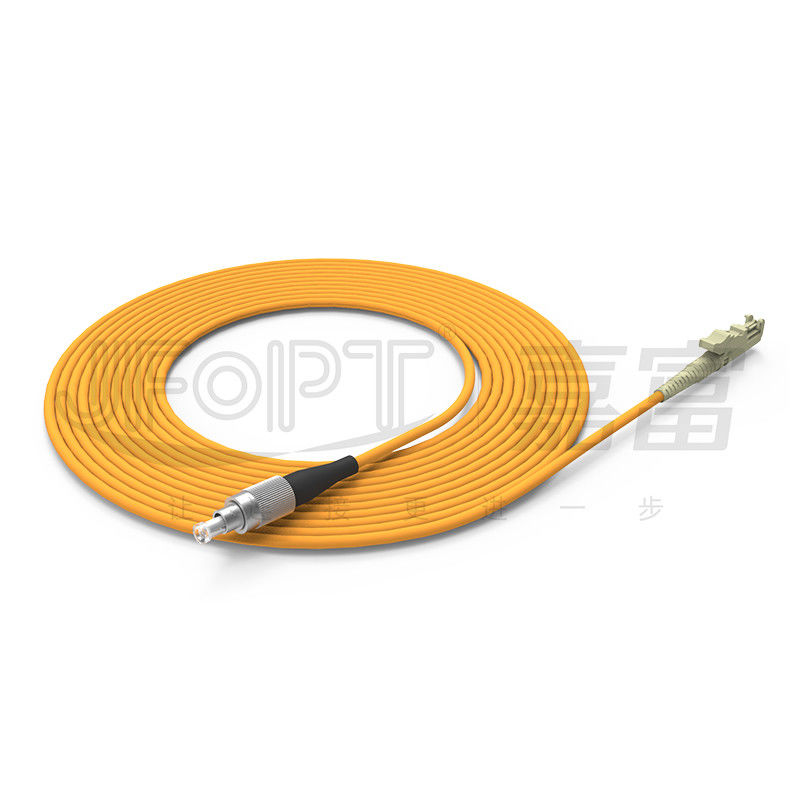

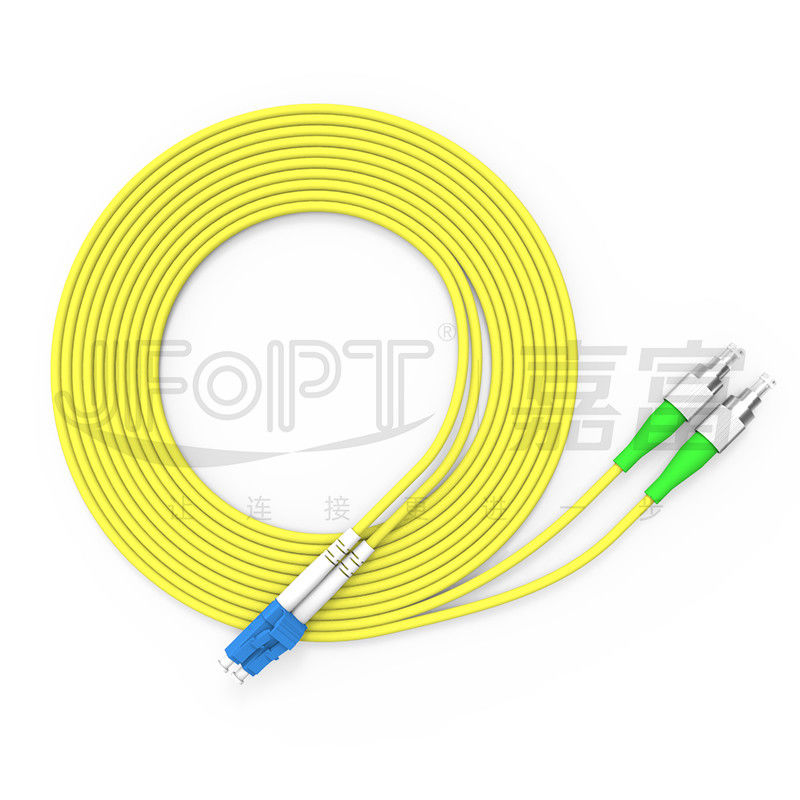

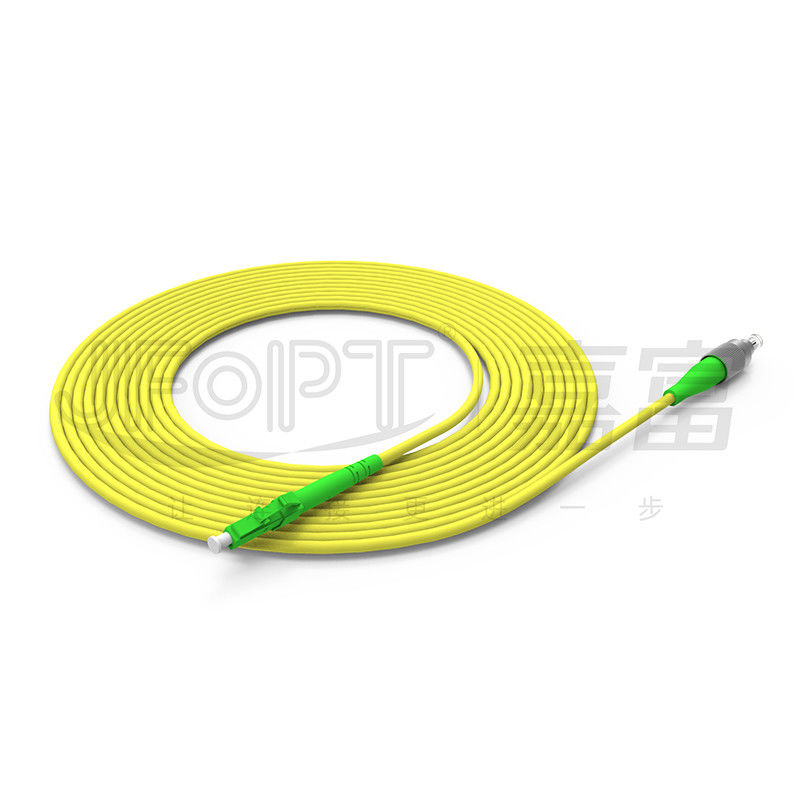

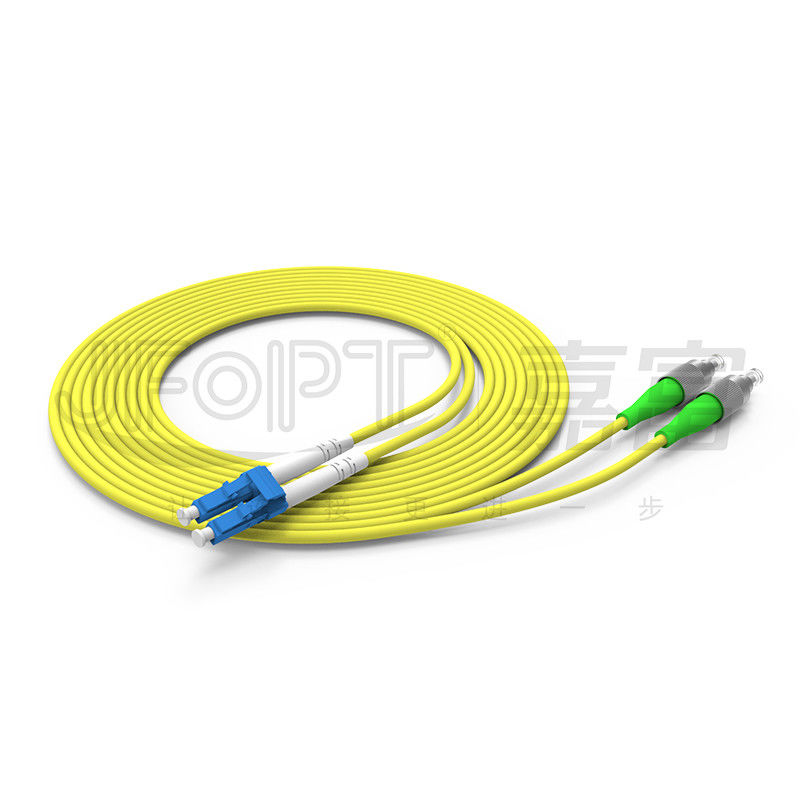

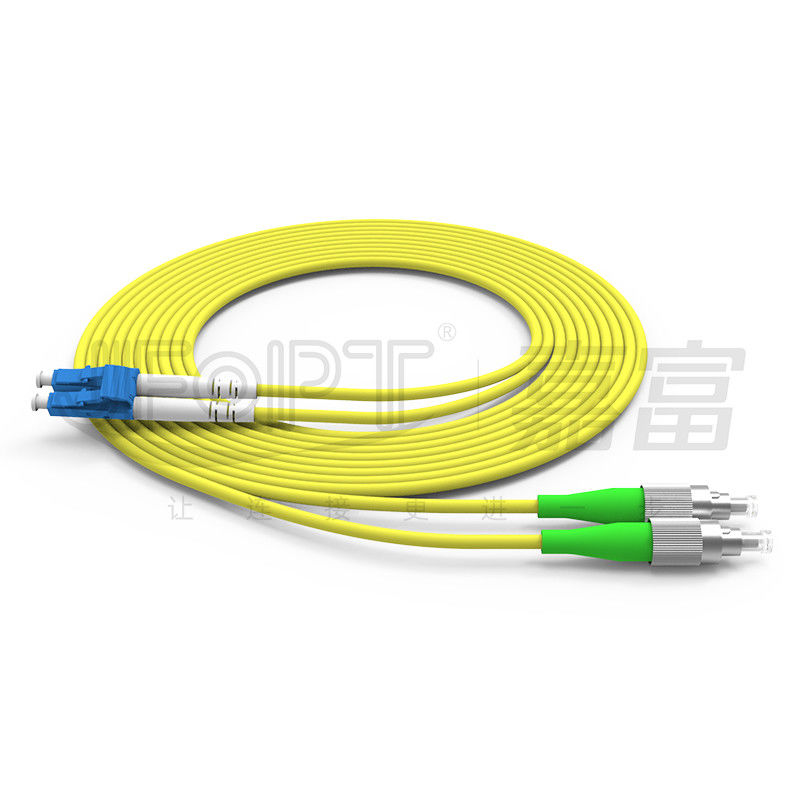

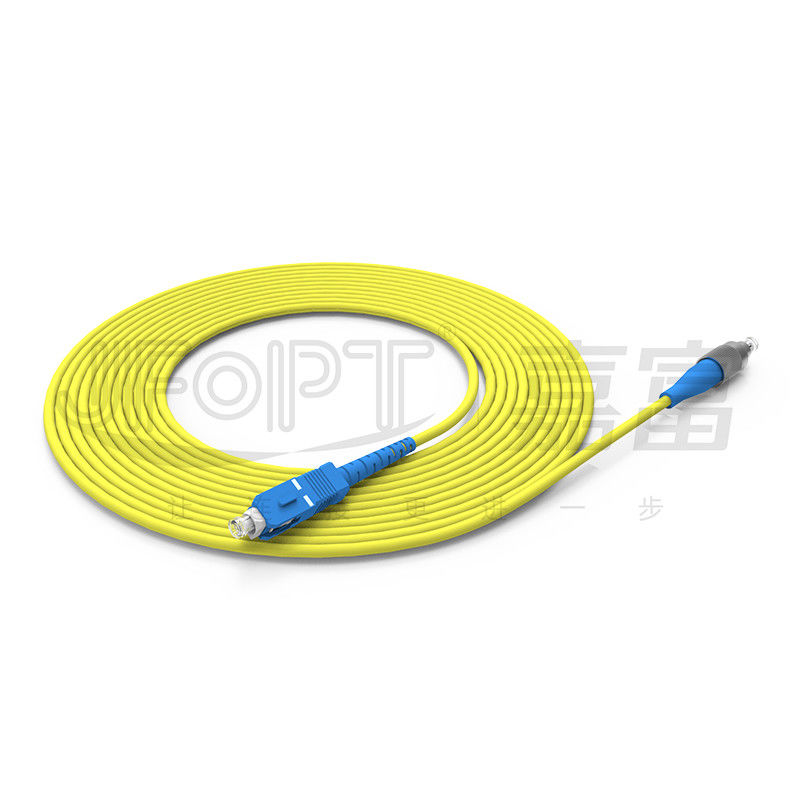

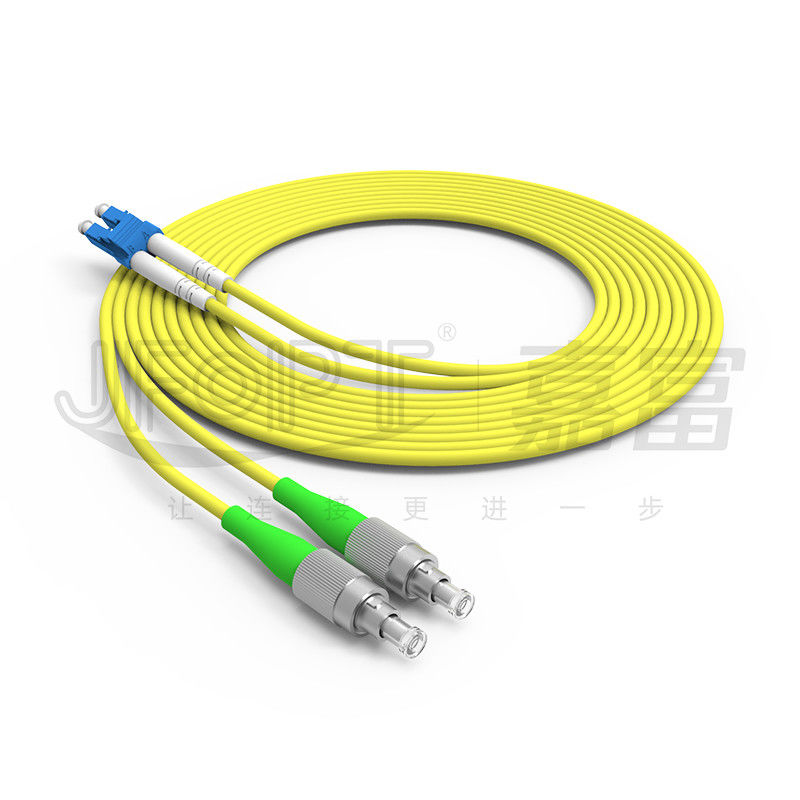

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material

FC-LC Hybrid Fiber Optic Cable

PVC LSZH Hybrid Fiber Optic Cable

LSZH TPU FC-LC patch cord

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product: CE / UL / ROHS / REACH , Company: ISO9001 / ISO14001

Model Number:

FC - LC / SC / ST / E2000

Contact Us

Request A Quote
Product Details
Fiber Count:
1 Core / 2 Cores
Fiber Type Selection:
Single Mode G652D / G657A1 / G657A2 / G655 , Multimode OM1 / OM2 / OM3 / OM4 / OM5
Cable Outer Diameter Selection:
0.9 / 2.0 / 3.0
Cable Material Selection:
PVC / LSZH / TPU
Cable Color Selection:
Yellow / Orange / Blue / Black / Aqua / Customized
Insertion Loss:
≤0.3dB / ≤0.2dB / ≤0.15dB
Repeatability:
≤ 0.2dB
Packaging Method:
Individually Packaged Per Piece
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Based on product length, model, and loss
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
20,000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

FC - LC SC ST E2000 PVC / LSZH / TPU Material Adapter Fiber Optic Patch Cord



JFOPT has over 20 years of experience in fiber optic patch cord production and can provide a variety of connector jumpers. In addition to common connectors such as SC, LC, FC, ST, and E2000, JFOPT can also provide special connectors such as MU, DIN, D4, and ESCON. Customization options include different fiber types (e.g., single mode, bend-resistant single mode, multimode OM1/OM2, multimode OM3/OM4/OM5 bend-resistant fiber), cable outer diameter, and jumper length. JFOPT strives to help customers reduce procurement costs and offers one-stop shopping solutions. With abundant inventory and its own cable production line, JFOPT can quickly meet various custom requirements. JFOPT can also provide high return loss and custom fiber core 3D grinding requirements. In terms of material, JFOPT insists on using high rebound and aging-resistant PEI material, and its jumpers have passed multiple international product testing certifications.



♦ Features

① Multiple connector options, including SC, LC, FC, ST, E2000, etc., to meet one-stop purchasing needs

②Uses bend-insensitive fiber to improve transmission stability

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 0

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 1

③ Multiple options for cable jacket materials to meet different fire protection levels

④Customizable insertion loss options to accommodate different precision requirements

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 2

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 3

⑤ 100% factory termination and testing to ensure transmission performance

-

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 4

-



Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable television networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ Technical Parameters

Connector Characteristics

Connector Type

LC / SC / FC / ST / E2000

Ferrule Type

Single Mode : UPC / APC ; Multimode : UPC

Insert Type

A - grade Zirconia Ceramic Insert

Connector Color

Blue / Green / Beige / Aqua / Violet

Insertion Loss

≤0.3dB / ≤0.2dB / ≤0.15dB

Return Loss

Single Mode : UPC≥50dB ; APC≥60dB ; Multimode : ≥25dB

Repeatability

≤0.2dB

Interchangeability

≤0.2dB

Cable Characteristics

Fiber Type

OS2 / OM1 / OM2 / OM3 / OM4 / OM5

Number of Fibers

Single Fiber / Dual Fiber

Outer Diameter

0.9 / 2.0 / 3.0mm

Jacket Material

PVC / LSZH / TPU or custom

Cable Color

Yellow / Orange / Aqua / Violet / Lime Green / Black / Custom

Fire Rating

Optional OFN / OFNR / OFNP

Temperature Characteristics

Operating Temperature

-20~70℃

Storage Temperature

-40~80℃



♦ 3D Geometry Parameters (Optional)

Items

UPC

APC

SC / FC / ST

LC

SC / FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Product Packaging

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 5

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 6

Thickened ziplock bag

Thickened carton



Factory Strength

Specialization:


JFOPT has been specializing in fiber optic jumpers for over 20 years, with professional production technology to produce high-quality, high-performance fiber optic jumpers.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 7

Manufacturing Capacity:


JFOPT has 5 production lines and equipment to rapidly and efficiently produce large quantities of fiber optic jumpers to meet customer demands.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 8

Quality Control:


JFOPT implements strict quality control, with professional quality testing and monitoring at every stage from raw material procurement to production processes, including insertion loss testing and end face inspection to ensure product quality.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 9

Standardization:


JFOPT can develop and strictly adhere to fiber optic jumper production standards according to customer requirements to ensure product consistency and performance stability.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 10

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team continuously developing more advanced and higher-performance fiber optic jumpers.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 11

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction.

FC-LC SC ST E2000 Hybrid Fiber Optic Cable PVC LSZH TPU Material 12



♦ Frequent Q&A

1.What issues should be considered when customizing standard fiber optic patch cords?
Customization requirements may include fiber optic patch cord length, cable jacket material, fiber type and count, duplex polarity, color, labeling, and other specific requirements.



2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords by conducting 100% insertion loss testing and end-face inspection. Multiple inspections are performed to guarantee product quality.



3.What other advantage products do we offer besides standard patch cords?
In addition to standard patch cords, we also manufacture various connector adapter patch cords such as LC/SC/FC/ST/E2000, MPO-to-standard connector patch cords (e.g., LC), outdoor waterproof fiber optic cables and patch cords, as well as various non-standard and special fiber optic connectors.



4.What is our delivery lead time?
For standard products, we can control the delivery lead time within 2 working days, ensuring prompt shipment to meet your requirements.
