Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH；Company : ISO9001 / ISO14001
Model Number:
LC PatchCord UL(OFN / OFNR / OFNP)
Contact Us

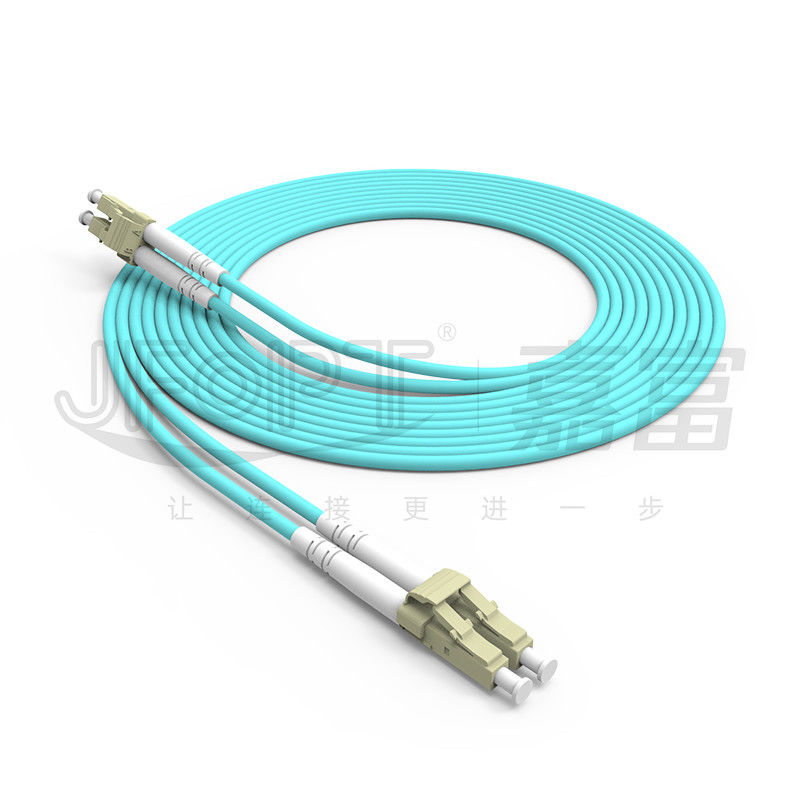

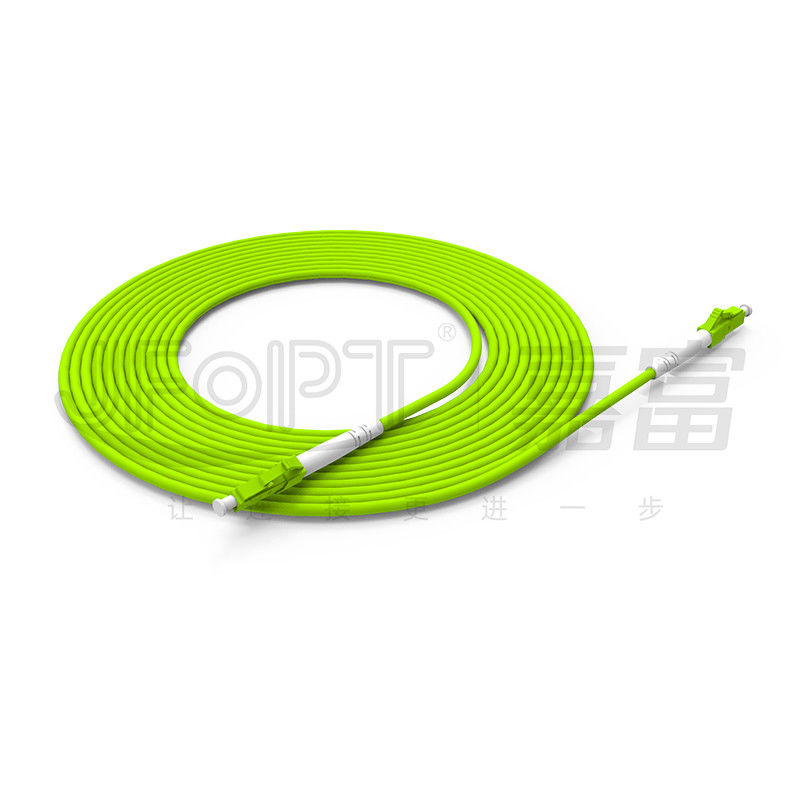

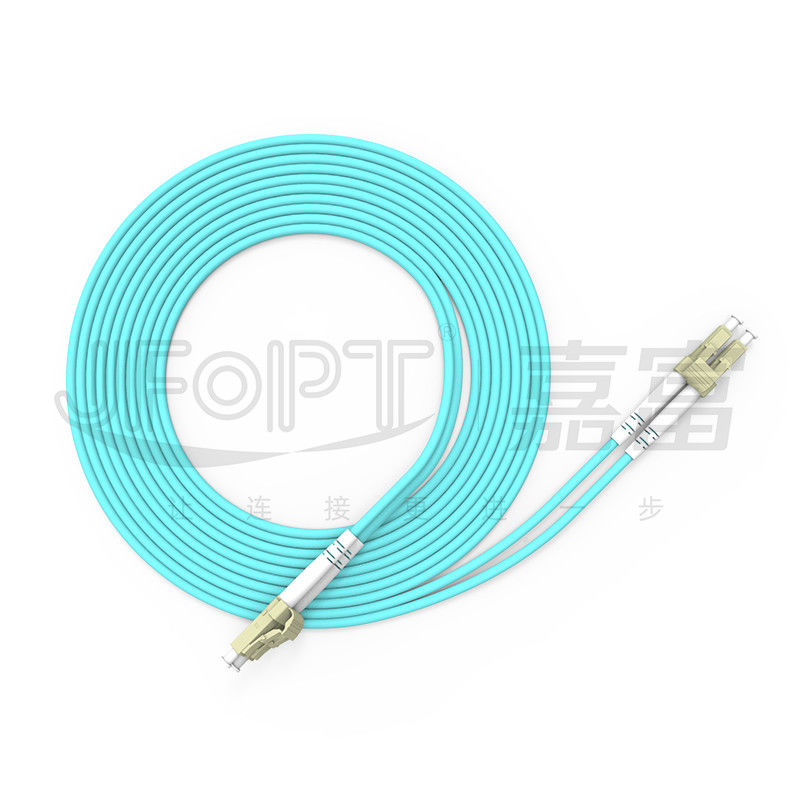

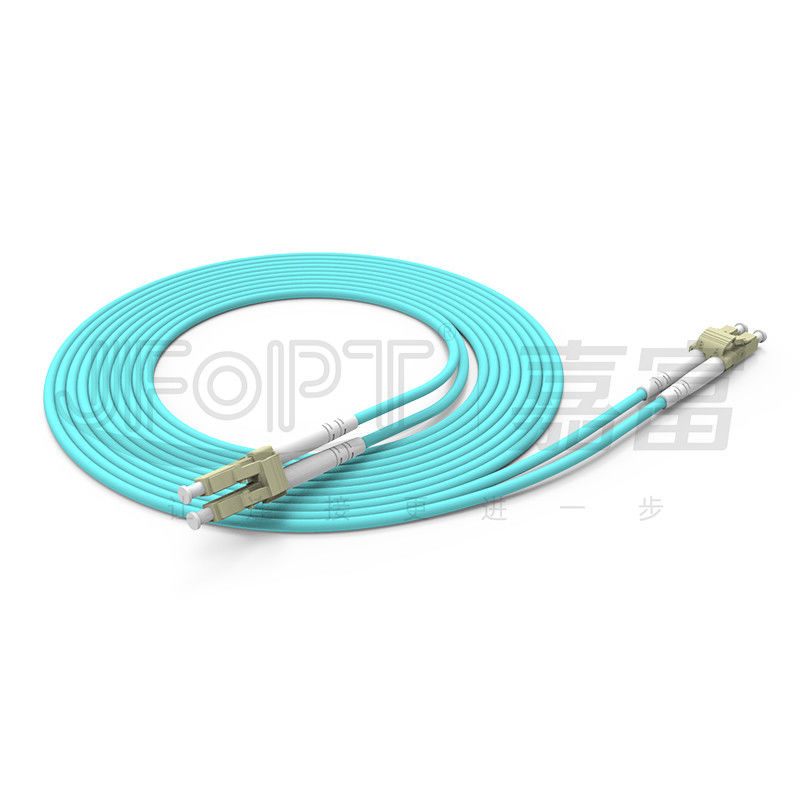

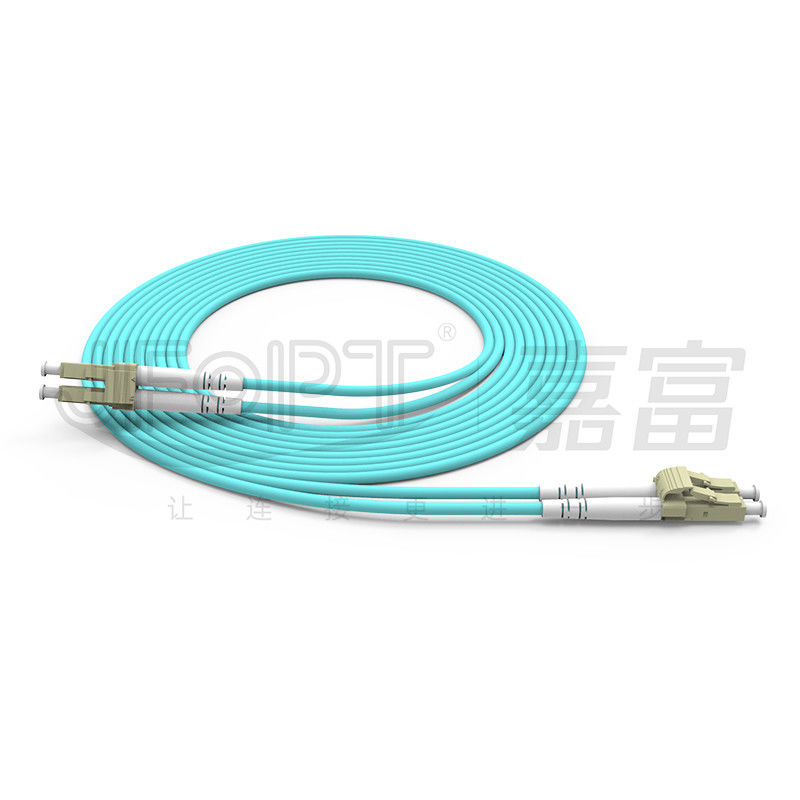

OFN OFNP OFNR UL Flame - Retardant LC Fiber Optic Patch Cord
LC fiber optic patch cord is a type of compact fiber optic connector widely used in high-density and limited space areas. JFOPT LC fiber optic patch cords are made of high-lifetime PEI material, which provides better durability and resilience compared to LC plastic components commonly found in the market. When purchasing JFOPT flame-retardant patch cords, customers can choose materials certified by UL for flame retardancy, or option for third-party certified materials that meet the OFNR or OFNP flame retardant grades to further reduce costs. In the UL fiber optic patch cord certification system, OFNP (Plenum) has the highest fire rating and is suitable for areas with airflow circulation, such as server room walls and ceilings. OFNR (Riser) has a general fire rating and is suitable for vertical and horizontal cabling within buildings. Customers can select fiber optic patch cords with flame retardant grades based on their project requirements.
♦ Features
|
①Customizable flame retardant grades for different environmental conditions |
②LC connectors available in UNIBOOT and interchangeable polarity options |
||||
|
|
|
||||
|
③ High-quality low-loss ceramic ferrules, available in 0.9/2.0/3.0mm cable diameters |
④UL certification can be provided for flame-retardant patch cords |
||||
|
|
|
||||
|
⑤ Products comply with RoHS 2.0 environmental requirements |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber optic access networks
2.Fiber optic data transmission
3.Fiber optic communication systems, cable TV networks, and telecommunication network
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End face type |
Single mode : UPC / APC; Multimode: UPC |
||||
|
Ferrule Type |
Grade A Zirconia Ceramic Ferrule |
||||
|
Connector Color |
Blue/Green/Beige/Aqua/Violet/Lime Green |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
OS2/OM1/OM2/OM3/OM4/OM5 |
|||
|
Number of Fibers |
Simplex/duplex |
||||
|
Outer Diameter |
0.9/2.0/3.0mm |
||||
|
Jacket Material |
PVC/LSZH or customized |
||||
|
Cable Color |
Yellow/Orange/Aqua/Violet/Lime Green/Customized |
||||
|
Fire Rating |
OFN/OFNR/OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ Connector Options
|
Simplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
0.9mm |
Standard boot |
|
|
|
2.0mm |
Standard boot |
|
|
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Standard boot |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
|
Duplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Standard boot |
|
|
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Standard boot |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
3.0mm |
Standard UNIBOOT |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
|
Duplex |
All Above |
|
|
♦ Connector Color Options
|
LC connector |
||
|
Single mode |
Blue |
Green |
|
|
|
|
|
Multimode |
Beige |
Aqua |
|
|
|
|
|
Heather Violet |
Lime Green |
|
|
|
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on fiber optic patch cord production for over 20 years, with professional manufacturing techniques to produce high-quality and high-performance fiber optic patch cords. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment to efficiently produce large quantities of fiber optic patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are performed to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to fiber optic patch cord production standards according to user requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber optic patch cords. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Length of the fiber optic patch cord/Cable material of the fiber optic patch cord/Fiber type and core count of the fiber/optic patch cord/Duplex polarity of the fiber optic patch cord/Color preference of the fiber optic patch cord/Custom labeling requirements for the fiber optic patch cord.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's standard fiber optic patch cords undergo 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure stable quality.
3.What other advantageous products do we offer besides LC patch cords?
In addition to LC patch cords, we also produce FC/ST/SC and other standard patch cords, various connector adapter patch cords, MPO adapters for standard connectors (such as LC), outdoor waterproof fiber optic cables and patch cords, as well as various non-standard and special type fiber optic connectors.
4.What is our delivery lead time?
For standard products, we can control the delivery lead time within 2 working days, ensuring prompt shipment.
