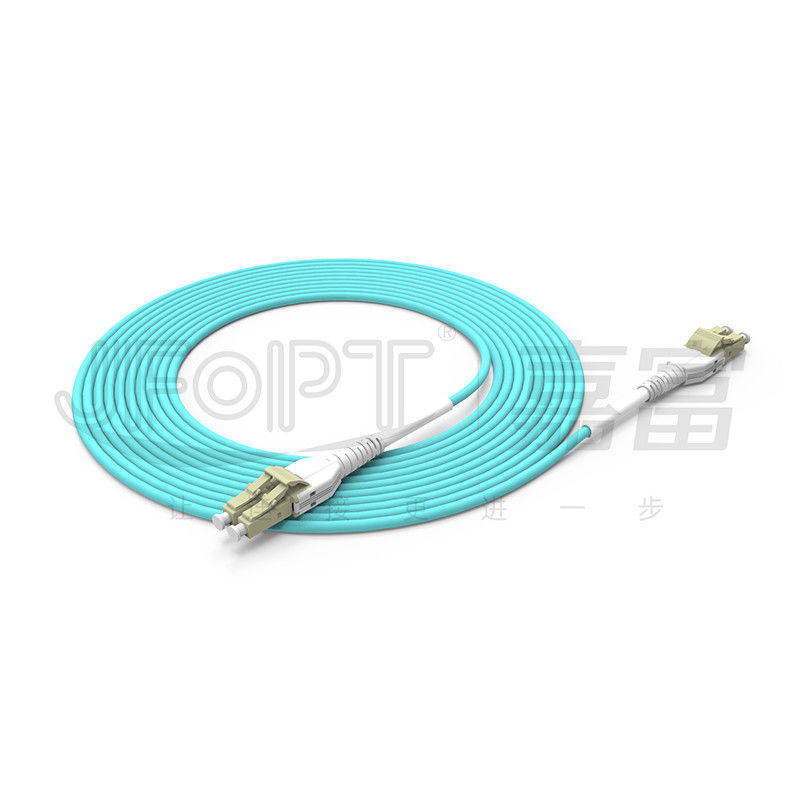

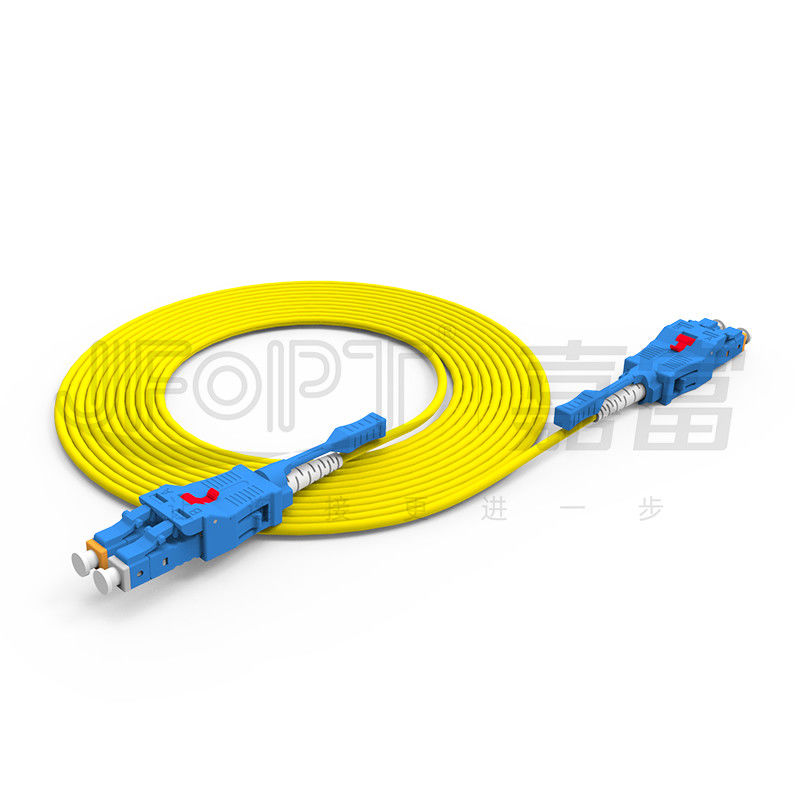

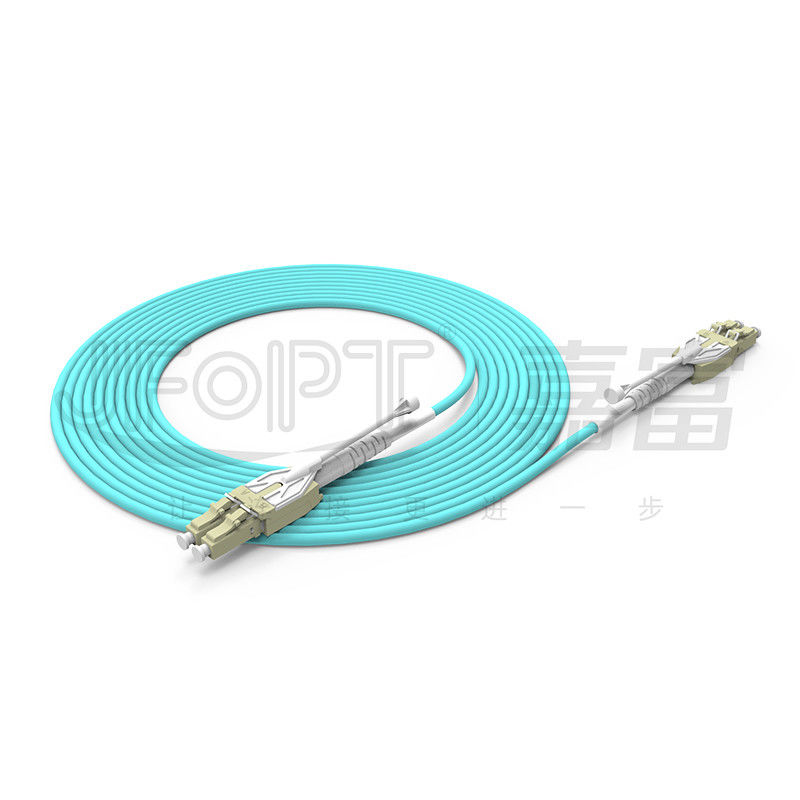

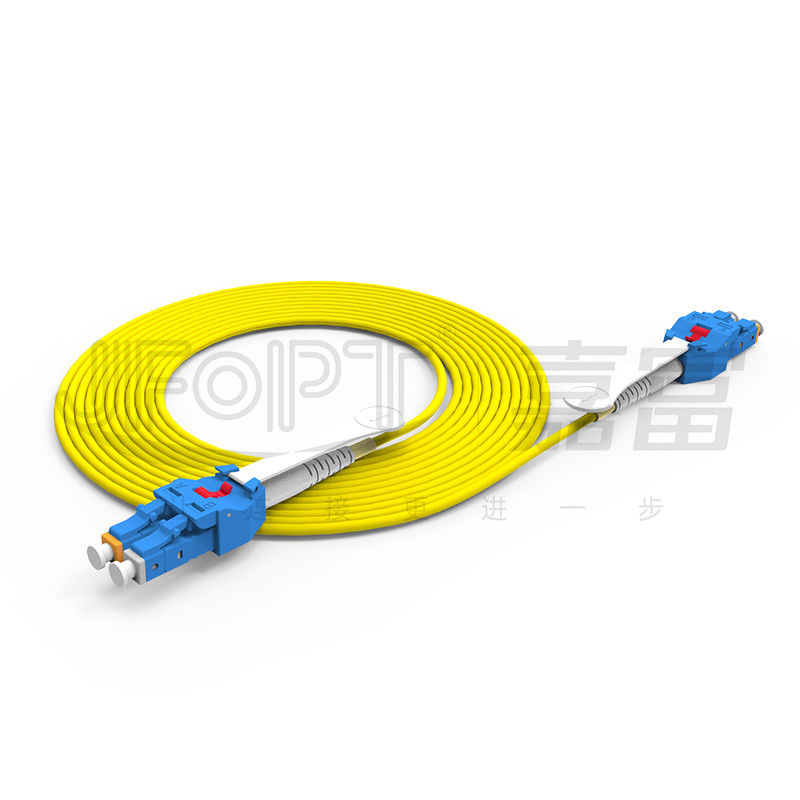

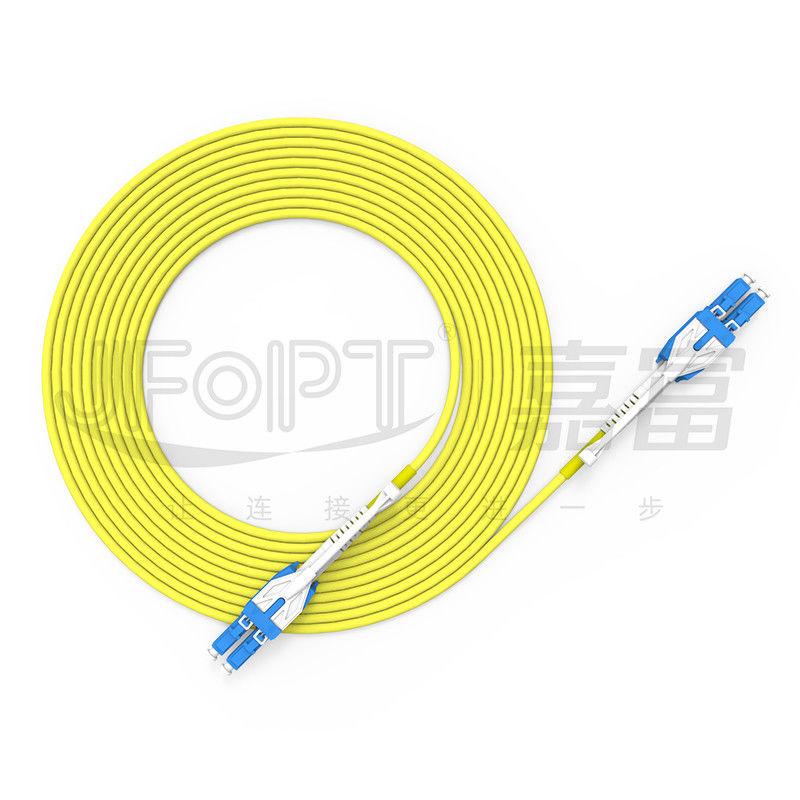

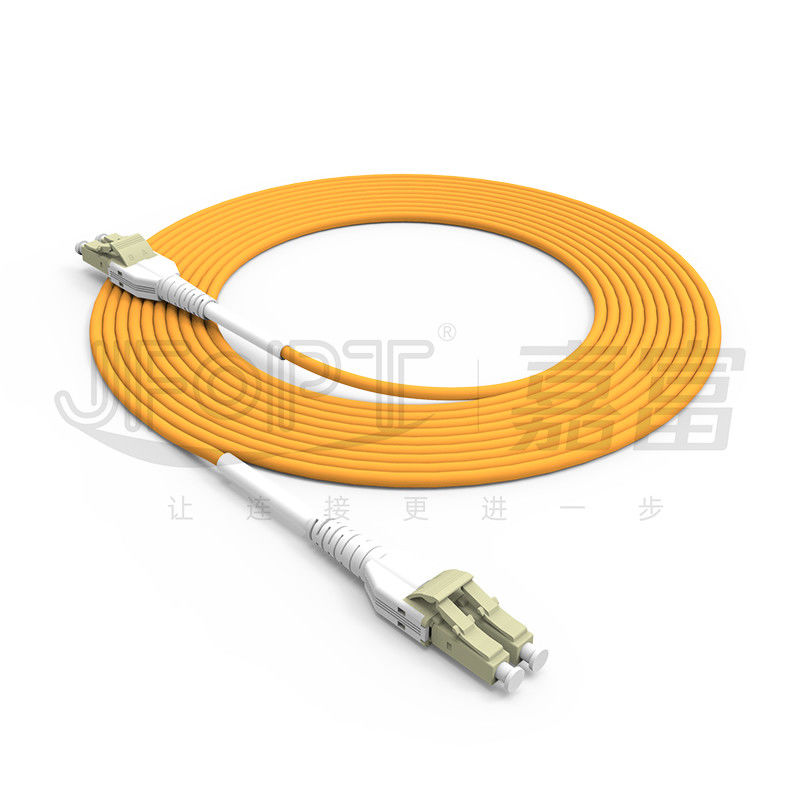

LC Uniboot Tail Sleeve Single - Tube Duplex Fiber Optic Patch Cord
LC Uniboot fiber jumper is a special type of "round duplex" jumper. It features a design with dual fibers in a single tube and integrated boots, replacing the dual-core 8-shaped fiber jumper. Its main advantage is that it can ensure bidirectional transmission within the same volume as a single-core fiber cable, reducing the cable volume by 50%. It provides the best solution for high-density applications, data center interconnections, dedicated networks, and pre-termination installations. In addition to the standard LC Uniboot type, there are also pull tab type and switchable ploarity types available, allowing customers to choose according to their specific needs.
♦ Features
|
① Unique structure and compact design |
②Multiple options for bending-resistant fiber, including OM3/OM4/OM5 and single mode |
||||
|
|
|
||||
|
③ Low insertion loss of ≤0.3dB, reducing link loss |
④ 100% factory terminations and testing |
||||
|
|
|
||||
|
⑤ Slim, flexible, and compatible with standard LC products |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, and telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Connector Parameters
|
Connector Type |
LC Uniboot |
|||
|
Ferrule Type |
Single Mode : UPC / APC ; Multimode : UPC |
|||
|
Ferrule Material |
Grade A Zirconia Ceramic Ferrule |
|||
|
Connector Color |
Blue / Green / Beige / Aqua / Lilac / Lime |
|||
|
Suitable Cable Outer Diameter |
Single Tube Duplex 2.0 / 3.0mm |
|||
|
Insertion Loss |
≤0.3dB / ≤0.2dB / ≤0.15dB |
|||
|
Return Loss |
Single Mode : UPC≥50dB ; APC ≥ 60dB ; Multimode : ≥25dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||
♦ Single Tube Duplex Cable Parameters
|
Item |
Parameters |
|||
|
Fiber Type |
G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
2 |
|||
|
Strength Member |
Aramid Yarn |
|||
|
Outer Jacket Material |
PVC / LSZH |
|||
|
Outer Jacket Diameter |
1.9±0.1mmmm |
2.9±0.1mm |
||
|
Outer Jacket Color |
Yellow / Orange / Aqua / Lilac / Lime / Customized |
|||
|
Tensile Strength (Long-Term) |
80N |
|||
|
Tensile Strength (Short-Term) |
150N |
|||
|
Crush Resistance (Long-Term |
100N / cm |
|||
|
Crush Resistance (Short-Term) |
500N / cm |
|||
|
Minimum Bending Radius (Dynamic) |
60mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
OFN / OFNR / OFNP |
|||
♦ Connector Options
|
Function |
Non - pull tab |
Non - switchable polarity |
|
|
Type |
Matching cable outer diameter |
Image |
Drawing |
|
Style 1 |
2.0/3.0mm |
|
|
|
Function |
Pull tab |
Non - switchable polarity |
|
|
Type |
Matching cable outer diameter |
Image |
Drawing |
|
Style 1 |
2.0/3.0mm |
|
|
|
Function |
Pull tab |
Switchable polarity |
|
|
Type |
Matching cable outer diameter |
Image |
Drawing |
|
Style 1 |
2.0mm |
|
|
|
Style 2 |
3.0mm |
|
|
|
Switchable polarity is only available with UPC polishing |
|||
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been specializing in fiber jumpers for over 20 years, with professional production techniques to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment, enabling rapid and efficient production of a large number of fiber jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes, conducting return loss testing and end face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to fiber jumper production standards based on user requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team continuously developing more advanced and higher-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Customization requirements may include the following aspects / Length of the fiber optic patch cord / Cable material / Fiber optic type and core count / Duplex polarity / Color / Labels.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's standard fiber optic patch cords undergo 100% insertion loss testing and end face inspection. Multiple inspections are conducted to ensure stable quality.
3.What are the advantages of our products besides LC patch cords?
In addition to LC patch cords, we also manufacture FC/ST/SC and other standard model patch cords, connector adapter patch cords for various connector types, MPO adapters for regular connectors (such as LC), outdoor waterproof fiber optic cables and patch cords, as well as various non-standard and special model fiber optic connectors.
4.What is our delivery time?
For standard products, our delivery time can be controlled within 2 working days, ensuring prompt shipment to meet your requirements.
Send your inquiry directly to us
