Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
SCU - SCU DX OM1 / 2 / 3 / 4 / 5 YOFC / CORNING
Contact Us

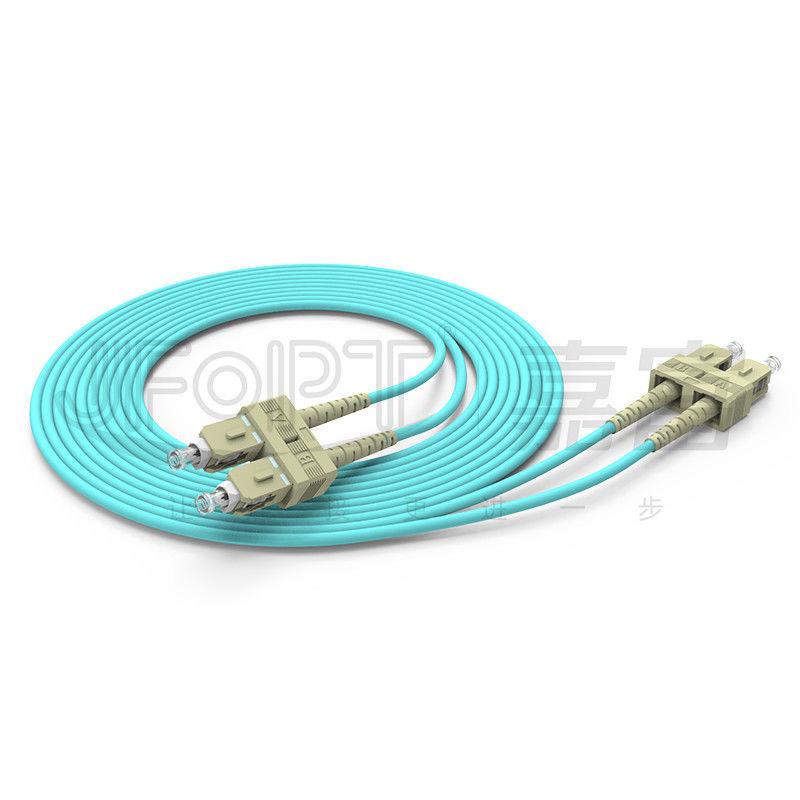

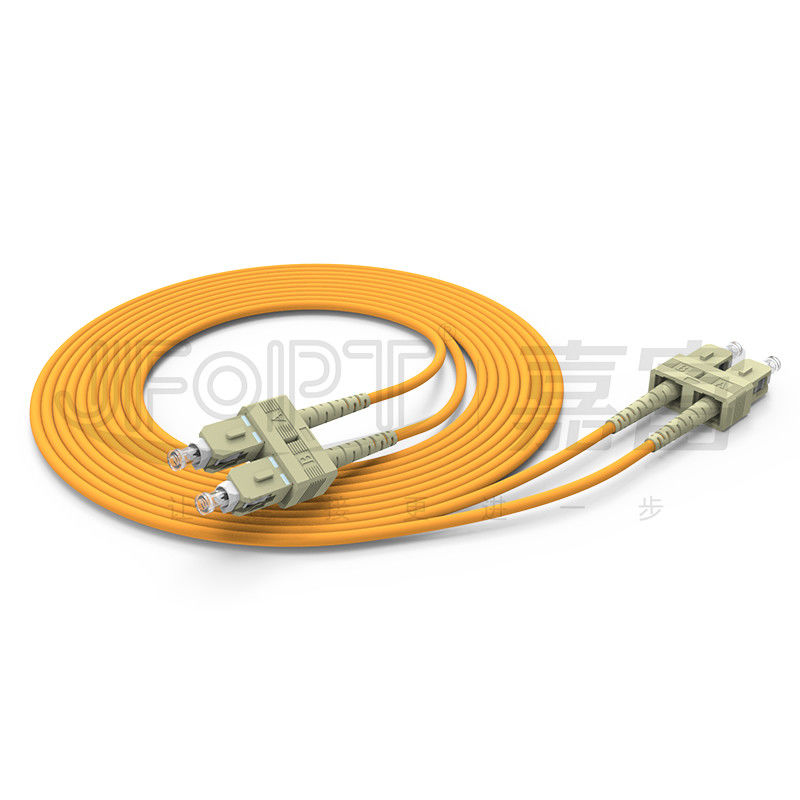

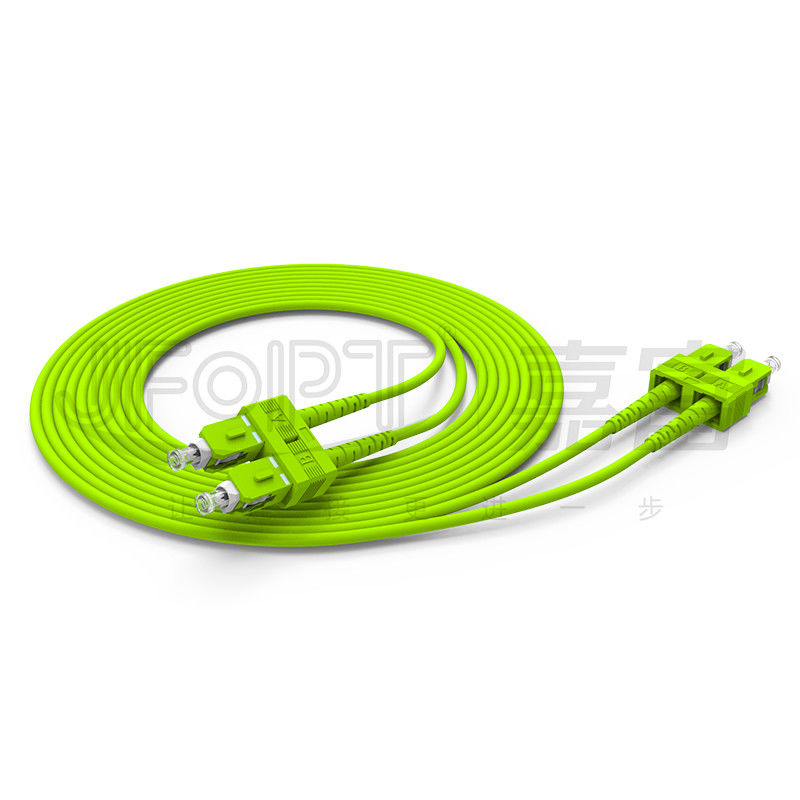

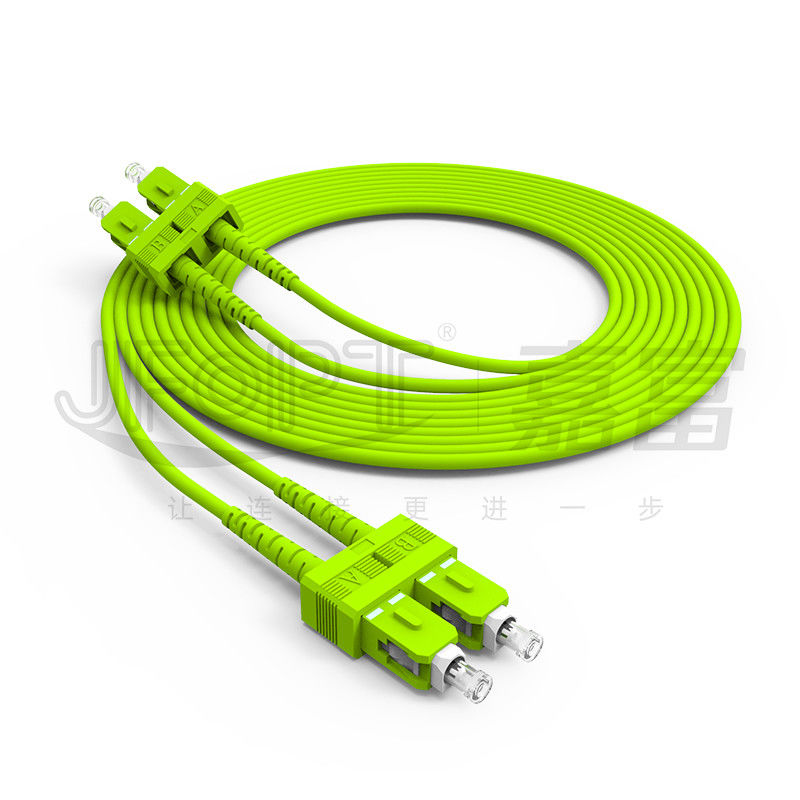

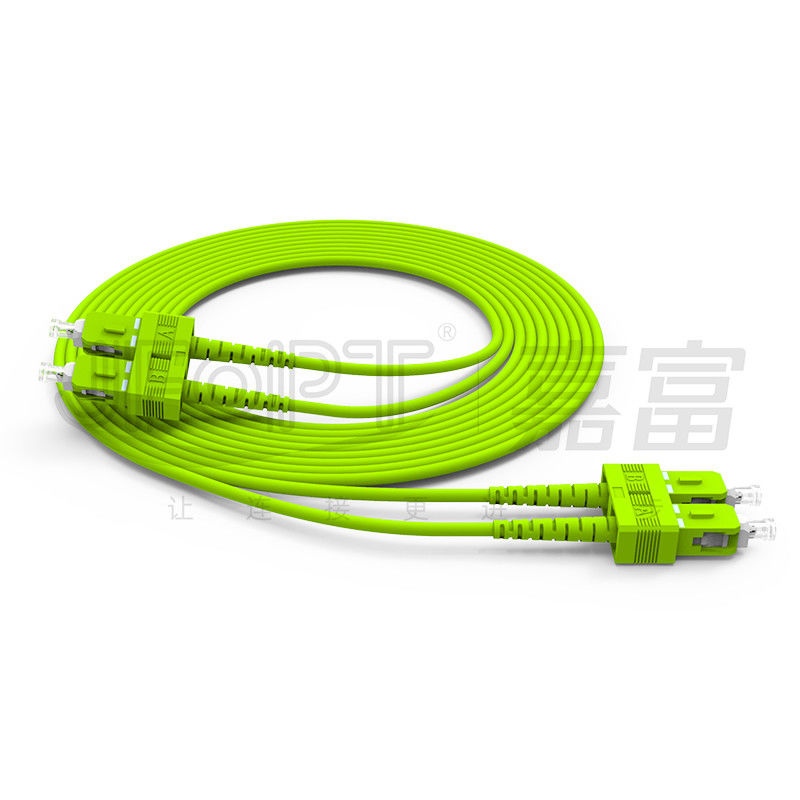

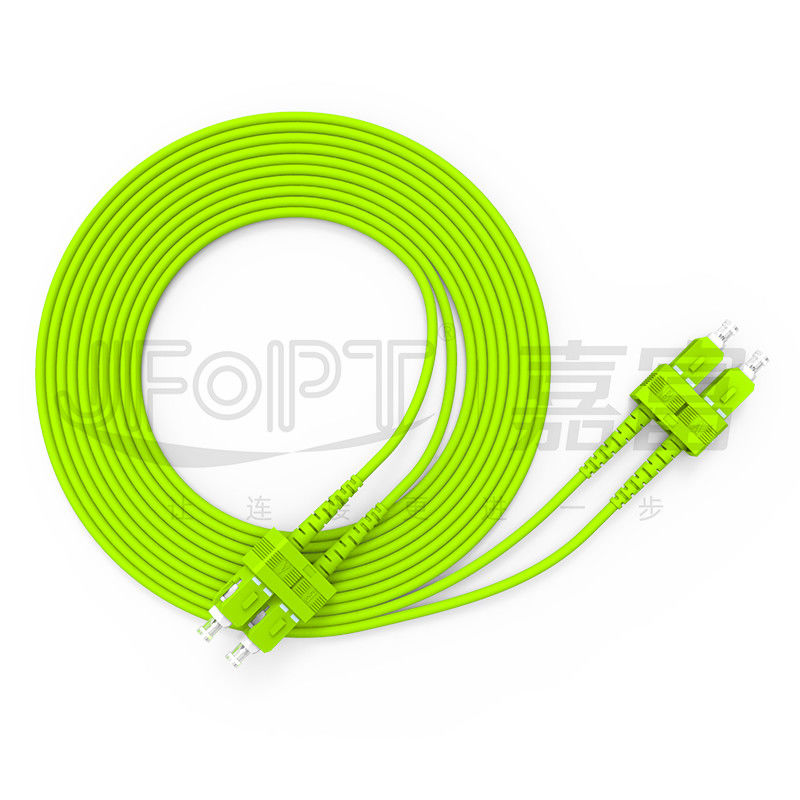

SC / UPC - SC / UPC Duplex Patch Cord Multimode OM1 OM2 OM3 OM4 OM5 YOFC / Corning Fiber
JFOPT offers SC fiber optic patch cords that comply with OM1, OM2, OM3, OM4, and OM5 standards. OM1 and OM2 multimode fibers are commonly used for 1G Ethernet link connections in data centers. OM3 and OM4 multimode fibers are suitable for 10G/40G data center fiber cabling. OM5 multimode fibers are designed for high-speed 40/100G Ethernet link transmission. SC connectors have a square shape and can be directly plugged without rotation, making installation more convenient. Duplex patch cords can be equipped with duplex clips for easy insertion, polarity management, and connection. The cable jacket color can be produced according to international standards or customized based on customer requirements. JFOPT also provides SC duplex connectors with UNIBOOT functionality, which, when used with single-tube duplex cables, reduce cabling volume.
♦ Features
|
①Utilizes renowned brands such as YOFC and Corning for fiber optic selection, ensuring transmission performance of patch cords |
②Utilizes bend-insensitive fibers to enhance transmission stability |
||||
|
|
|
||||
|
③ Incorporates high-quality low-loss ceramic ferrules |
④100% factory termination and testing to guarantee transmission performance |
||||
|
|
|
||||
|
⑤Equipped with duplex clips for convenient polarity adjustment according to requirements |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Connector Parameters
|
Connector Type |
SC DX |
|||
|
Ferrule Type |
Multimode - UPC |
|||
|
Ferrule Material |
Grade A Zirconia Ceramic Ferrule |
|||
|
Connector Color |
Connector Color : Beige / Aqua / Heather Violet |
|||
|
Compatible Cable Outer Diameter |
2.0/3.0mm |
|||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
|||
|
Return Loss |
Multimode : ≥25dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||
♦ Cable Parameters
|
Item |
Parameters |
|||
|
Fiber Type |
OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
2 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
LSZH / PVC |
|||
|
Outer Jacket Diameter |
(1.9±0.1)×(3.9±0.2)mm |
(2.9±0.1)×(5.9±0.2)mm |
||
|
Outer Jacket Color |
Orange / Green / Purple / Lime Green / Customized |
|||
|
Tensile Strength (Long-Term) |
90N |
160N |
||
|
Tensile Strength (Short-Term) |
150N |
300N |
||
|
Crush Resistance (Long-Term) |
200N/cm |
200N/cm |
||
|
Crush Resistance (Short-Term) |
1000N/cm |
1000N/cm |
||
|
Minimum Bending Radius (Dynamic) |
50mm |
60mm |
||
|
Minimum Bending Radius (Static) |
30mm |
30mm |
||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN / OFNR / OFNP |
|||
♦ Options of Duplex Patch Cord
|
Cable diameter |
Boot type |
Picture |
Drawing |
|
2.0mm |
Standard boot |
|
|
|
2.0mm |
Short Boot1 |
|
|
|
3.0mm |
Standard boot |
|
|
|
3.0mm |
Short Boot1 |
|
|
|
2.0/3.0mm |
45°Boot |
|
|
|
2.0/3.0mm |
90°Boot |
|
|
♦ Connector Housing Color Options
|
SC Connector |
||
|
Multimode |
Beige |
Aqua |
|
|
|
|
|
Heather Violet |
- |
|
|
|
- |
|
♦ Duplex Polarity Selection
|
TYPE A-B(Straight) |
|
|
|
TYPE A-A(Crossing) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on fiber optic patch cord production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber optic patch cords. |
|
||||
|
Manufacturing Capacity: With 5 production lines and equipment, JFOPT can rapidly and efficiently produce a large quantity of fiber optic patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control throughout the entire process, from raw material procurement to production, with professional quality inspection and monitoring, including insertion loss testing and end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to fiber optic patch cord production standards based on customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team that continuously develops advanced and high-performance fiber optic patch cords. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when customizing standard fiber optic patch cords?
Customization requirements for fiber optic patch cords may include length, cable material, fiber type and count, duplex polarity, color, labeling, and other specifications.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords by subjecting them to 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure consistent and stable product quality.
3.What other advantageous products do we offer besides SC patch cords?
In addition to SC patch cords, we also produce FC, ST, LC, and other standard patch cords. We offer various connector adapter patch cords, MPO adapters for standard connectors (such as LC), outdoor waterproof fiber optic cables and patch cords, as well as custom-made fiber optic connectors for special applications.
4.What is our delivery lead time?
For standard products, we can guarantee a delivery lead time of 2 working days, ensuring prompt shipment of your orders.
