Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH；Company : ISO9001 / ISO14001
Model Number:
LC OM1 / OM2 LSZH / PVC Orange
Contact Us

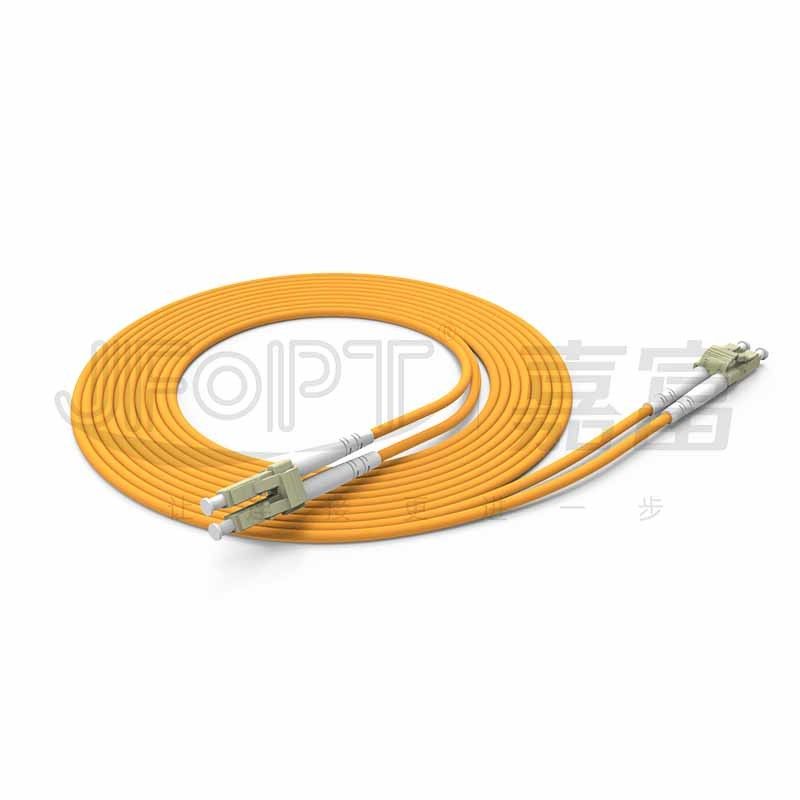

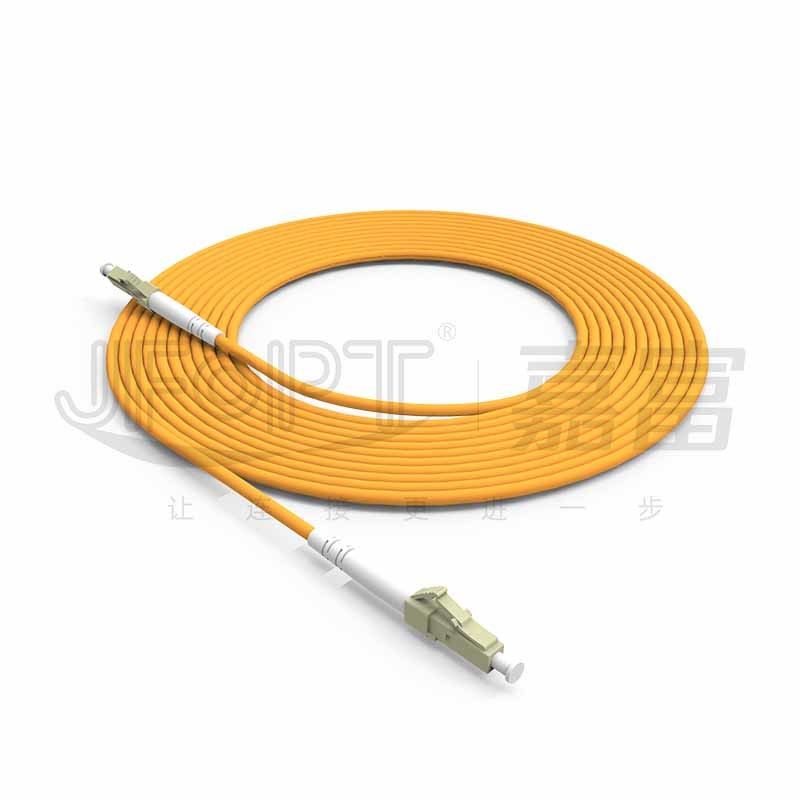

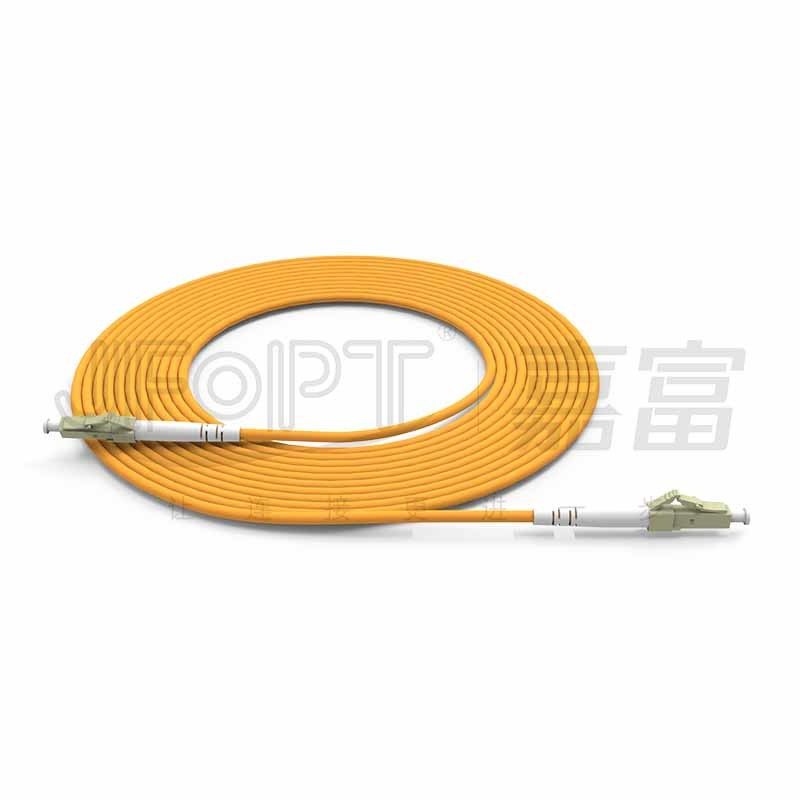

LC Fiber Optic Patch Cord Multimode OM1 OM2 Orange LSZH PVC
As a manufacturer with over 20 years of production experience, we have excellent production technology, a quality control team, and a complete set of advanced production equipment, enabling us to quickly provide high-quality, personalized, and differentiated LC jumpers. The key component of the connector, the ferrule, is made of high-precision ceramic ferrule, and multimode fibers are usually selected from well-known brands such as YOFC and Corning. They are commonly used for short-distance communication within buildings or campuses. Compared to high-bandwidth fibers such as OM3 and OM4, OM1 and OM2 fibers have cost advantages in Ethernet applications below 10Gbps.
♦ Features
|
① Simplex and duplex options |
② Made with high-quality YOFC fibers to enhance transmission stability |
||||
|
|
|
||||
|
③ High-quality, low-loss ceramic ferrule |
④ PVC cables available with OFNR/OFNP fire rating and UL certification |
||||
|
|
|
||||
|
⑤Customizable cable jacket material, color, connector color, identification ring, etc |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable television networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Technical Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End face type |
Multimode : UPC |
||||
|
Ferrule Type |
Grade A Zirconia Ceramic Ferrule |
||||
|
Connector Color |
Beige |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
|
Cable Characteristics |
Fiber Type |
OM1 / OM2 |
|||
|
Number of Fibers |
Simplex / Duplex |
||||
|
Outer Diameter |
0.9/2.0/3.0mm |
||||
|
Jacket Material |
PVC / LSZH / Customized |
||||
|
Cable Color |
Orange / Customized |
||||
|
Fire Rating |
OFN / OFNR / OFNP |
||||
|
Temperature Characteristics |
Operating Temperature |
-20~70℃ |
|||
|
Storage Temperature |
-40~80℃ |
||||
♦ 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC / FC / ST |
LC |
SC / FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Options
|
Duplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
2.0mm |
Standard boot |
|
|
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Standard boot |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
3.0mm |
Standard UNIBOOT |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
|
Simplex |
|||
|
Cable diameter |
Boot type |
Picture |
Drawings |
|
0.9mm |
Standard boot |
|
|
|
2.0mm |
Standard boot |
|
|
|
2.0mm |
Short boot 1 |
|
|
|
2.0mm |
Short boot 2 |
|
|
|
3.0mm |
Standard boot |
|
|
|
3.0mm |
Short boot 1 |
|
|
|
2.0/3.0mm |
45° boot |
|
|
|
2.0/3.0mm |
90° boot |
|
|
♦ Duplex Polarity Selection
|
TYPE A-B(Straight) |
|
|
|
TYPE A-A(Crossing) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on the production of fiber jumpers for over 20 years, with professional production technology to produce high-quality and high-performance fiber jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment to rapidly and efficiently produce a large quantity of fiber jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspection and monitoring at every stage from raw material procurement to production processes, conducting return loss testing and end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber jumper production standards based on customer requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Customization requirements may include fiber optic patch cord length, cable material, fiber type and count, duplex polarity, color, labeling, and other specific requirements.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT ensures the stability of our standard fiber optic patch cords by conducting 100% insertion loss testing and end-face inspection. Multiple inspections are performed to ensure consistent quality.
3.What other advantageous products do we offer besides LC patch cords?
In addition to LC patch cords, we also manufacture standard model patch cords such as FC, ST, SC, various connector adapter patch cords, MPO adapters for standard connectors (LC, etc.), as well as outdoor waterproof fiber optic cables and patch cords. We also provide various customized non-standard specialty fiber optic connectors.
4.What is our delivery lead time?
For standard products, we can control the delivery lead time within 2 working days, ensuring prompt shipment.
