Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH；Company : ISO9001 / ISO14001
Model Number:
Drop Cable 2.0*5.0 Outdoor LSZH Patch Cord Black
Contact Us

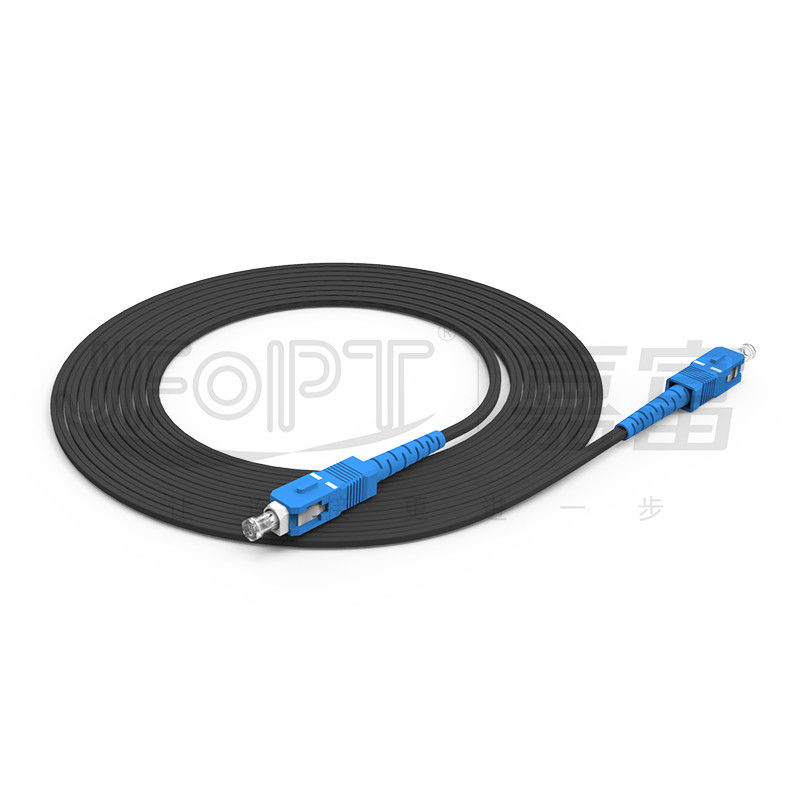

Autosupported Drop Cable Jumper 2.0*5.0mm FRP Tensile Suspension Wire Black LSZH UV - Resistant
JFOPT pre-terminates the drop cable of the drop cable jumpers in the factory, reducing the construction time of fiber-to-the-home installations. Compared to field fusion splicing and mechanical splicing, JFOPT's drop cable jumpers have lower loss and longer lifespan. JFOPT offers SC/FC/LC/ST connectors for skin cable jumpers, with the option of APC or UPC polished end faces. The redesigned drop cable jumpers come with built-in suspension steel wire and are reinforced with two FRP or steel strength members, enabling autosupported wiring between support points and increasing the tensile strength of the jumpers. The black LSZH jacket is suitable for outdoor applications, effectively preventing UV-induced aging damage to the optical cable. Drop cable jumpers can be directly connected to user distribution and termination boxes, allowing for quick installation and replacement, and reducing overall costs.
♦ Features
|

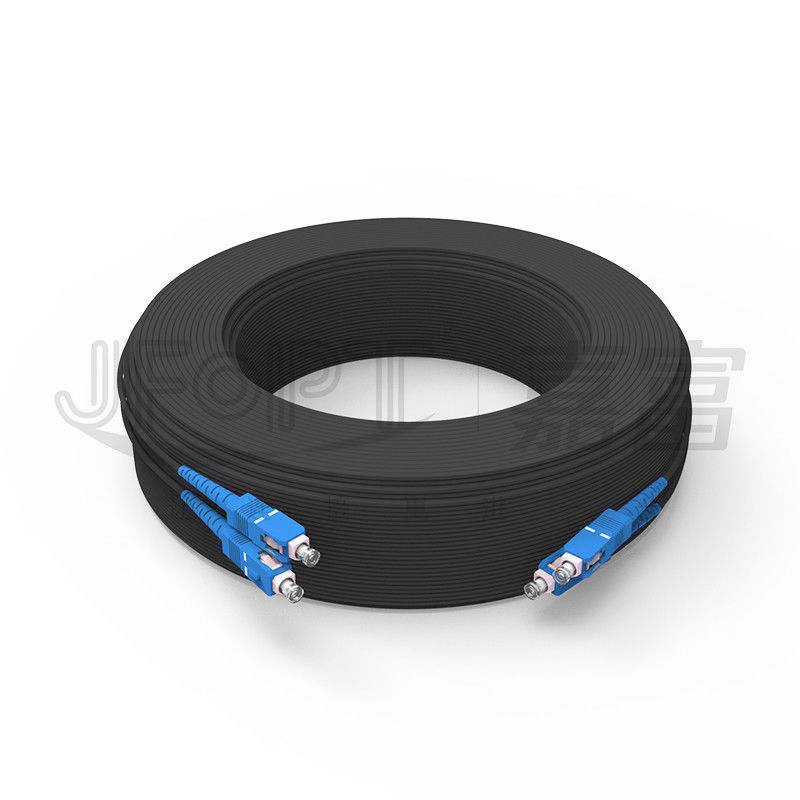

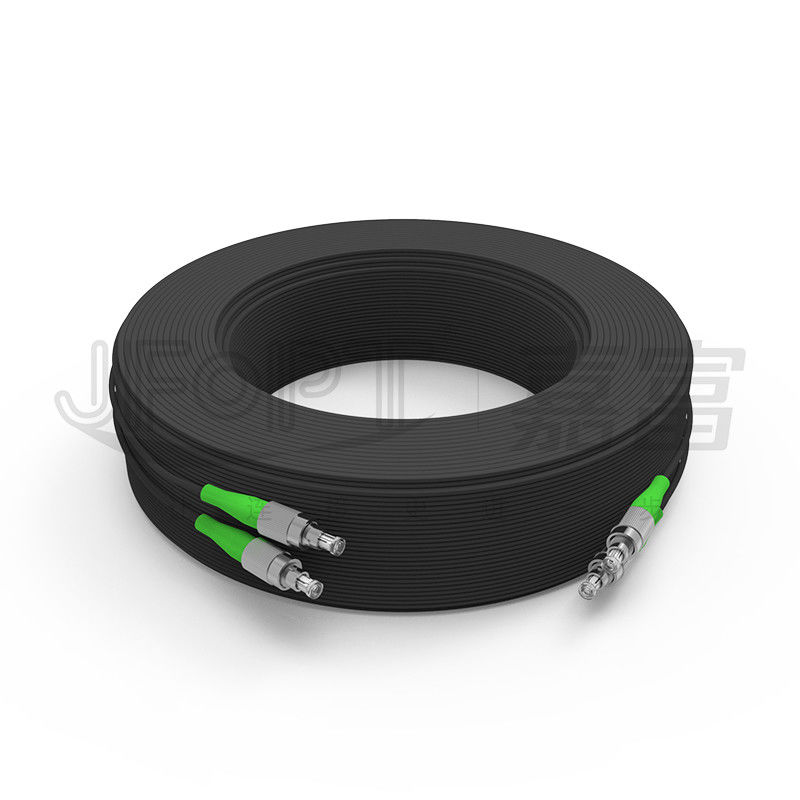

① Available with SC and FC connectors |
②Bend-insensitive fibers for improved transmission stability |
||||
|
|
|
||||
|
③Equipped with autosupported components to significantly enhance tensile strength |
④100% factory termination and testing to ensure transmission performance |
||||
|
|
|
||||
|
⑤ Suitable for FTTX projects |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, and telecommunication networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Connector Parameters
|

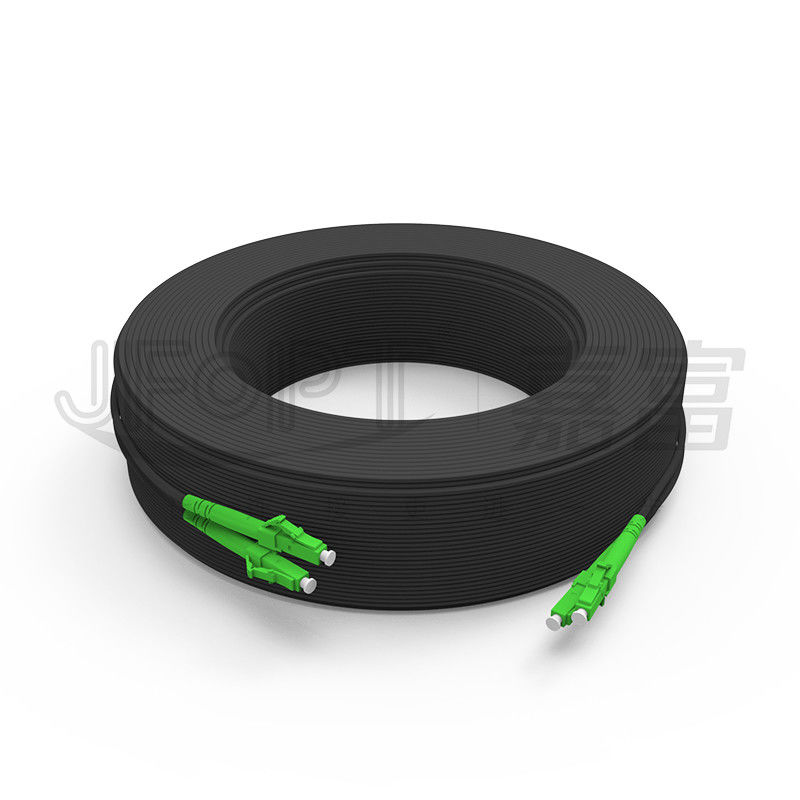

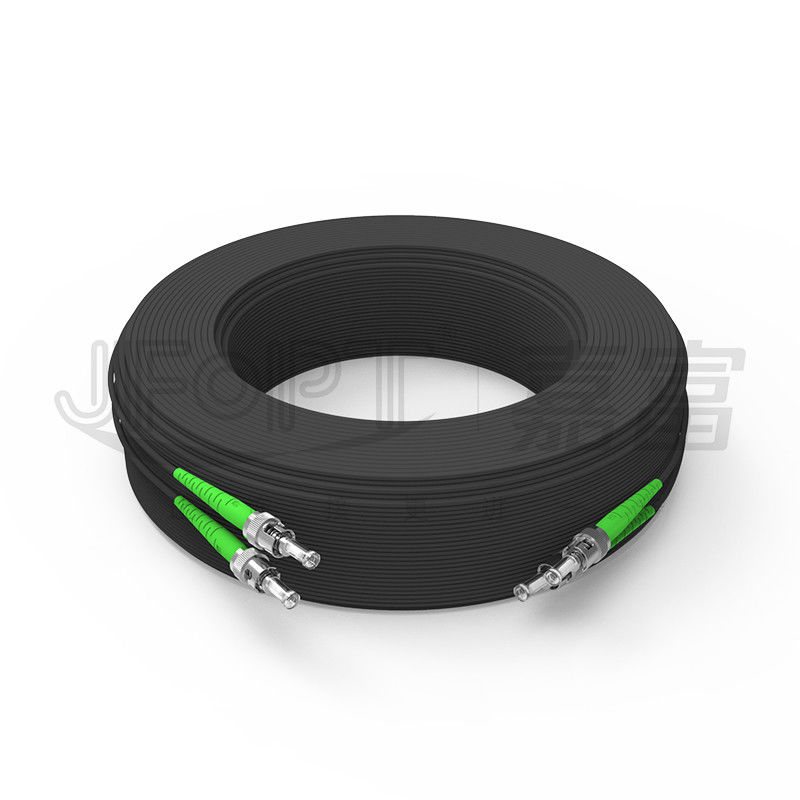

Connector Types |
SC / LC / FC / ST |
|||
|
Polish Types |
Single Mode : UPC / APC |
|||
|
Ferrule Type |
Grade A Zirconia Ceramic Ferrule |
|||
|
Connector Colors |
Blue / Green |
|||
|
Insertion Loss |
≤0.3dB / ≤0.2dB / ≤0.15dB |
|||
|
Return Loss |
Single Mode : UPC ≥ 50dB ; APC ≥ 60dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||

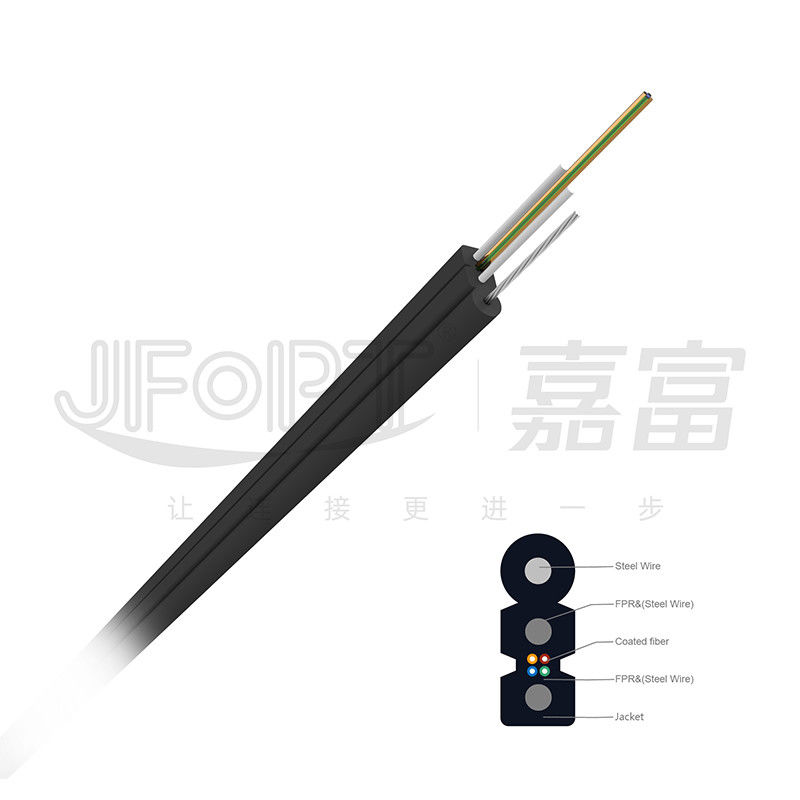

♦ Cable Parameters
|
Item |
Parameters |
|||
|
Fiber Type |
G652D / G657A1 / G657A2 |
|||
|
Fiber Count |
1 |
|||
|
Strength Member |
FRP or Steel Wire |
|||
|
Outer Jacket Material |
LSZH |
|||
|
Suspension Component |
Single Steel Wire or Stranded Steel Wire |
|||
|
Outer Jacket Diameter |
2.0*5.0mm |
|||
|
Outer Jacket Color |
Black / Customizable |
|||
|
Tensile Strength (Long-term) |
300N |
|||
|
Tensile Strength (Short-term) |
600N |
|||
|
Crush Resistance (Long-term) |
1000N/cm |
|||
|
Crush Resistance (Short-term) |
2200N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
60mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
OFN / OFNR / OFNP |
|||
|
These are the parameters for FRP reinforcement. For more details, please consult our company |
||||
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience, JFOPT focuses on the production of fiber optic jumpers and has professional manufacturing techniques to produce high-quality and high-performance fiber optic jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment, enabling fast and efficient production of large quantities of fiber optic jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes, such as return loss testing and end face inspection, to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber optic jumper production standards based on customer requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance fiber optic jumpers. |
|
||||
|
Service Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing standard fiber optic patch cords?
Fiber optic patch cord length / Cable material / Fiber type and count / Duplex polarity / Color / Labeling.
2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's standard fiber optic patch cords undergo 100% insertion loss testing and end-face inspection. Multiple inspections are conducted to ensure stable quality.
3.What other advantage products do we offer besides LC patch cords?
In addition to LC patch cords, we also manufacture FC/ST/SC and other standard model patch cords, various connector adapter patch cords, MPO adapters for standard connectors (such as LC), outdoor waterproof fiber optic cables and patch cords, as well as various non-standard and special model fiber optic connectors.
4.What is our delivery lead time?
For standard products, we can control the delivery lead time within 2 working days to ensure fast shipping for our customers.
