FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit

ST Pre Terminated Fiber Optic Cable

Breakout Patch Cord 12 Cores

Pre Terminated Breakout Patch Cord

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

FC / ST 12F Mesh Pulling - eye Breakout Patch Cord

Contact Us

Request A Quote
Product Details
Connector Type:
FC / ST
Fiber Type:
OS2/OM1/OM2/OM3/OM4/OM5
Fiber Count:
12 Cores
Cable Type:
Breakout Cable
Branch OD:
0.9/2.0/3.0mm
Branch Type:
Branches With Equal Length
Branch Material:
LSZH / PVC / Stainless Steel Armored
Cable Length:
5M/10M/50M/100M/200M / Customizable
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quotation will be provided based on customer requirements
Delivery Time
1-5 days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
20000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

FC / ST Pre - Terminated Breakout Cable Patch Cord 12 Cores Pulling - Eye Kit With Mesh With Equal Length Branches

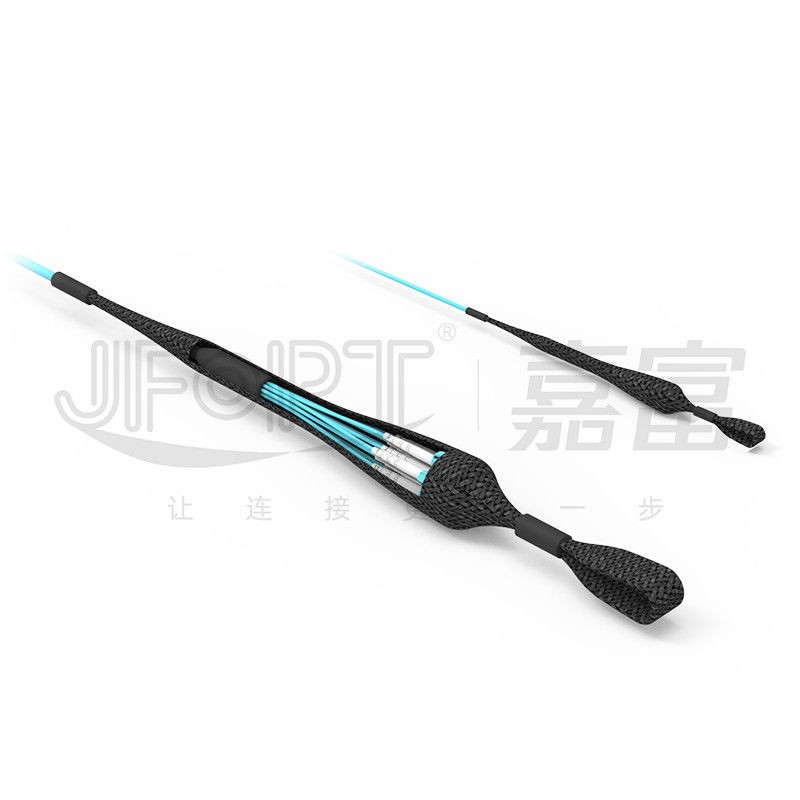

FC/ST pre-terminated breakout cable with mesh pulling-eye kit is a type of multi-core jumper that has been terminated with FC or ST connectors and added mesh pulling-eye kit on the branching part. All the branch can be kept the consistent length to achieve uniformity, or they can be arranged in a staggered manner to form non-uniform branching based on custom requirements. JFOPT has developed a mesh pulling-eye kit (without inner tube) for pre-terminated jumpers, which minimally increases the outer diameter of the branching section. This structure is mainly used to facilitate traction wiring under low tension requirements.



♦ Features

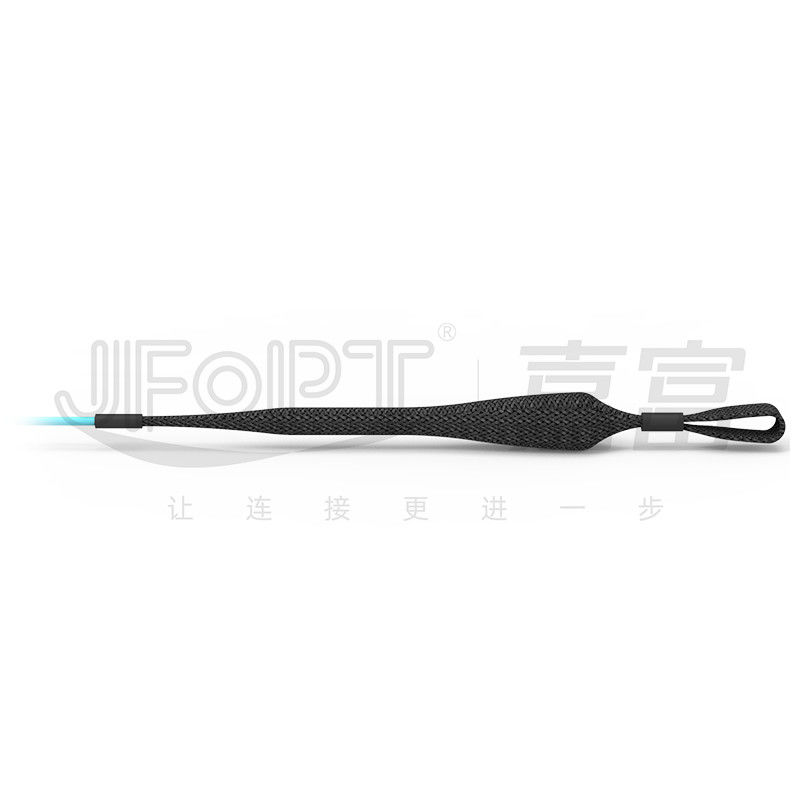

① Simple traction structure, cost-effective, and easy to operate

②Compatible with optical cables with outer diameters ranging from 3-25mm

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 0

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 1

③Branch outer diameter options: 0.9mm/2.0mm/3.0mm

④Customizable connectors, cable models, branch lengths, etc

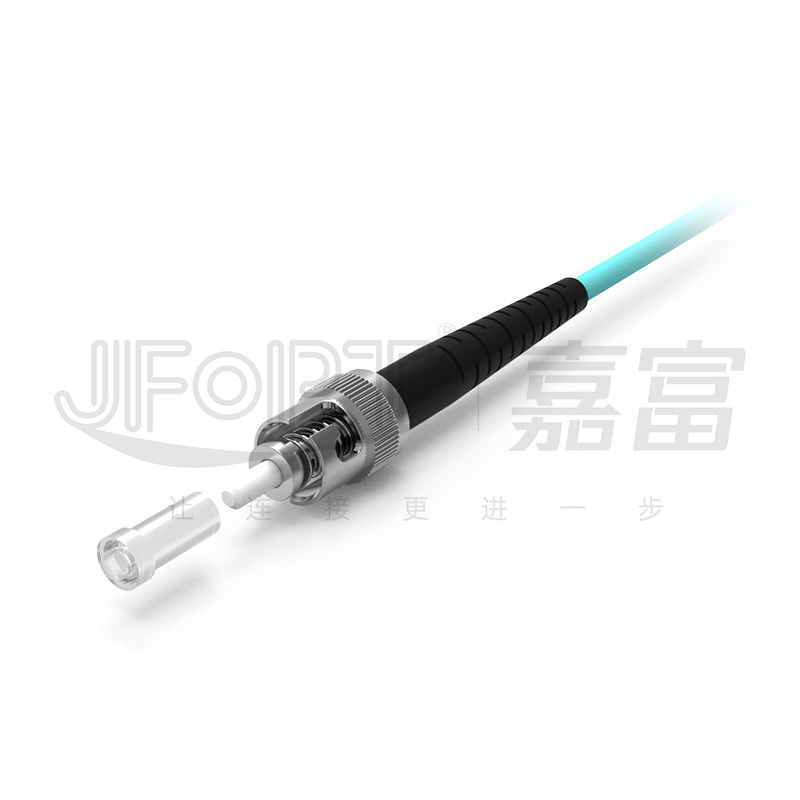

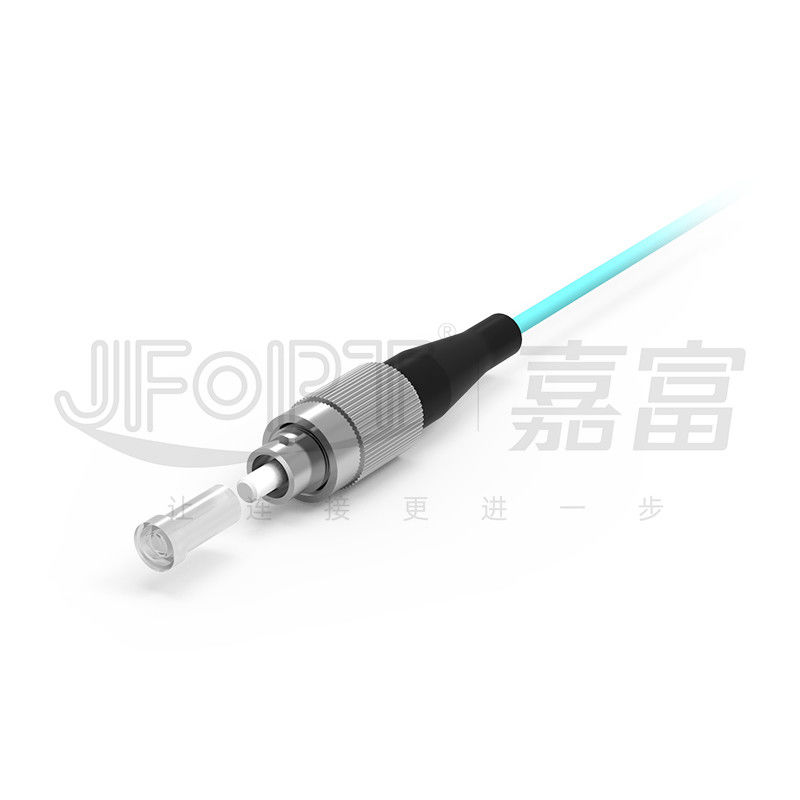

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 2

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 3

⑤ 100% factory termination and testing to ensure transmission performance



FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 4

-



Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ Connector Parameters

Connector Type

SC/LC/FC/ST

Ferrule Type

Single Mode: UPC/APC; Multi Mode: UPC

Ferrule Material

A-grade zirconia ceramic ferrule

Connector Color

Blue/Green/Beige/Aqua/Mauve

Insertion Loss

≤0.3dB/≤0.2dB/≤0.15dB

Return Loss

Single Mode: UPC≥50dB; APC≥60dB; Multi Mode: ≥25dB

Repeatability

≤0.2dB

Interchangeability

≤0.2dB



♦ 3D Geometry Parameters (optional)

Items

UPC

APC

SC / FC / ST

LC

SC / FC

LC

SM

MM

SM

MM

SM

SM

Radius of curvature (mm)

10-25

7-25

5-12

Apex offset (μm)

≤50

≤30

Fiber Depressed (nm)

±100

Angle deviation (°)

0

8±0.3

Bond angle deviation (°)

0

±0.5

Fiber diameter (μm)

123-135



♦ Optical Cable Parameters

Project

Parameter

Fiber Type

G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3 / OM4 / OM5

Fiber Count

2

4

6

8

12

24

36

48

Tight Buffer Diameter

0.9mm

Strength Member

Aramid yarn

Outer Jacket Material

PVC / LSZH

Outer Jacket Diameter

3.0mm

5.0mm

5.2mm

5.5mm

6.2mm

8.2mm

9.5mm

10.5mm

Outer Jacket Color

Yellow / Orange / Aqua / Green / Violet / Customized

Tensile Strength (Long-Term)

150N

300N

Tensile Strength (Short-Term)

300N

600N

Crush Resistance (Long-Term)

200N/10cm

Crush Resistance (Short-Term)

1000N/10cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

OFN / OFNR /O FNP



♦ Branching Options

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 5

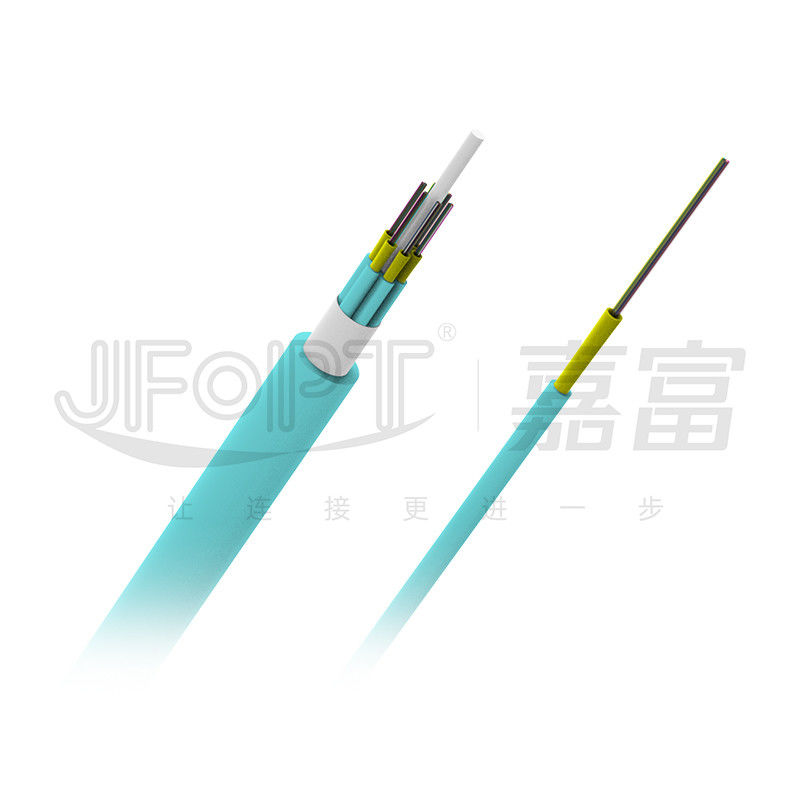

Main Cable Structure

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 6

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 7

Fanout with equal length

Fanout with unequal length

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 8

Branching of direct Sub-unit

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 9

Branching of fber with 2.0/3.0mm loos tube

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 10

Branching of fiber with 3.0mm bare armored tube

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 11

Branching of fiber with 3.0mm spiral armor tube



♦Product Packaging

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 12

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 13

Thickened self-sealing bag packaging

Thickened carton packaging



 Factory Strength

Expertise:


JFOPT has accumulated years of experience in the production process of large core jumper, ensuring low loss and an extended lifespan in complex environments.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 14

Manufacturing Capacity:


With 5 production lines and equipment, JFOPT is equipped with professional large-diameter multi-core cable cutting machines, ensuring fast, efficient, and neatly wound cables to ensure prompt delivery.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 15

Quality Control:


JFOPT implements strict quality control, addressing any abnormal issues typically encountered in large core-count cables through optimizing the quality of raw materials. All connector production processes undergo 100% inspection and testing.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 16

Standard Development:


JFOPT can customize jumper cables according to user requirements, including cable color, outer diameter, fiber core type and quantity, and packaging structure. Sample sealing and engineering drawings are used to ensure the implementation of product technical specifications and consistency across different batch orders.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 17

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team continuously developing more advanced and high-performance fiber jumpers.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 18

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

FC / ST Pre Terminated Fiber Optic Cable Breakout Patch Cord 12 Cores Pulling Eye Kit 19



♦ Frequent Q&A

1.What should be considered when customizing standard fiber optic patch cords?
Total length of the patch cord / Branch length / Branch cable diameter / Fiber cable material / Fiber type and number of cores / Color / Labeling and other customization requirements.



2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's fiber optic patch cords undergo a process design to ensure that 100% of the connectors pass the insertion loss test and end-face inspection, guaranteeing stable parameters.



3.What is our delivery lead time?
For standard products, our delivery lead time is controlled within 5 working days, ensuring quick shipment.
