Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH；Company : ISO9001 / ISO14001
Model Number:
Drop Cable 2 Cores 2.0*3.0mm LSZH Breakout Patch Cord
Contact Us

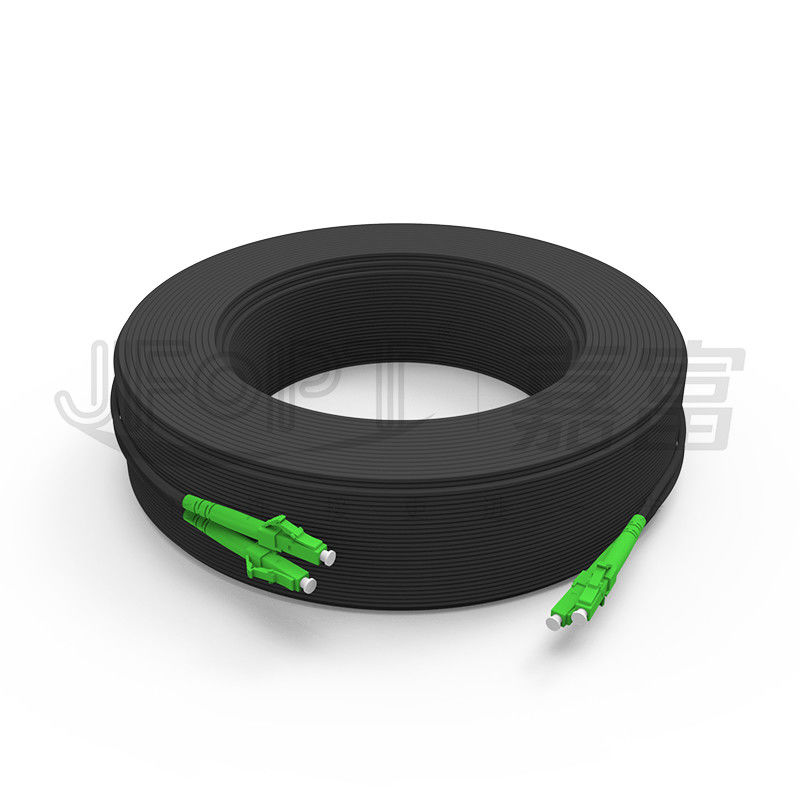

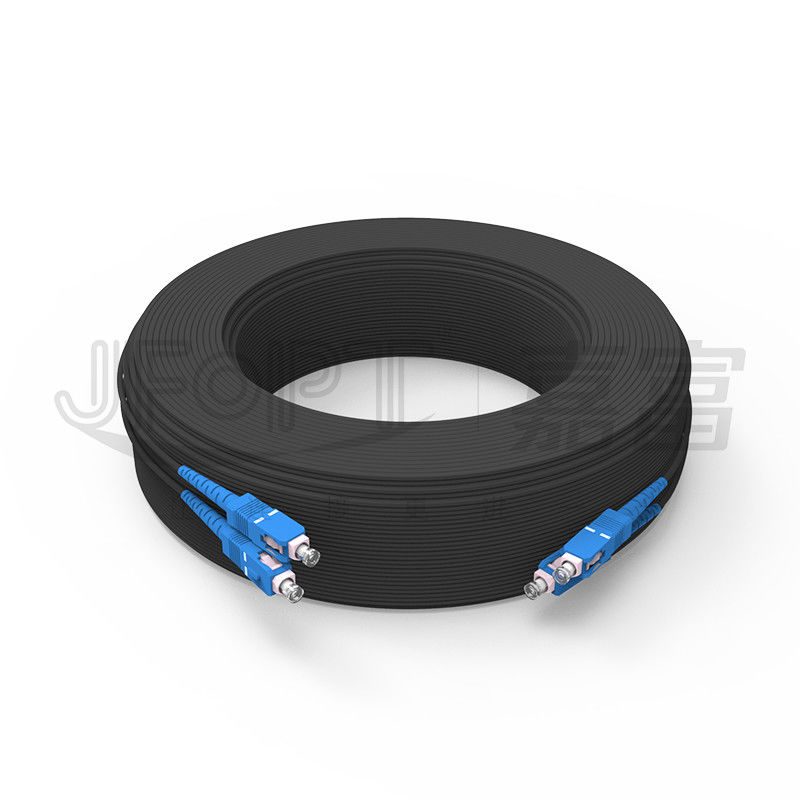

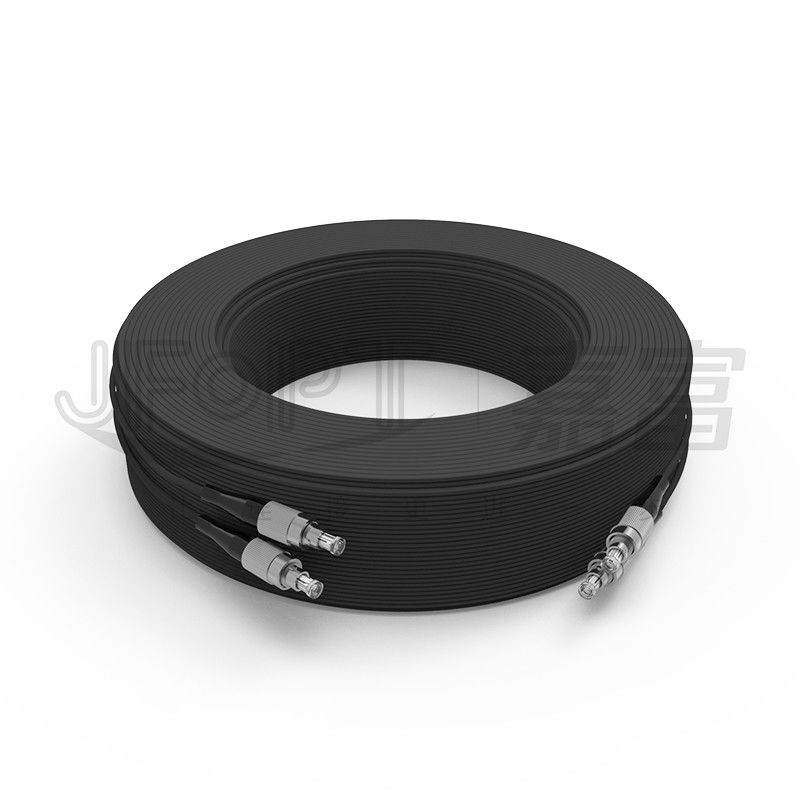

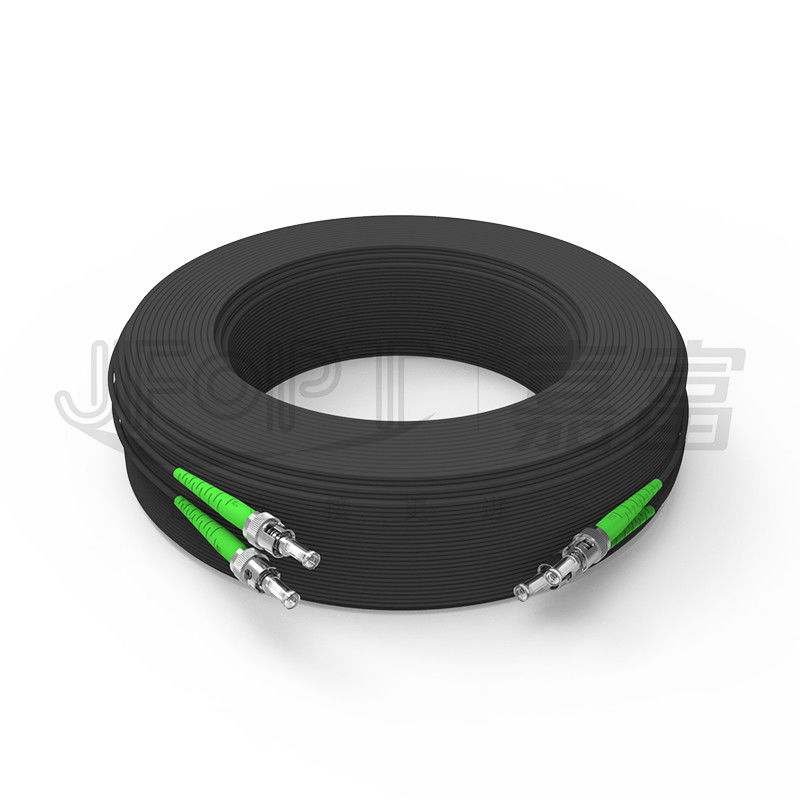

2 Cores 4 Cores 2.0*3.0mm LSZH FTTH Drop Cable Breakout Fiber Optic Patch Cord
The 2.0*3.0 2cores/4cores drop cable branch patch cord typically uses two parallel FRP or metal strength members to provide excellent compression resistance . The optical fibers are positioned at the geometric center of Bow-type figure 8 drop cable , effectively protecting the internal fibers. JFOPT's 2cores/4cores drop cable s are produced on our own optical cable production line, along with our own connector production workshop. We use high-quality processes and grinding equipment, follow standard production procedures to ensure stable quality. With over 20 years of patch cord production experience and over 10 years of experience in FTTHx drop cable production, JFOPT can provide various customization services, such as connector types, cable lengths, branch lengths, and cable colors to meet different wiring requirements.
♦ Features
|
①Multi-core branch with customizable branch lengths |
② Multiple options for different fiber types with stable quality |
||||
|
|
|
||||
|
③ Ample stock, available in reel or spool packing, for quick delivery |
④ Lightweight cable with strong tensile strength and small bending radius |
||||
|
|
|
||||
|
⑤ Optional FRP or steel wire strength members to meet different wiring needs |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, and telecommunication networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ Connector Parameters
|
Connector Type |
LC / SC / FC / ST |
|||
|
Polishing |
Single mode - UPC / APC ; Multimode - UPC |
|||
|
Ferrule Material |
Grade - A zirconia ceramic |
|||
|
Connector Housing Color |
Blue / Green / Beige / Aqua / Violet |
|||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
|||
|
Return Loss |
Single mode - UPC≥50dB ; APC≥60dB ; Multimode: ≥25dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Interchangeability |
≤0.2dB |
|||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
G657A1 / G657A2 / OM3 / OM4 |
|||
|
Fiber Count |
2 - core / 4 - core |
|||
|
Strength Member |
FRP |
Steel wire |
||
|
Outer Jacket Material |
LSZH |
|||
|
Outer Jacket Diameter |
2.0*3.0mm |
|||
|
Outer Jacket Color |
Black / Gray / White / Customized |
|||
|
Tensile Strength (Long-term) |
40N |
100N |
||
|
Tensile Strength (Short-term) |
80N |
200N |
||
|
Crush Resistance (Long-term) |
500N/cm |
1000N/cm |
||
|
Crush Resistance (Short-term) |
1000N/cm |
2200N/cm |
||
|
Minimum Bending Radius (Dynamic) |
60mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
OFN / OFNR / OFNP |
|||
♦ 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC / FC / ST |
LC |
SC / FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||

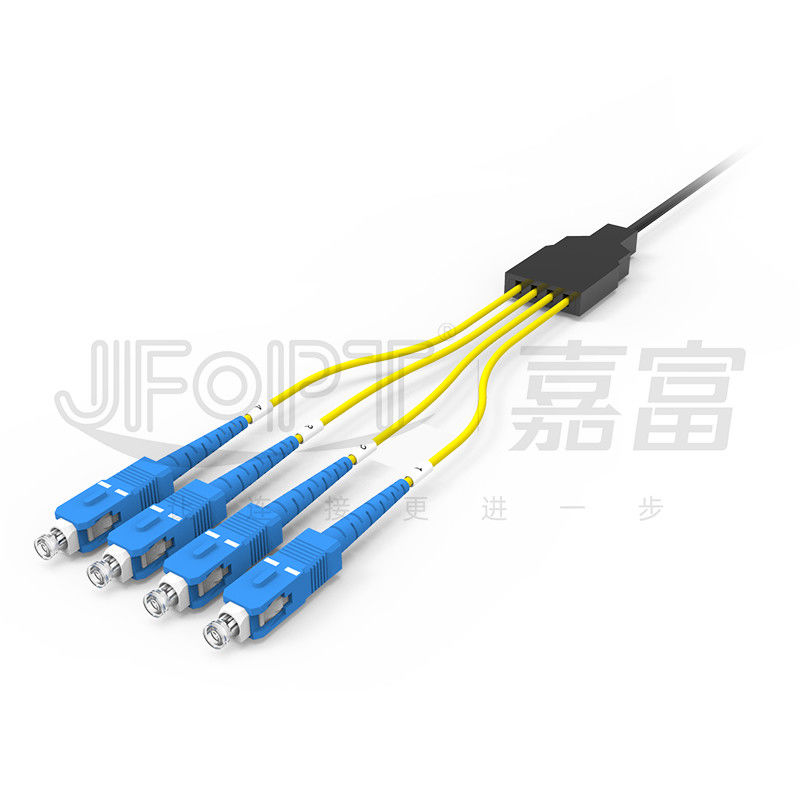

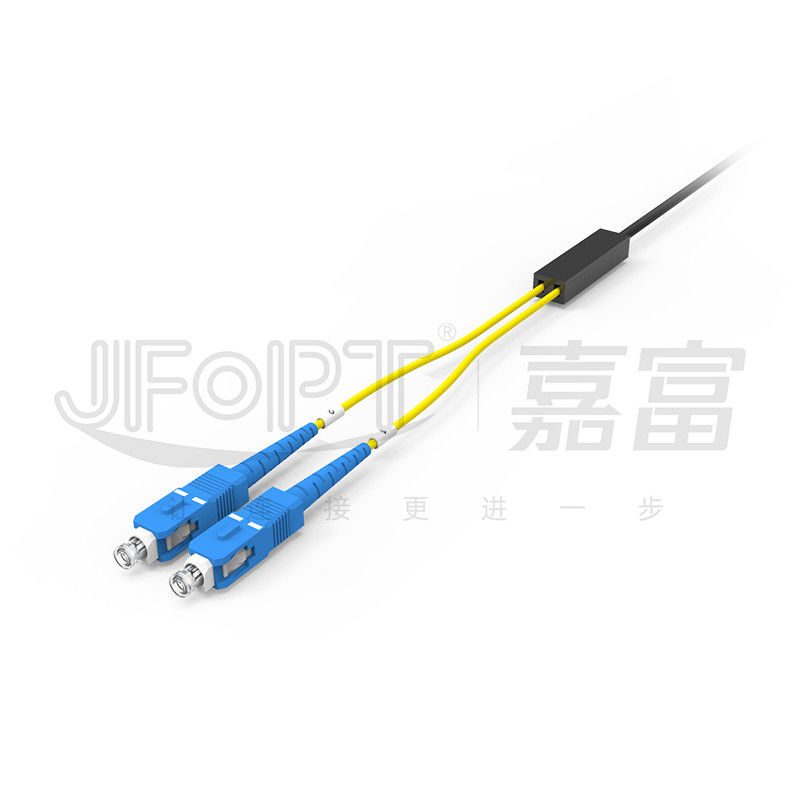

♦ Multi-core Branch Structure
|
Main cable stripping structure |
|
|
|
Branch structure display (single side) |
|
|
♦ Product Packaging
|
|
|
|
Thickened ziplock bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of focus on fiber optic patch cord production, JFOPT has professional manufacturing techniques to produce high-quality and high-performance patch cords. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 production lines and equipment, enabling fast and efficient production of large quantities of fiber optic patch cords to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspection and monitoring at every stage, from raw material procurement to production processes, conducting insertion loss testing and end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can develop and strictly adhere to fiber optic patch cord production standards based on customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing fiber optic patch cords. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when customizing fiber jumpers?
Customization requirements for fiber jumper length, cable material, fiber type and core count, wiring sequence, color, labels, and other specifications should be taken into consideration.
2.How do we ensure the stability of our fiber jumpers?
JFOPT ensures the stability of our fiber jumpers through 100% insertion loss testing and end-face inspection, employing multiple inspections to guarantee consistent quality.
3.What other advantageous products do we offer besides fiber jumpers?
In addition to fiber jumpers, we offer a variety of products including fiber distribution boxes, fiber termination boxes, fiber splice enclosures, fiber connectors, fiber attenuators, fiber loopbacks, and fiber quick connectors.
4.What is our delivery time?
For standard products, our delivery time can be controlled within 2 working days, ensuring prompt shipment to meet your needs.
