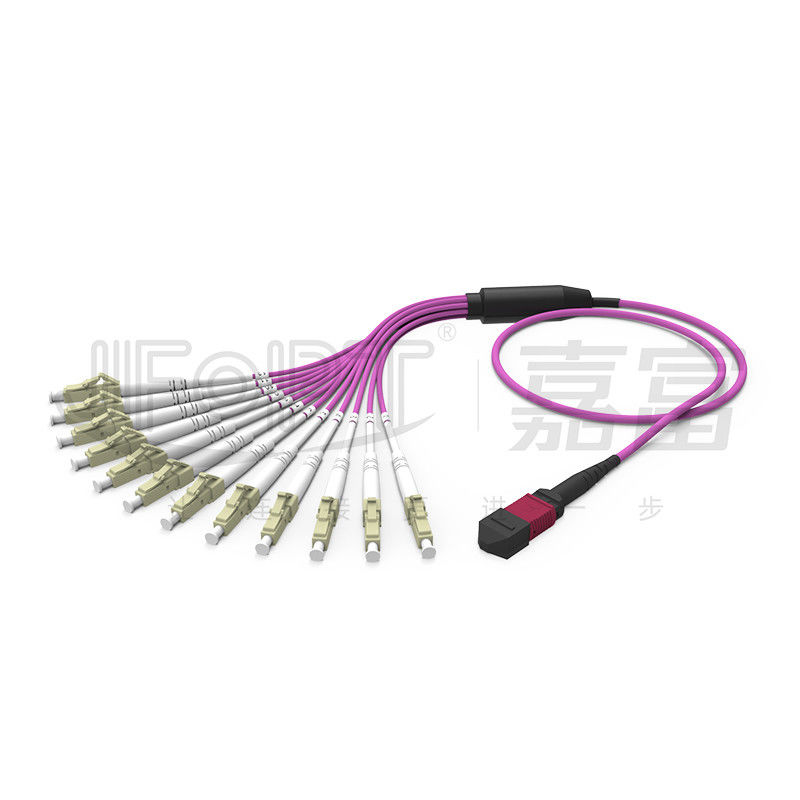

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule

Breakout Patch Cord 2.0mm Fanout

MPO - LC Breakout Patch Cord

2.0mm Fanout Breakout jumper

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO - LC 2.0mm MM SL

Contact Us

Request A Quote
Product Details
Connector Type:
MPO / LC DX
Fiber Type:
OM3 / OM4 / OM5
Wavelength:
850/1300nm
Insertion Loss:
MPO : 0.20dB(Typical) ; LC : ≤0.3dB
Return Loss:
≥20dB
Branch Diameter:
2.0mm
Main Cable Type:
3.0mm Mini Cable
MPO Connector Housing Color:
Green / Yellow / Beige / Aqua / Magenta
Connector Boot Selection:
Standard Boot / Short Boot
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quoted based on product cable model/ length and fiber count
Delivery Time
1-3 Days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule

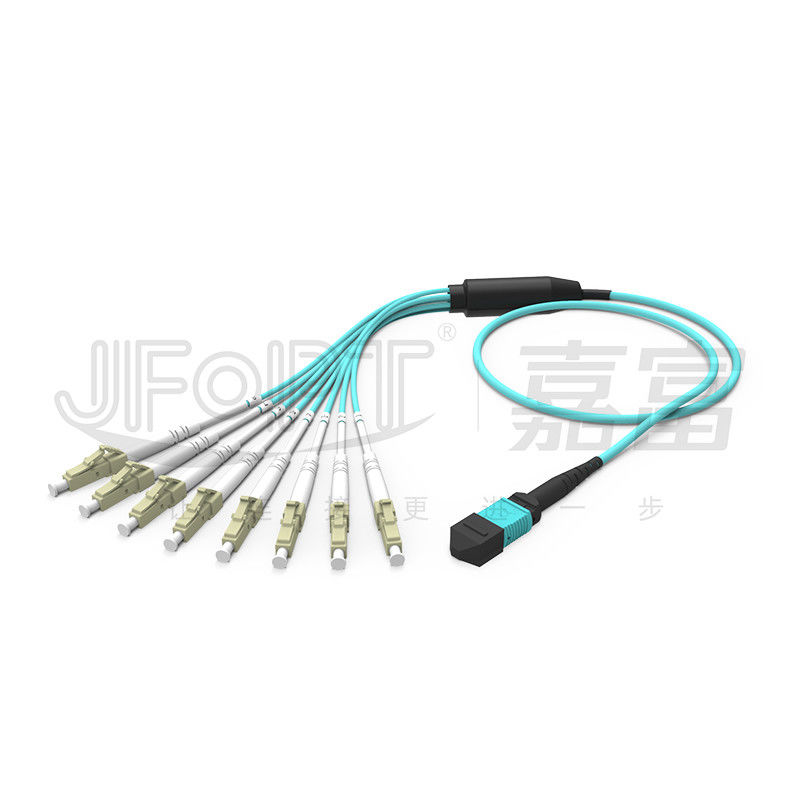

MPO-LC branch jumpers are mainly used for fiber distribution and termination in Multi-core Mini cables or ribbon cables. They divide the 8/12/24 fibers MPO connector into corresponding numbers of LC connectors. JFOPT's MPO-LC branch jumpers are all manufactured using the fanout kit glue injection process. The size and fiber holes of the fanout kit are independently produced based on actual dimensions, ensuring high tensile and anti-recoil capabilities. The LC end is designed with duplex with clip, allowing for flexible channel selection. The 2.0mm branch jacket provides excellent protection for the branch fibers, and for higher strength protection, stainless steel spiral armor can be selected as the branch tube. JFOPT's MPO-LC branch jumpers can be customized according to customer requirements for different cable types, fiber counts, lengths, colors, and outer jackets. They undergo 100% 3D interferences and factory testing to ensure that customers receive products that meet their expectations.



♦ Features

①Suitable for 10G/40G/100G high-density structured fiber cabling
② LSZH/OFNP/OFNR outer jackets are available

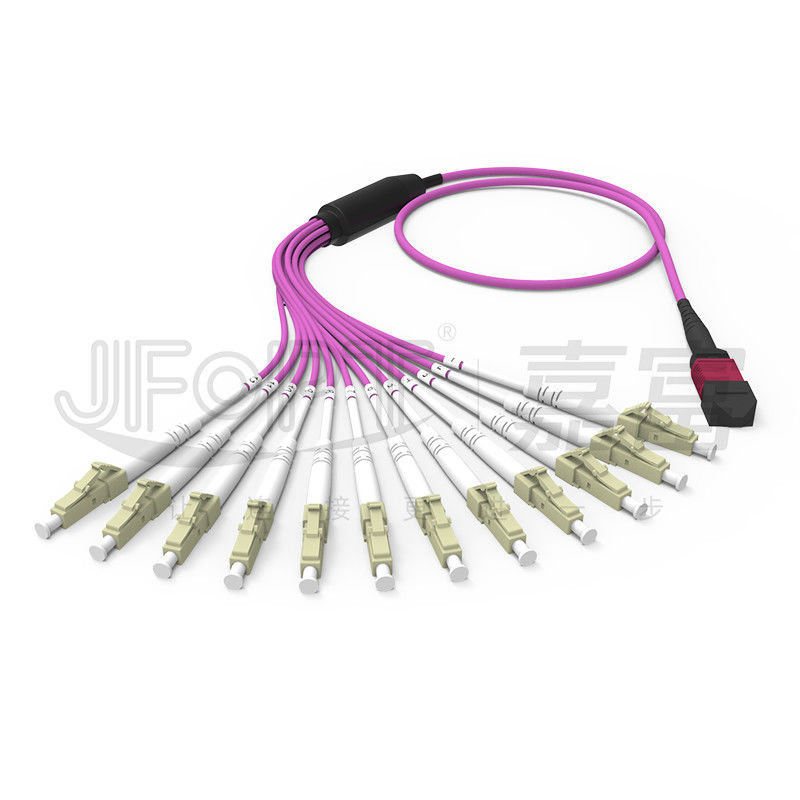

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 0

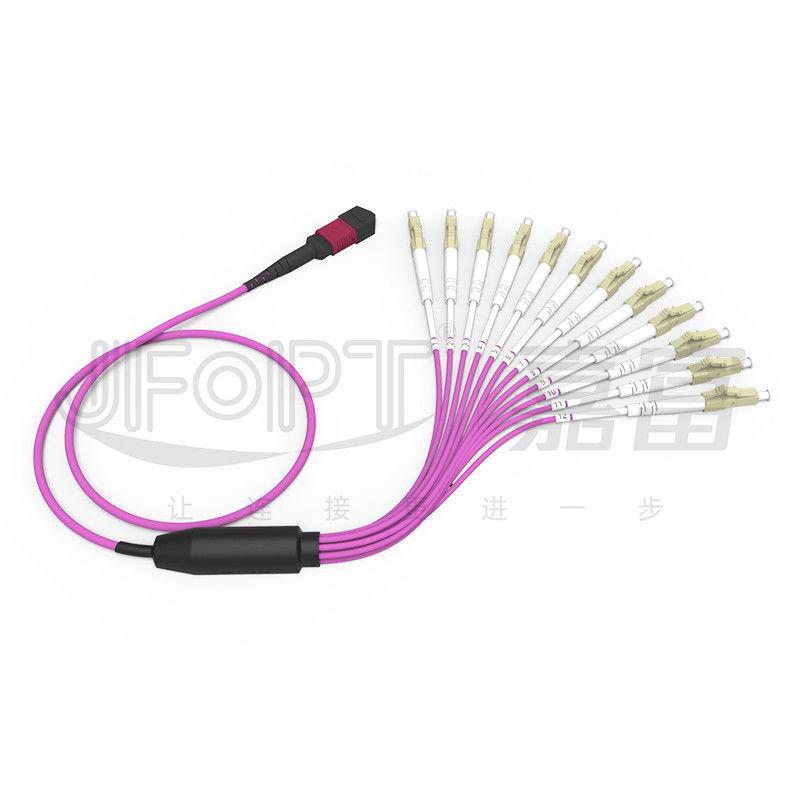

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 1
③ JFOPT MPO neutral connectors are made of the same materials and precision molds as international mainstream brands
④ Available in 6-core, 8-core, 12-core, 16-core, etc

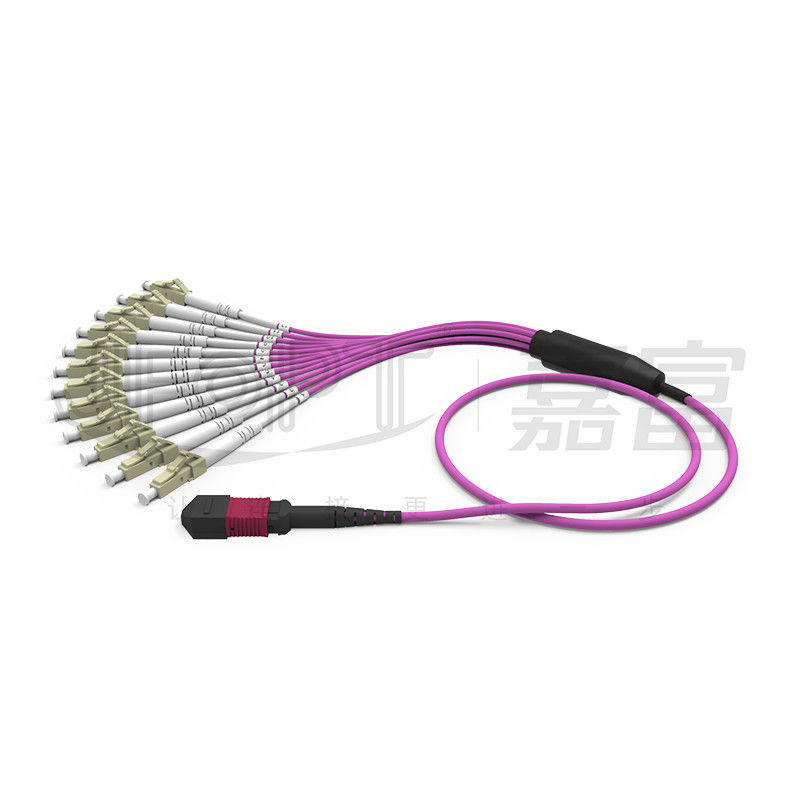

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 2

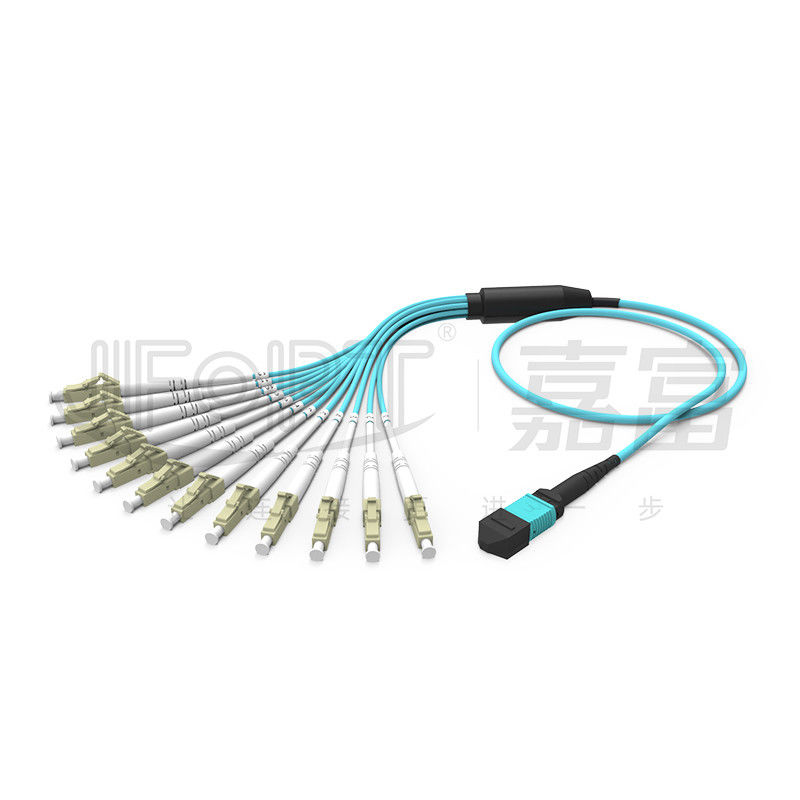

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 3
⑤ TYPE-A/TYPE-B/TYPE-C polarity are selectable
⑥ JFOPT MPO jumpers pass environmental and salt spray tests

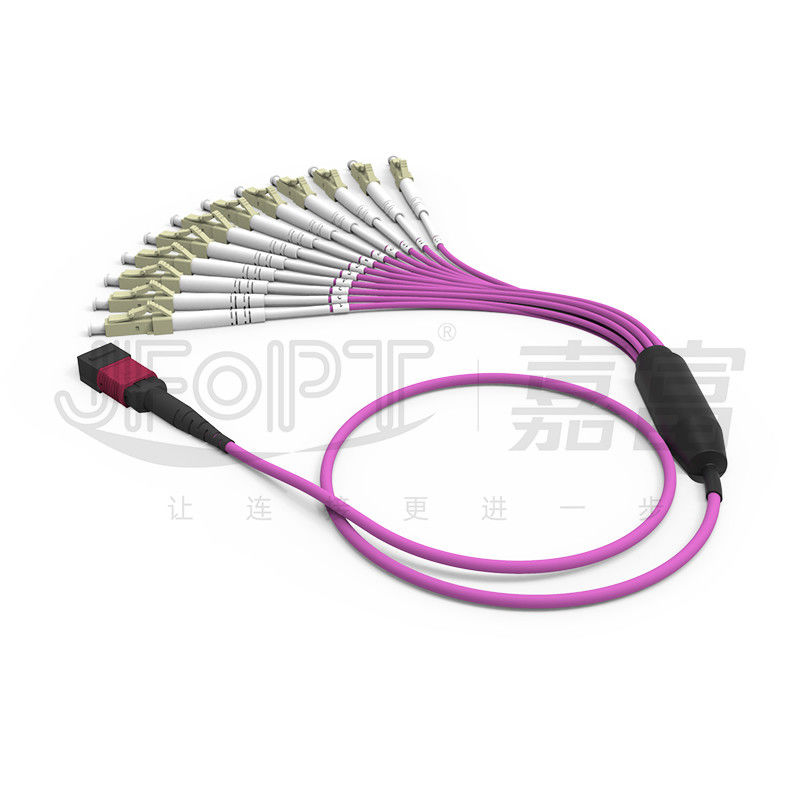

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 4

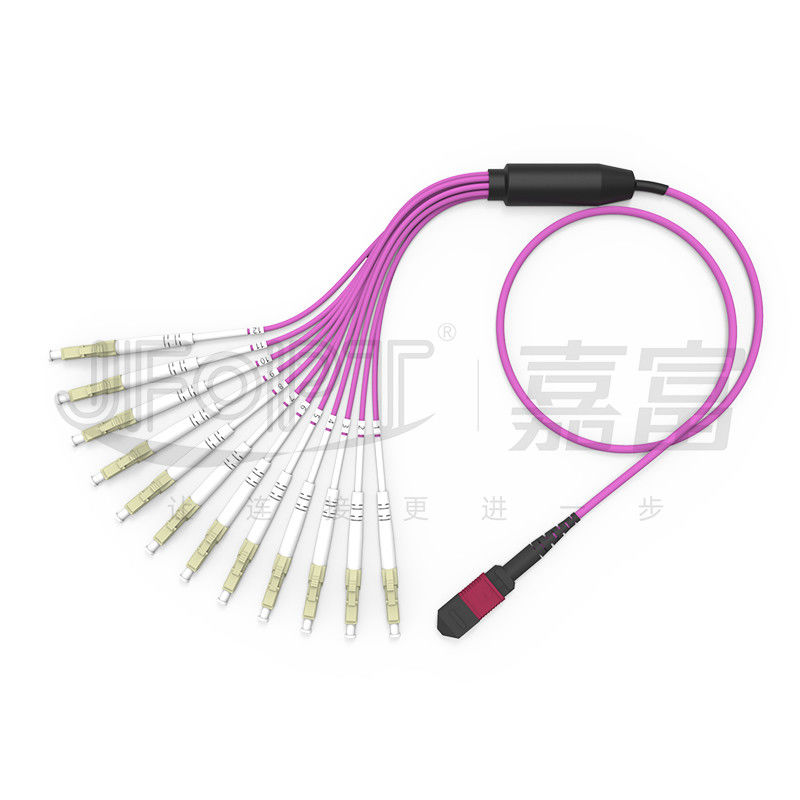

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 5



♦ Applications

1.Data center cabling.
2.40G/100G optical communication systems.
3.Fiber communication systems, cable television networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MPO Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MTP Connector

SM Standard

0.25dB

0.5dB

APC≥60dB
PC≥50dB

SM Low Loss

0.12dB

0.25dB

MM Standard

0.2dB

0.45dB

PC≥25dB

MM Low Loss

0.12dB

0.25dB

Male/Female

Male: with Pin, Female: without Pin



♦ 3D Geometric Parameters (Optional)

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



♦ Connector Housing Color Selection

MPO connector

SM

Green

Yellow

Reference color number PANTONE 2270C

Reference color number PANTONE 100C

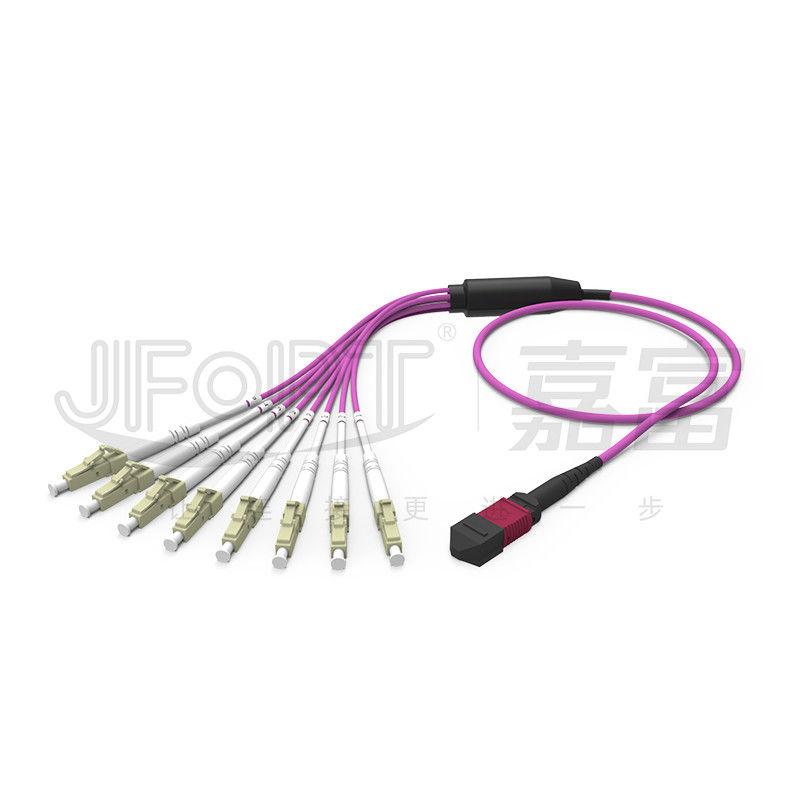

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 6

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 7

MM

Beige

Aqua

Reference color number PANTONE 7534C

Reference color number PANTONE 2226C

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 8

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 9

Violet

-

Reference color number PANTONE 7641C

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 10



♦ Cable Parameters

Project

Parameters

Fiber Type

Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5

Fiber Count

Optional : 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional : LSZH / PVC / TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Yellow / Orange / Aqua / Magenta / Custom

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Resistance (Long-term)

100N/cm

Crush Resistance (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional : OFN / OFNR / OFNP



♦ Fanout Options

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 11

Main Cable Structure

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 12

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 13

Fanout with Equal Lengths

Fanout with Unequal Lengths

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 14

Fanout 0.9mm Branch

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 15

Fanout 2.0/3.0mm Branch



♦ Polarity Selection

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 16



♦ Product Packaging

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 17

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 18

Thickened anti-static bag

Thickened carton



♦ Factory Strength

Specialization​:


With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 19

Manufacturing Capability:


JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 20

Quality Control:


JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 21

Standardization:


JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 22

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 23

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

MPO - LC Breakout Patch Cord 2.0mm Fanout LC DX With Clip MM Standard Loss Ferrule 24



♦ Frequent Q&A

1.What should be considered when customizing MPO branching jumpers?
It is important to consider the length, branch length, branch diameter, cable material, fiber type and count, Male or Female connectors, insert loss standards, color, labeling, and other customization requirements.



2.How do we ensure the stability of our fiber jumpers?
JFOPT's fiber jumpers undergo 100% insertion loss testing and end-face inspection, ensuring stable performance.



3.What is our delivery time?
For standard products, our delivery time is within 5 working days, ensuring prompt shipment.



4.What other MPO-related products do we offer?
We also manufacture MPO loopbacks, MPO attenuators, MPO Male-Female adapters, MT jumpers, and other MPO-related products.
