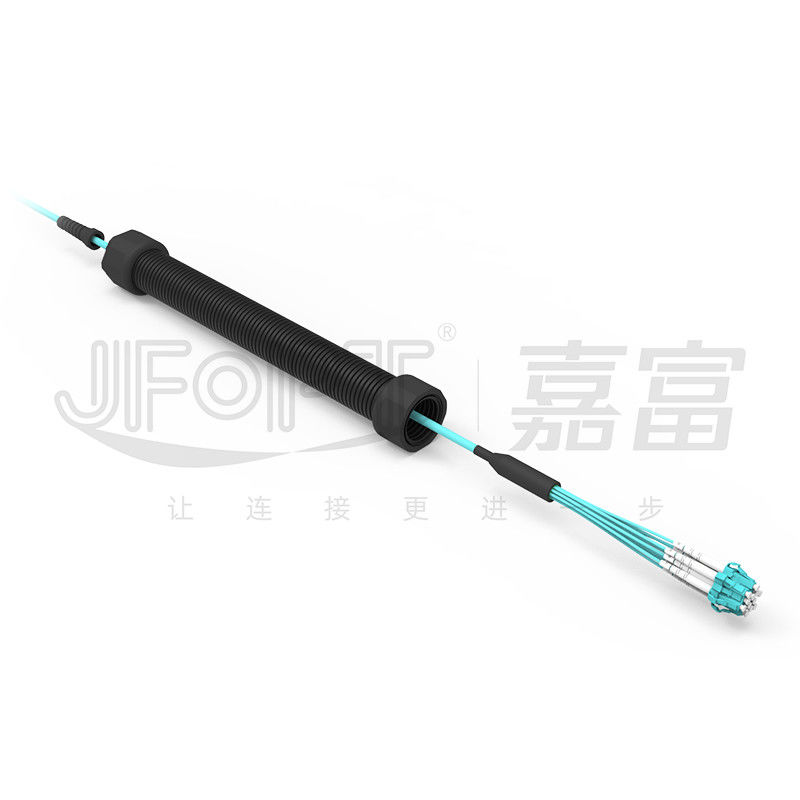

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch

Waterproof Pre Terminated Fiber Optic Cable

PA Corrugated Tube pre terminated cable

Waterproof Quick Disassembly pre terminated cable

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

PA Tube PULLINGEYE

Contact Us

Request A Quote
Product Details
Tractive Protective Tube:
PA Corrugated Tube
Tractive Component:
Customized Pulling-eye
Connector Type:
No Restriction
Suitable Fiber Count:
4/6/8/12/24/48 Cores/customizable
Suitable Cable Outer Diameter:
3-25mm
Disassembly Tool:
Screwdriver
Branch Selection:
Equal Branch / Unequal Branch
Branch Length:
≤1M
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Quotation will be provided based on customer requirements
Delivery Time
1-5 days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
20000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Pre - Terminated Waterproof Jumper With PA Corrugated Tube Unequal Branch And Waterproof Quick Disassembly Design



PA corrugated tube pre-terminated waterproof jumper utilizes high-quality transparent PA corrugated tube, combined with customized pulling-eye and boot of the rack, to achieve mechanical sealing of the branching section. This prevents damage to the branching section of the jumper due to impact or friction during traction wiring. It can withstand large pulling forces and has the flexibility to easily navigate through pipelines. JFOPT can customize branch length of the waterproof jumper according to the customer's actual needs.



♦ Features

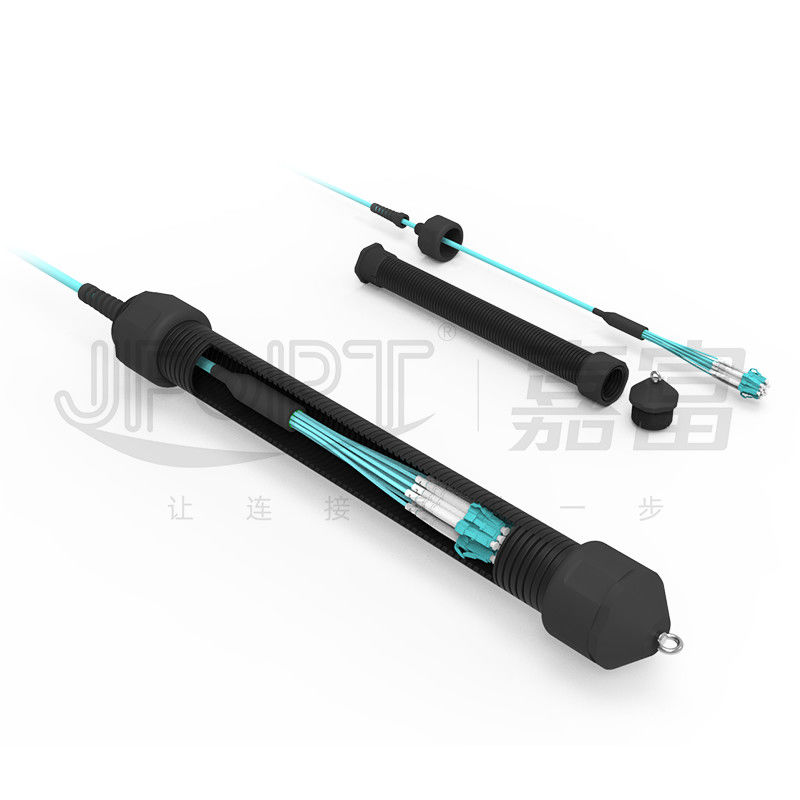

① Full mechanical fastening, waterproof quick disassembly design

② Repeated use

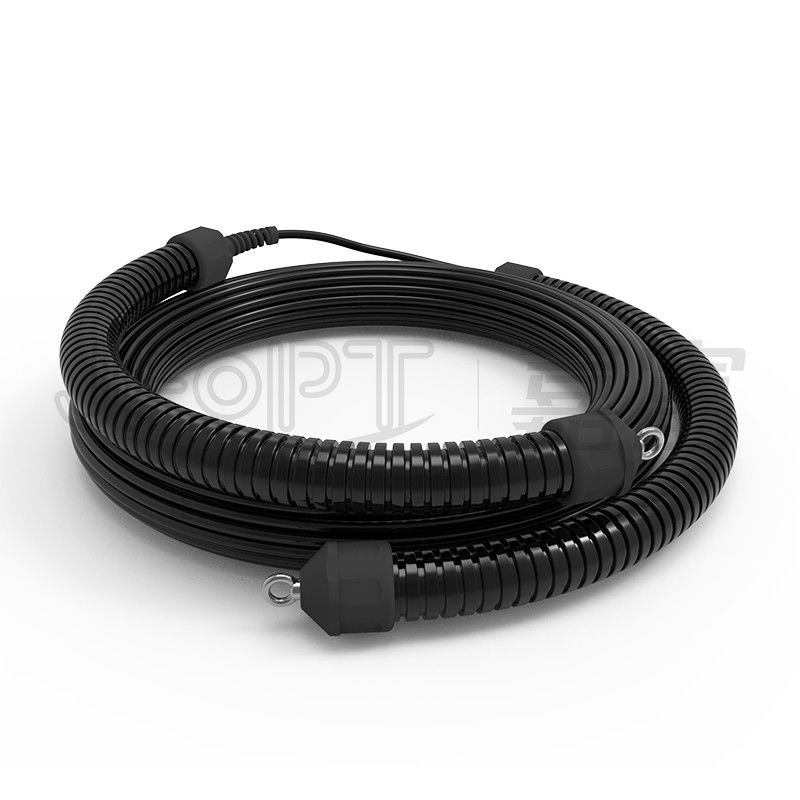

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 0

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 1

③Waterproof pulling components with anti-bending boots to effectively protect the fiber optic cable

④ Suitable for OD 3-25mm cable

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 2

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 3



Applications

1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx



♦ Display of Various Multi-fiber Pre-terminated Branches

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 4

0.6/0.9mm branch

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 5

2.0/3.0mm branch

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 6

0.6/0.9mm sub-cable branch

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 7

2.0/3.0mm dub-cable branch



♦ The Basic Fan-out Branch

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 8

Fanout with equal length

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 9

Fanout with unequal length



♦ PA Corrugated Tube Waterproof Pulling Structure Display

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 10



♦ PA Corrugated Tube Size Comparison Table

PA Corrugated Tube

Item

Inner Diameter * Outer Diameter (mm)

Fiber Count of Equal length

Fiber Count of Unequal length

LC

SC

FC

ST

LC

SC

FC

ST

1

19*24

≤4

2

/

/

/

/

/

/

2

25*30

≤8

≤4

≤4

≤4

≤24

≤24

≤24

≤24

3

32*38

≤12

≤6

≤6

≤6

≤36

≤36

≤36

≤36

4

38*44

/

≤8

≤8

≤8

≤48

≤48

≤48

≤48

5

50*57

≤24

≤12

≤12

≤12

/

/

/

/

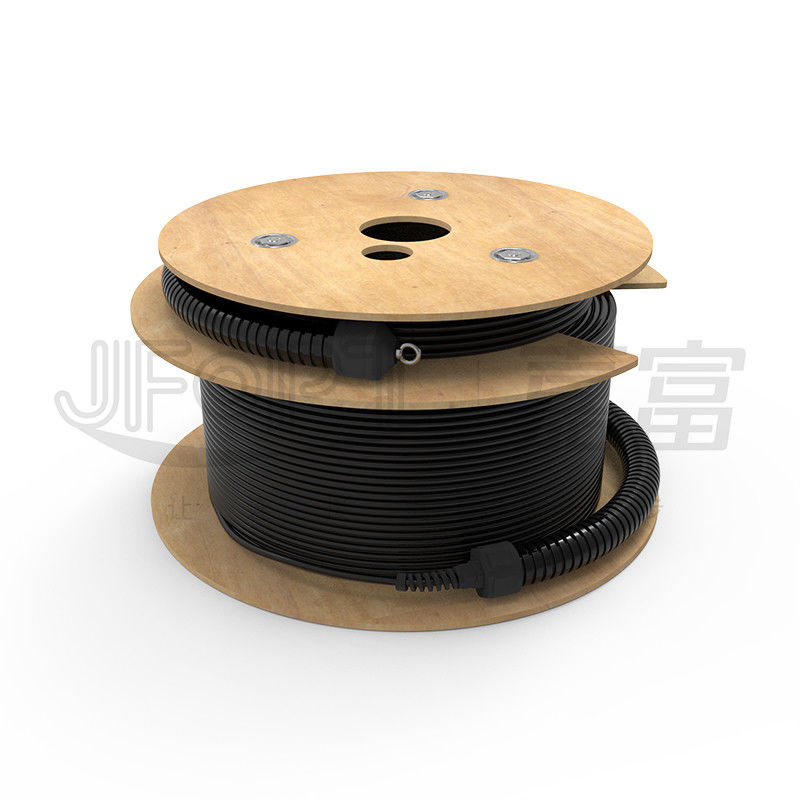

♦ Product Packaging

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 11

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 12

Thickened self-sealing bag packaging

Thickened carton packaging



 Factory Strength

Specialization:


JFOPT has accumulated years of experience in the production process of large-core jumpers, ensuring extremely low losses and long lifespan in complex environments.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 13

Manufacturing Capability:


JFOPT has 5 production lines and equipment, equipped with professional large-diameter multi-core cable cutting machines, ensuring fast, efficient, and neat winding of various multi-core cables for quick delivery.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 14

Quality Control:


JFOPT implements strict quality control measures and addresses any abnormalities commonly found in multi-core cables through optimization of raw material quality. The production process of connectors undergoes 100% testing and inspection.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 15

Standard Development:


JFOPT can customize the color, outer diameter, fiber type and quantity, and jacket structure of jumper cables according to customer requirements. Sample sealing and engineering drawings are used to ensure product technical specifications and consistency across different batch orders.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 16

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber jumpers.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 17

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction.

Waterproof Quick Disassembly Pre Terminated Fiber Optic Cable With PA Corrugated Tube Unequal Branch 18



♦ Frequent Q&A

1.What should be considered when customizing standard fiber optic patch cords?

Total length of the patch cord / Branch length / Branch cable diameter / Fiber cable material / Fiber type and fiber count/ Color / Labeling and other customization requirements.



2.How do we ensure the stability of our standard fiber optic patch cords?
JFOPT's fiber optic patch cords undergo a process design to ensure that 100% of the connectors pass the IL&RL test and end-face inspection, guaranteeing stable parameters.



3.What is our delivery lead time?
For standard products, our delivery lead time is controlled within 5 working days, ensuring quick shipment.
