3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management

288C MPO Patch Panel

288C MPO Patch Panel

12 Cassettes 3u Patch Panel

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MPO Patch Panel 288C 12Box

Contact Us

Request A Quote
Product Details
Maximum Core Count:
288
Chassis Model:
Rack Mounted Sliding MPO / MTP Fiber Distribution Frame
Chassis Size:
3U 19- Inch
MPO Module Box Core Count:
12 /24 Cores Cassettes
Chassis Material:
Cold - Rolled Steel Plate
Surface Treatment:
Frosted Or Customized
Color:
Black
Interface Model:
MPO / MTP - LC Or Customized MPO / MTP - SC / FC / ST Etc
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Price negotiable
Delivery Time
1-5 Days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
MPO: 3000 ends per day Distribution box: 2-day delivery for available stock / 1-week delivery for bulk production
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

288 Core Capacity MPO Patch Panel With 12 Module Boxes Equipped With An Offline Device For Easy Replacement Of Module



JFOPP-MPO30-B-001 is a 3U sliding fiber distribution box designed with 12 cassettes. The Maximum capacity of cassettes is 24 fiber (2x12 cores or 1x24 cores). The box is designed with a psliding feature, making it convenient for organizing and storing MPO backbone cables. The patch panel is made of high-quality cold-rolled steel plate material and undergoes electrostatic spray surface treatment, providing excellent pressure resistance and impact resistance. The distribution box is mainly used in high-density fiber optic cabling systems and allows for quick switching and patching of MPO backbone jumpers in each channel.



♦ Product Features

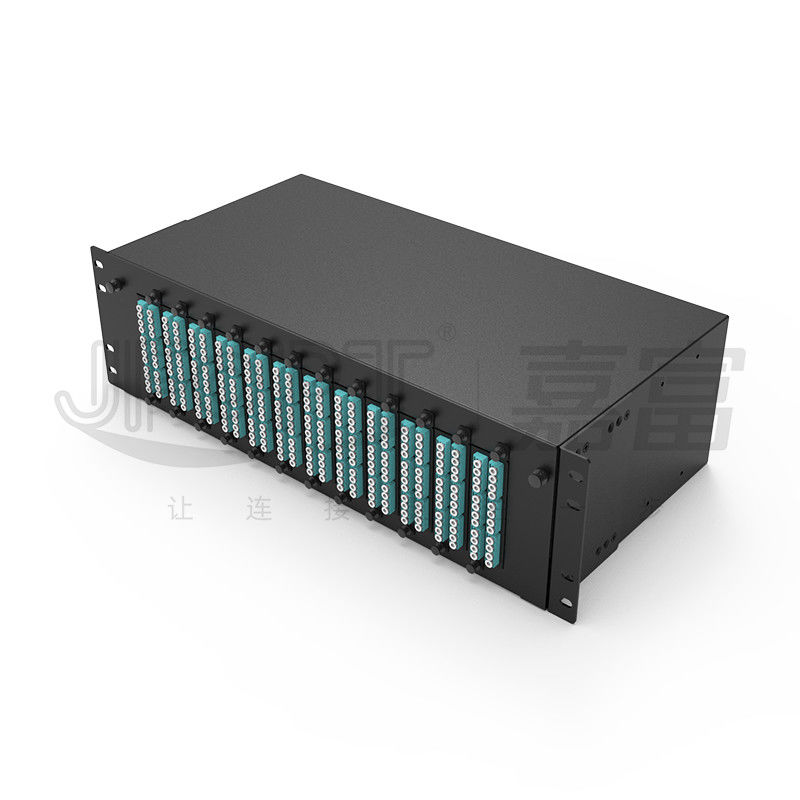

① 3U 288 cores, suitable for high-density cabling

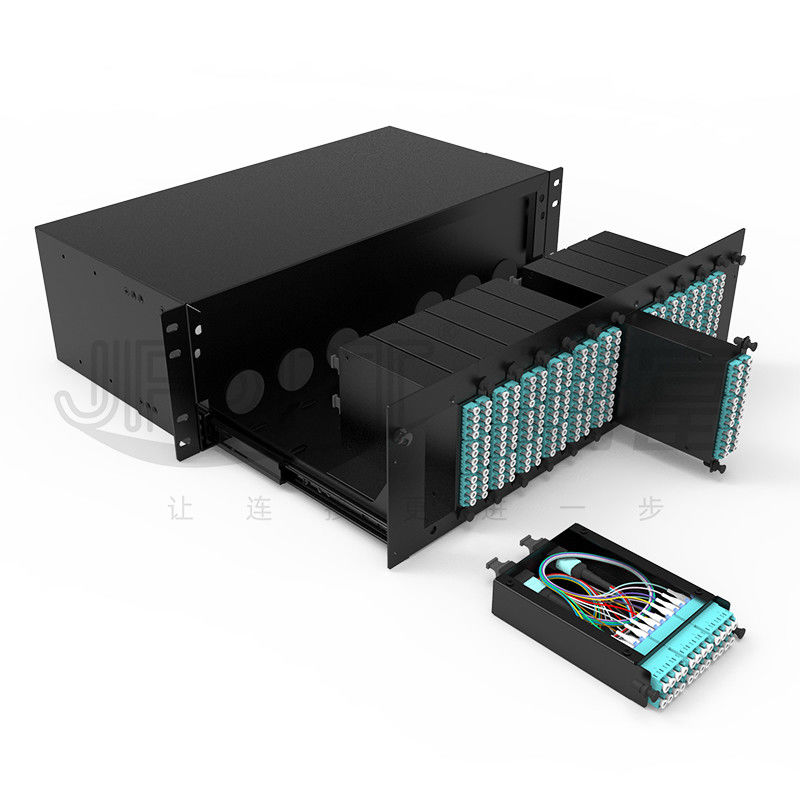

②MPO cassettes with snap-fit design for easy installation and removal

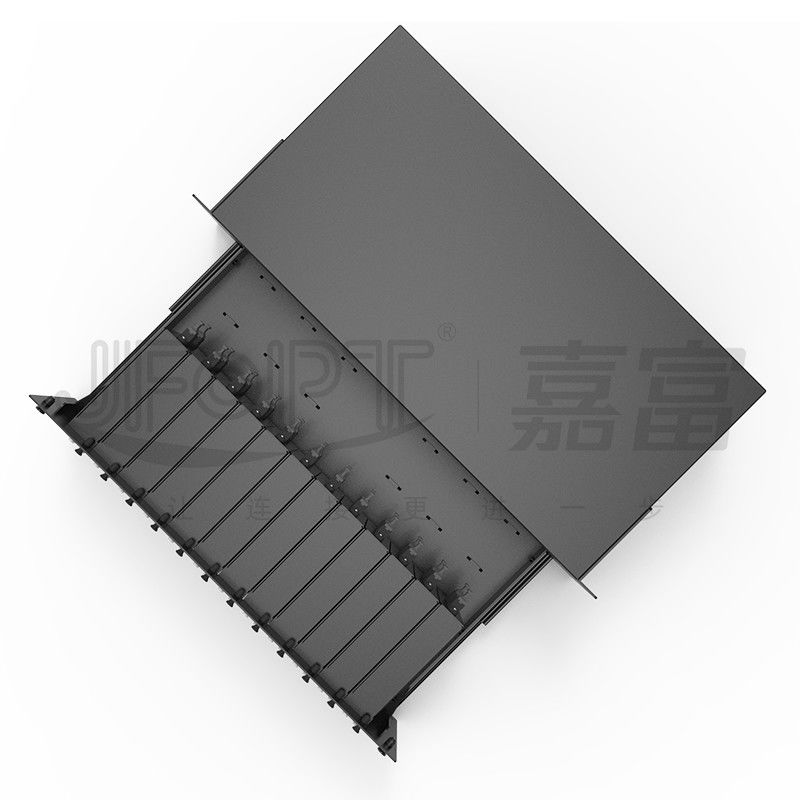

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 0

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 1

③Adjustable mounting ears to accommodate actual cabling requirements

④ Made of high-quality cold-rolled steel plate for compression resistance and impact resistance

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 2

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 3

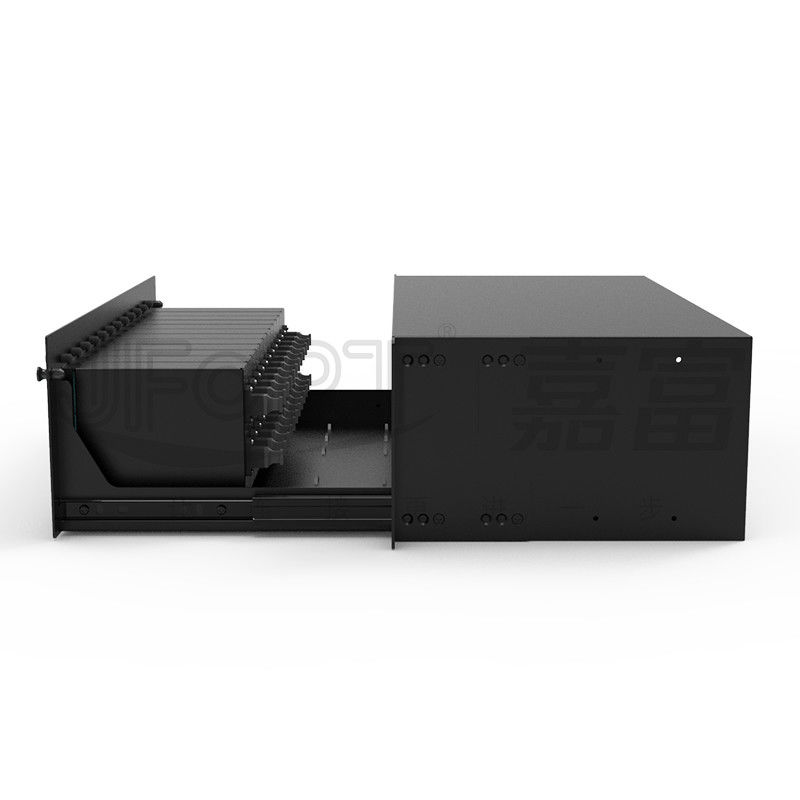

⑤ Slide rail design for smooth drawing operation

-

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 4

-



♦ Applications

1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ Cassette Dimension

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 5

Patch Panel dimension

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 6

Accessory

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 7

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 8

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 9

3*100mm zip ties

* 8 pieces

Self-adhesive cable management rings * 8 pieces

Rack mounting brackets and screws * 4 sets



♦ Product Packaging

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 10

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 11

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 12

Patch panel each corner protected by foam tape and wrapped with bubble tape

Inner carton box

Multiple inner boxes are packed into the outer box and sealed
Outer carton box has corner protector



 Factory Strength

Specialization:


JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 13

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, precision metal stamping, and precision CNC bending equipment for manufacturing.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 14

Quality Control:


JFOPT implements strict quality control measures, including dedicated quality inspection processes for sheet metal material procurement, stamping, bending, and painting production processes.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 15

Standardization:


JFOPT can customize and strictly adhere to production standards for fiber distribution boxes based on customer requirements, ensuring product consistency and performance stability.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 16

Technological Innovation:


JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 17

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

3U 288C MPO Patch Panel With 12 Cassettes Equipped With Cable Management 18



♦ Frequent Q&A

1.What factors should be considered when purchasing a distribution box?
First, it should meet the requirements of the wiring construction and pay attention to the thickness of the sheet metal and structural strength to ensure a visually appealing and undamaged product. Usually, you can contact us for customized production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.



2.Can our distribution box be compatible with MPO cassettes from other manufacturers?
Compatibility depends on having the same installation dimensions. If the dimensions are not the same, they cannot be used together.



3.Can our distribution box be paired with jumper cables?
We can provide jumpers and pigtails according to your different needs to meet various wiring requirements.



4.What is our delivery lead time?
For standard products, it is within 2 working days, and for customized products, it is within 15 working days.
