Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
1U MPO Patch Panel MPO-LC 6 Module 144C
Contact Us

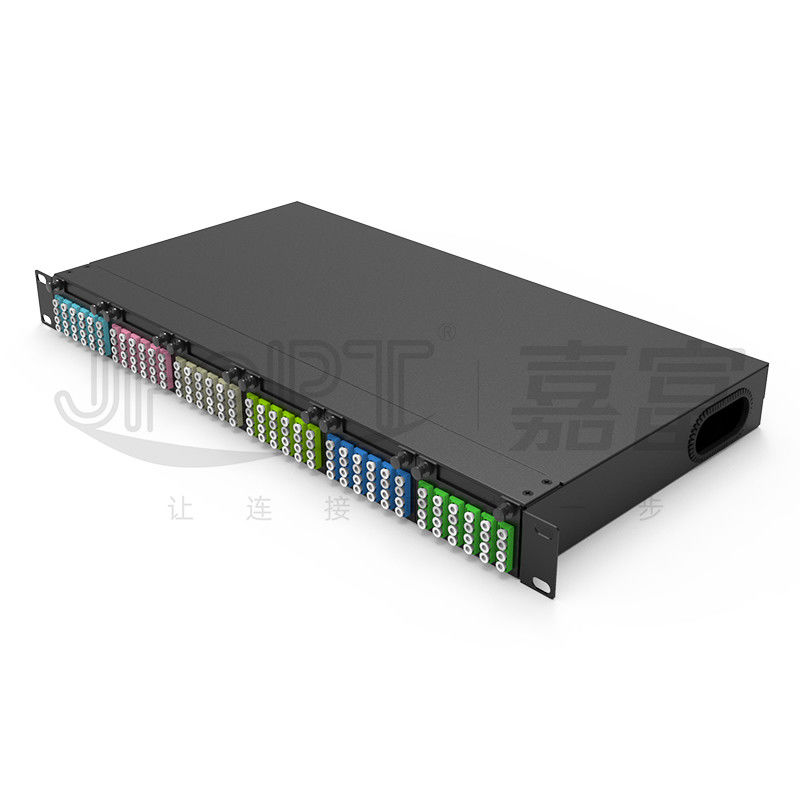

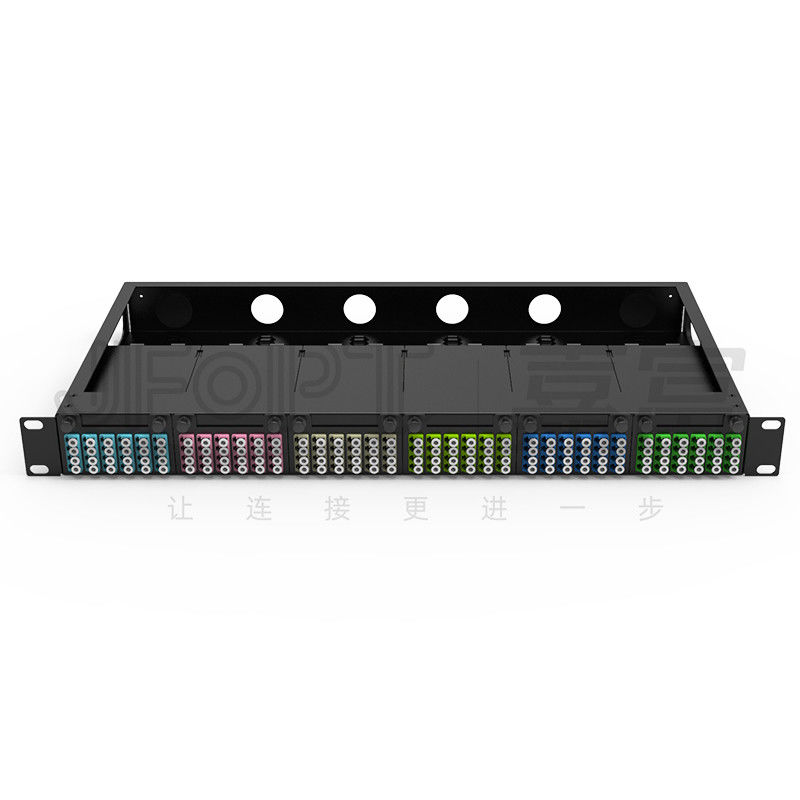

Standard 1U 19inch 144 Cores MPO Patch Panel Fully Loaded With 6PCS MPO-LC 24F MPO Cassettes

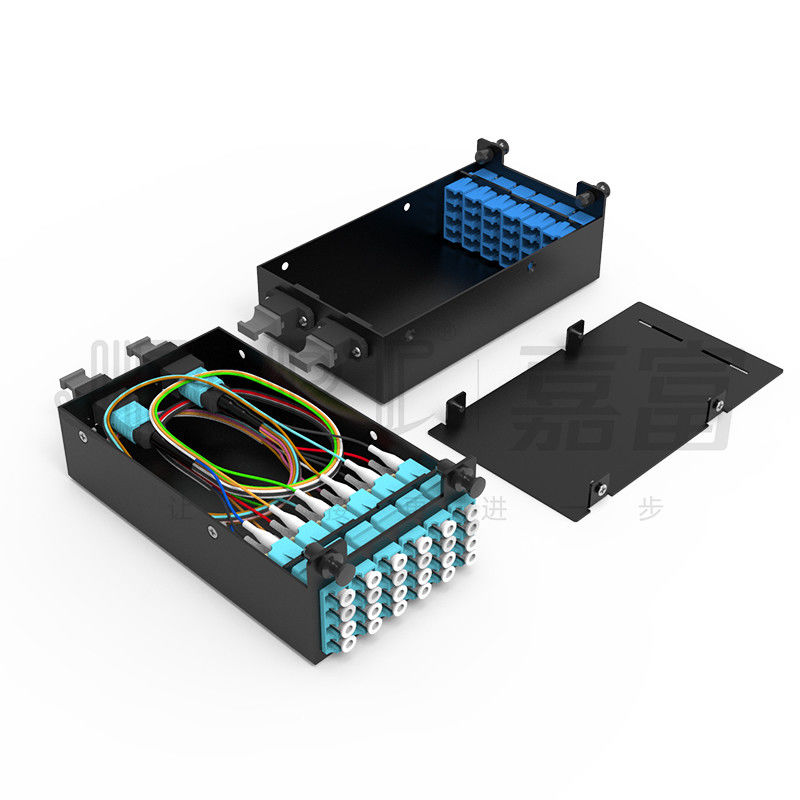

JFOPT has designed 6 MPO cassettes within a standard 1U 19 inch rack mounted patch panel, up to 144 cores can be fully configured. Each individual MPO cassettes can accommodate 2 sets of 12 fibers or fewer fibers MPO-LC branch jumpers, or 1 set of 24 fibers MPO-LC branch jumpers. This design maximizes the utilization of the 1U rack space while ensuring easy module replacement. The adapters inside the JFOPT MPO cassettes are highly repeatable and consistent, allowing for optimal performance of the MPO connectors with low insertion loss.
JFOPT fiber distribution boxes are made of high-quality cold-rolled steel plates, and each stage of production, from material cutting to jumper installation, undergoes rigorous quality inspection. Additionally, JFOPT can provide customized design drawings based on the customer's specific requirements, ensuring reliable quality.
♦ Product Features
|

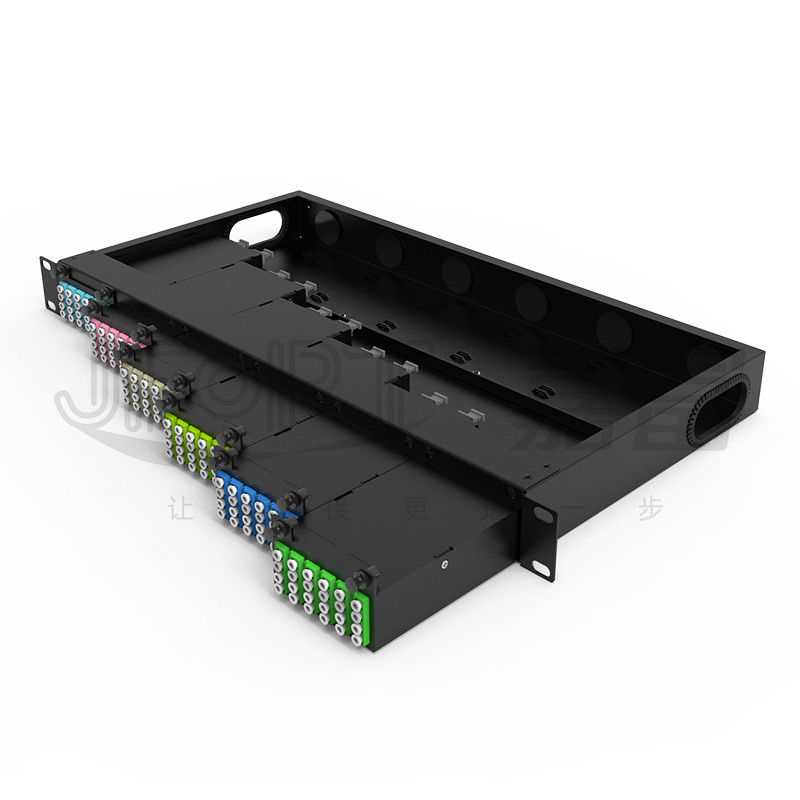

① Removable cassettes design |
② 19 inch rack mountable |
|
|
|
|
③Tool-less removable top cover for easy cable management |
④Cold-rolled steel construction with multi-stage quality management |
|
|
|
|
⑤Optional adapters and jumpers for quick delivery |
- |
|
|
- |
♦ Applications
1.Data centers.
2.High-density fiber optic cabling systems.
3.Backbone networks.
4.FTTZ and FTTB cabling systems.
♦ Cassette Dimension

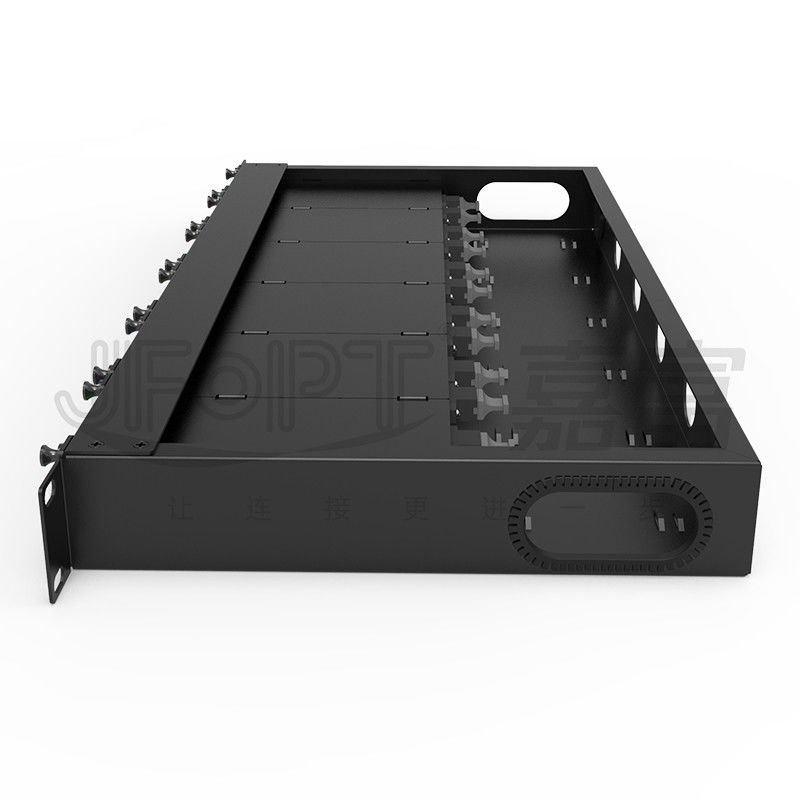

♦ Patch Panel dimension
♦ Accessory
|
|
|
|
3*100mm cable ties * 8 pieces |
Cage screws and nuts * 4 sets |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Inner carton box |
Multiple inner boxes packed into an outer box and sealing it |
♦ Factory Strength
|
Specialization: JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precise laser cutting equipment, metal stamping equipment and CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections at every stage, from sheet metal material to stamping, bending, and coating processes. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for patch panels based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological innovation: JFOPT emphasizes technological innovation and has a professional team dedicated to the research and development of fiber optic patch panels, continuously developing more advanced and user-friendly products. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing a distribution box?
First, it should meet the requirements of the wiring construction and pay attention to the thickness of the sheet metal and structural strength to ensure a visually appealing and undamaged product. Usually, you can contact us for customized production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.
2.Can our distribution box be compatible with MPO cassettes from other manufacturers?
Compatibility depends on having the same installation dimensions. If the dimensions are not the same, they cannot be used together.
3.Can our distribution box be paired with jumper cables?
We can provide jumpers and pigtails according to your different needs to meet various wiring requirements.
4.What is our delivery lead time?
For standard products, it is within 2 working days, and for customized products, it is within 15 working days.
