Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MPO Patch Panel 1U (MPO-24LC)*6
Contact Us

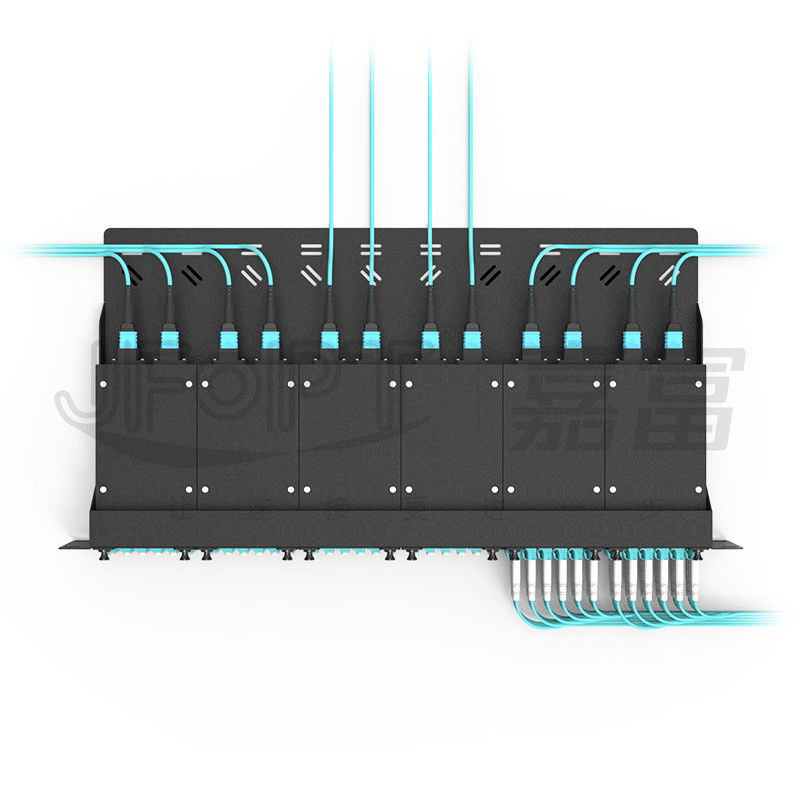

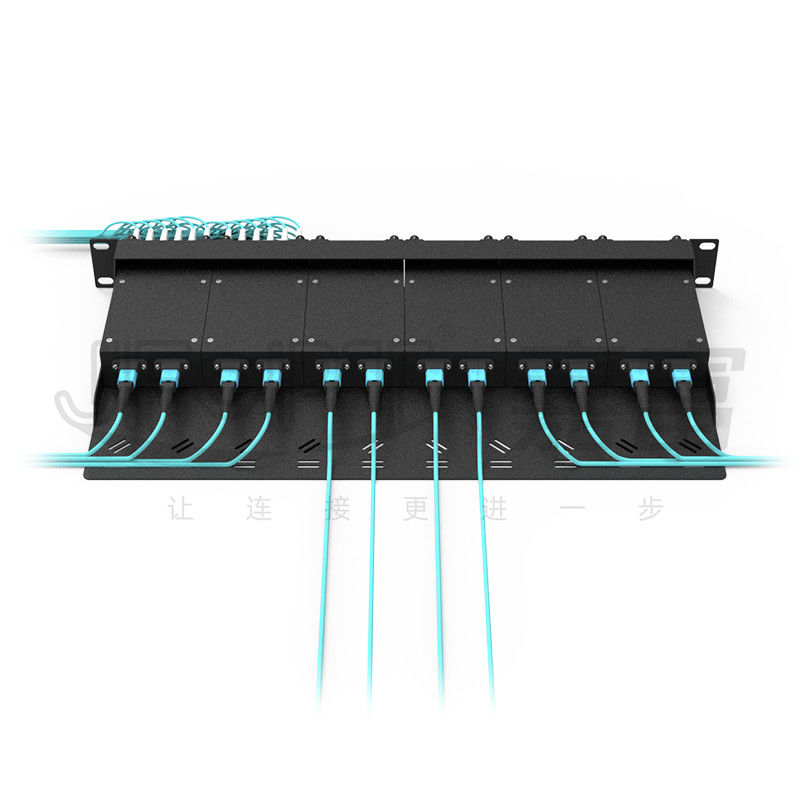

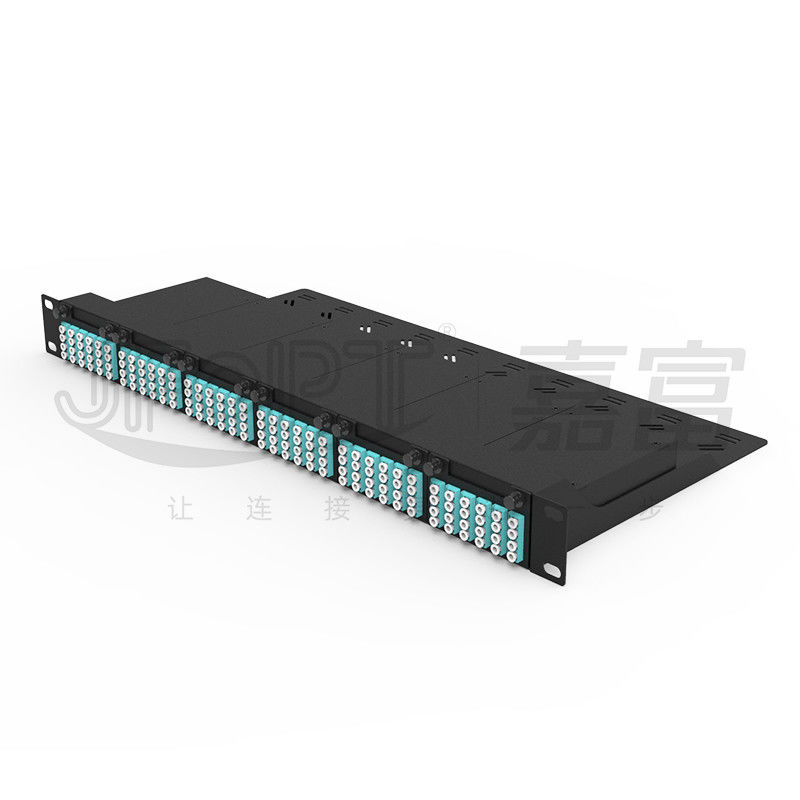

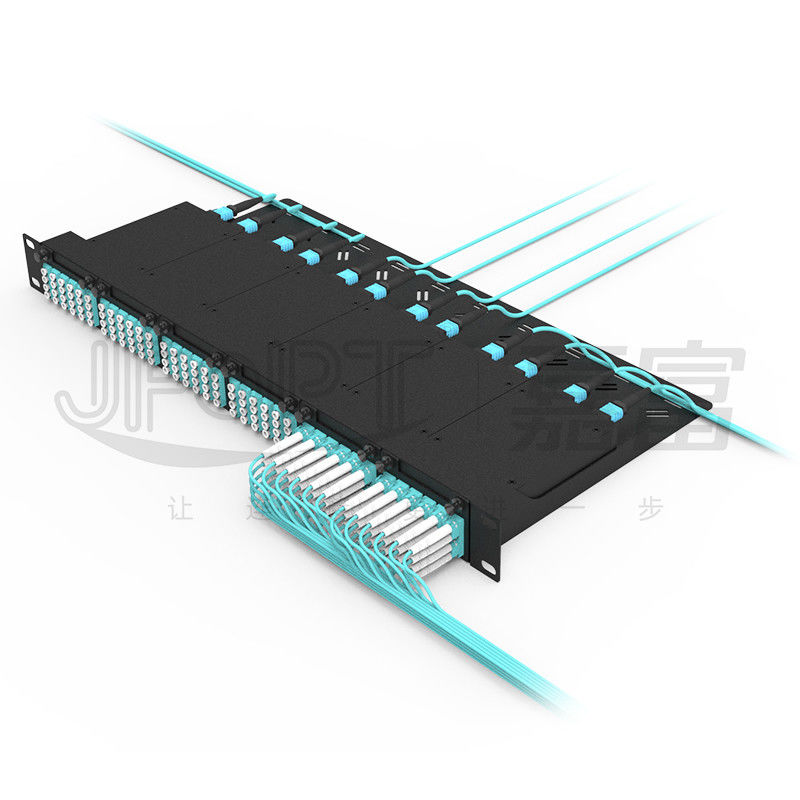

1U Open Type MPO Patch Panel Fully Loaded With 144 Cores OM3/OM4 Multimode MPO - LC Standard Loss Patch Cords
JFOPP-MPO10-A-003 MPO/MTP 1U patch panel adopts an open design, where the MPO cassettes is installed on an open rack, allowing unobstructed access from the top and rear for easy cable management. The 24 cores MPO cassettes can be individually removed and replaced, so in case of future changes in wiring requirements, the MPO cassettes can be separately purchased for replacement. Each MPO cassettes loaded with LC/MPO adapters and MPO-LC patch cords, and the MPO cassettes polarity can be provided according to the requirements, ensuring plug-and-play functionality at the construction site. Standard MPO cassettes can accommodate one 24 cores or two 12 cores MPO-LC patch cords. JFOPT provides a complete solution of patch panel and MPO patch cords, all of which are independently designed and manufactured by our company, ensuring compatibility and product reliability.
♦ Product Features
|
① The main body and MPO cassettes of the patch panel are made of cold-rolled steel plate, providing excellent mechanical strength |

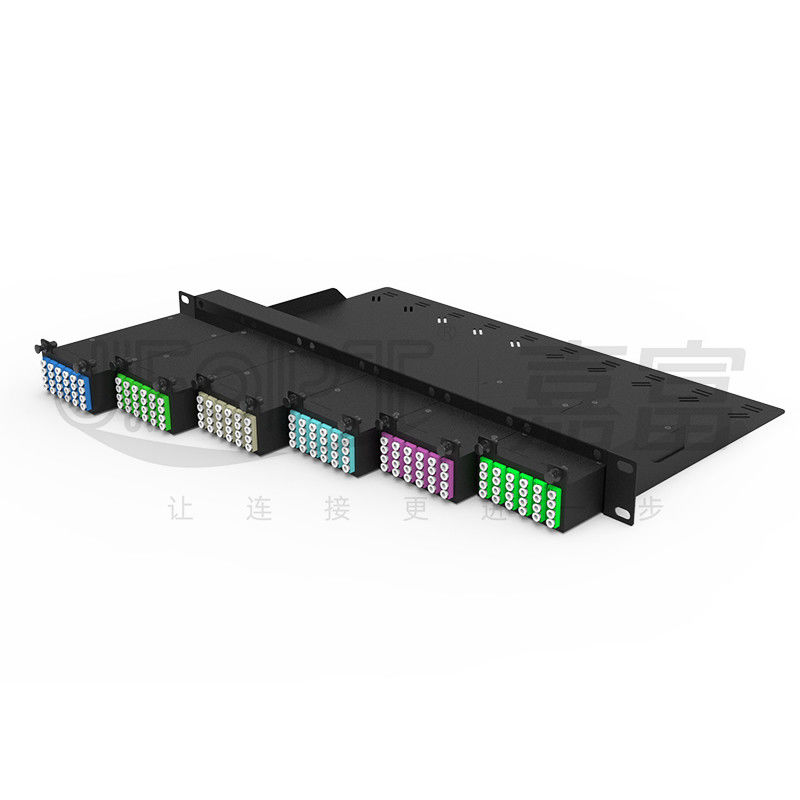

②Equipped with 6 detachable MPO cassettes, facilitating installation and maintenance |
|
|
|
|
③ Assembled with MPO/LC adapters and MPO-LC patch cords, enabling plug-and-play functionality at the construction site |
④The rear of the patch panel's bottom plate is designed with sufficient cable fixing devices, ensuring free and secure cable routing |
|
|
|
|
⑤Open design for convenient cable entry operations |
⑥ Independently packaged with a reasonable and secure design |
|
|
|
♦ Applications
1.Data centers
2.High-density fiber optic cabling systems
3.Backbone networks
4.FTTZ (Fiber to the Zone) and FTTB (Fiber to the Building) cabling systems
♦ Cassette Dimension
♦ Patch Panel dimension
♦ Accessory
|
|
|
|
|
|
1. Cable ties (3*100mm)*8pcs |
Rack mounting brackets and screws * 4 sets |
Velcro (12*100mm)*10pcs |
Label (70*20mm) *12pcs |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Inner carton box |
Multiple inner boxes are packed into the outer box and sealed |
♦ Factory Strength
|
Specialization: JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precision laser cutting, precision metal stamping, and precision CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including dedicated quality inspection processes for sheet metal material procurement, stamping, bending, and painting production processes. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for fiber distribution boxes based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing a distribution box?
First, it should meet the requirements of the wiring construction and pay attention to the thickness of the sheet metal and structural strength to ensure a visually appealing and undamaged product. Usually, you can contact us for customized production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.
2.Can our distribution box be compatible with MPO cassettes from other manufacturers?
Compatibility depends on having the same installation dimensions. If the dimensions are not the same, they cannot be used together.
3.Can our distribution box be paired with jumper cables?
We can provide jumpers and pigtails according to your different needs to meet various wiring requirements.
4.What is our delivery lead time?
For standard products, it is within 2 working days, and for customized products, it is within 15 working days.
