Pulling-Eye Kit With Mesh For Terminated Optic Cable Even / Uneven Branch
The pulling-eye kit utilizes a mesh sleeve (with optional internal PVC tube) to wrap around the pre-terminated cable branches. By utilizing friction, the traction force is evenly distributed onto the main trunk cable, protecting the branches and termination points from tension damage during short-distance dragging installation. This design prevents branch fiber breakage and connector detachment. JFOPT offers various solutions for pulling-eye kit, such as incorporating PVC tube inside the mesh to reduce compression on the branch during traction. JFOPT can provide pulling-eye kit for common connectors like SC/LC/FC/ST with up to 48 cores. The branches can be customized to be equal or uneven length, catering to different customer requirements.
♦ Features
|
①Utilizes pulling-eye kit to reduce tension on branch ends during installation |
②Multiple branch can be equal or uneven length |
|
|
|
|
③ Compatible with various connector types |
④100% factory termination and testing to ensure transmission performance |
|
|
|
|
⑤ Fitting fanout kit is adopted to ensure a secure and stable branch structure |
- |
|
|
- |
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ Connector Parameters
|
Connector Characteristics |
Connector Type |
LC / SC / FC / ST |
|||
|
Ferrule Type |
Single-mode : UPC/APC; Multi-mode : UPC |
||||
|
Ferrule Material |
A-grade zirconia ceramic |
||||
|
Connector Color |
Blue / Green / Beige / Aqua / Purple |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC ≥ 50dB; APC ≥ 60dB; Multi-mode: ≥ 25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometry Parameters (optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||

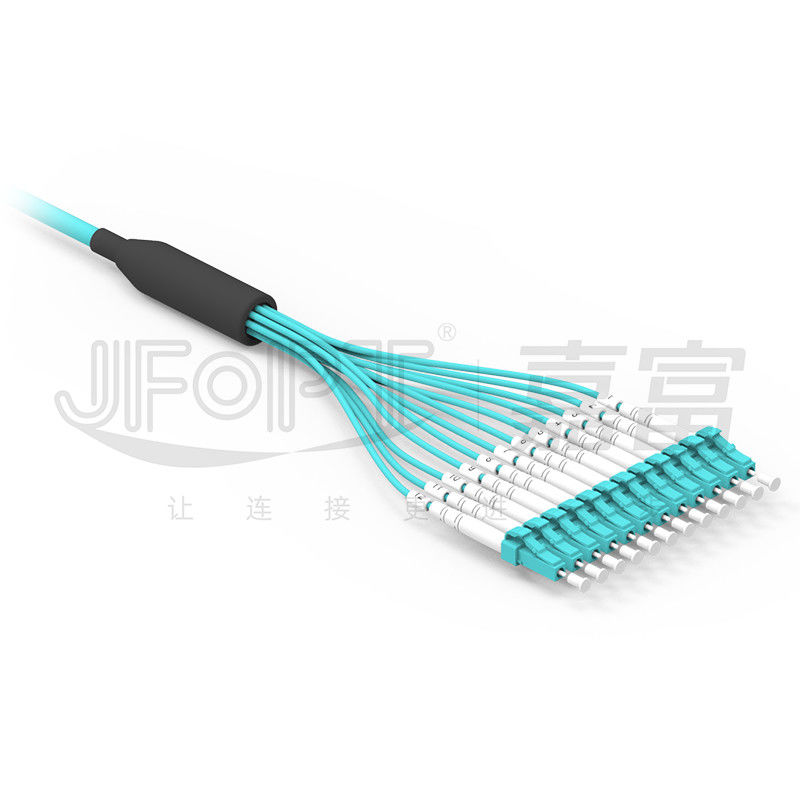

♦ Display of Multi-Core Pre-Terminated Branch Types
|
Branching of fber with 0.6/0.9mm loos tube |
|
|
|
|
|
Branching of fber with 2.0/3.0mm loos tube |
|
|
|
|
|
Branching of direct Sub-unit 0.6/0.9mm |
|
|
|
|
|
Branching of direct Sub-unit 2.0/3.0mm |
|
|
|
♦ Fan-out Length
|
|

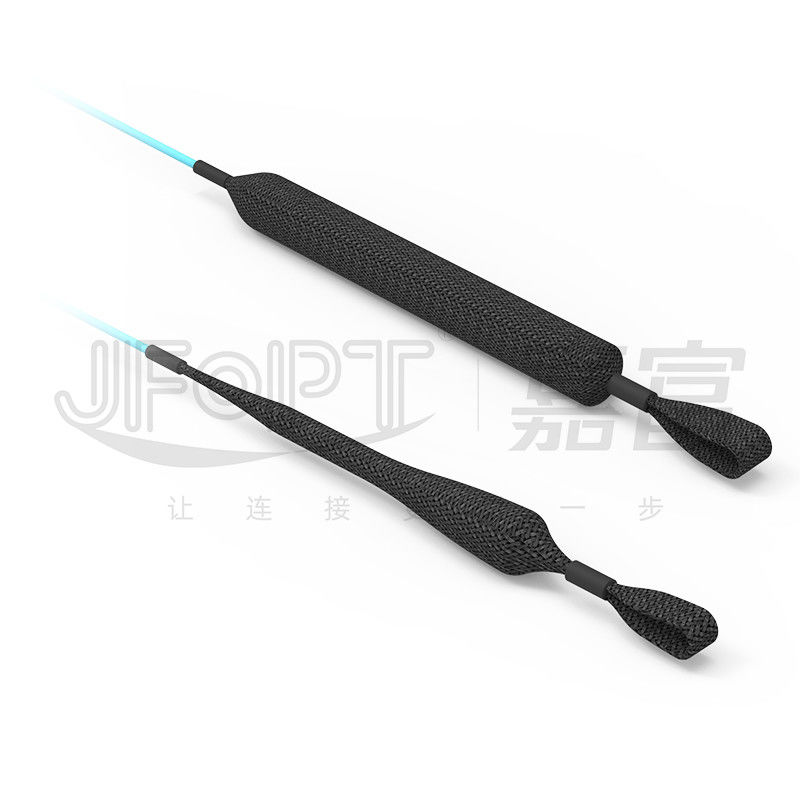

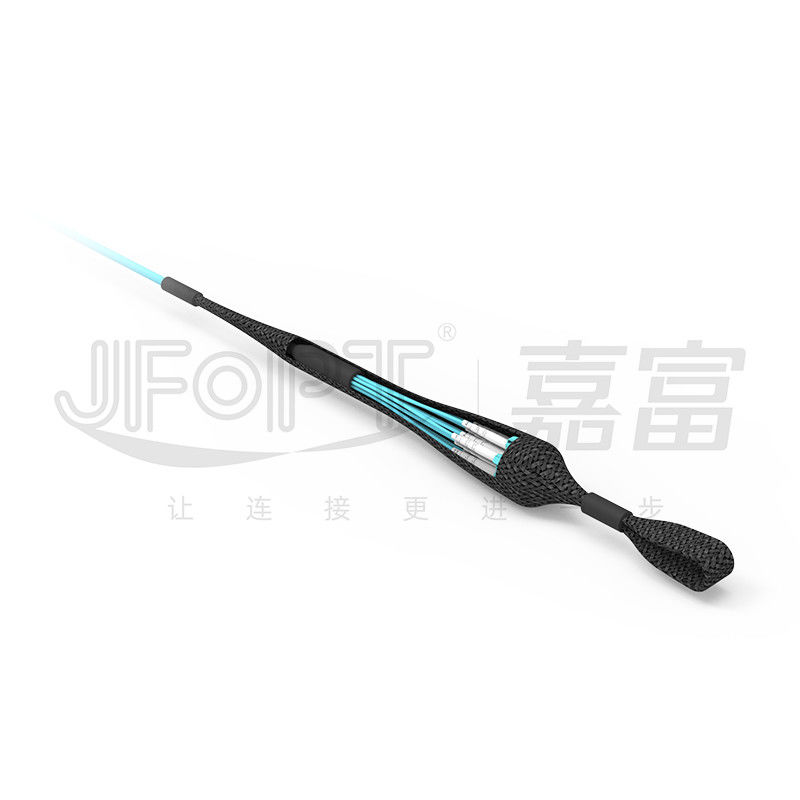

♦ Pulling-eye Kit with Mesh Structure Display
|
|

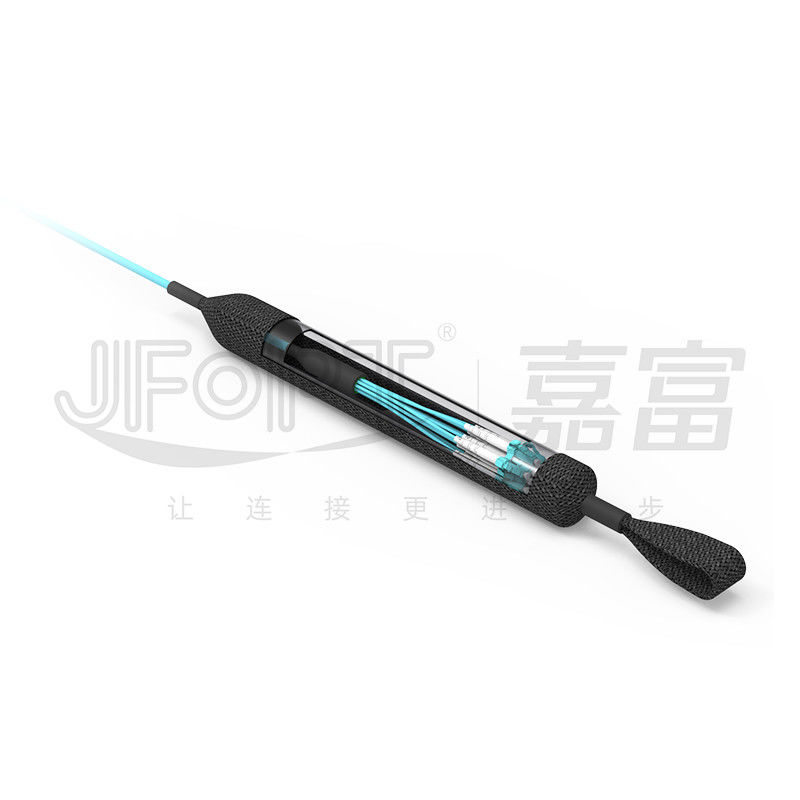

♦ Pulling-eye Kit with Mesh and PVC Tube Structure Display
|
|
♦ Product Packaging
|
|
|
|
Thickened self-sealing bag packaging |
Thickened carton packaging |
♦ Factory Strength
|
Specialization: JFOPT has accumulated years of experience in the production process of large-core jumpers, ensuring extremely low losses and long lifespan in complex environments. |
|
||||
|
Manufacturing Capability: JFOPT has 5 production lines and equipment, equipped with professional large-diameter multi-core cable cutting machines, ensuring fast, efficient, and neat winding of various large-core cables for quick delivery. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures and addresses any abnormalities commonly found in large-core cables through optimization of raw material quality. The production process of connectors undergoes 100% testing and inspection. |
|
||||
|
Standard Development: JFOPT can customize the color, outer diameter, fiber type and quantity, and jacket structure of jumper cables according to customer requirements. Sample sealing and engineering drawings are used to ensure product technical specifications and consistency across different batch orders. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and high-performance fiber jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
