Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MTP MT - MT USCONEC Patch Cord
Contact Us

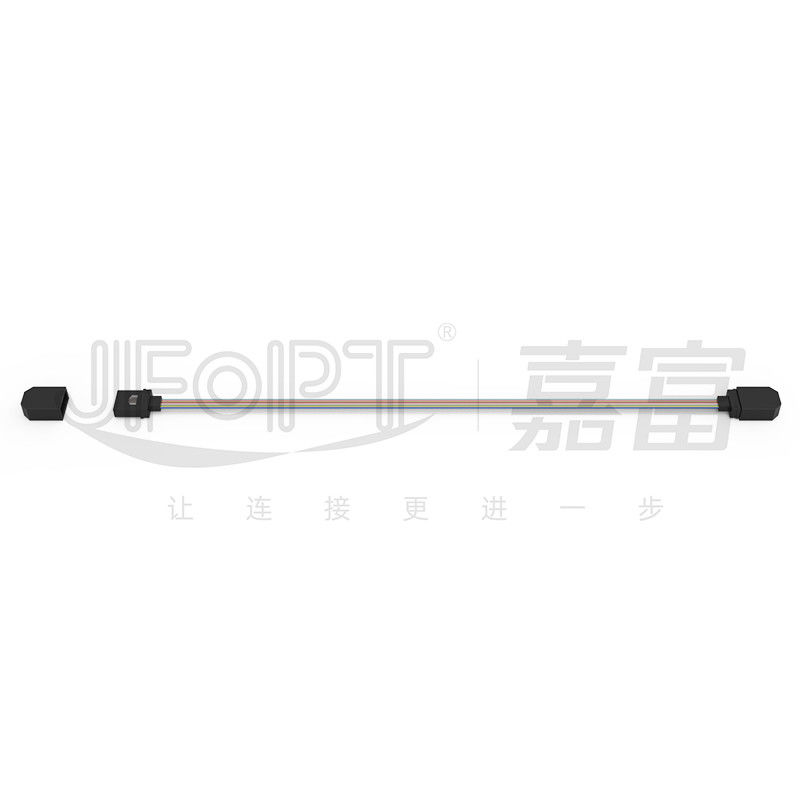

USCONEC MT - MT Bare Ferrule Short Jumper Fiber Optic Ooptical Transceiver MT Patch Cord

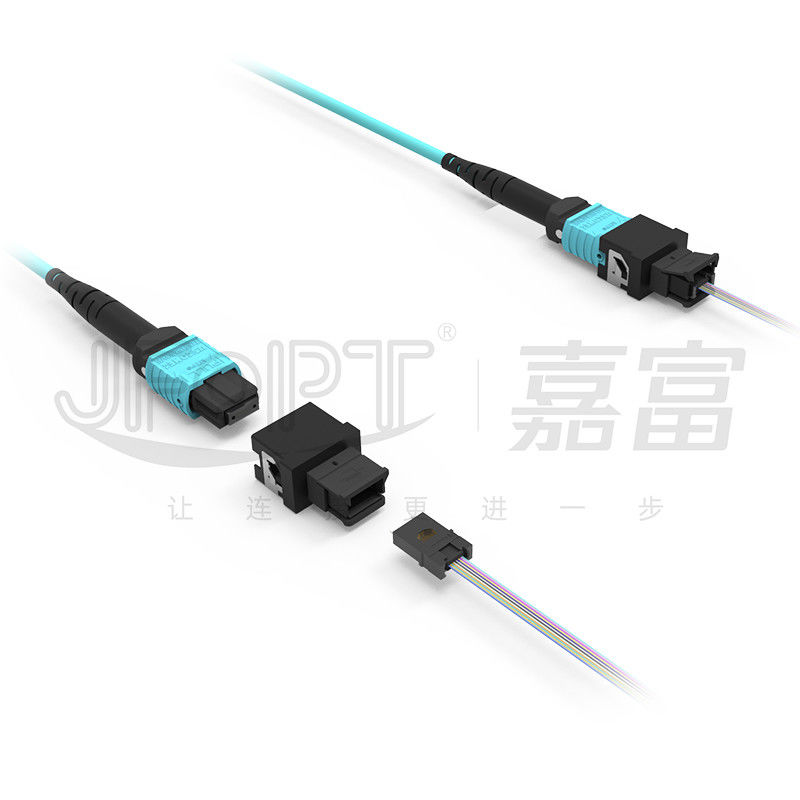

MT-MT bare ferrule jumpers are widely used for internal connections in high-speed optical transceiver. They leverage the small size and high channel density of the MT ferrule to achieve parallel transmission of multiple optical channels. MT jumpers are typically equipped with female connectors and can be easily connected to MPO/MTP male connectors through MT-MPO adapters, serving as convenient optical interfaces in high-speed optical transceiver applications. JFOPT offers MT short jumpers with the option to use USCONEC connectors, which provide higher precision and more stable performance. They are available in 12-core or 16-core configurations, with A/B polarity options, and can be customized with minimum lengths as short as 10cm to meet the requirements of installations in small spaces.
♦ Features
① Option for low-loss or standard-loss connectors |
② MT ferrule as the connector, featuring a small form factor |
||||
|
|
||||
③Compatible with MT-MPO dedicated adapters for mating |
④100% IEC standard testing to ensure transmission performance |
||||
|
|
||||
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
Connector Type |
Insertion Loss |
Return Loss |
|||
Typical |
Maximum |
||||
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
SM Low Loss |
0.12dB |
0.25dB |
|||
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
MM Low Loss |
0.12dB |
0.25dB |
|||
Male/Female |
Male: with Pin, Female: without Pin |
♦ 3D Geometric Parameters
Items |
Max |
Min |
||
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
Y |
- |
5 |
||
Angle (°) |
X |
0.15 |
-0.15 |
|
Y(APC) |
8.2 |
7.8 |
||
Y(PC) |
0.2 |
-0.2 |
||
Radius of curvature of optical core (mm) |
- |
1 |
||
Fiber height (nm) |
3500 |
1000 |
||
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
Maximum negative coplanar (nm) |
300 |
N/A |
♦ Product Packaging
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
Specialization: JFOPT has been focusing on the production of MTP jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MTP jumpers. |
|
||||
Manufacturing Capacity: JFOPT has 5 MTP production lines and equipment, allowing for fast and efficient production of a large number of MTP jumpers to meet customer demands. |
|
||||
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RL testing/end-face inspection to ensure product quality. |
|
||||
Standard Development: JFOPT can develop and strictly adhere to MTP jumper production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MTP jumpers. |
|
||||
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and fiber count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% IL&RL testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks / MTP attenuators / MTP Male-Female adapters / and MT jumpers / among other MTP-related products.
