Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback

Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback

Low Loss Multimode MTP Loopback

Magenta Housing Type A Fiber Loopback

MTP Loopback 12 Channel Magenta Housing

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

Loopback 24C 12Channel Type-A

Contact Us

Request A Quote
Product Details
Loopback Type:
MTP Loopback
Fiber Count:
24 Cores
Number Of Channels:
12 Channels
Fiber Type:
OM3 / OM4
Random Matched Attenuation:
≤0.25dB
Connector Style:
Pull - Tab Loopback
Fiber Polarity:
TYPE-A
Houisng Color:
Magenta
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Price negotiable
Delivery Time
1-5 days
Payment Terms
T/T / Paypal / Trade Assurance Order via Alibaba
Supply Ability
3000 terminations per day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

MTP Low Loss Multimode 24 CoreS 12 Channel Magenta Housing Type A Fiber Loopback



All components of the MTP fiber loopback are made with genuine US Conec components. JFOPT's manufacturing process allows for the production of MTP fiber loopbacks with 4 to 24 cores (2 to 12 channels). Due to their compact internal space, our MPO/MTP fiber loopbacks are manufactured using bend-insensitive fibers to ensure minimal additional loss caused by fiber bending. The MTP loopbacks can be customized with various housing colors, PINs, and fiber polarity . Fiber loopbacks are primarily used for signal return in fiber optic systems, enabling testing and locating potential anomalies.



♦ Product Features

① Genuine US Conec components for the loopback assembly

②Loopback design includes a pull-tab for easy handling

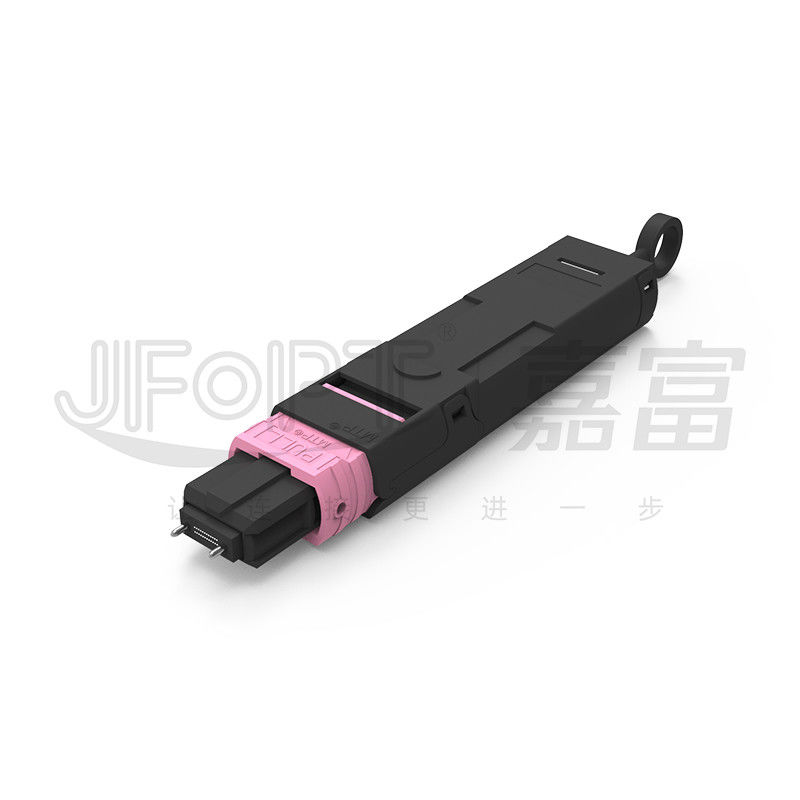

Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback 0

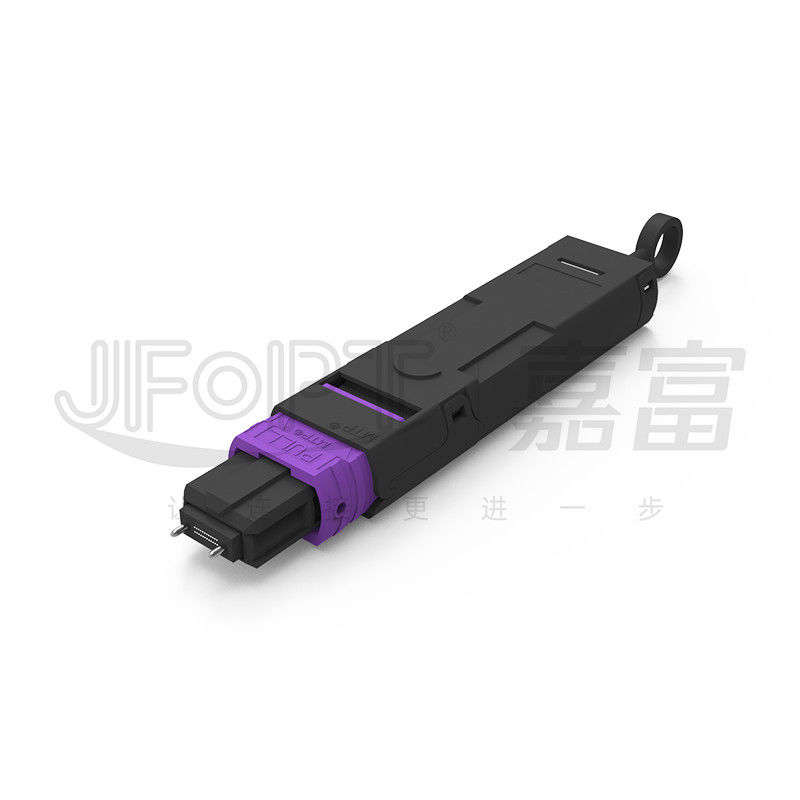

Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback 1

③Hard protective housing safeguards the internal bare fibers

④ Widely used in 40/100G network communication testing environments

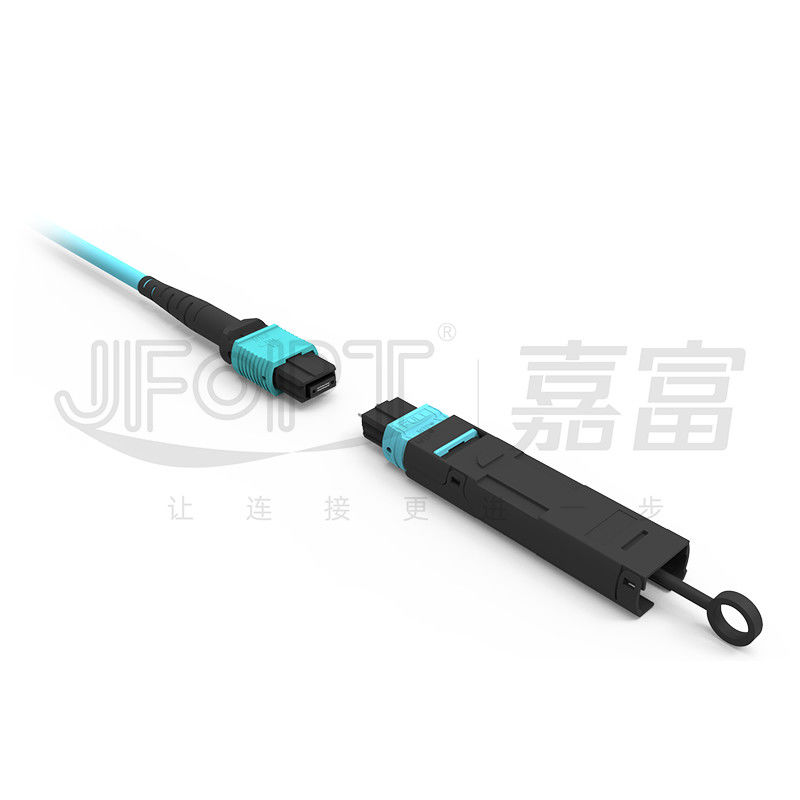

Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback 2

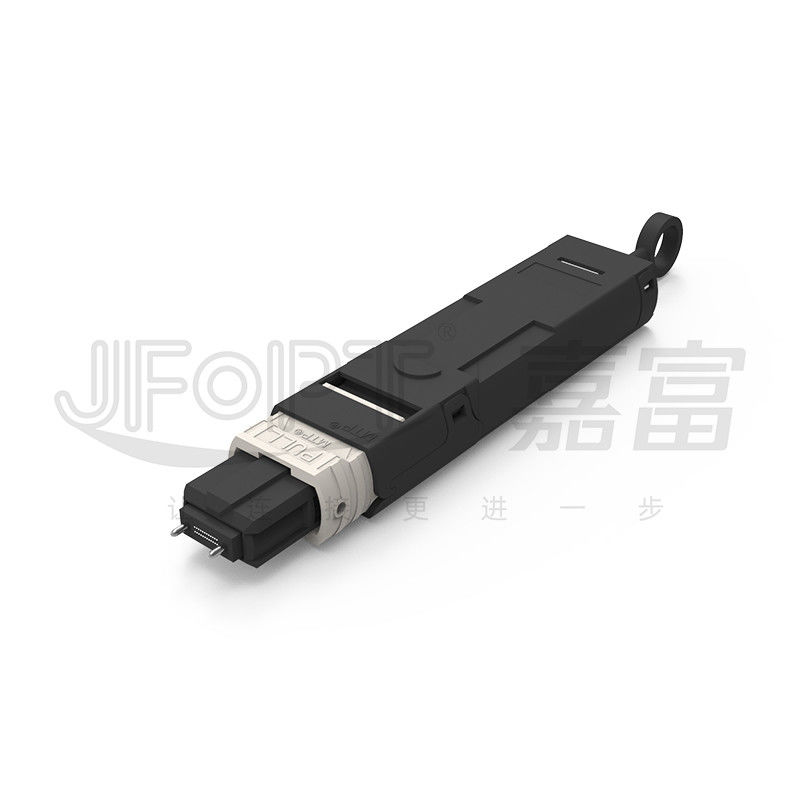

Low Loss Multimode MTP Loopback 12 Channel Magenta Housing Type A Fiber Loopback 3
