Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOC-GJJV(H)/GJSV(H)
Contact Us

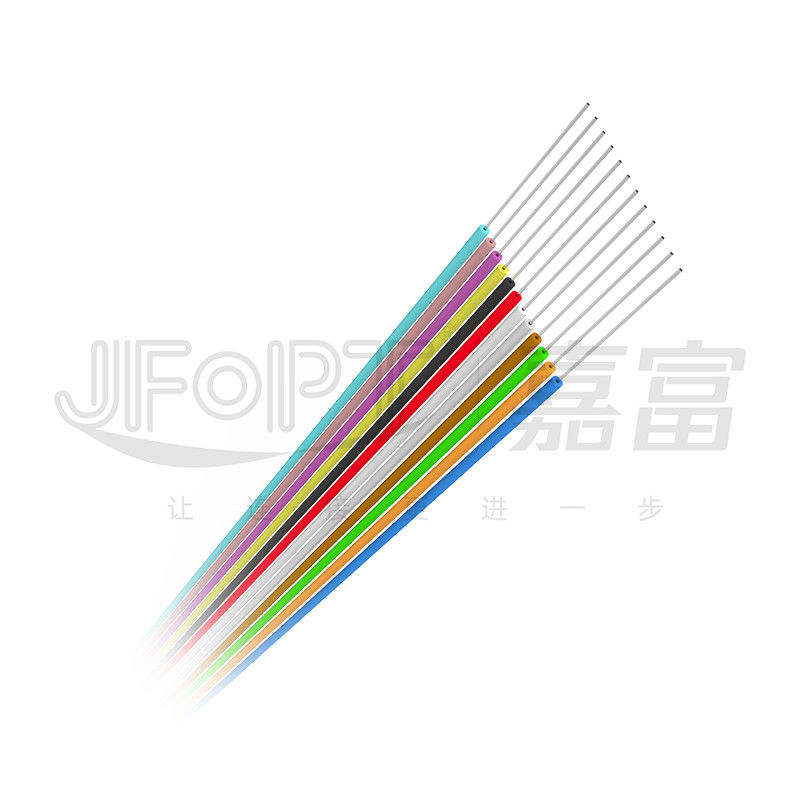

0.9/0.6mm Buffered Cable Single Mode / Multimode Fiber Optic Cable PVC/LSZH/Hytrel Brand New Raw Material
The 0.9/0.6mm cable consists of a layer of PVC/LSZH material with an outer diameter of 0.9mm or 0.6mm extruded over the coated fiber. This cable structure is simple and can be classified into tight buffer, semi-tight buffer, or loose buffer based on the level of tightness during stripping. It serves as the basic structure for producing various multi-core fiber cables and can also be used to make patch cords for use in enclosures, equipment, and tight spaces. The flexibility and small size of the cable make it advantageous in scenarios that require high flexibility and low cable density. It is suitable for fiber optic communication applications in indoor environments, such as local area networks (LANs), data centers, and office buildings. It is suitable for short-distance and low-speed communication requirements, providing reliable signal transmission and stable network connections.
♦ Product Features
|
① Precise outer diameter control |
② Multiple sheath material options available |
|
|
|
|
③ YOFC/CORNING premium grade fibers |

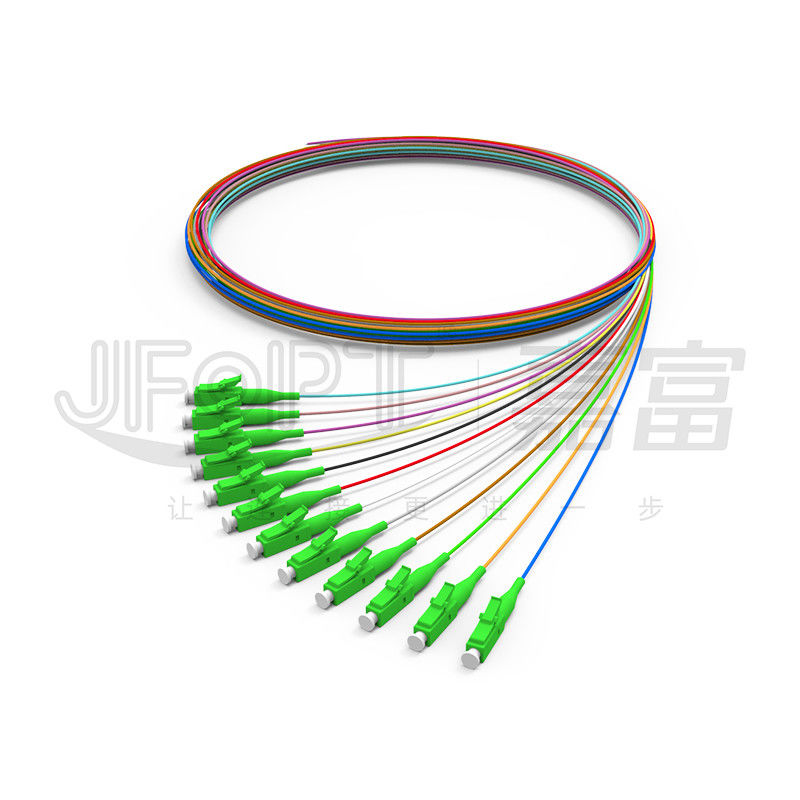

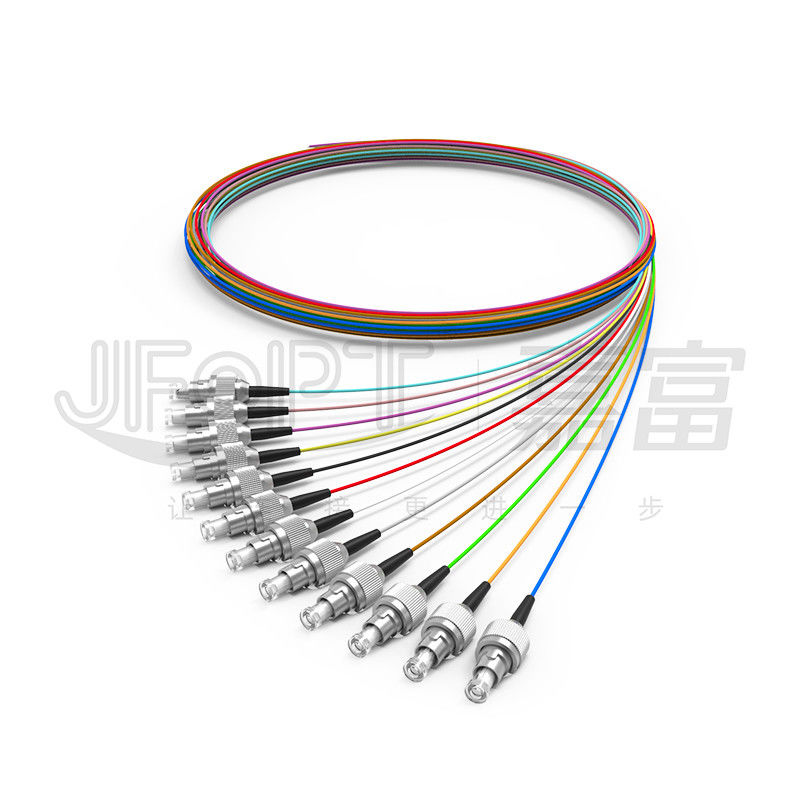

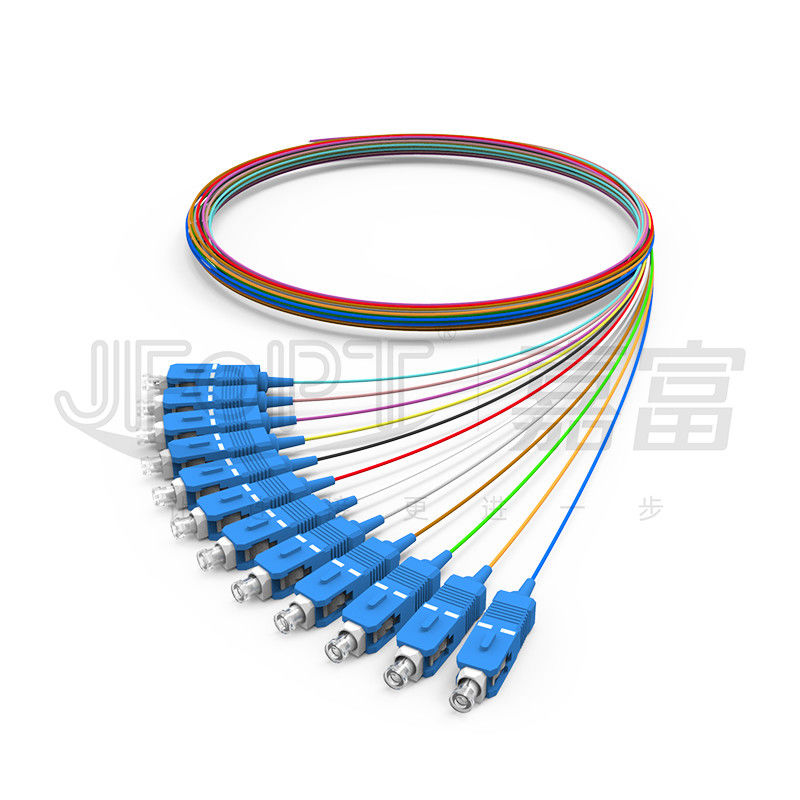

④Can be produced as patch cords or jumpers with connectors added by JFOPT |
|
|
|
♦ Applications
1.Optical communication systems
2.Interconnection of communication equipment
3.Fiber optic communications
♦ Structure Presentation
♦ Cable Parameters
|
Cable Parameter |
||||||||
|
Items |
Specifications |
|||||||
|
Fiber Count |
1 |
|||||||
|
Tight/Loose-buffered Fiber |
Diameter |
0.85mm±0.05mm |
||||||
|
Material |
PVC/LSZH/HYTREL |
|||||||
|
Color |
Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aque |
|||||||
♦ Mechanical performance
|
Items |
Specifications |
|||||||
|
Min. Bend Radius(Dynamic)/mm |
20D |
|||||||
|
Min. Bend Radius(Static)/mm |
10D |
|||||||
|
Operating Temperature/℃ |
-20～+60 |
|||||||
|
Storage Temperature/℃ |
-20～+60 |
|||||||
♦ Fiber Parameters
|
Single mode |
|||||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
|||||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
||||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
|||||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
|||||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
|||||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
|||||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|||||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
|||||
|
Cable Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
||||
|
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
|||||
|
Multi-mode |
|||||||||
|
Items |
unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
|||
|
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
|||
|
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
|||
|
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
|||
|
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
|
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
|
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
|||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
|||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
|||
|
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
||
|
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
|||
|
Cable Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
||
|
1300nm |
dB/km |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
♦ Product Packaging
|
|
|
|
Packed on the drum |
Drum sealed |
♦ Factory Strength
|
Expertise: JFOPT has a professional R&D team, production technology, and equipment that effectively reduces potential issues during cable manufacturing, such as cable shrinkage, axial compression, skewed printing, abnormal loss, etc. |
|
||||
|
Manufacturing Capacity: JFOPT has three professional production lines and equipment that can rapidly and efficiently produce a large quantity of cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control, ensuring that the selected materials meet relevant international, national, or industry standards. Each production process is equipped with mechanized testing equipment, and all cables undergo size and loss testing before leaving the factory to ensure product quality. |
|
||||
|
Standards Development: JFOPT has a professional and experienced R&D team. We have hundreds of sets of cable production molds for different structures and sizes. We can provide cables that meet your specific requirements and environmental conditions. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and continuously introduces various innovative products to meet evolving market demands through market research and our own mold production capabilities. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing optical cables?
You should pay attention to the cable model, color, outer diameter, material, fire rating, and mechanical performance of the optical cable.
2. Can we customize the color and printing on the cables?
We can customize the color and printing based on the samples you provide.
3.What types of optical cables can we produce?
We can produce various types of indoor/outdoor optical cables, such as tight-buffered cables, mini cables, ribbon cables, ADSS, GYTA, GYTS, GYXTW, and more.
4.What is the minimum order quantity for our optical cables?
For regular optical cables, the minimum order quantity is 1 kilometer. For special cables, please contact our sales team for further assistance.
5.What is our delivery lead time?
Generally, the delivery of regular optical cables takes around 3 working days.
