Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOC-GJFJV(H)/GJFSV(H)
Contact Us

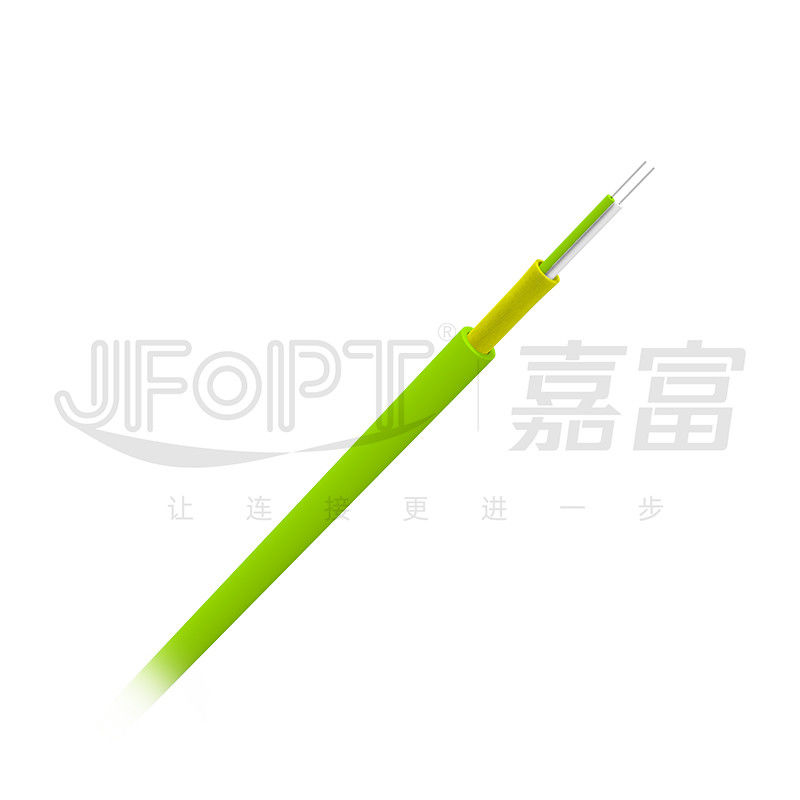

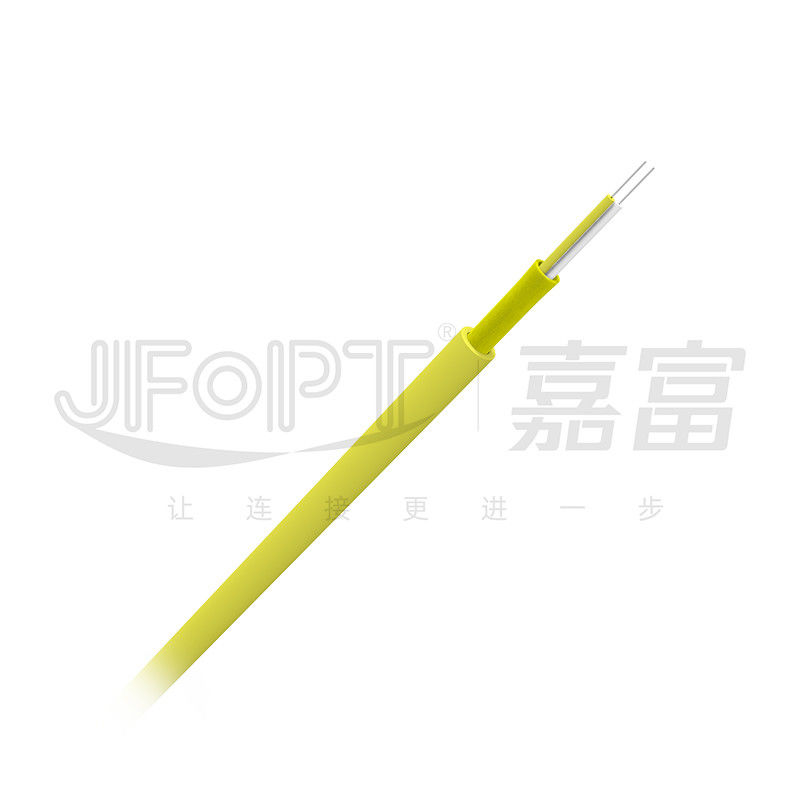

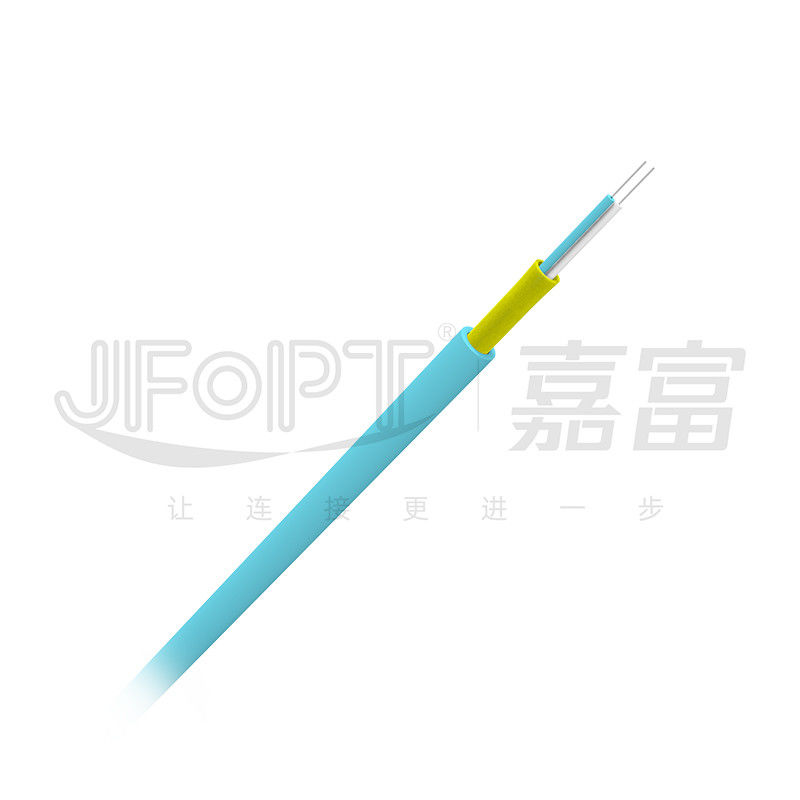

2.0/3.0mm Single-Tube Dual-Core Round Cable/ Compatible with UNIBOOT Connector/ SC/LC/MTRJ Sub-cable 0.6mm/0.9mm
The structure of the 2.03.0mm single-tube dual-core round cable includes two optical fiber cores, a cladding layer, and a sheath. The two optical fiber cores share a single tube and are isolated using special design and separating materials. The cladding layer is an optical material layer that protects the optical fiber cores, reduces signal loss and interference. The sheath is the external protective layer that provides physical protection and environmental isolation.
♦ Product Features
①Single tube dual core design, two fibers share a single tube, allowing simultaneous transmission of two signals and achieving bidirectional data transfer |
② High Transmission Performance, It utilizes high-quality fiber cores and sheath materials to ensure high-quality, high-speed data transmission, providing stable signal transmission performance |
|
|
③ Safe and Reliable,The optical cable materials comply with relevant safety standards and have good flame retardant properties, ensuring safety during use |
- |
|
- |
♦ Applications
1.Optical communication systems
2.Interconnection of communication equipment
3.Fiber optic communications
♦ Structure Presentation
♦ Cable Parameters
Items |
Specifications |
||||||
Dimension |
2.0mm |
3.0mm |
|||||
Fiber Count |
2 |
||||||
Tight-buffered Fiber |
Dimension |
0.6±0.05mm |
|||||
Material |
PVC/LSZH |
||||||
Jacket |
Dimension |
1.9±0.1mm |
2.9±0.1mm |
||||
Material |
PVC/LSZH |
||||||
Color |
Blue/Orange/Green/Brown/Gray/White/Red/Black/Yellow/Purple/Pink/Aqua |
♦ Mechanical performance
Items |
Unit |
Specifications |
||||||
Tension(Long Term) |
N |
80 |
||||||
Tension(Short Term) |
N |
150 |
||||||
Crush(Long Term) |
N/10cm |
100 |
||||||
Crush(Short Term) |
N/10cm |
500 |
||||||
Min. Bend Radius(Dynamic) |
mm |
60 |
||||||
Min. Bend Radius(Static) |
mm |
30 |
||||||
Operating Temperature |
℃ |
-20~+60 |
||||||
Storage Temperature |
℃ |
-20~+60 |
♦ Fiber Parameters
Single mode |
|||||||||
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
|||||
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
||||
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
|||||
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
|||||
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
|||||
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
|||||
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|||||
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||||
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||||
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
|||||
Cable Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
||||
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
Multi-mode |
|||||||||
Items |
unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
|||
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
|||
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
|||
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
|||
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
|||
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
|||
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
|||
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
|||
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
||
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
|||
Cable Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
||
1300nm |
dB/km |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
♦ Product Packaging
|
|
Packed on the drum |
Drum sealed |
♦ Factory Strength
Specialization: JFOPT has a professional R&D team, production technology, and equipment that effectively reduces potential issues during cable manufacturing, such as cable shrinkage, axial compression, skewed printing, abnormal loss, and more. |
|
||||
Manufacturing Capacity: JFOPT has three professional production lines and equipment that can rapidly and efficiently produce a large quantity of cables to meet customer demands. |
|
||||
Quality Control: JFOPT implements strict quality control, ensuring that the selected materials meet relevant international, national, or industry standards. Each production process is equipped with mechanized testing equipment, and all cables undergo size and loss testing before leaving the factory to ensure product quality. |
|
||||
Standards Development: JFOPT has a professional and experienced R&D team. We have hundreds of sets of cable production molds for different structures and sizes. We can provide cables that meet your specific requirements and environmental conditions. |
|
||||
Technological Innovation: JFOPT focuses on technological innovation and continuously introduces various innovative products to meet evolving market demands through market research and our own mold production capabilities. |
|
||||
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing optical cables?
You should pay attention to the model/type, color, outer diameter, material, fire rating, and mechanical performance of the optical cable.
2. Can we customize the color and printing on the cables?
We can customize the color and printing based on the samples you provide.
3.What types of optical cables can we produce?
We can produce various types of indoor/outdoor optical cables, such as FTTH drop cables, mini round cables, ribbon cables, ADSS, GYTA, GYTS, GYXTW, and more.
4.What is the minimum order quantity for our optical cables?
For regular optical cables, the minimum order quantity is 1 kilometer. For special cables, please contact our sales team for further assistance.
5.What is our delivery lead time?
Generally, the delivery of regular optical cables takes around 3 working days.
