MPO-SC 6/8/12 3.0mm Fanout PatchCord
Contact Us

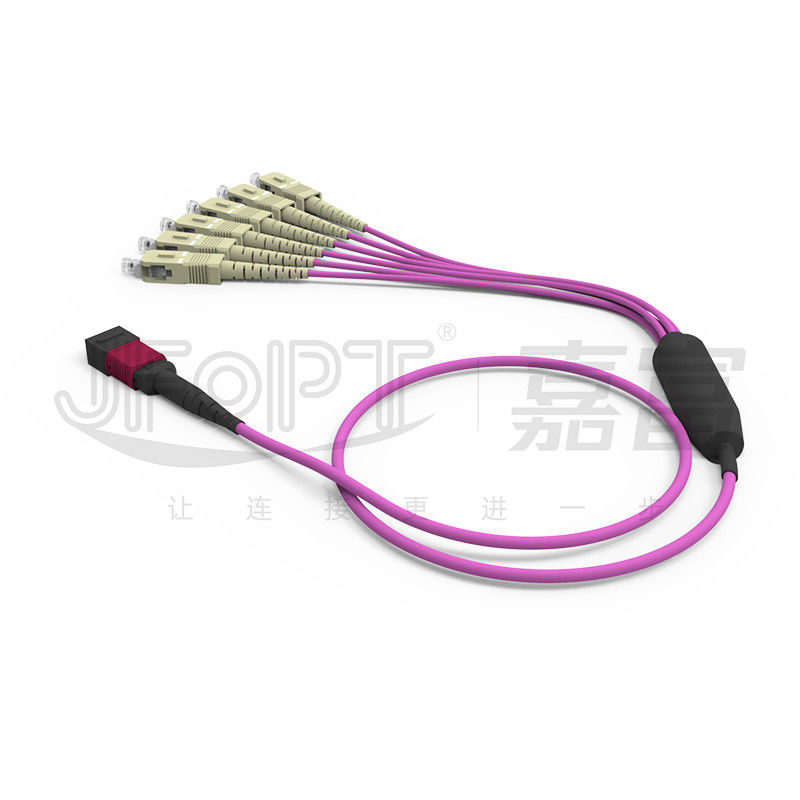

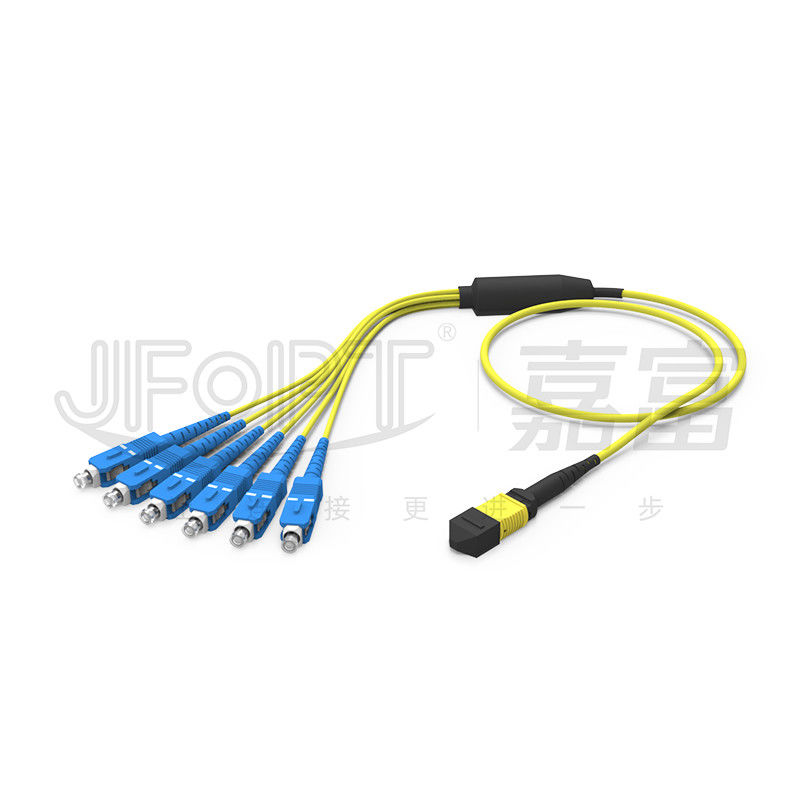

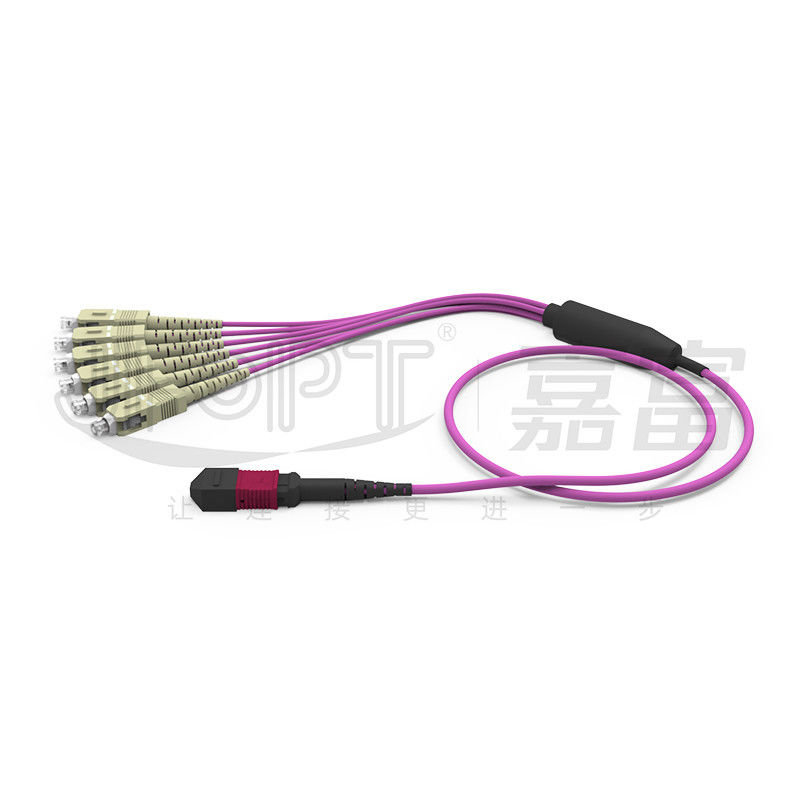

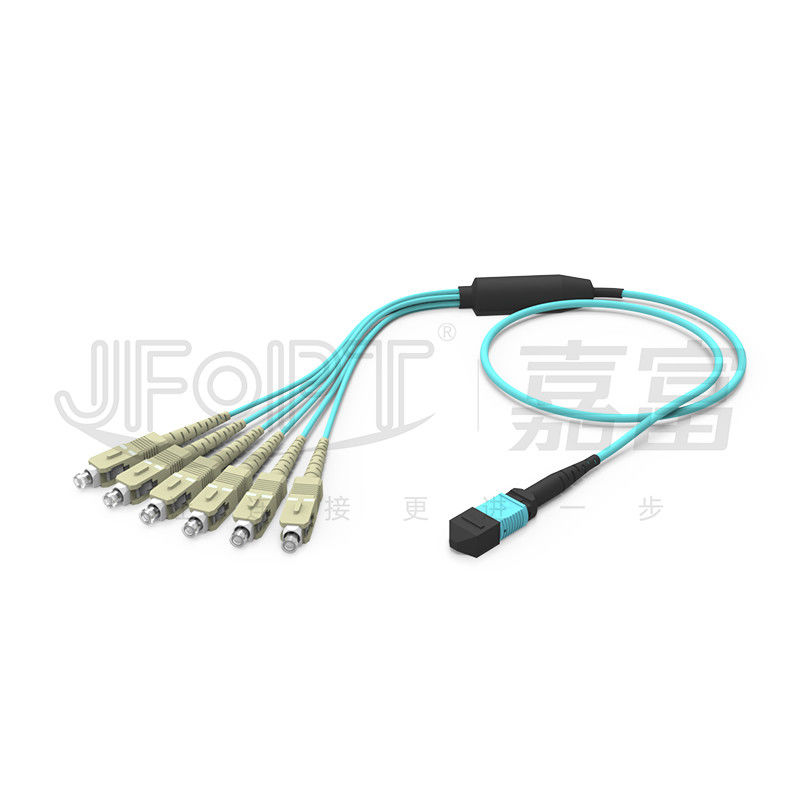

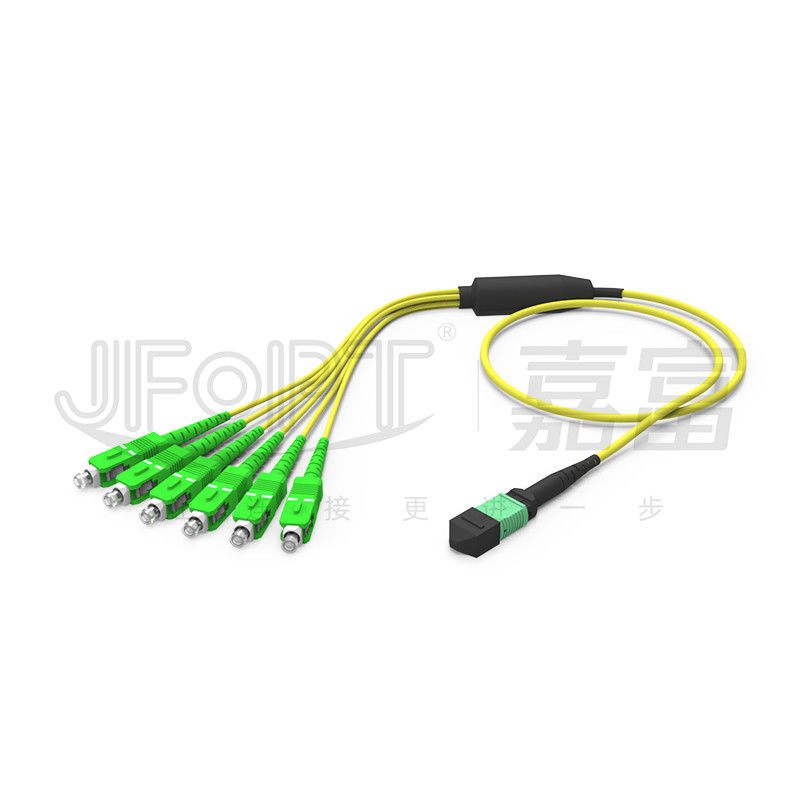

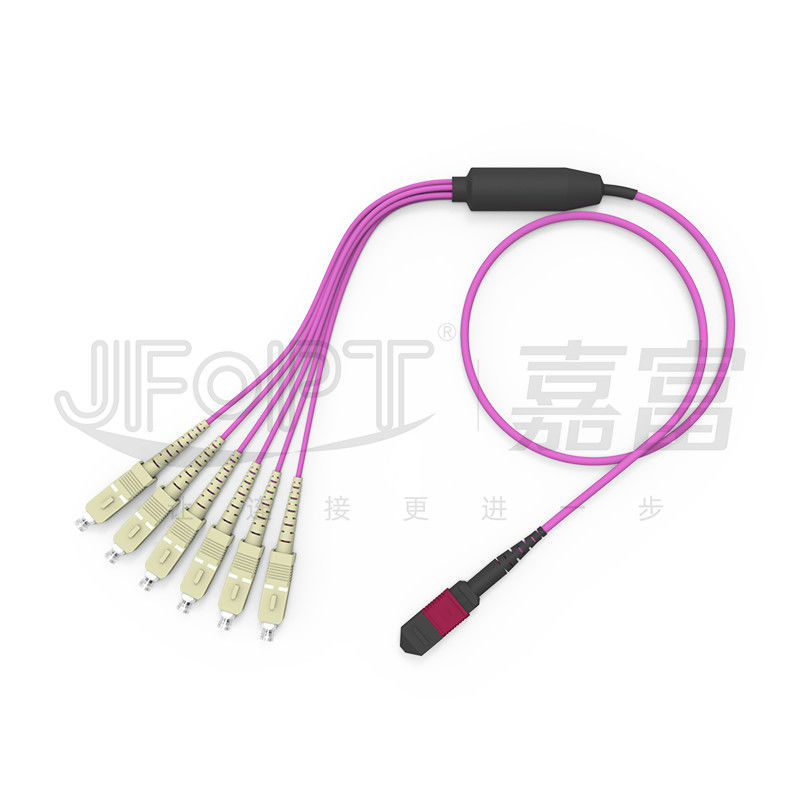

MPO - SC 6 Cores 8 Cores 12 Cores 3.0mm Main Cable SC Branch Optical Jumper
The MPO-SC branch jumper from JFOPT allows one end to connect to an MPO trunk jumper, while the other end can connect to an SC single-core or dual-core jumper. This enables the consolidation of channels previously transmitted by SC connectors into a single MPO trunk jumper, reducing fiber cabling volume. JFOPT's MPO-SC branch jumper utilizes high-quality, low-loss MT inserts, as well as high-quality, low-loss three-ring ceramic inserts. The fiber cable is composed of imported aramid, Changfei fiber, and new LSZH or flame-retardant PVC materials. All parameters of JFOPT's MPO jumper meet international standards and exhibit superior performance beyond industry norms. The MPO branch jumper is a customized product, and JFOPT offers various customization services, including connector models, cable length, branch length, branch material and diameter, branch core number and sequence, and cable color.
♦ Features
|
① High-quality, low-loss MT12 core ferrule
|
②Uses premium quality YOFC fiber for minimal transmission loss
|
|
|
|
③ High-quality, low-loss CCTC. ceramic ferrule
|
④ Various branch outer diameters available to meet different installation requirements
|
|
|
|
⑤ 100% pass 3D testing
|
-
|
|
-
|
♦ Applications
1.Fiber optic access networks
2.Fiber optic data transmission
3.Fiber optic communication systems, cable television networks, telecommunications networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ SC Connector Parameters
|
Connector Characteristics |
Connector Type |
SC |
|||
|
End Face Types |
Single mode: UPC/APC,Multimode: UPC |
||||
|
Ferrule Type |
A-grade zirconia ceramic ferrule |
||||
|
Connector Color |
Blue/Green/Beige/Aqua/Violet/Lime Green |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single mode: UPC ≥50dB, APC ≥60dB, Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Project |
Parameters |
|||
|
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
Optional : 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Aqua / Magenta / Custom |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional : OFN / OFNR / OFNP |
|||
♦ Connector Housing Color Selection
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Fanout Options
|
|
|
|
Main Cable Structure |
|
|
|
|
|
Fanout with Equal Lengths |
Fanout with Unequal Lengths |
|
|
|
|
Fanout 0.9mm Branch |
|
|
|
|
|
Fanout 2.0/3.0mm Branch |
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MPO branching jumpers?
It is important to consider the length, branch length, branch diameter, cable material, fiber type and fiber count, Male or Female connectors, ferrule loss standards, color, labeling, and other customization requirements.
2.How do we ensure the stability of our fiber jumpers?
JFOPT's fiber jumpers undergo 100% IL&RL testing and end-face inspection, ensuring stable performance.
3.What is our delivery time?
For standard products, our delivery time is within 5 working days, ensuring prompt shipment.
4.What other MPO-related products do we offer?
We also manufacture MPO loopbacks, MPO attenuators, MPO Male-Female adapters, MT jumpers, and other MPO related products.
