Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
JFOC-TBA
Contact Us

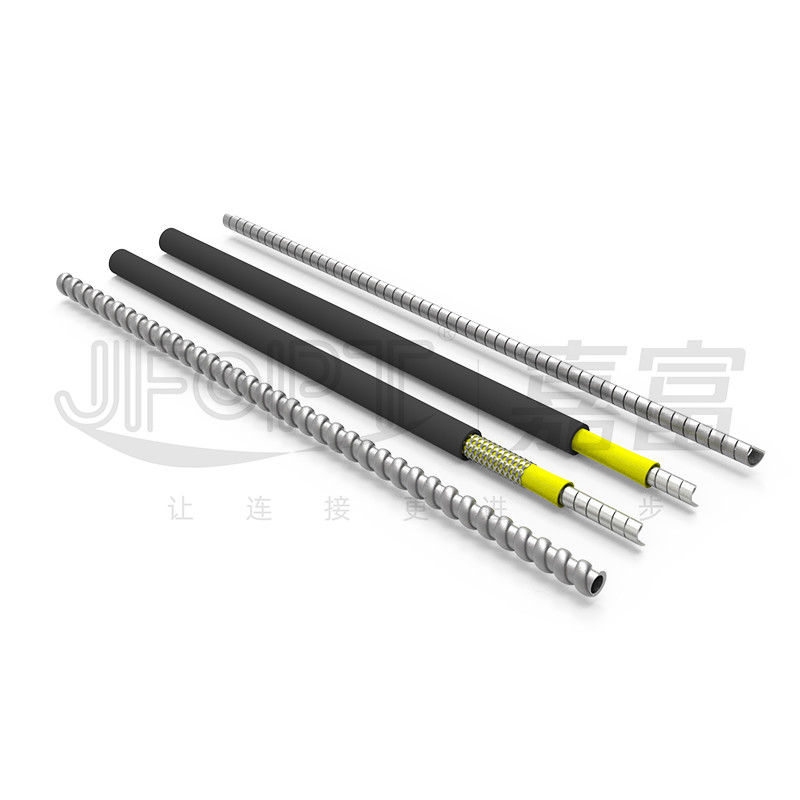

Armored Sleeve Impact / Tensile / Bending-Resistant Specialized For Furcation / Outer Jacket Can Be Customized
Empty armored tubes are commonly used to enhance the impact resistance of fiber optical jumper or branch portions of terminated fiber cables. They possess physical characteristics such as impact resistance, tensile strength, high-temperature resistance, high fatigue resistance, strong corrosion resistance, and the ability to withstand improper twisting damage. JFOPT offers various customized options that can be used in conjunction with JFOPT's different types of cables and connectors.
♦ Product Features
|
① Resistant to improper twisting damage |
② Resistant to crush, bending, ants, and rodent bites |
|
|
|
|
③Various materials and flame-retardant outer jackets are available |
④Flexible, easy to connect, and convenient for installation and wiring |
|
|
|

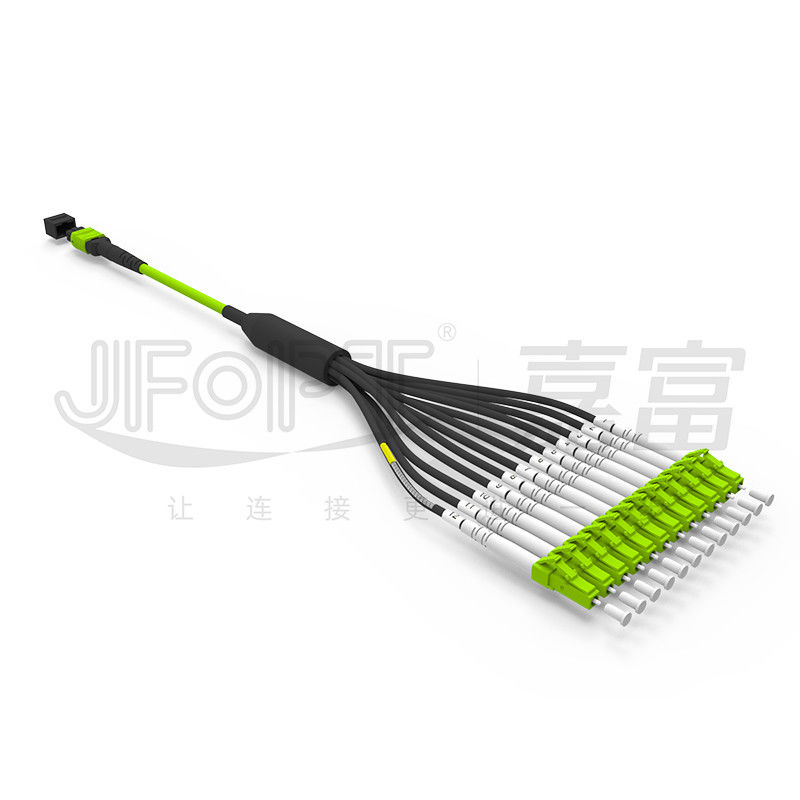

♦ Applications
|
|
|
|
|
Single buckle bare armored jumper |
Spiral jacketed armored breakout jumper cable |
Spiral bare armored breakout jumper cable |

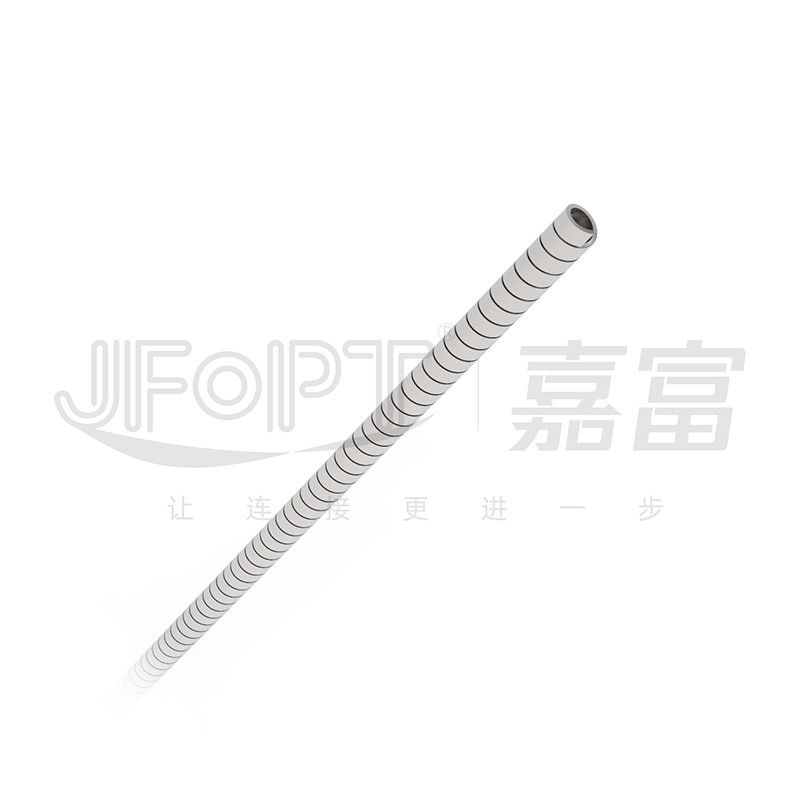

♦ Armored Tube Structure
|
Armored Tube Type |
Tube Material |
Outer Diameter |
Inner Diameter |
Material of Outer Sheath |
Sectional View |
Image |
||
|
Spiral |
USU304 |
2.0mm |
1.4mm |
- |
|
|
||
|
1.5mm |
||||||||
|
1.6mm |
||||||||
|
3.0mm |
2.2mm |
- |
||||||
|
2.3mm |
||||||||
|
2.6mm |
||||||||
|
Spiral |
USU304 |
2.0mm |
0.6mm |
PVC/LSZH |
|
|
||
|
0.8mm |
||||||||
|
1.2mm |
||||||||
|
3.0mm |
1.0mm |
PVC/LSZH |
||||||
|
1.4mm |
||||||||
|
1.7mm |
||||||||
|
1.8mm |
||||||||
|
Spiral |
USU304 |
2.0mm |
0.6mm |
PVC/LSZH |
|
|
||
|
0.8mm |
||||||||
|
1.2mm |
||||||||
|
3.0mm |
1.0mm |
PVC/LSZH |
||||||
|
1.4mm |
||||||||
|
1.7mm |
||||||||
|
1.8mm |
||||||||
|
Square locked |
USU304 |
6.0mm |
4.0mm |
- |
|
|
||
♦ Mechanical Character
|
Items |
specificantions |
||||||
|
Maximum Tensin/N |
Short Term |
200 |
|||||
|
Long Term |
100 |
||||||
|
Crush/N/100mm |
3500 |
||||||
|
Bend radius/mm* |
Dynamic |
60D |
|||||
|
Static |
30D |
||||||
|
*For G657 series optical fiber, the bend radius is less than 15mm |
|||||||
♦ Factory Strength
|
Expertise: JFOPT has a professional R&D team, production technology, and equipment to produce high-quality cables that meet different environmental and requirement needs. |
|
||||
|
Manufacturing Capacity: JFOPT has 40 indoor armored cable manufacturing machines, ensuring the timely delivery of large-scale armored cable orders. With professional production lines and equipment, we can efficiently produce a large quantity of cables to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures. In addition to raw material and incoming inspections, the production process incorporates automated quality testing systems for various components such as tight-buffering, spiral armoring, and outer sheathing. All production testing equipment is regularly maintained. With years of technical expertise and mature armored jumper production processes, they can eliminate almost all abnormalities in armored cables. |
|
||||
|
Standards Development: JFOPT has a professional and experienced R&D team that can provide cables customized to meet different environmental and requirement needs, ensuring customer satisfaction. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and designs armored cable products with different structures, sizes, core counts, and colors to meet the diverse needs of customers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1. What factors should be considered when purchasing optical cables?
It is important to consider the model, color, outer diameter, material, fire rating, and mechanical performance of the optical cable.
2.Do you accept color and printing customization?
Yes, we can customize the color and printing based on the samples you provide.
3.What types of optical cables can you produce?
We can produce various types of indoor and outdoor optical cables, including patch cords, mini cables, ribbon cables, ADSS, GYTA, GYTS, GYXTW, and more.
4.What is the minimum order quantity for your optical cables?
For regular optical cables, the minimum order quantity is 1 kilometer. For special optical cables, please contact our sales team for further information.
5.What is your delivery time frame?
Typically, the delivery time for regular optical cables is within 3 working days.
