FTTH Indoor Drop Cable / Tight-buffered Fiber / LSZH Jacket / Bending-resistant / Fiber Bend-insensitive

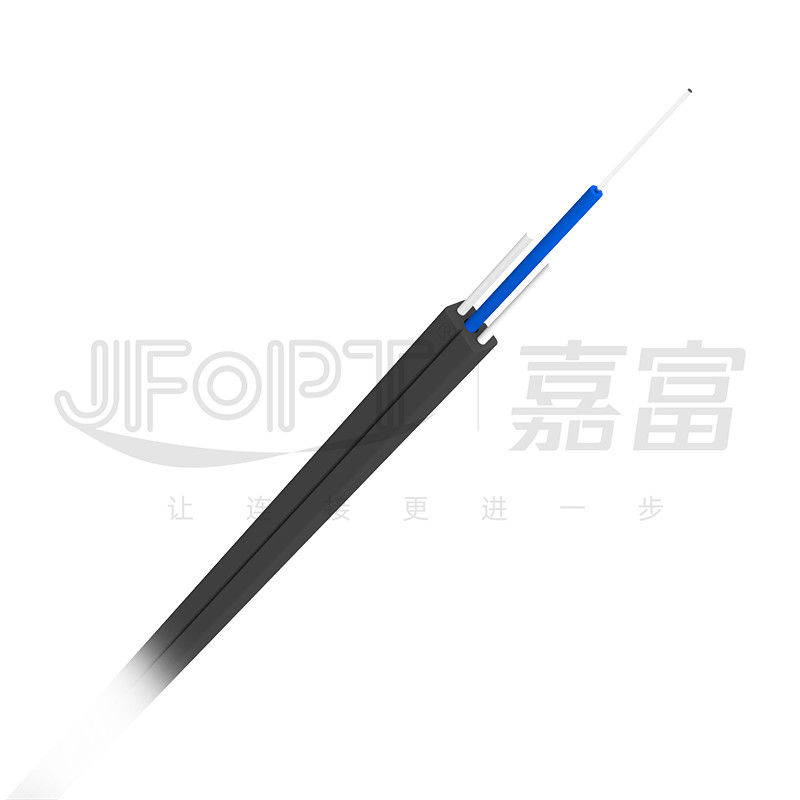

JFOPT offers a variety of drop cables, including armored drop cables, loose tube drop cables, and tight-buffered drop cables. Among them, the tight-buffered drop cable features an additional 0.9mm tight buffer jacket around the central bare fiber of a standard drop cable. This design enhances fiber protection, making the drop cable less prone to fiber breakage or damage during stripping.
♦ Product Features
|
①The fiber is protected by a tight buffer, reducing the risk of fiber damage or breakage |

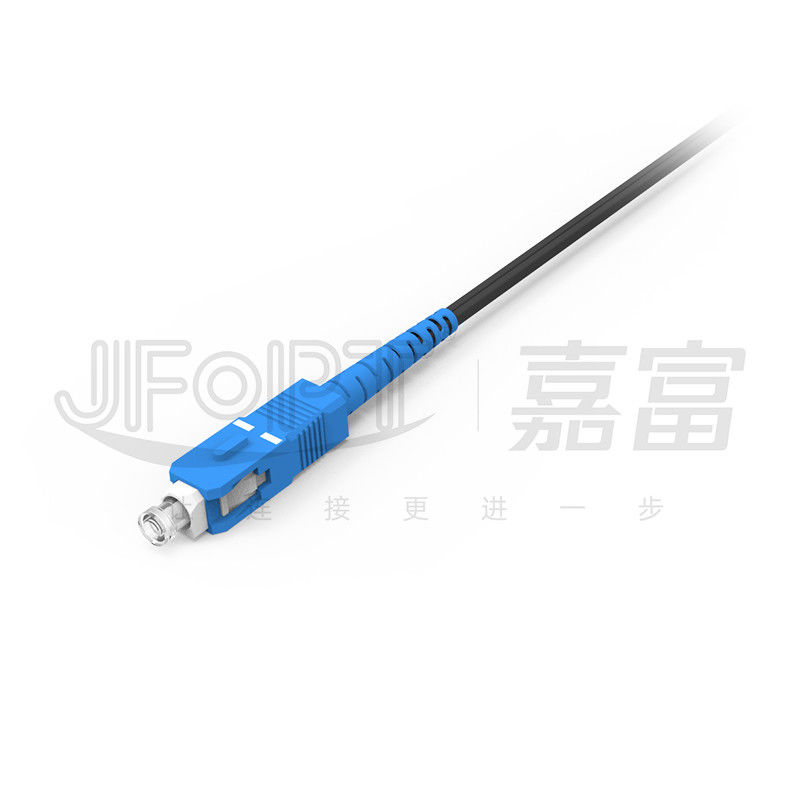

②Selected special connector for drop cable connector to increase tensile strength and reduce risk of fiber breakage |
|
|
|
|
③ The outer dimensions are the same as regular drop cables, various strength member material are available |
④ Outdoor self-supported drop cable with messenger wire availabe in JFOPT |
|
|
|
♦ Applications
1.Fiber-to-the-Home (FTTH)
2.Indoor horizontal and vertical cabling
3.Local area networks (LAN)
♦ Profile View
♦ Cable Parameters
|
Item |
Parameter |
||||
|
Fiber Count |
1 |
||||
|
Bare Fiber |
OD |
0.25±0.015mm |
|||
|
Color |
Black, white or customized |
||||
|
Tight Buffer |
OD |
0.85±0.05mm |
|||
|
Material |
PVC or LSZH |
||||
|
Color |
Customized |
||||
|
Strength Member |
FRP |
||||
|
Outer Jacket |
OD |
(2.0±0.1)x(3.0±0.1)mm |
|||
|
Material |
LSZH |
||||
|
Color |
Black or white |
||||
♦ Mechanical and Environmental Characteristics
|
Item |
Unit |
Parameter |
|||
|
Strength Member |
/ |
FRP |
|||
|
Tensile Strength (Long term) |
N |
40 |
|||
|
Tensile Strength (Short term) |
N |
80 |
|||
|
Crush Resistance (Long Term) |
N/10cm |
100 |
|||
|
Crush Resistance (Short Term) |
N/10cm |
500 |
|||
|
Min. Bending Radius (Dynamic) |
mm |
60 |
|||
|
Min. Bending Radius (Static) |
mm |
30 |
|||
|
Operating Temp. |
℃ |
-20~+60 |
|||
|
Store Temp. |
℃ |
-40~+80 |
|||
♦ Fiber Parameters
|
Item |
Unit |
G652D |
G657A1 |
G657A2 |
|
|
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
9.0±0.4 |
8.8±0.4 |
|
1550nm |
μm |
10.4±0.5 |
10.1±0.5 |
9.8±0.5 |
|
|
Cladding Diameter |
μm |
125±0.7 |
125±0.7 |
125±0.7 |
|
|
Cladding Non-circularity |
% |
≤0.7 |
≤0.7 |
≤0.7 |
|
|
Core-cladding Concentricity Error |
μm |
≤0.5 |
≤0.5 |
≤0.5 |
|
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|
|
Coating Non-circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|
|
Cladding-coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|
|
Cable Cutoff Wavelength |
μm |
≤1260 |
≤1260 |
≤1260 |
|
|
Attenuation Coefficient |
1310nm |
dB/km |
≤0.4 |
≤0.35 |
≤0.35 |
|
1550nm |
dB/km |
≤0.3 |
≤0.21 |
≤0.21 |
|
♦ Product Packaging
|
|
|
|
Packed on the drum |
Drum sealed |
♦ Factory Strength
|
Expertise: JFOPT has the professional R&D team, production technology, and equipment, capable of producing various types of Drop Cables like indoor, outdoor, single-mode fiber, multi-mode fiber. |
|
||||
|
Manufacturing Capacity: JFOPT has three dedicated production lines for Drop Cables and indoor optical cables, enabling fast and efficient production to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, ensuring that the selected fiber, sheath materials, and strength member materials meet relevant international, national, or industry standards. Each production process undergoes professional quality inspections to ensure product quality. |
|
||||
|
Standard Setting: With a professional and experienced R&D team, JFOPT offers a full range of product selection and customization services based on the company's comprehensive solutions. Drop Cable can be customized to meet different requirements in terms of appearance, size, structure, color of each part, jacket printing, packaging, etc. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and possesses rich expertise and experience in fiber optic transmission technology. The company provides innovative products and solutions to meet the growing communication needs. |
|
||||
|
Service and Technical Support: JFOPT offers comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and post-sales maintenance, to meet customer requirements and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing optical cables?
When purchasing optical cables, you should consider the cable model, jacket color, outer diameter, jacket material, fire rating, mechanical performance, and so on.
2.Can we customize the jacket color and printing?
Yes, we can customize the color and printing based on the samples you provide.
3.What are the advantages of our Drop Cable?
As we are the original factory, our drop Cable ensures 100% new materials and premium fiber at the same price.
4.What types of optical cables can we produce?
We can produce various types of indoor/outdoor optical cables, such as single/dual-core round cables, mini cables, ribbon cables, ADSS, GYTA, GYTS, GYXTW, and more.
5.What is the minimum order quantity for our drop Cable?
The minimum order quantity for drop Cable is 1 kilometer. For special cables, please consult our sales team.
6.What is our delivery lead time?
For regular optical cables, we can typically deliver within 3 working days.
