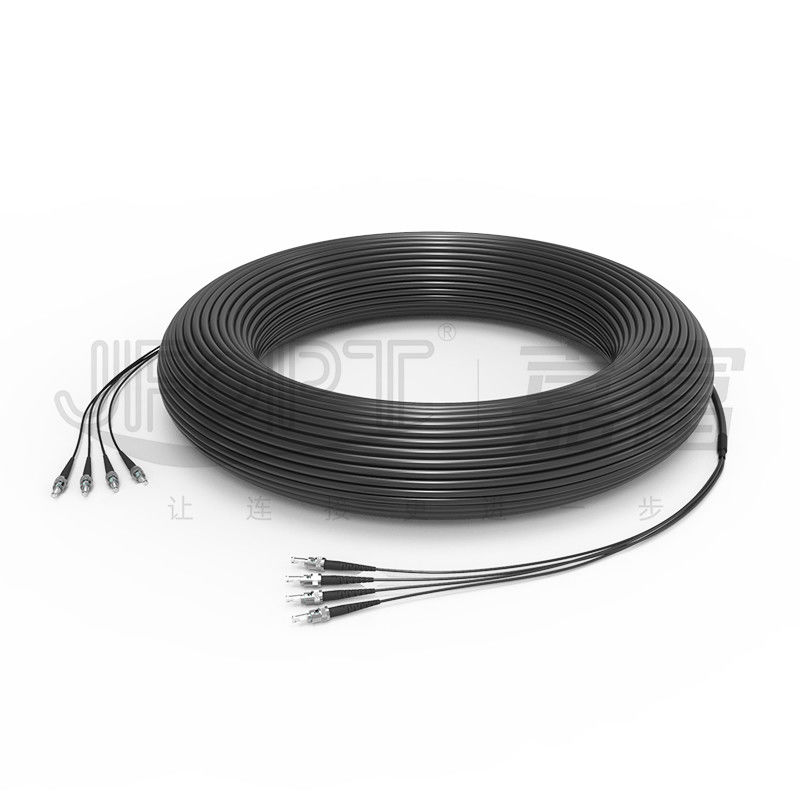

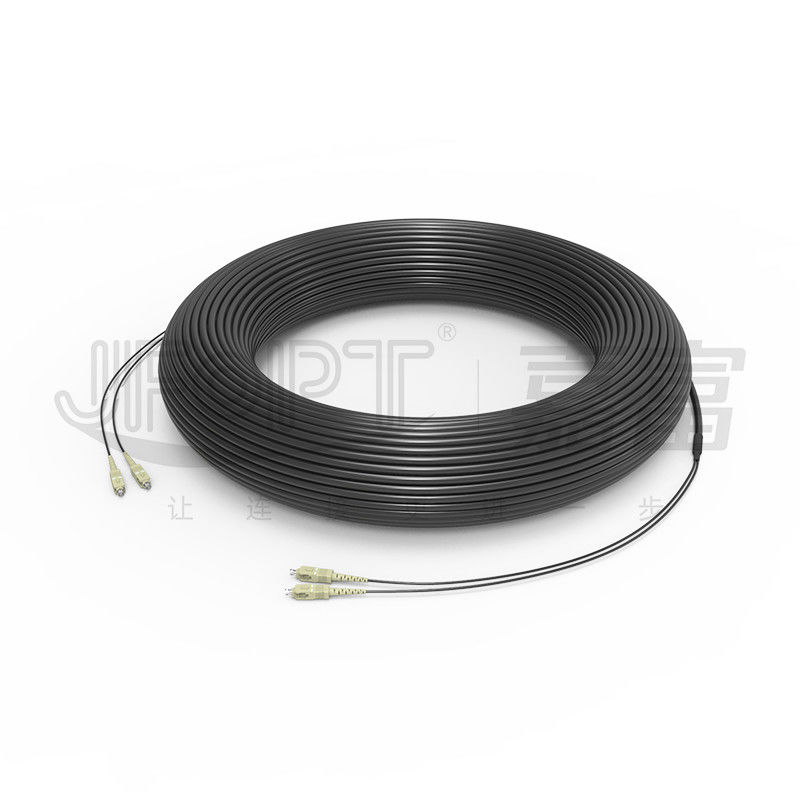

FTTA Armored Cable Small Outer Diameter Multi-Fiber for Base Station Pre-terminated BBU-RRU Round Crush Resistance

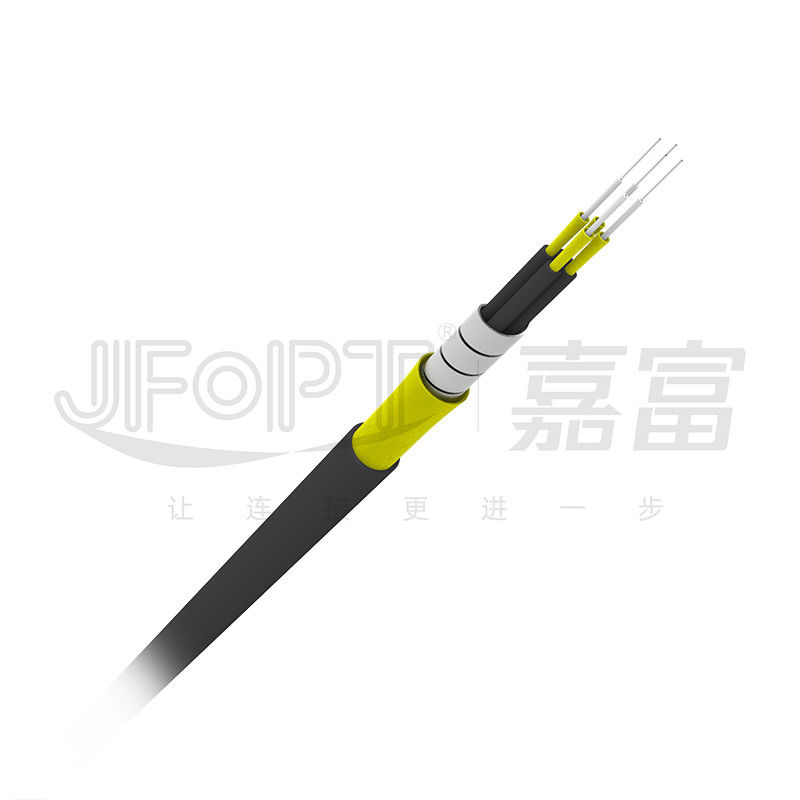

The single-layer armored base station cable utilizes a single-core optical cable as the sub-cable unit. The sub-cable unit consists of a 0.9mm jacketed cable and aramid yarn for reinforcement. The sub-cable is wrapped with a layer of stainless steel armor, which is further covered with a layer of aramid yarn. Finally, the cable is extruded with an outer layer of PVC/LSZH/TPU material to form the final cable assembly.
♦ Product Features
|
① Armor design provides a cost-effective solution |
②Direct branching allows for customizing the length of individual branches |
|
|
|
|
③Widely used in FTTA remote transmission at base stations |
- |
|
|
- |
♦ Applications
1.Base station communication systems
2.Video surveillance systems
♦ Structure Presentation
♦ Cable Parameters
|
Items |
Specifications |
|||||||
|
Fiber Count |
2 |
4 |
||||||
|
Inner |
Material |
LSZH |
||||||
|
Thickness |
0.4mm±0.05mm |
|||||||
|
Outer Diameter |
1.9mm±0.1mm |
|||||||
|
Stainless stelltube |
Material |
SUS204 |
||||||
|
Outer Diameter |
4.8mm±0.3mm |
6.0mm±0.3mm |
||||||
|
Thickness |
0.4mm±0.05mm |
|||||||
|
Gap |
0.3mm±0.10mm |
|||||||
|
Strength |
Model |
Aramid yarn |
||||||
|
position1 |
Outside The Tight-Buffered Fiber |
|||||||
|
position2 |
Outside The Stainless Steel Tube |
|||||||
|
Outer Jacket |
Material |
LSZH |
||||||
|
Color |
Black |
|||||||
|
Thickness |
0.9mm±0.1mm |
1.1mm±0.1mm |
||||||
|
Out Diameter |
7.0mm±0.3mm |
8.0mm±0.5mm |
||||||
♦ Mechanical Performance
|
Items |
Specifications |
|||||||
|
Fiber Count |
2 |
4 |
||||||
|
Compression Resistant Strength/N/100m |
≥3000 |
|||||||
|
Tension(Short Term)/N/10cm |
≥1000 |
≥1200 |
||||||
|
Tension(Long Term)/N/10cm |
≥600 |
≥800 |
||||||
|
Weight/Kg/Km |
65 |
85 |
||||||
|
Operating Temperature/℃ |
-40~+80 |
|||||||
|
Storage Temperature/℃ |
-40~+80 |
|||||||
♦ Fiber Parameters
|
Single mode |
|||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
|||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
|||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
|||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
|||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
|||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
|||
|
Attenuation |
1310nm |
dB/km |
≤0.4 |
≤0.4 |
≤0.4 |
||
|
1550nm |
dB/km |
≤0.3 |
≤0.3 |
≤0.3 |
|||
|
Multi-mode |
|||||||
|
Items |
unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
|
|
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
|
|
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
|
|
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
|
|
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|
|
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
|
|
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
|
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
|
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
|
|
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
|
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
|
|
Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
≤3.0 |
|
1300nm |
dB/km |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|
♦ Product Packaging
|
|
|
|
Packed on drum |
Drum sealed |
♦ Factory Strength
|
Specialization: JFOPT has a professional research and development team, production technology, and equipment to produce various structures of base station fiber cables, including non-metallic all-dielectric, armor, subunit armor, non-metallic/metallic center strength member, and more. |
|
||||
|
Manufacturing Capacity: JFOPT has a production line and equipment for large-diameter cable sheathing, offering custom lengths, custom coiling, and batch production to meet customer needs. |
|
||||
|
Quality Control: JFOPT implements strict quality control, selecting materials that fully comply with international, national, or industry-standard requirements, and can provide relevant certification. |
|
||||
|
Standardization: JFOPT's professional team understands your specific needs and provides customized solutions. Whether it's base station construction, expansion, or maintenance, we can offer professional advice and support to ensure the smooth progress of your projects. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation, conducting research and development upgrades for products annually, and continuously introducing innovative products to meet evolving market demands. |
|
||||
|
Service and Technical Support: JFOPT not only provides high-quality products but also comprehensive technical support and after-sales service. Our professional technical team can provide installation guidance, performance testing, troubleshooting, and other services. |
|
||||
♦ Frequent Q&A
1.What should be considered when selecting fiber optic cables?
It is important to consider the cable type, fiber count, color, outer diameter, material, fire rating, mechanical performance, and other relevant specifications.
2.Can we request customized colors and printing on the cables?
Yes, we can customize the colors and cable printing based on the samples and content you provide.
3.Can we have the fiber optic cables processed into remote fiber optic jumpers for base station use?
We have a professional connector processing production line that can process various fiber optic cables into the fiber optic jumpers you need for base station applications.
4.What other types of fiber optic cables can we manufacture?
We can manufacture different types of indoor and outdoor fiber optic cables, including drop cables, mini cables, btreakout cables, ADSS , GYTA , GYTS , GYXTW , and more.
5.What is our delivery lead time?
For regular fiber optic cables, we usually have a lead time of 3 working days.
