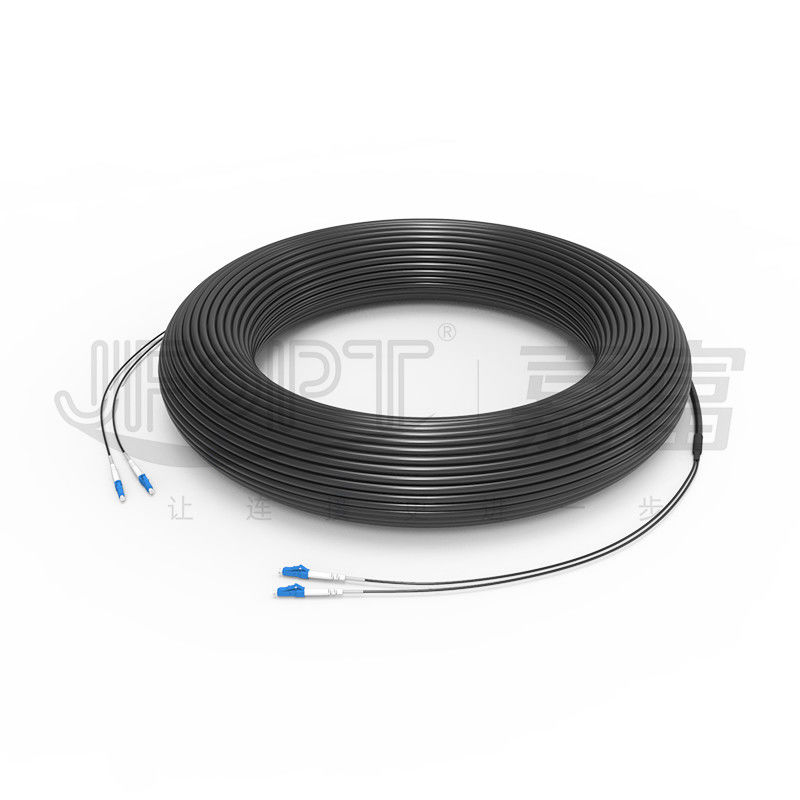

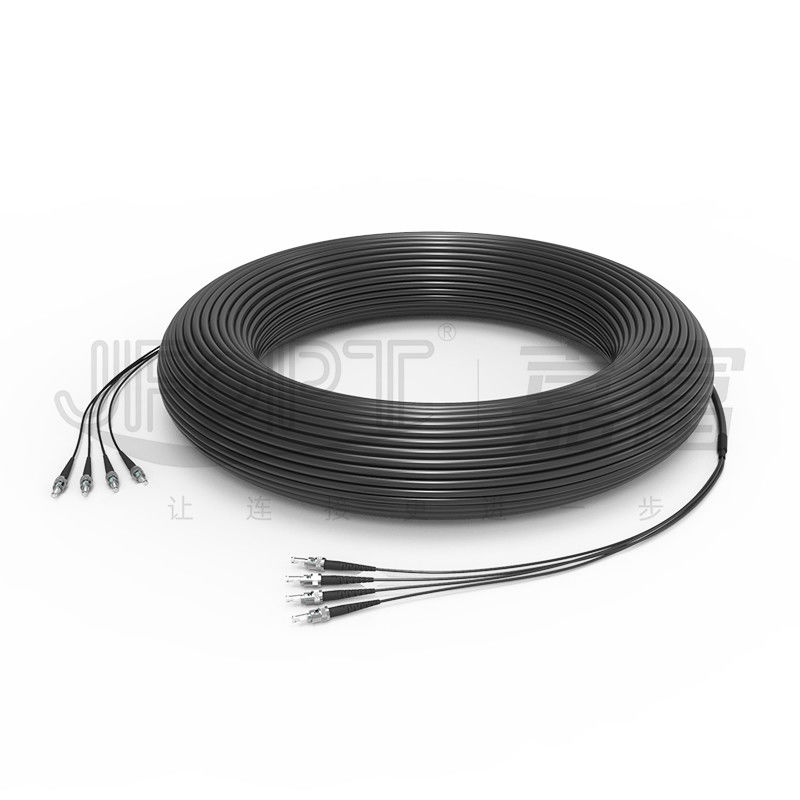

Single Armored Field Tactical Cable Small Diameter Easy Cabling Resistant to Pressure/ Durable/ Stable Transmission
The single-layer armored field tactical cable consists of a 0.9mm or 0.6mm jacketed optical cable, which is wrapped with a layer of stainless steel tube. The armor tube is further covered with a layer of aramid yarn, and finally, the cable is extruded with an outer layer of TPU material to form the final cable assembly.
♦ Product Features
|
①Optional for cable puller, facilitating cable laying and saving time during cable installation |
②The cable with a maximum outer diameter of 5.0mm can accommodate multiple fibers, making it smaller in size compared to base station cables |
|
|
|
|
③TPU jacket provides flexibility and allows for small bend radii |
- |
|
|
- |
♦ Applications
1.Base station communication systems
2.Video surveillance systems

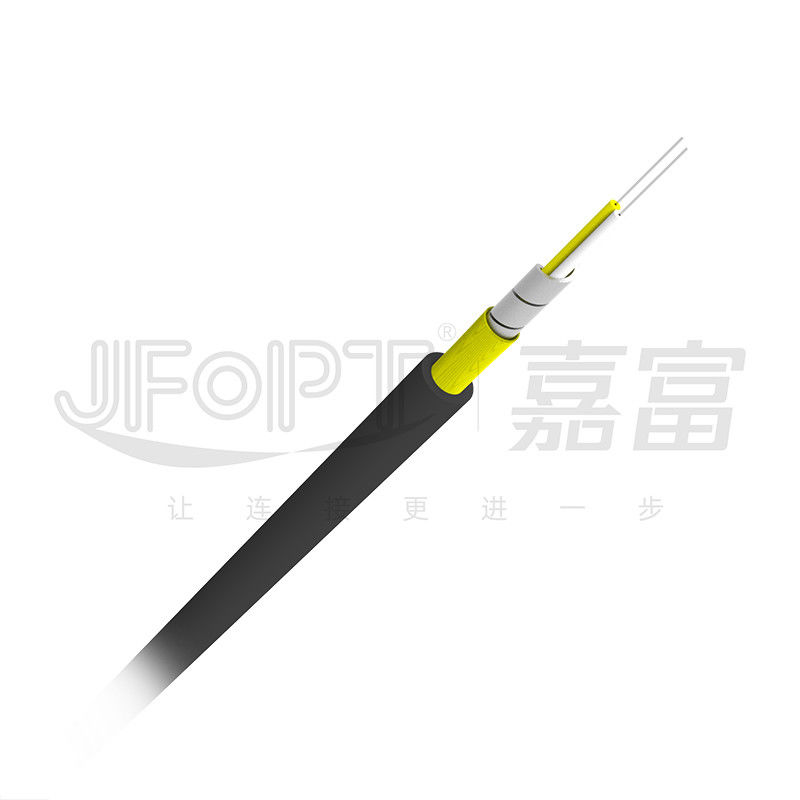

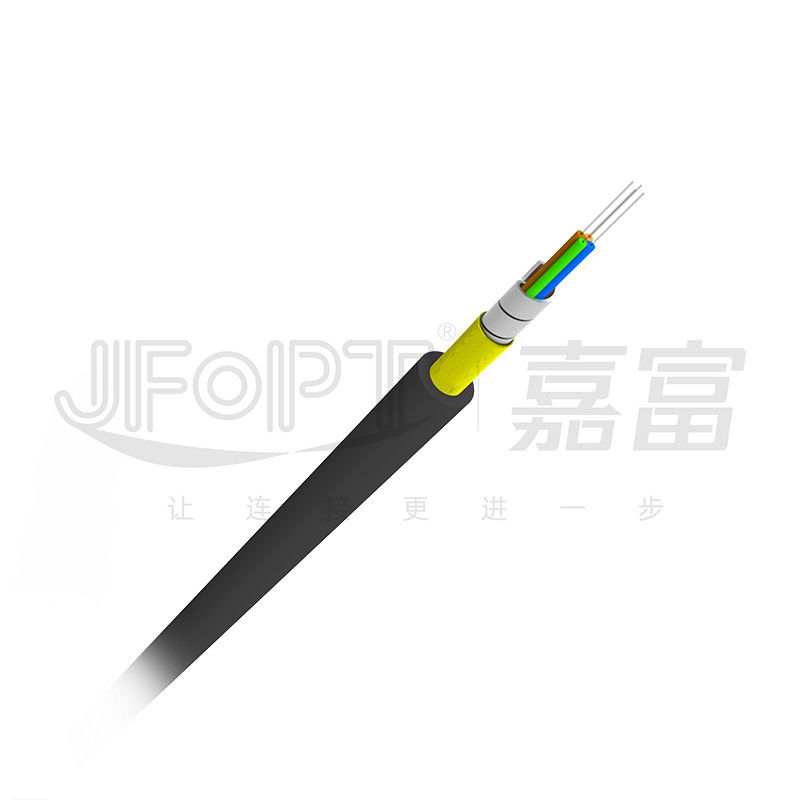

♦ Structure Presentation
♦ Cable Parameters
|
Items |
Specifications |
||||||
|
Fiber Count |
2 |
4 |
|||||
|
Tight-buffer Fiber |
Outer Diameter |
0.6±0.1mm |
0.9±0.1mm |
0.6±0.1mm |
|||
|
Material |
PVC |
||||||
|
Stainless stelltube |
Material |
SUS204 |
|||||
|
Internal Diameter |
1.25±0.1mm |
2.2±0.1mm |
2.1±0.1mm |
||||
|
Outer Diameter |
1.8±0.1mm |
2.8±0.1mm |
2.4±0.1mm |
||||
|
Outer jacket |
Material |
TPU |
|||||
|
Color |
Black/Customer-Specified |
||||||
|
Thickness |
0.6±0.1mm |
1.0±0.1mm |
0.9±0.1mm |
1.1±0.1mm |
|||
|
Outer Diameter |
3.3±0.2mm |
4.0±0.2mm |
5.0±0.2mm |
4.5±0.2mm |
5.0±0.2mm |
||
♦ Mechanical Performance
|
Items |
Specifications |
||||||
|
Fiber Count |
2 |
4 |
|||||
|
Outer jacket Dimension/mm |
3.3±0.2mm |
4.0±0.2mm |
5.0±0.2mm |
4.5±0.2mm |
5.0±0.2mm |
||
|
Tension(Long Term)/N |
300 |
600 |
400 |
600 |
|||
|
Tension(Short Term)/N |
600 |
1000 |
800 |
1000 |
|||
|
Crush/N/10cm |
300 |
||||||
|
Min. Bend Radius/mm |
30D |
||||||
|
Operating Temperature/℃ |
-40～+85 |
||||||
|
Storage Temperature/℃ |
-40～+85 |
||||||
♦ Fiber Parameters
|
Single mode |
|||||||
|
Items |
Unit |
G.652D |
G.657A1 |
G.657A2 |
|||
|
Mode Field Diameter |
1310nm |
μm |
9.1±0.4 |
8.8±0.4 |
8.8±0.4 |
||
|
1550nm |
μm |
10.4±0.5 |
9.8±0.5 |
9.8±0.5 |
|||
|
Cladding Diameter |
μm |
125±1 |
125±0.7 |
125±0.7 |
|||
|
Cladding Non-Circularity |
% |
≤1 |
≤0.7 |
≤0.7 |
|||
|
Core-Cladding Concentricity Error |
μm |
≤0.6 |
≤0.5 |
≤0.5 |
|||
|
Coating Diameter |
μm |
245±7 |
245±5 |
245±5 |
|||
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
|||
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
|||
|
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
λcc≤1260 |
λcc≤1260 |
|||
|
Attenuation |
1310nm |
dB/km |
≤0.34 |
≤0.35 |
≤0.35 |
||
|
1550nm |
dB/km |
≤0.2 |
≤0.21 |
≤0.21 |
|||
|
Multi-mode |
|||||||
|
Items |
Unit |
62.5/125 |
50/125 |
OM3-150 |
OM3-300 |
OM4 |
|
|
Core Diameter |
μm |
62.5±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
50±2.5 |
|
|
Cladding Diameter |
μm |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
125±1.0 |
|
|
Core Non-Circularity |
% |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
≤5.0 |
|
|
Cladding Non-Circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|
|
Core-Cladding Concentricity Error |
μm |
≤1.5 |
≤1.5 |
≤1.0 |
≤1.0 |
≤1.0 |
|
|
Coating Diameter |
μm |
245±7 |
245±7 |
245±7 |
245±7 |
245±7 |
|
|
Coating Non-Circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
|
|
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
|
|
OFL Bandwidth |
850nm |
MHz·km |
≥160 |
≥500 |
≥700 |
≥1500 |
≥3500 |
|
1300nm |
MHz·km |
≥500 |
≥500 |
≥500 |
≥500 |
≥500 |
|
|
Attenuation Coefficient |
850nm |
dB/km |
≤3.0 |
≤2.5 |
≤2.3 |
≤2.3 |
≤2.3 |
|
1300nm |
dB/km |
≤0.8 |
≤0.7 |
≤0.6 |
≤0.6 |
≤0.6 |
|
♦ Product Packaging
|
|
|
|
Packed on drum |
Drum sealed |
♦ Factory Strength
|
Specialization: JFOPT has a professional research and development team, production technology, and equipment to produce various structures of field tactical cables, including non-metallic all-dielectric, armor, subunit armor, non-metallic/metallic center strength member, and more. |
|
||||
|
Manufacturing Capacity: JFOPT has a production line and equipment for large-diameter cable, offering custom lengths, custom drum and others batch production to meet customer needs. |
|
||||
|
Quality Control: JFOPT implements strict quality control, selecting materials that fully comply with international, national, or industry-standard requirements, and can provide relevant certification. |
|
||||
|
Standardization: JFOPT's professional team understands your specific needs and provides customized solutions. Whether it's base station construction, expansion, or maintenance, we can offer professional advice and support to ensure the smooth progress of your projects. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation, conducting research and development upgrades for products annually, and continuously introducing innovative products to meet evolving market demands. |
|
||||
|
Service and Technical Support: JFOPT not only provides high-quality products but also comprehensive technical support and after-sales service. Our professional technical team can provide installation guidance, performance testing, troubleshooting, and other services. |
|
||||
