Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MPO Patch Panel 1U (MPO-24LC)*6
Contact Us

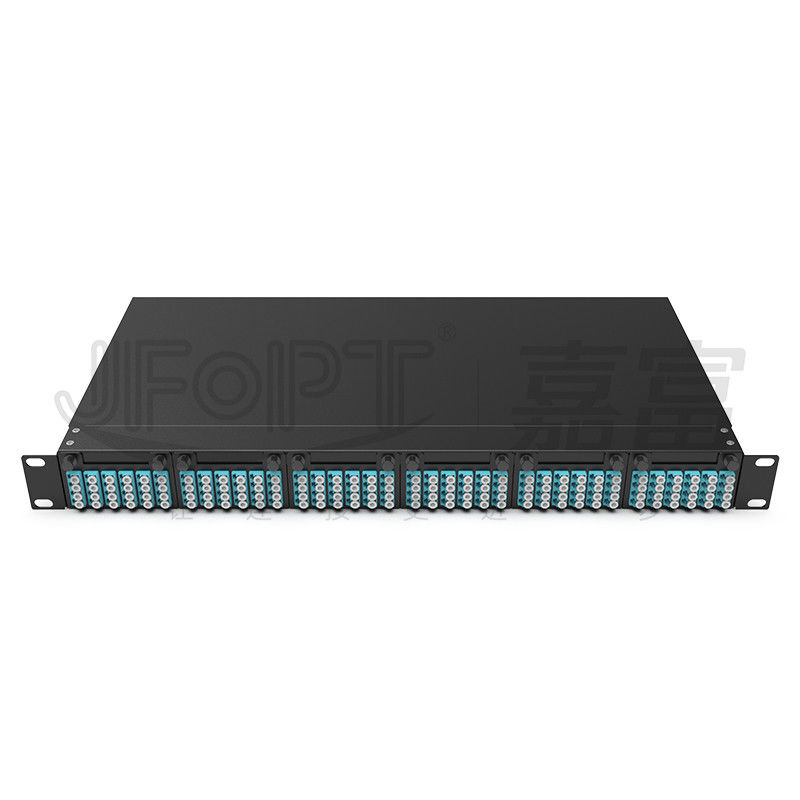

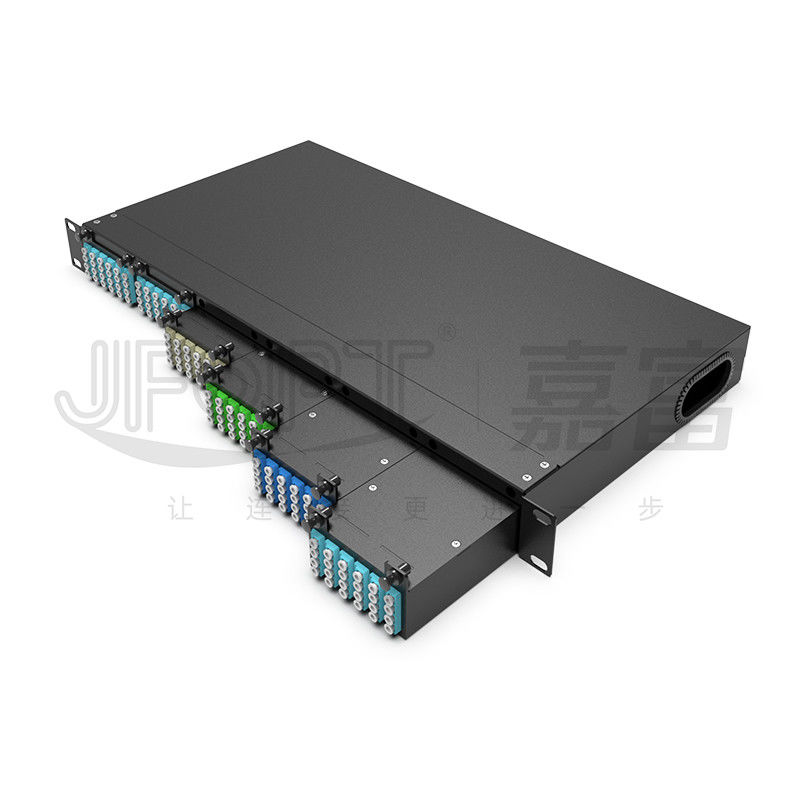

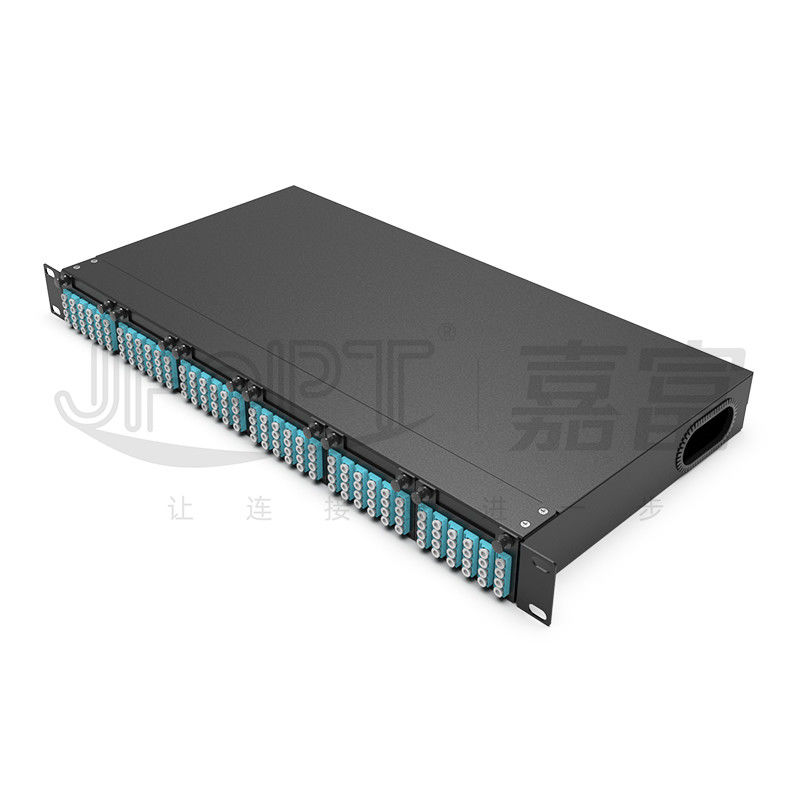

MPO Patch Panel Fully Loaded With 6pcs MPO Cassettes With 1pc 24 Cores Or 2pcs 12cores MPO-LC Cable

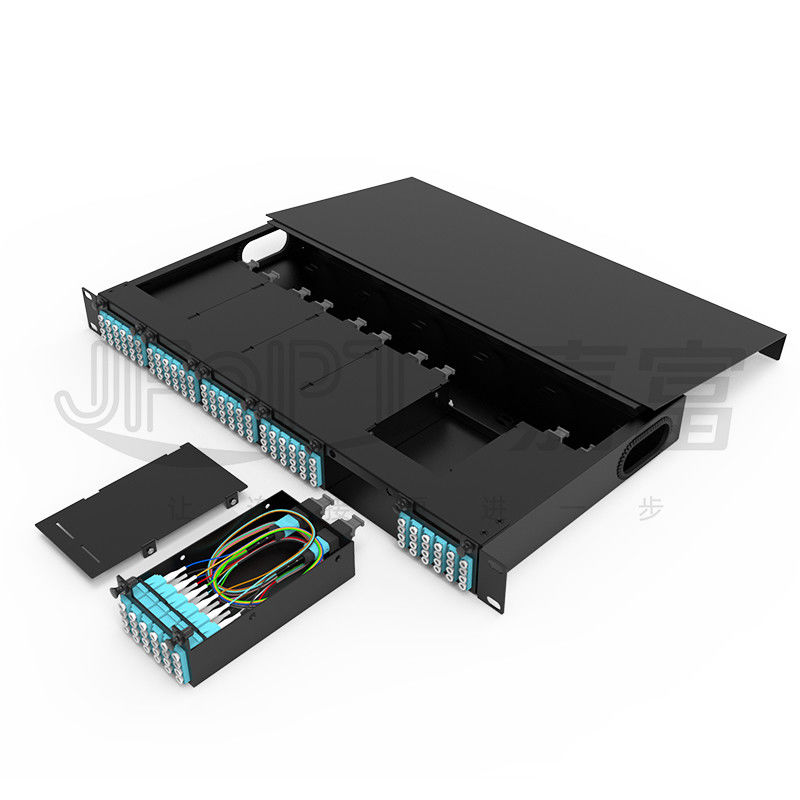

The JFOPP-MPO10-A-004 MPO/MTP fiber distribution box is made of thick high-quality cold-rolled steel plate material, which is resistant to pressure and impact, and is not easily deformed even with long-term use. The surface is coated with electrostatic spray paint, providing a matte finish that is resistant to wear, corrosion, and aesthetically pleasing. The top cover is fastened with screws, and the MPO cassettes uses large head rivets, allowing for tool-free disassembly and assembly, making it convenient for on-site construction.

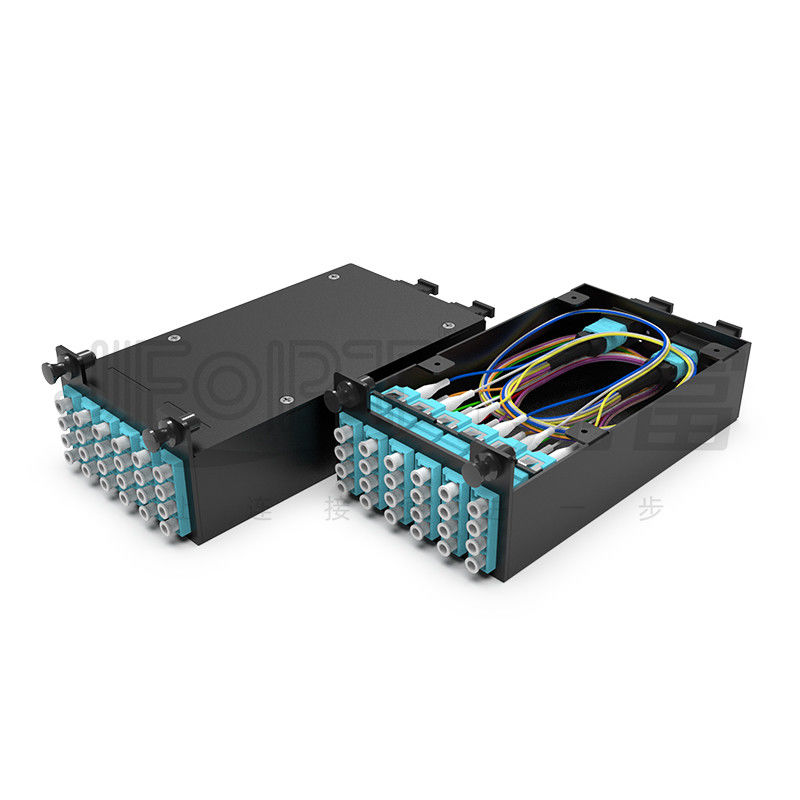

This distribution box has a standard 1U height, suitable for 19-inch racks and cabinets. It contains MPO cassettes (including MPO-LC 12-core or 24-core fanout patch cords). It is primarily used in large data center MDF (Main Distribution Frame), IDF (Intermediate Distribution Frame), and other areas that require high-density integration of fiber optic circuits for backbone connections and distribution unit management. It enables connectivity for FTTX, 40/100G SFP and other optical transceivers.
♦ Product Features
|
①The main body and MPO cassettes of the patch panel are made of cold-rolled steel plate |
②Options available for 2*MPO 12F-24*LC /1*MPO 24F-24*LC |
|
|
|
|
③Can accommodate up to 144 fibers with LC adapters or up to 72 fibers with SC adapters |

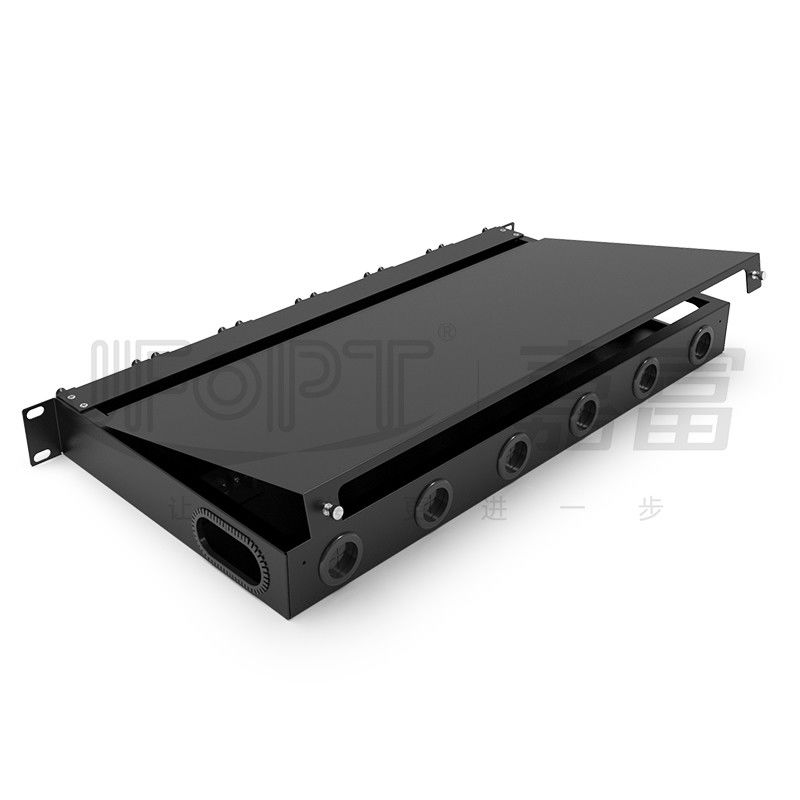

④The top cover can be easily opened with screws by hand, no tools required |
|
|
|
|
⑤ Cable entry ports are designed on both the left and right sides to accommodate various wiring directions |
- |
|
|
- |
♦ Applications
1.Data centers.
2.High-density fiber optic cabling systems.
3.Backbone networks.
4.FTTZ and FTTB cabling systems.
♦ Dimension of Module Box
♦ Dimension of Distribution Box
♦ Accessory
|
|
|
|
3*100mm cable ties * 8 pieces |
Rack mounting screws and nuts * 4 sets |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Inner carton box |
Multiple inner boxes packed into an outer box and sealing it |
♦ Factory Strength
|
Specialization: JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precise laser cutting equipment, metal stamping equipment and CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections at every stage, from sheet metal material to stamping, bending, and coating processes. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for patch panels based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional team dedicated to the research and development of fiber optic patch panels, continuously developing more advanced and user-friendly products. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing a distribution box?
Firstly, ensure that it meets your wiring installation requirements. Pay attention to the thickness of the sheet metal and structural strength to ensure the product has an attractive appearance without any damage. Typically, you can contact us to customize the production based on your samples or technical drawings, or you can inform us of your requirements for us to design it for you.
2.Can our patch panel match with the MPO cassettes from other manufacturers?
Compatibility depends on the installation dimensions. If the dimensions are consistent, they can be compatible; otherwise, they may not be suitable for use together.
3.Can our patch panel be purchased with jumpers for matching?
We can provide jumpers and pigtails to match your different requirements and meet various wiring needs.
4.What is our delivery lead time?
For regular products, the delivery lead time is within 2 working days. For customized products, the delivery lead time is within 15 working days.
