Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOAD-SFF-SC
Contact Us

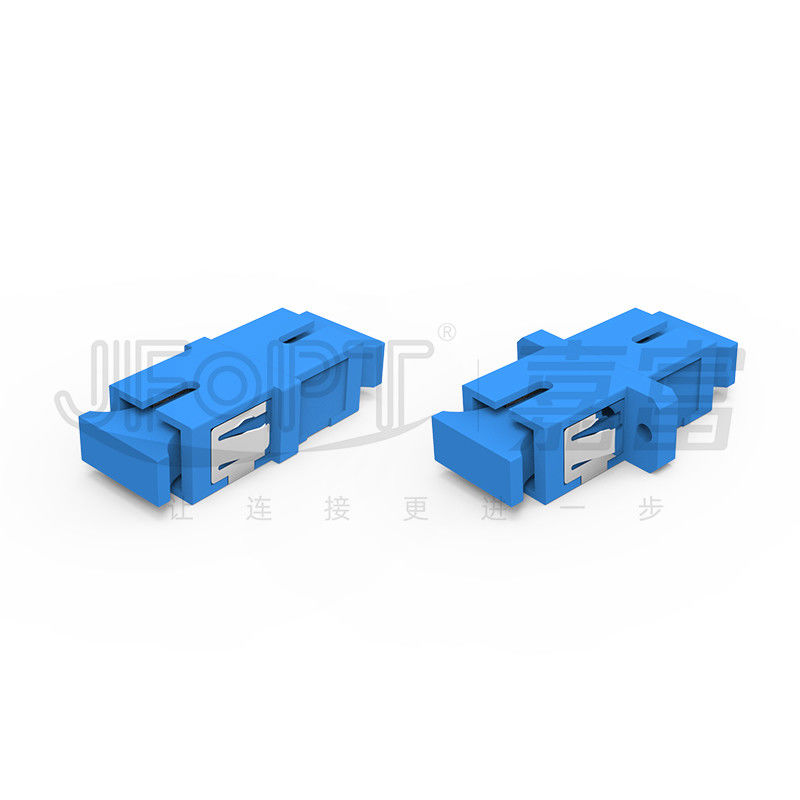

SC Standard Adapter Flanged / Flangeless Metal / Plastic SC New Material Adapter

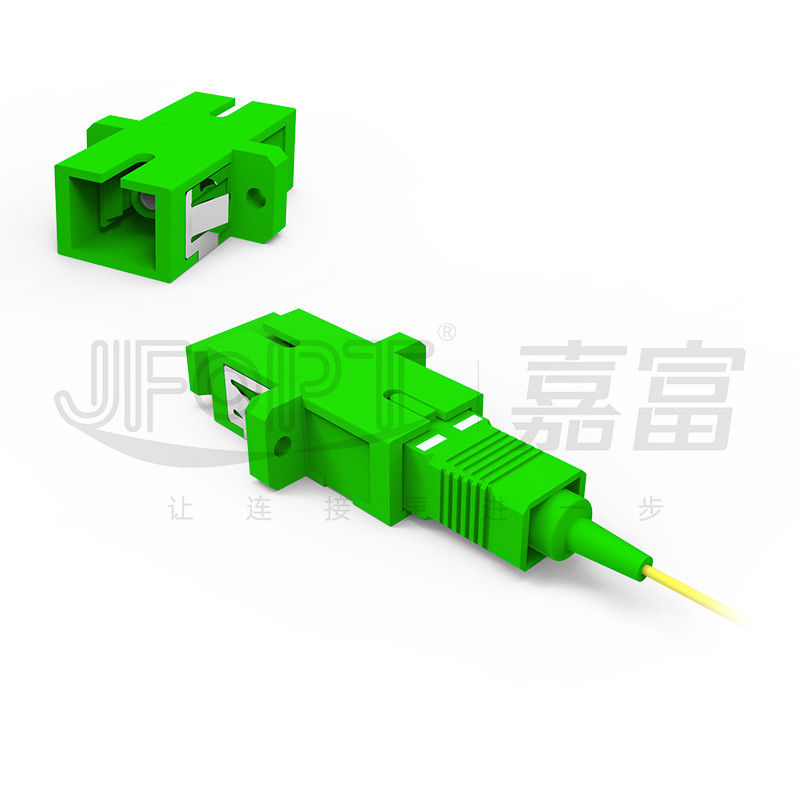

SC adapter JFOAD-SFF-SC is used for the connection between SC connectors, to minimize the optical power loss in coupling. It is coupled with SC connector by leading the guide key of SC connector into the guide groove on the inner wall of its housing.
♦ Features
|
① Easy coupling: The coupling and uncoupling can be done through direct plugging in and out |
② Ceramic sleeve: High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance |
||||
|
|
|
||||
|
③ Simple mounting: The adapter can be mounted on panel by direct plug-in or fiexed by screws, easy to operate |
- |
||||
|
|
- |
||||
♦ Applications
1. Data Center
2. FTTx
3. CATV
♦ Performance
|
Item |
Parameter |
||||
|
Adapter Color |
Blue, Green, Beige, Auqa, Violet, Lime green |
||||
|
Dust Cap |
Flat cap, gourd cap |
||||
|
Insertion Loss |
≤0.2dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Operating Temperature |
-40℃~+75℃ |
||||

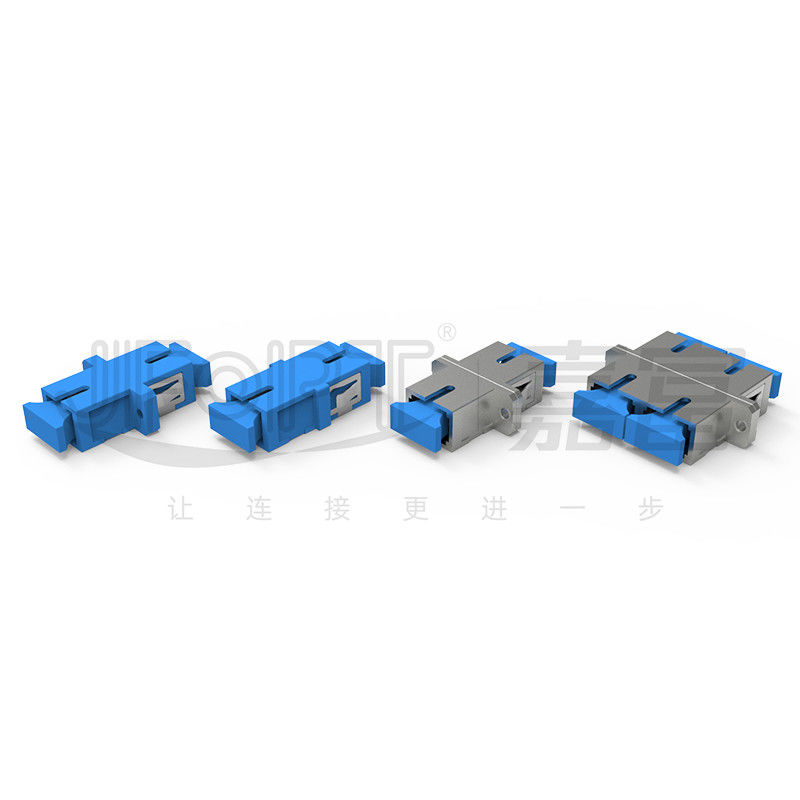

♦ Ordering Information
|
Housing |
Fiber Core |
Flange Type |
Picture |
Project View |
||
|
Standard Plastic Housing |
Simplex |
Flangeless |
|
|
||
|
Flanged |
|
|
||||
|
Duplex |
Flangeless |
|
|
|||
|
Flanged |
|
|
||||
|

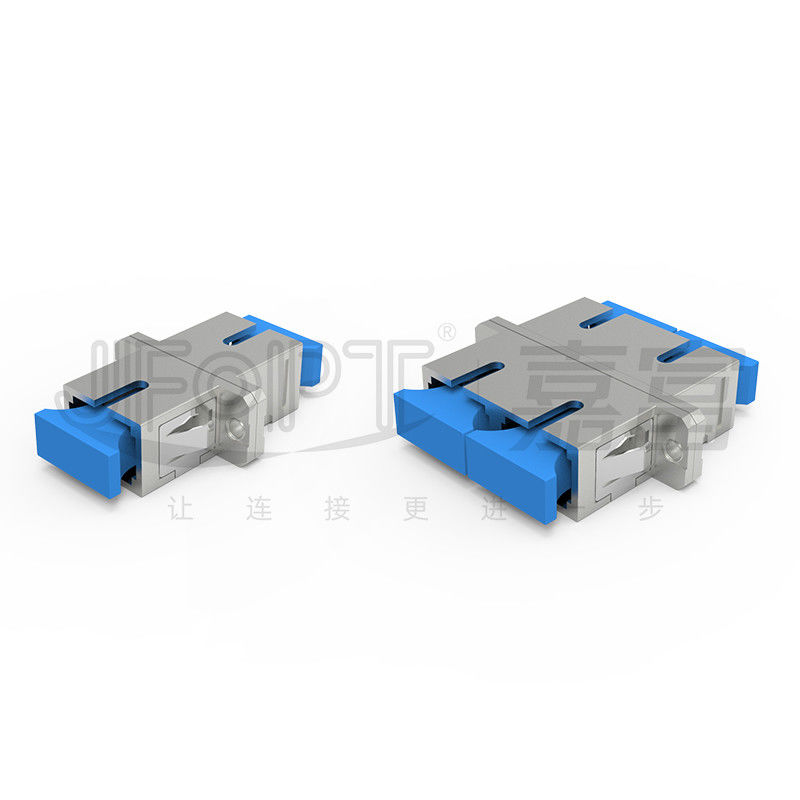

Standard Metal Housing |
Simplex |
Flanged |
|
|
||
|
Duplex |
Flanged |
|
|
|||
♦ Housing Color
|
|
|
|
|
|
|
|
SM |
SM |
MM |
MM |
MM |
MM |
♦ Product Packaging
|
|
|
|
Blister packaging |
Packing into outer box and sealing |
♦ Factory Strength
|
Specialization: JFOPT has the professional R&D team, advanced injection molding equipment, and production lines dedicated to the research and production of various adapters. With hundreds of adapter molds, JFOPT can meet different customer needs. |
|
||||
|
Manufacturing Capacity: JFOPT adopts high-precision injection molding molds and equipment for adapter housing manufacturing. With dozens of automated assembly and testing devices, JFOPT can quickly assemble a large number of adapters. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures. High-quality engineering plastic materials and high-precision ceramic sleeves are used for adapter production. Multiple automated testing devices are employed to ensure the quality of each adapter. |
|
||||
|
Standard Development: JFOPT provides complete wiring solutions, matching different distribution frame /terminal boxes and adapters in different environments. Various solutions are available, such as standard adapters, hybrid adapters, male-female adapters of the same type, male-female adapters of different types, outdoor waterproof adapters, laser-proof adapters, etc, to meet the needs of different applications. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation. To meet the requirements of high-density data centers and other applications, JFOPT has developed the adapters such as 8-port, 16-port, freely combinable ones. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing adapters?
You should consider the connector type, installation and fixation method, fiber channel, color, and other relevant aspects.
2.Can we specify the color of the adapters?
We offer a variety of colors to choose from, and we can also provide customized colors upon request.
3.How do we ensure the quality of our adapters?
Our adapters undergo strict production processes and are tested by professional equipment to ensure their quality.
4.What types of adapters do we offer?
We provide various types of adapters, including SC, LC, FC, ST, E2000, MU, SMA, DIN, MTRJ, MPO, MTP, and so on.
5.Which products can our adapters be used with?
Our adapters can be used with rack-mounted distribution boxes, outdoor optical splitter box, fiber optic termination boxes, ODF (Optical Distribution Frame), fiber optic cabinet, and splitters.
6.What is our delivery time?
For standard products, the delivery time is within 2 working days.
