Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer

Female To Male Hybrid Fiber Adapter

UPC To APC Adapter Gender Transfer

Hybrid Fiber Adapter UPC To APC

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001

Model Number:

JFOAD-SFM

Contact Us

Request A Quote
Product Details
A-side Interface Model:
SC/FC/LC/ST
B-side Interface Model:
SC/FC/LC/ST
Ferrule:
Grade A Zirconia Ferrule
Fiber Type:
G652D/A1/A2/OM1/OM2/OM3/OM4/OM5
Material:
Metal/Semi-metallic And Semi-plastic/Plastic
Mounting Style:
Flanged/ Square/Type D
End Face Selection:
UPC/APC
Insertion Loss:
≤0.3dB
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
According to the style quotation
Delivery Time
10 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
1000pcs/day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

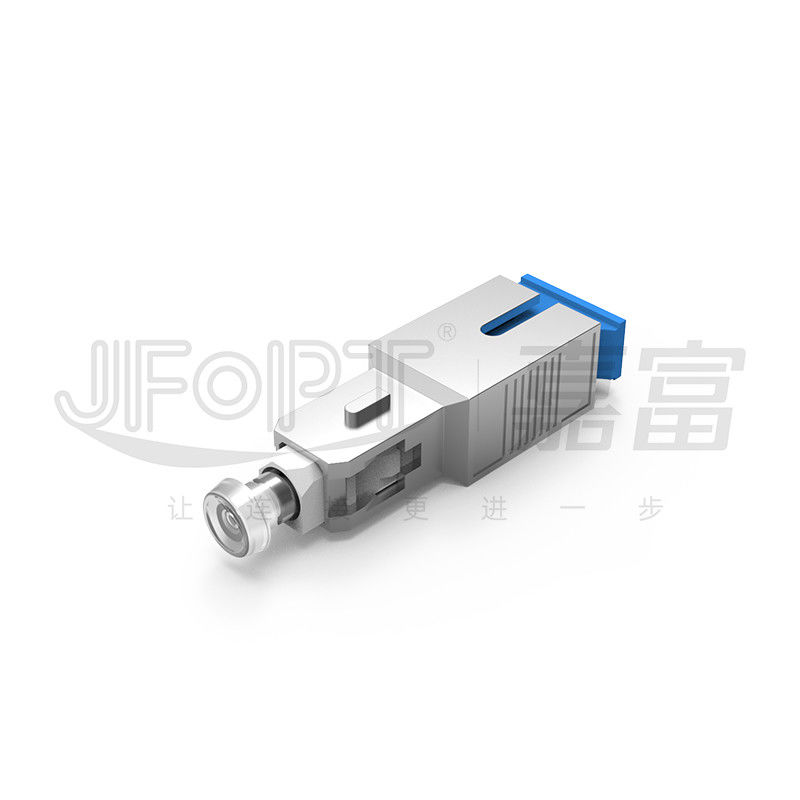

Hybrid Adapter Female to Male Fiber Adapter UPC to APC Adapter Gender Transfer



JFOAD-SFM Female to Male Hybrid Fiber Optic Adapter uses the technology of jointing pre-embedded optical fiber, ferrule and sleeve,it is mainly used for the interchangeable use of APC and UPC connectors, or to protect the frequently used connectors from damage.



♦ Features

Same-type interface: This adapter has a configuration where the female and male interfaces are of the same type

②Stable performance: It utilizes a high-precision ceramic sleeve, ensuring a high level of core alignment accuracy and optical performance stability

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 0

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 1



Applications

1. Data Center
2. FTTx
3. CATV



♦ Performance

Item

Parameter

Fiber Type

Singlemode(SM-9/125)

Multimode(OM1-62.5/125)

Multimode(OM2-50/125)

Multimode(OM3-50/125)

Multimode(OM4-50/125)

Insertion Loss

≤0.3dB

Return Loss

UPC≥55dB APC≥60dB

UPC≥35dB

Conformity

≤0.1dB

Operating Temperature

-40℃~+75℃

Durable Time

Loss change after plugging 1000 times ≤0.2dB



♦ Ordering Information

Adapter Type
(Female-Male)

Number of Fiber

Flange Type

Fiber Type

Female End Face

Male End Face


LC-LC

Simplex

FlangeLess

SM

LC/UPC

LC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 2

LC/APC

LC/APC

LC/UPC

LC/APC

MM

LC/UPC

LC/UPC

Flangeness 1

SM

LC/UPC

LC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 3

LC/APC

LC/APC

LC/UPC

LC/APC

MM

LC/UPC

LC/UPC

Flangeness 2

SM

LC/UPC

LC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 4

LC/APC

LC/APC

LC/UPC

LC/APC

MM

LC/UPC

LC/UPC

SC-SC

Simplex

FlangeLess

SM

SC/UPC

SC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 5

SC/APC

SC/APC

SC/UPC

SC/APC

MM

SC/UPC

SC/UPC

Flangeness 1

SM

SC/UPC

SC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 6

SC/APC

SC/APC

SC/UPC

SC/APC

MM

SC/UPC

SC/UPC

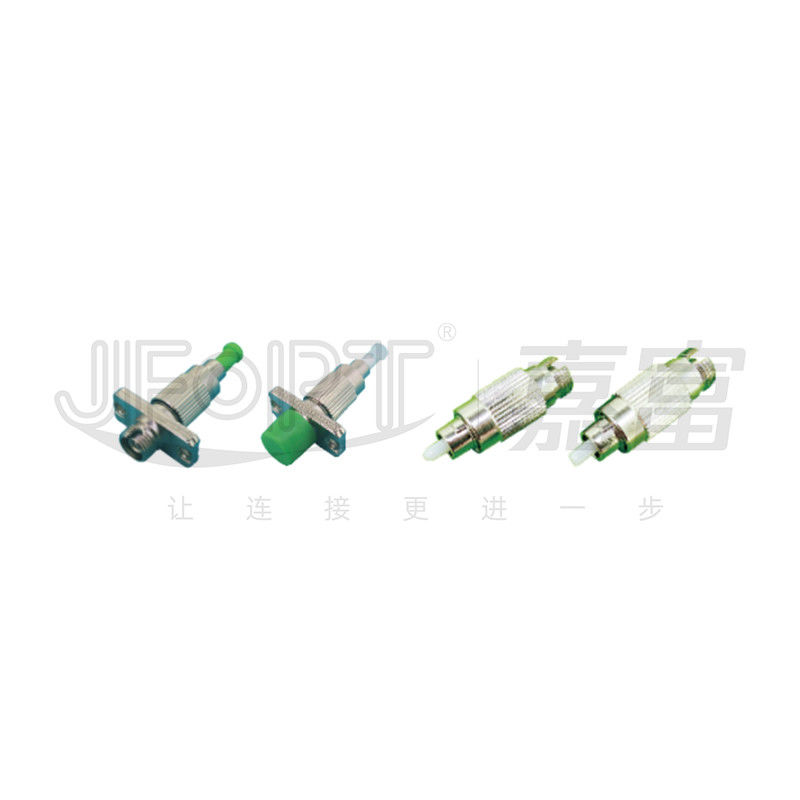

FC-FC

Simplex

Flangeless

SM

FC/UPC

FC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 7

FC/APC

FC/APC

FC/UPC

FC/APC

MM

FC/UPC

FC/UPC

Flangeness 1

SM

FC/UPC

FC/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 8

FC/APC

FC/APC

FC/UPC

FC/APC

MM

FC/UPC

FC/UPC

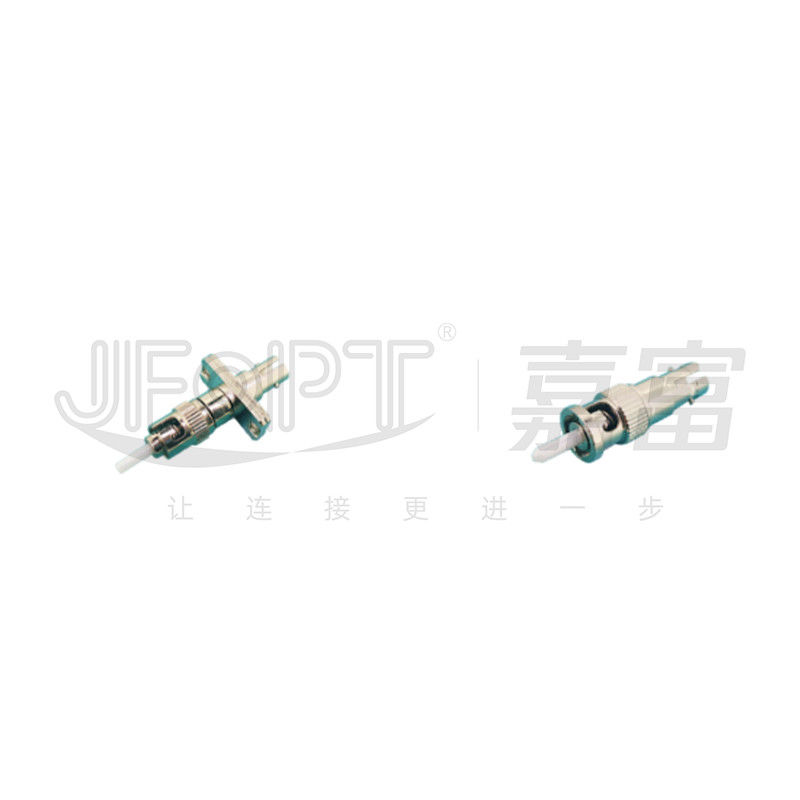

ST-ST

Simplex

Flangeless

SM

ST/UPC

ST/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 9

MM

ST/UPC

ST/UPC

Simplex

Flangeness 1

SM

ST/UPC

ST/UPC

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 10

MM

ST/UPC

ST/UPC



♦ Product Packaging

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 11

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 12

Blister packaging

Packing into outer box and sealing



Factory Strength

Specialization:


JFOPT has the professional R&D team, advanced injection molding equipment, and production lines dedicated to the research and production of various adapters. With hundreds of adapter molds, JFOPT can meet different customer needs.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 13

Manufacturing Capacity:


JFOPT adopts high-precision injection molding molds and equipment for adapter housing manufacturing. With dozens of automated assembly and testing devices, JFOPT can quickly assemble a large number of adapters.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 14

Quality Control:


JFOPT implements strict quality control measures. High-quality engineering plastic materials and high-precision ceramic sleeves are used for adapter production. Multiple automated testing devices are employed to ensure the quality of each adapter.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 15

Standard Development:


JFOPT provides complete wiring solutions, matching different distribution boxes/terminal boxes and adapters in different environments. Various solutions are available, such as special hybrid adapters, hybrid adapters, male-female adapters of the same type, male-female adapters of different types, outdoor waterproof adapters, and laser-proof adapters, meeting the needs of different applications.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 16

Technological Innovation:


JFOPT focuses on technological innovation. To meet the requirements of high-density data centers and other applications, JFOPT has developed the adapters such as 8-port, 16-port, freely combinable ones.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 17

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

Female To Male Hybrid Fiber Adapter UPC To APC Adapter Gender Transfer 18



♦ Frequent Q&A

1.What should be considered when purchasing adapters?
You should consider the connector type, installation and fixation method, fiber channel, color, and other relevant aspects.



2.Can we specify the color of the adapters?
We offer a variety of colors to choose from, and we can also provide customized colors upon request.



3.How do we ensure the quality of our adapters?
Our adapters undergo strict production processes and are tested by professional equipment to ensure their quality.

4.What types of adapters do we offer?


We provide various types of adapters, including SC, LC, FC, ST, E2000, MU, SMA, DIN, MTRJ, MPO, MTP, and so on.



5.Which products can our adapters be used with?
Our adapters can be used with rack-mounted distribution boxes, outdoor optical splitter box, fiber optic termination boxes, ODF (Optical Distribution Frame), fiber optic cabinet, and splitters.



6.What is our delivery time?
For standard products, the delivery time is within 2 working days.
