Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOAD-DFM
Contact Us

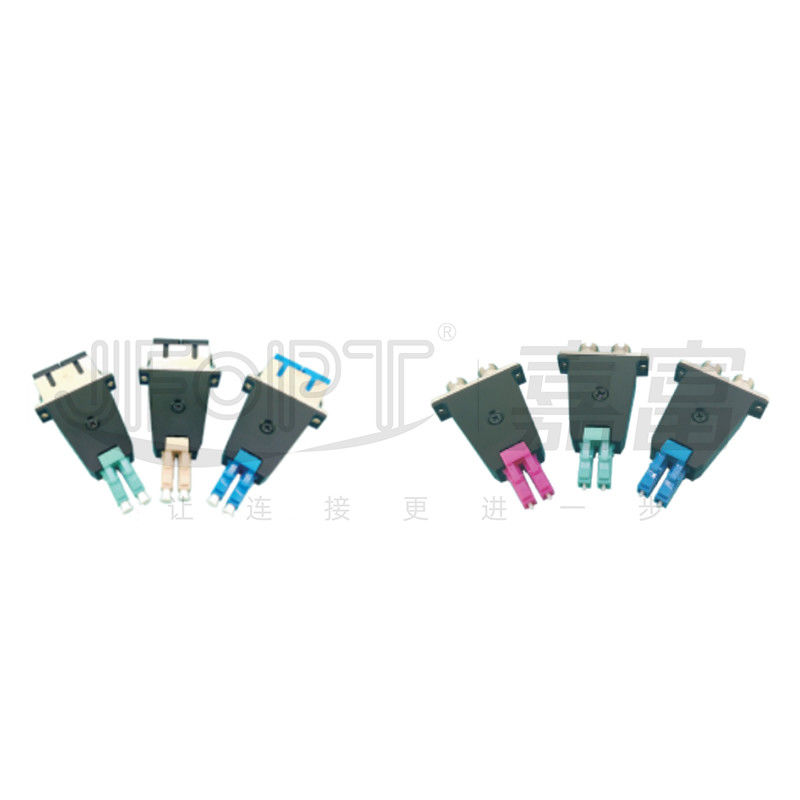

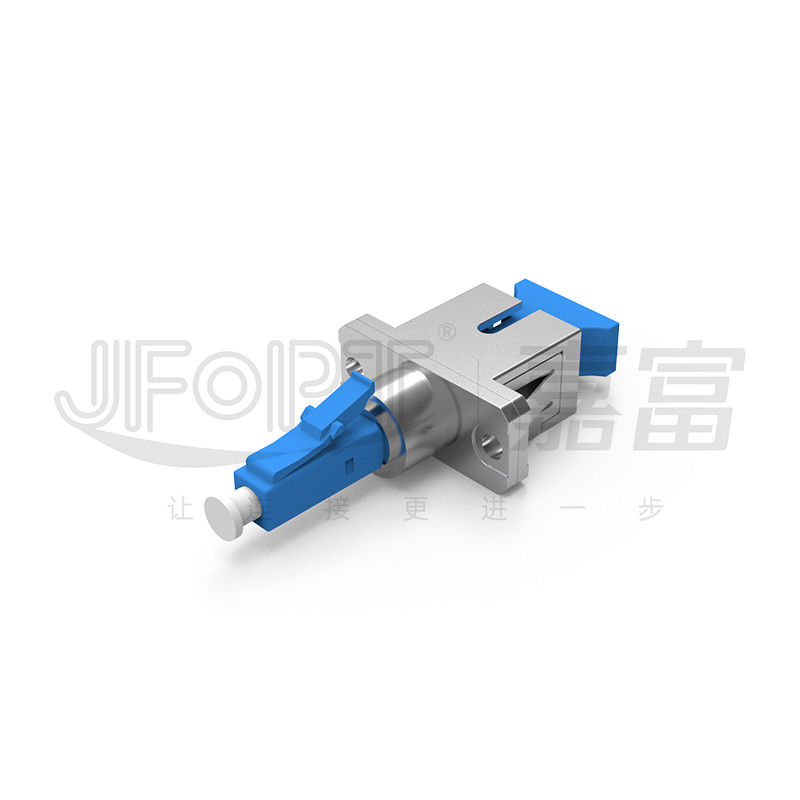

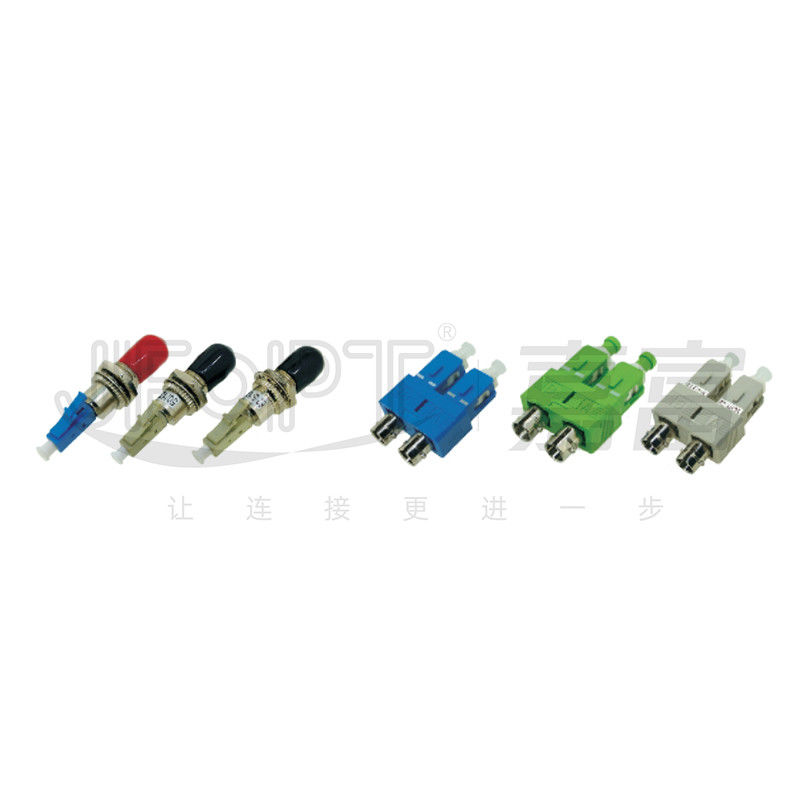

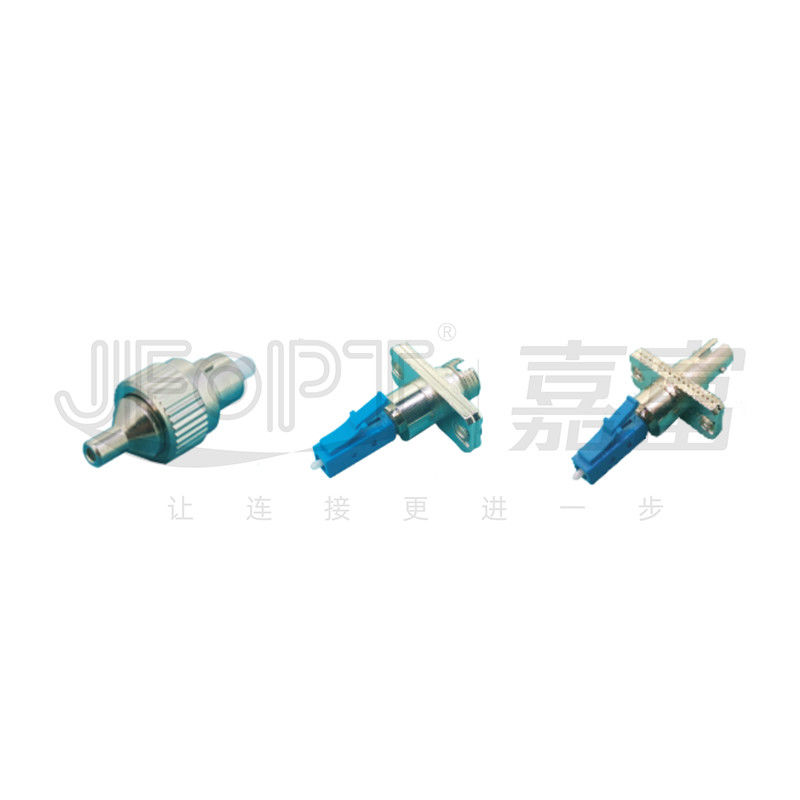

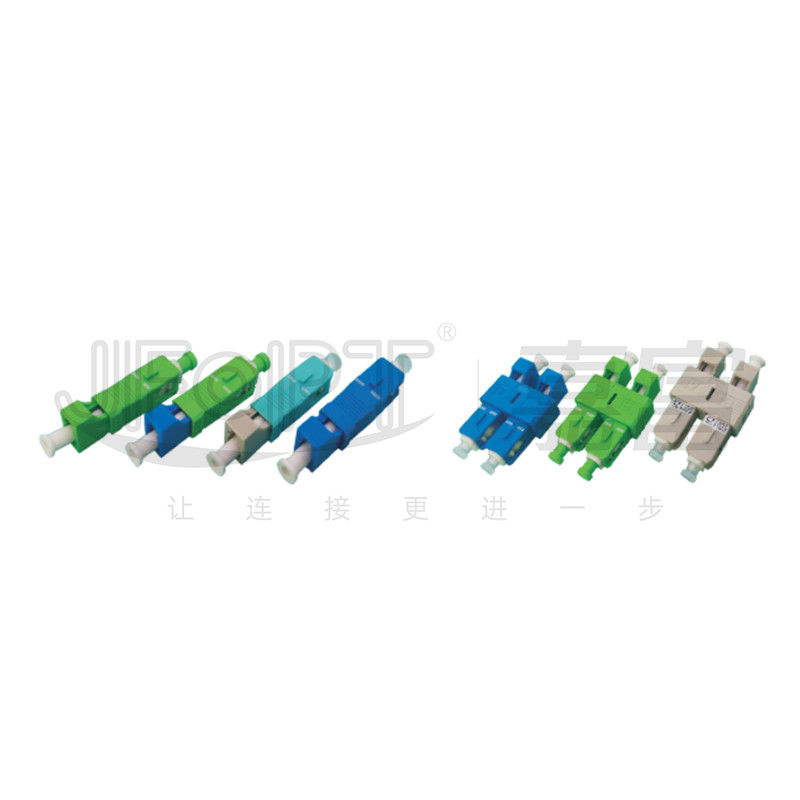

Hybrid Adapter Female to Male Tansfer Connector Type Complete Range of Model Conversion
The Female to Male Hybrid Fiber Optic Adapter uses the technology of jointing pre-embedded optical fiber, ferrule and sleeve,can convert one type of fiber connector (Male) to another type of fiber connector (Male) Or convert one type of fiber optic connector interface (Female) to another type of fiber optic connector interface (Female) to provide users with a simple and reliable solution when connecting two or more different types of connector fiber connectors.
♦ Features
|
①Different-type interface: This adapter has a configuration where the female and male interfaces are of different types |
②Stable performance: It utilizes a high-precision ceramic sleeve, ensuring a high level of core alignment accuracy and optical performance stability |
|
|
|
♦ Applications
1. Data Center
2. FTTx
3. CATV
♦ Performance
|
Item |
Parameter |
||||
|
Fiber Type |
Singlemode(SM-9/125) |
Multimode(OM1-62.5/125) |
|||
|
Multimode(OM2-50/125) |
|||||
|
Multimode(OM3-50/125) |
|||||
|
Multimode(OM4-50/125) |
|||||
|
Insertion Loss |
≤0.3dB |
||||
|
Return Loss |
UPC≥55dB APC≥60dB |
UPC≥35dB |
|||
|
Conformity |
≤0.1dB |
||||
|
Operating Temperature |
-40℃～+75℃ |
||||
|
Durable Time |
Loss change after plugging 1000 times ≤0.2dB |
||||
♦ Ordering Information
|
Adapter Type |
Number of Fiber |
Flange Type |
Fiber Type |
Female End Face |
Male End Face |
Image |
|
LC-SC |
Simplex |
Long housing |
SM |
LC/UPC |
SC/UPC |
|
|
SC/APC |
||||||
|
LC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
LC/UPC |
SC/UPC |
||||
|
Short housing |
SM |
LC/UPC |
SC/UPC |
|
||
|
SC/APC |
||||||
|
LC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
LC/UPC |
SC/UPC |
||||
|
Flangeness 1 |
SM |
LC/UPC |
SC/UPC |
|
||
|
SC/APC |
||||||
|
LC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
LC/UPC |
SC/UPC |
||||
|
Duplex |
Long housing |
SM |
LC/UPC |
SC/UPC |
|
|
|
SC/APC |
||||||
|
LC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
LC/UPC |
SC/UPC |
||||
|
LC-FC |
Simplex |
Long nut |
SM |
LC/UPC |
FC/UPC |
|
|
FC/APC |
||||||
|
LC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
LC/UPC |
FC/UPC |
||||
|
Short nut |
SM |
LC/UPC |
FC/UPC |
|
||
|
FC/APC |
||||||
|
LC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
LC/UPC |
FC/UPC |
||||
|
Flangeness 1 |
SM |
LC/UPC |
FC/UPC |
|
||
|
FC/APC |
||||||
|
LC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
LC/UPC |
FC/UPC |
||||
|
Flangeness 2 |
SM |
LC/UPC |
FC/UPC |
|
||
|
FC/APC |
||||||
|
LC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
LC/UPC |
FC/UPC |
||||
|
LC-ST |
Simplex |
Closed / open external screw optional |
SM |
LC/UPC |
ST/UPC |
|
|
MM |
LC/UPC |
ST/UPC |
||||
|
Flangeness 1 |
SM |
LC/UPC |
ST/UPC |
|
||
|
MM |
LC/UPC |
ST/UPC |
||||
|
Flangeness 2 |
SM |
LC/UPC |
ST/UPC |
|
||
|
MM |
LC/UPC |
ST/UPC |
||||
|
12.5-FC |
Simplex |
Short nut |
SM |
1.25/UPC |
FC/UPC |
|
|
MM |
1.25/UPC |
FC/UPC |
||||
|
Simplex |
Long nut |
SM |
1.25/UPC |
FC/UPC |
|
|
|
MM |
1.25/UPC |
FC/UPC |
||||
|
FC-SC |
Simplex |
Flangeless |
SM |
FC/UPC |
SC/UPC |
|
|
SC/APC |
||||||
|
FC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
FC/UPC |
SC/UPC |
||||
|
Short flange |
SM |
FC/UPC |
SC/UPC |
|
||
|
SC/APC |
||||||
|
FC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
FC/UPC |
SC/UPC |
||||
|
Duplex |
Long housing |
SM |
FC/UPC |
SC/UPC |
|
|
|
SC/APC |
||||||
|
FC/APC |
SC/UPC |
|||||
|
SC/APC |
||||||
|
MM |
FC/UPC |
SC/UPC |
||||
|
FC-ST |
Simplex |
Closed / open external screw optional |
SM |
FC/UPC |
ST/UPC |
|
|
MM |
FC/UPC |
ST/UPC |
||||
|
Flangness |
SM |
FC/UPC |
ST/UPC |
|
||
|
MM |
FC/UPC |
ST/UPC |
||||
|
SC-FC |
Simplex |
Single outer screw |
SM |
SC/UPC |
FC/UPC |
|
|
FC/APC |
||||||
|
SC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
SC/UPC |
FC/UPC |
||||
|
Double outer screw |
SM |
SC/UPC |
FC/UPC |
|
||
|
FC/APC |
||||||
|
SC/APC |
FC/UPC |
|||||
|
FC/APC |
||||||
|
MM |
SC/UPC |
FC/UPC |
||||
|
ST-FC |
Simplex |
Single outer screw |
SM |
ST/UPC |
FC/UPC |
|
|
ST/UPC |
FC/APC |
|||||
|
MM |
ST/UPC |
FC/UPC |
||||
|
Double outer screw |
SM |
ST/UPC |
FC/UPC |
|
||
|
ST/UPC |
FC/APC |
|||||
|
MM |
ST/UPC |
FC/UPC |
||||
|
Flangeness |
SM |
ST/UPC |
FC/UPC |
|
||
|
ST/UPC |
FC/APC |
|||||
|
MM |
ST/UPC |
FC/UPC |
||||
|
ST-SC |
Simplex |
Flangeless |
SM |
ST/UPC |
SC/UPC |
|
|
ST/UPC |
SC/APC |
|||||
|
MM |
ST/UPC |
SC/UPC |
||||
|
Flangeness |
SM |
ST/UPC |
SC/UPC |
|
||
|
ST/UPC |
SC/APC |
|||||
|
MM |
ST/UPC |
SC/UPC |
||||
|
Duplex |
Flangeness |
SM |
ST/UPC |
SC/UPC |
|
|
|
ST/UPC |
SC/APC |
|||||
|
MM |
ST/UPC |
SC/UPC |
||||
|
FC-LC |
Simplex |
Flangeless |
SM |
FC/UPC |
LC/UPC |
|
|
MM |
FC/UPC |
LC/UPC |
||||
|
Flangeness |
SM |
FC/UPC |
LC/UPC |
|
||
|
MM |
FC/UPC |
LC/UPC |
||||
|
Duplex |
Flangeness (Cassette type) |
SM |
FC/UPC |
LC/UPC |
|
|
|
MM |
FC/UPC |
LC/UPC |
||||
|
SC-LC |
SM |
Flangeness |
SM |
SC/UPC |
LC/UPC |
|
|
MM |
SC/UPC |
LC/UPC |
||||
|
Duplex |
Flangeness (Cassette type) |
SM |
SC/UPC |
LC/UPC |
|
|
|
MM |
SC/UPC |
LC/UPC |
||||
|
ST-LC |
Simplex |
Flangeless |
SM |
ST/UPC |
LC/UPC |
|
|
MM |
ST/UPC |
LC/UPC |
||||
|
Flangeness |
SM |
ST/UPC |
LC/UPC |
|
||
|
MM |
ST/UPC |
LC/UPC |
||||
|
Duplex |
Flangeness (Cassette type) |
SM |
ST/UPC |
LC/UPC |
|
|
|
MM |
ST/UPC |
LC/UPC |
||||
♦ Product Packaging
|
|
|
|
Blister packaging |
Packing into outer box and sealing |
♦ Factory Strength
|
Specialization: JFOPT has the professional R&D team, advanced injection molding equipment, and production lines dedicated to the research and production of various adapters. With hundreds of adapter molds, JFOPT can meet different customer needs. |
|
||||
|
Manufacturing Capacity: JFOPT adopts high-precision injection molding molds and equipment for adapter housing manufacturing. With dozens of automated assembly and testing devices, JFOPT can quickly assemble a large number of adapters. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures. High-quality engineering plastic materials and high-precision ceramic sleeves are used for adapter production. Multiple automated testing devices are employed to ensure the quality of each adapter. |
|
||||
|
Standard Development: JFOPT provides complete wiring solutions, matching different distribution frame /terminal boxes and adapters in different environments. Various solutions are available, such as standard adapters, hybrid adapters, male-female adapters of the same type, male-female adapters of different types, outdoor waterproof adapters, laser-proof adapters, etc, to meet the needs of different applications. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation. To meet the requirements of high-density data centers and other applications, JFOPT has developed the adapters such as 8-port, 16-port, freely combinable ones. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when purchasing adapters?
You should consider the connector type, installation and fixation method, fiber channel, color, and other relevant aspects.
2.Can we specify the color of the adapters?
We offer a variety of colors to choose from, and we can also provide customized colors upon request.
3.How do we ensure the quality of our adapters?
Our adapters undergo strict production processes and are tested by professional equipment to ensure their quality.
4.What types of adapters do we offer?
We provide various types of adapters, including SC, LC, FC, ST, E2000, MU, SMA, DIN, MTRJ, MPO, MTP, and so on.
5.Which products can our adapters be used with?
Our adapters can be used with rack-mounted distribution boxes, outdoor optical splitter box, fiber optic termination boxes, ODF (Optical Distribution Frame), fiber optic cabinet, and splitters.
6.What is our delivery time?
For standard products, the delivery time is within 2 working days.
