Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOAT-FF
Contact Us
Flanged Type Fixed Attenuators Hybrid / Same Interface Stable Attenuation
The flanged fixed FO attenuator has the same shape as FO adapter. Its attenuation value is fixed. JFOPT flanged fixed attenuator features with high attenuation accuracy and reliable performance, widely applied to test equipment, data center, CATV system etc.
♦ Features
|
① Manufactured using high-quality materials, it is designed to withstand the physical stress and environmental changes in fiber transmission, ensuring long-term stable operation |
②Stable performance: High-precision ceramic sleeve adopted for high-precision alignment and stable optical performance |
|
|
|
♦ Applications
1. Data center
2. Optical fiber system debugging
3. Parallel optics
4. Fault handling
♦ Technical Performance
|
Item |
Index |
||||
|
Working wavelength |
1260nm～1610nm |
||||
|
Attenuation value Available |
3dB/5dB/7dB/10dB/15dB |
||||
|
Attenuation Tolerance |
Attenuation Value |
3dB/5dB/7dB |
10dB/15dB |
||
|
Tolerance |
±1dB |
±1.5dB |
|||
|
Transmission mode |
SM |
||||
|
Polishing |
UPC |
||||

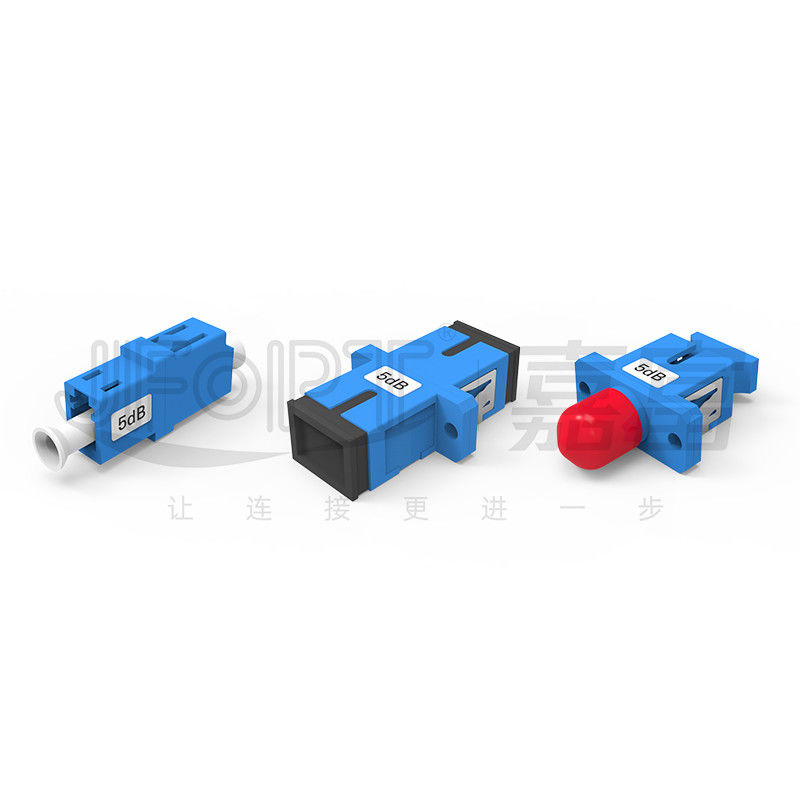

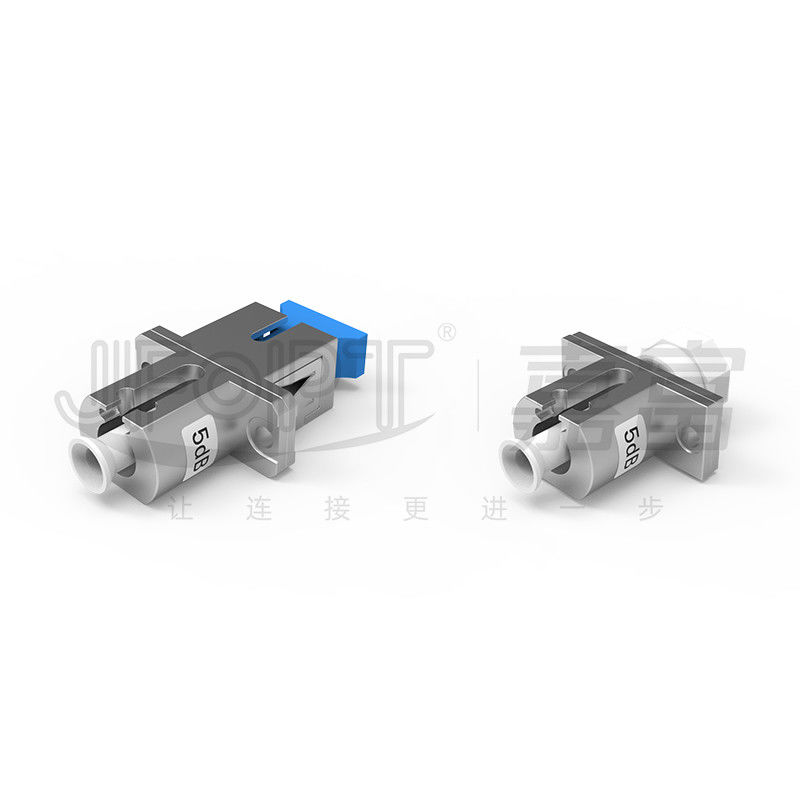

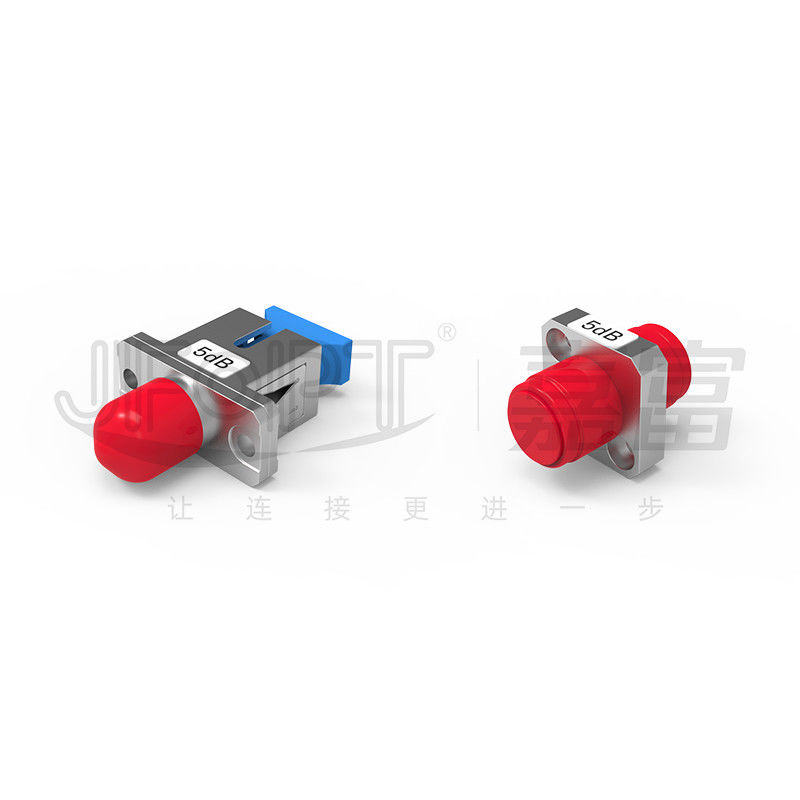

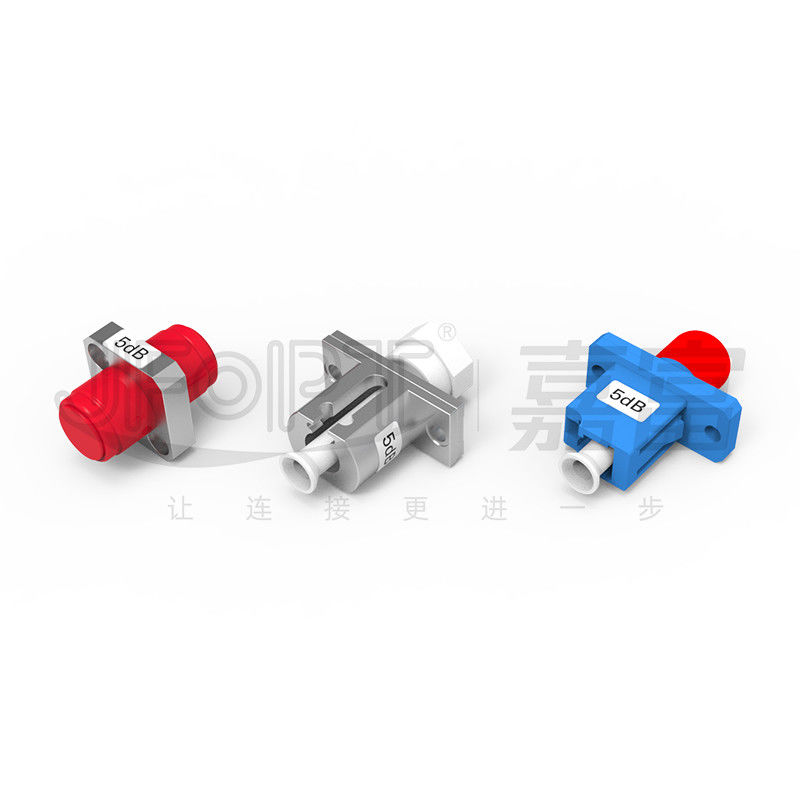

♦ Attenuator Display
|
Attenuator Type |
Image |
||||
|
LC-LC |
|
||||
|
SC-SC |
|
||||
|
FC-FC |
|
||||
|
LC-SC |
|
||||
|
FC-SC |
|
||||
|
FC-SC |
|
||||
|
LC-FC |
|
||||
♦ Product Packaging
|
|
|
|
Blister packaging |
Packing into outer box and sealing |
♦ Factory Strength
|
Specialization: JFOPT has professional technology and production equipment dedicated to the development and production of attenuators, including automated assembly, grinding equipment, and high-speed inspection instruments. |
|
|
Manufacturing Capacity: With 5 production lines, JFOPT can quickly and efficiently produce a large quantity of attenuators to meet customer demands. |
|
|
Quality Control: JFOPT implements strict quality control measures, using high-precision ferrules, components, and imported top-brand attenuation fibers. Each attenuator undergoes testing for attenuation value, connector end-face, and IL&RL to ensure product quality. |
|
|
Standardization: JFOPT has a professional and experienced R&D team that can provide fixed, adapter-type, male-female, inline, adjustable, and handheld attenuators. |
|
|
Technological Innovation: JFOPT emphasizes technological innovation and continuously upgrades and innovates its products, developing various types of adapters and special connector attenuators. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What factors should be considered when purchasing attenuators?
When purchasing attenuators, you should consider the type of attenuator, attenuation value, and polishing type, among others.
2.Can our attenuators be customized?
Yes, we offer various types of attenuators, including Female-Male attenuators, adapter type attenuators, Inline attenuator, adjustable attenuators, and more, which can be customized according to your requirements.
3.Can the attenuation value of our attenuators be customized?
Yes, we can customize attenuation values ranging from 1dB to 30dB.
4.Besides attenuators, what other products do we offer?
In addition to attenuators, we offer a wide range of fiber optic products, including fiber optic patch cords/jumpers, fiber optic adapters, distribution boxes, termination boxes, fiber distribution frames (FDFs), splice closures, optical modules, splitters, and more.
5.What is our delivery lead time?
For standard products, the delivery lead time is typically within 3 working days.
