Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable

Female - Female Fiber Attenuator

Inline Variable Attenuators 0-60dB

Fiber Attenuator 0-60dB

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001

Model Number:

JFOAT-IV

Contact Us

Request A Quote
Product Details
Standard Adapter Model:
LC/SC/FC Variable Attenuator
Adjustment Range:
0-60dB
Body Material:
Metal
Adjustment Method:
Rotating Knob On The Body
Cable Color:
Choice Of 12 Colors According To IEC Standard
Fiber Type:
Single-mode
Gender:
Female-Female
Connector Insertion Loss:
≤0.3dB
Payment & Shipping Terms
Minimum Order Quantity
10PCS
Price
According to the style quotation
Delivery Time
10 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
500pcs/days
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

Inline Variable Attenuators 0-60dB Attenuation Adjustable Compatible with Various Connector Types



The In-line variable attenuator has simple structure, easy to install. Through it, the optical power can be adjusted to the required intensity. JFOPT In-line variable attenuator features with high attenuation accuracy and reliable performance, and can be made into various standard connector forms. It's widely applied to power equalizer, optical sensor, GFF, CATV system, test equipment etc.



♦ Features

① In-line design: It can be directly used as patch cord in optical fiber system. Compared with flanged attenuator, it can reduce the insertion loss caused by the insertion

②Flexible customization: The connector type and fiber length can be customized according to the needs to meet the requirements of the wiring system, and the application is flexible

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 0

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 1

③ High precision attenuation control allows users to make fine adjustments according to specific requirements to achieve the desired signal strength

-

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 2

-



Applications

1.Optical fiber telecommunication
2.Optical fiber system debugging
3.CATV



♦ Technical Performance

Item

Index

Working wavelength (nm)

1310

1550

1310~1630

Bandwidth (nm)

±30

±30

±30

Attenuation range (dB)

0.7~60

0.6~60

1.0~60

Attenuation accuracy (dB)

≤0.02

≤0.02

≤0.02

IL (dB)1

≤0.7

≤0.6

≤1.0

RL (dB)

≥60

≥60.0

≥60.0

PDL (dB)

0-20dB

20-60dB

≤0.1

≤0.2

Cable diameter (mm)

Φ0.9/Φ2.0/Φ3.0 optional

Connector type

SC/LC/FC/ST/others optional

Operation temperature (℃)

0~+70

Storage temperature (℃)

-40~+85

Notes:
1, The data does not include connectors.
2, Additional 0.3dB loss per connector.



♦ Attenuator Display

Attenuator Type

Connector Type


φ0.9mm

φ2.0/3.0mm

In-line type
(variable)

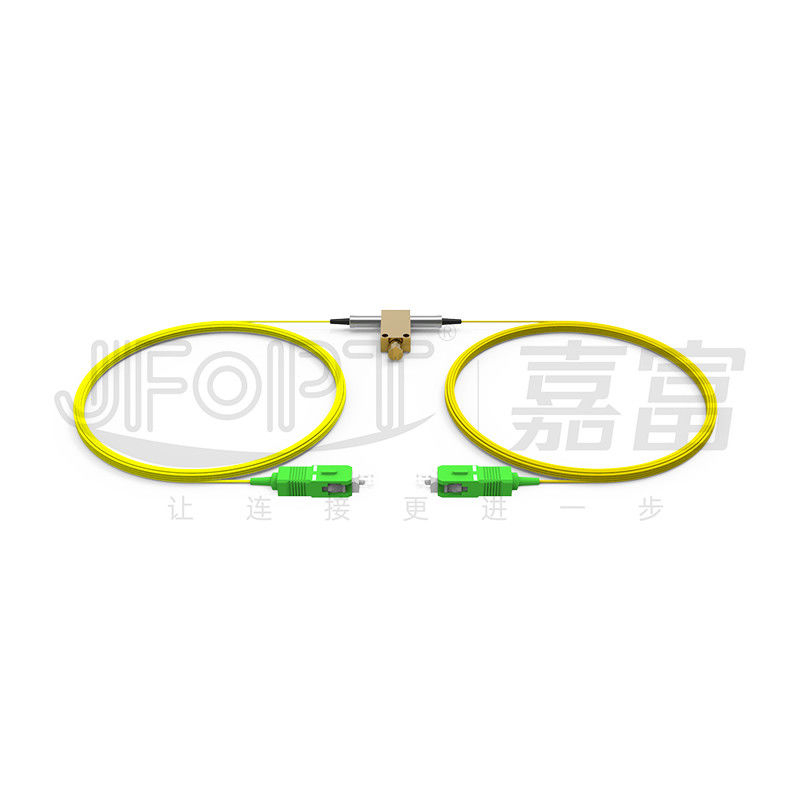

SC-SC

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 3

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 4

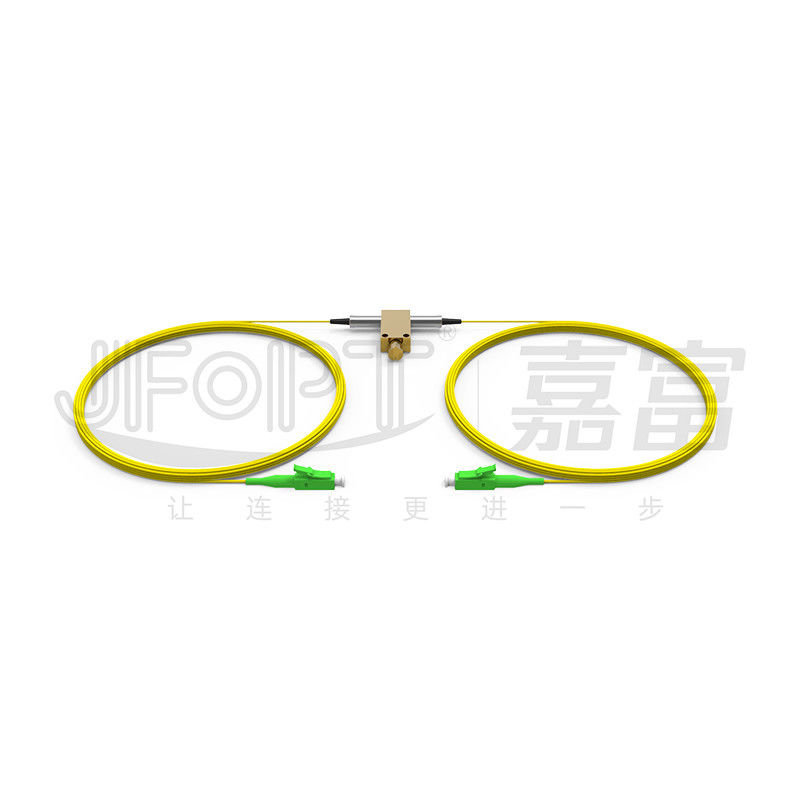

LC-LC

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 5

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 6

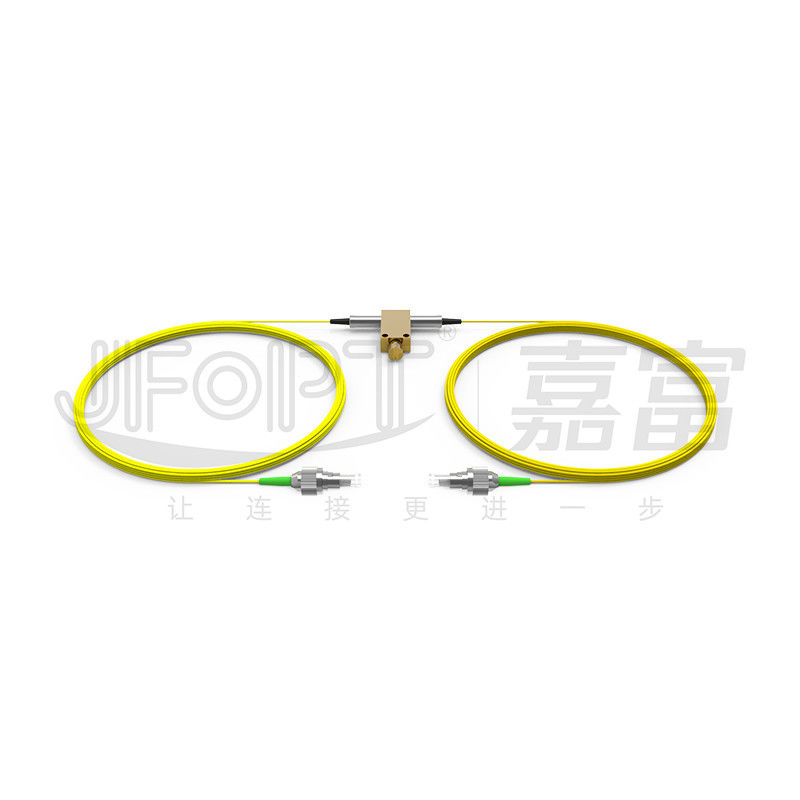

FC-FC

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 7

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 8

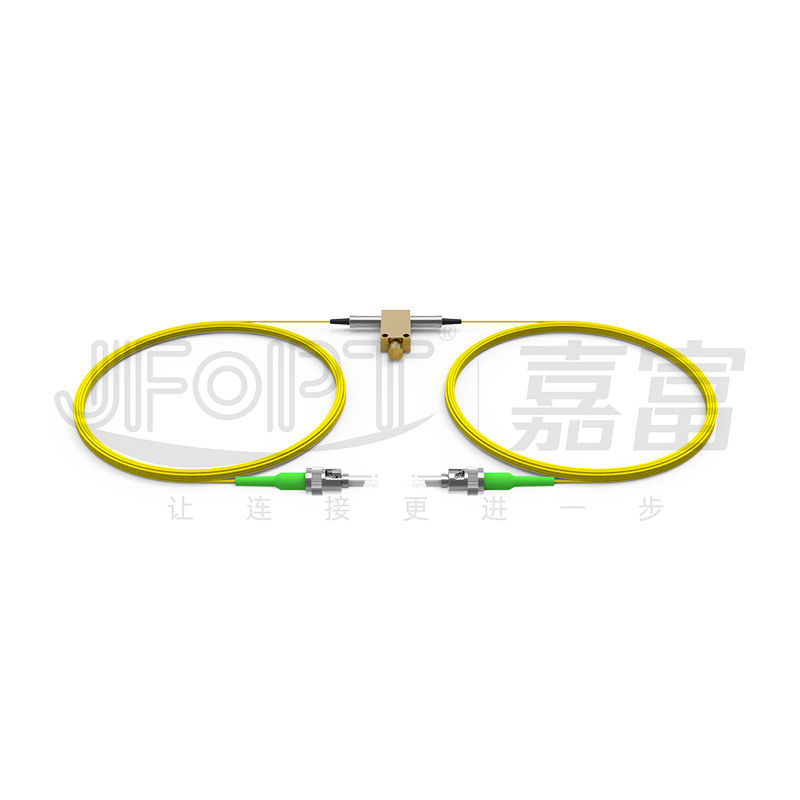

ST-ST

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 9

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 10



♦ Product Packaging

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 11

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 12

Blister packaging

Packaging outer bags in a carton



Factory Strength

Specialization:


JFOPT has professional technology and production equipment dedicated to the development and production of attenuators, including automated assembly, grinding equipment, and high-speed inspection instruments.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 13

Manufacturing Capacity:


With 5 production lines, JFOPT can quickly and efficiently produce a large quantity of attenuators to meet customer demands.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 14

Quality Control:


JFOPT implements strict quality control measures, using high-precision ferrules, components, and imported top-brand attenuation fibers. Each attenuator undergoes testing for attenuation value, connector end-face, and IL&RL to ensure product quality.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 15

Standardization​:


JFOPT has a professional and experienced R&D team that can provide fixed, adapter-type, male-female, inline, adjustable, and handheld attenuators.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 16

Technological Innovation:


JFOPT emphasizes technological innovation and continuously upgrades and innovates its products, developing various types of adapters and special connector attenuators.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 17

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

Female - Female Fiber Attenuator Inline Variable Attenuators 0-60dB Attenuation Adjustable 18



♦ Frequent Q&A

1.What factors should be considered when purchasing attenuators?
When purchasing attenuators, you should consider the type of attenuator, attenuation value, and polishing type, among others.



2.Can our attenuators be customized?
Yes, we offer various types of attenuators, including Female-Male attenuators, adapter type attenuators, Inline attenuator, adjustable attenuators, and more, which can be customized according to your requirements.



3.Can the attenuation value of our attenuators be customized?
Yes, we can customize attenuation values ranging from 1dB to 30dB.



4.Besides attenuators, what other products do we offer?
In addition to attenuators, we offer a wide range of fiber optic products, including fiber optic patch cords/jumpers, fiber optic adapters, distribution boxes, termination boxes, fiber distribution frames (FDFs), splice closures, optical modules, splitters, and more.



5.What is our delivery lead time?
For standard products, the delivery lead time is typically within 3 working days.
