Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001
Model Number:
JFOD-OSP-PLCS1N
Contact Us
PLC Fiber Optic Splitter Mini Module Steel Tube Enclosure Compact Structure Factory High / Low Temperature Aging Test
Optical fiber PLC splitter is an integrated waveguide optical power distribution device based on quartz substrate, which is especially suitable for connecting the terminal equipment in the PON network and dividing the optical information in the optical fiber communication system into multiple outputs. It has the characteristics of small size, compact mechanism, low insertion loss, uniform power distribution, and good environmental adaptability. Mini Module type PLC splitter is small in size, can be installed in a fiber optic closure or other smaller space.
♦ Features
|
①Uniform power splitting to distribute signals evenly to users |
② Single splitter can have multiple split channels, supporting more than 64 channels |
|
|
|
♦ Applications
1.ODN networks
2.Fiber to the Home (FTTH)
3.Optical communication systems
4.Fiber optic testing equipment
♦ Technical Performance
|
Item |
Parameter |
||||||
|
Specification |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Working Wavelength |
1260nm～1650nm |
||||||
|
Test Wavelength |
1310nm,1550nm |
||||||
|
Insertion Loss(Grade P standard) |
≤3.8dB |
≤7.2dB |
≤10.3dB |
≤13.5dB |
≤16.7dB |
≤20.4dB |
|
|
Uniformity |
≤0.6dB |
≤0.8dB |
≤1.0dB |
≤1.3dB |
≤1.6dB |
≤2.0dB |
|
|
Polarization Dependent Loss |
≤0.2dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.4dB |
≤0.4dB |
|
|
Return Loss |
UPC≥50dB,APC≥60dB |
||||||
|
Directivity |
≥55dB |
||||||
|
Operating temperature |
-40℃～85℃ |
||||||
|
Storage temperature |
-40℃～85℃ |
||||||
|
Note: |
|||||||

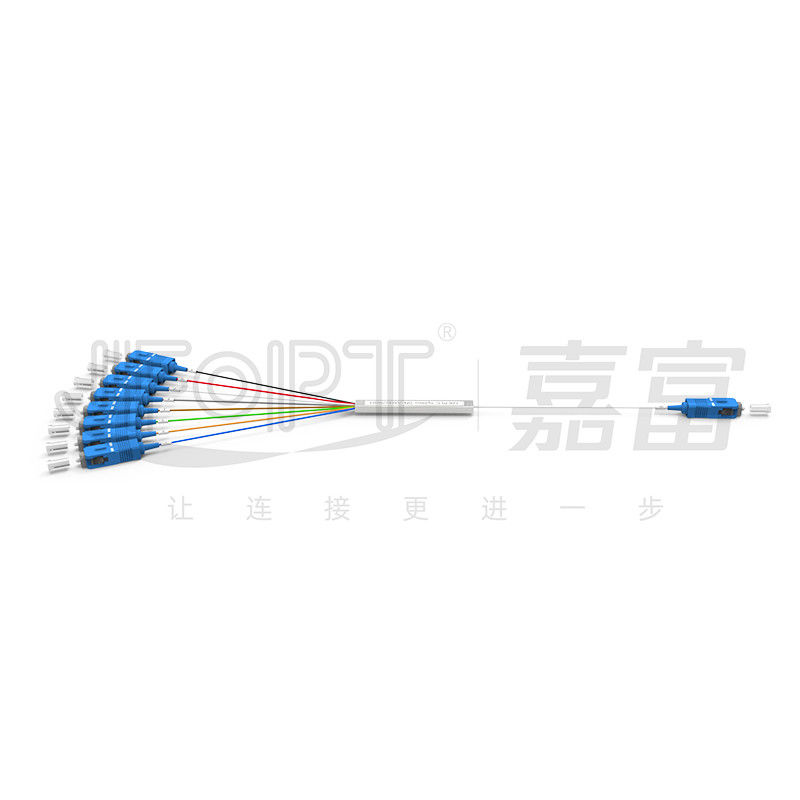

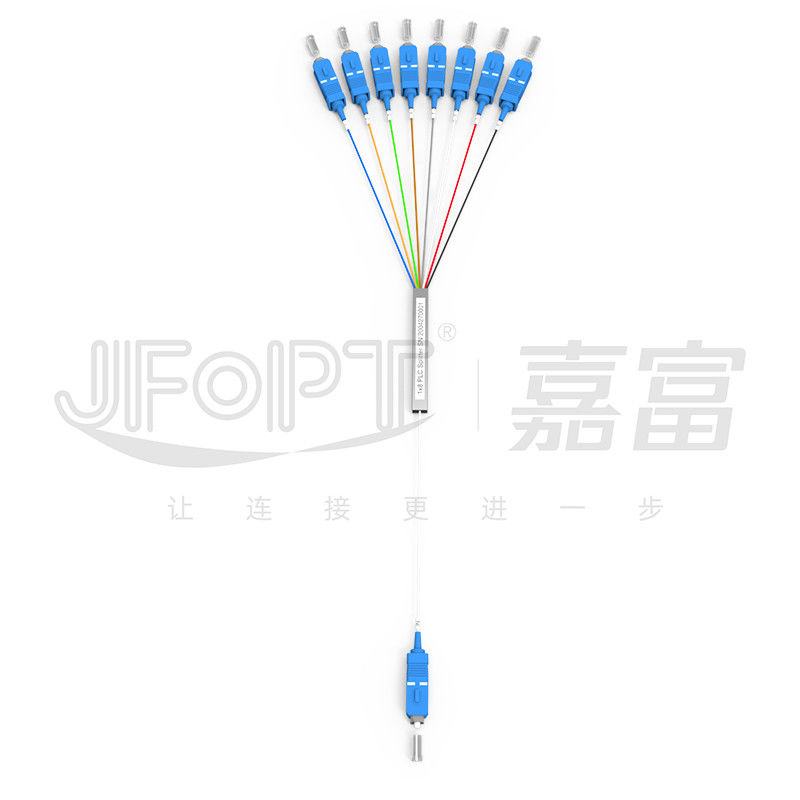

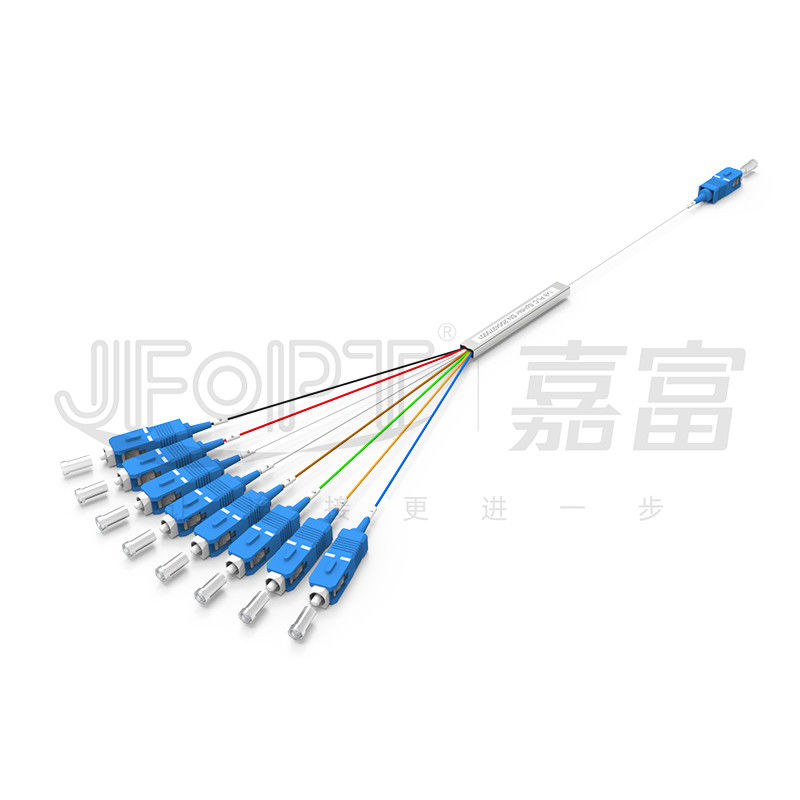

♦ PLC Splitter Figure
♦ Product Parameters
|
PLC Splitter SPEC |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Fiber Type |
G657A1 |
||||||
|
Package Size(L×W×D)(mm) |
60×7×4 |
60×12×4 |
80×20×6 |
100×40×6 |
|||
|
Tube Type |
Input |
According to IEC φ0.9mm colorful tube / φ0.9mm white tube |
|||||
|
Output |
According to IEC φ0.9mm colorful tube / φ0.9mm white tube |
||||||
|
Input length |
1.5m/customizable |
||||||
|
Output length |
1.5m/customizable |
||||||
|
Connector Type |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
|
Connector Type |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
♦ Product Packaging
|
|
|
|
Packaged in blister packaging |
placed in an outer box, and sealed |
♦ Factory Strength
|
Specialization: JFOPT has professional production technology and equipment to manufacture various types of fiber splitters, including bare fiber, mini module, ABS box, plug-in cassette, integrated tray, and rack-mounted splitters. |
|
|
Manufacturing Capacity: JFOPT utilizes specialized optical device production equipment and connector processing equipment to quickly produce high-quality fiber splitters in large quantities. |
|
|
Quality Control: JFOPT implements strict quality control measures such as insertion loss testing, end-face inspection, splitting ratio testing, and isolation testing to ensure product quality. |
|
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing smaller, lower loss, and high-performance fiber splitters. |
|
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
♦ Frequent Q&A
1.What should be considered when purchasing fiber splitters?
It is important to consider the packaging method, number of channels, fiber type, cable diameter, fiber length, connector type, and end-face type.
2.Can we customize the packaging method for our fiber splitters?
Yes, we offer various packaging options such as bare fiber, mini module, ABS box, plug-in cassette, integrated tray, and rack-mounted.
Additionally, we can customize the length, colors of bare fiber and outer sheath, packaging dimensions, and connector types.
3.Can we customize the channel configuration of our fiber splitters?
Yes, we can customize the splitter with different channel configurations according to customer requirements.
4.Can we choose the connector type for our fiber splitters?
We have professional connector processing equipment and can produce fiber splitters with various connector types, such as SC/LC/FC/ST.
5.What is the delivery lead time for our fiber splitters?
For standard products, the delivery lead time is within 3 working days.
