FBT Multimode Fiber Optical Splitter Fused Biconical Taper Splitter Corrosion Process High Stability

① High stability. Made by mature technology, low excess loss, low PDL and high stability

② Various coupling ratios for option. The splitting rotio can be made from 50/50 to 1/99, and both 1xN and 2xN channel available

Item

Parameter

Product

1×2, 2×2

Window type

Single/Dual window

Operating wavelength

850nm, 1310nm, 850nm&1310nm, or on request

Operating bandwidth

850±40nm, 1310±40nm

Grade

P

A

Typical excess loss

0.4dB

0.7dB

Insertion Loss

50/50

≤3.9dB

≤4.3dB

40/60

≤4.9/3.0dB

≤5.4/3.5dB

30/70

≤6.2/2.3dB

≤6.7/2.7dB

20/80

≤8.0/1.8dB

≤8.7/2.1dB

10/90

≤11.6/1.2dB

≤12.2/1.6dB

5/95

≤14.8/0.8dB

≤15.0/1.0dB

2/98

≤22.0/0.6dB

≤22.5/0.9dB

1/99

≤24.0/0.45dB

≤25.0/0.8dB

Uniformity (50/50)

≤0.5dB

≤0.8dB

Directivity

≥40dB

Operating temperature

-40℃～+85℃

Storage temperature

-40℃～+85℃

Note: 1. The above parameter excludes any pre-connector;
2. The inertion loss will increase max. 0.4dB adding one more connector;
3. Other specifications can be made according to customer requirements.

Item

Parameter

Product

1×3

3×3

1×4

Window type

Single/Dual window

Single/Dual window

Single/Dual window

Working wavelength

850nm, 1310nm, 850nm&1310nm, or on request

Operating bandwidth

850±40nm, 1310±40nm

Grade

P

A

P

A

P

A

Typical excess loss

0.7dB

1.0dB

1.0dB

1.3dB

0.9dB

1.2dB

Insertion Loss

≤6.0dB

≤6.3dB

≤6.3dB

≤6.6dB

≤7.8dB

≤8.3dB

Uniformity

≤0.9dB

≤1dB

≤1.2dB

≤1.6dB

≤1.2dB

≤1.6dB

Directivity

≥40dB

Operating temperature

-40℃～+85℃

Storage temperature

-40℃～+85℃

Note: 1. The above parameter excludes any pre-connector;
2. The inertion loss will increase max. 0.4dB adding one more connector;
3. Other specifications can be made according to customer requirements.

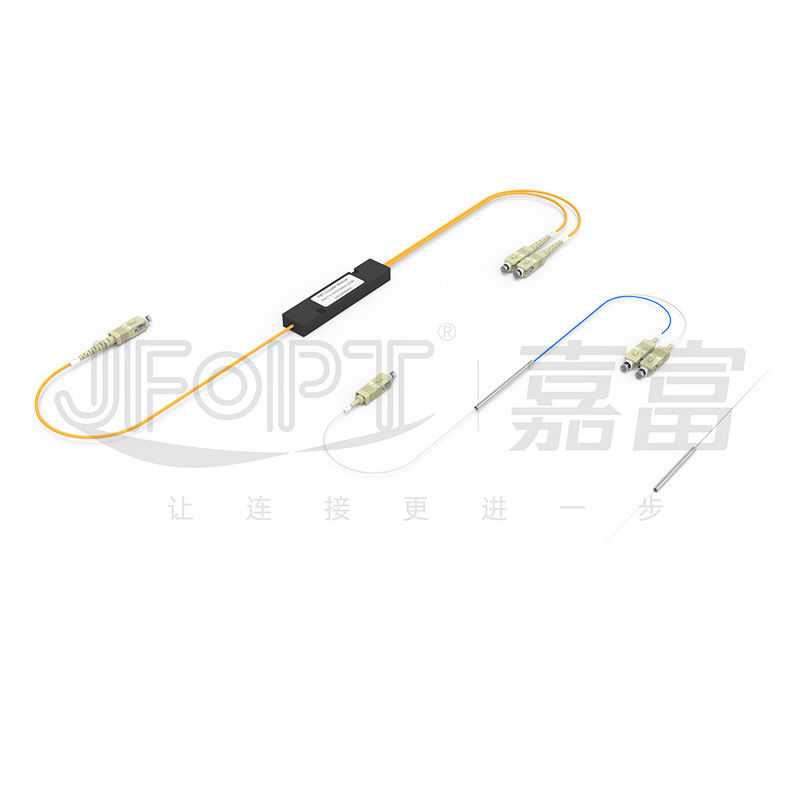

Encapsulation size

Type

Fiber type

1×2, 2×2

1×3, 3×3, 1×4

Steel Pipe(Ф×L)

250μm bare fiber

φ3.0mm×45mm

φ3.0mm×54/60mm

0.9mm Jacket

φ3.0mm×54/60mm

φ4.0mm×70mm

ABS box(L×W×H)

0.9mm/2.0mm/3.0mm jacket

90mm×20mm×10mm

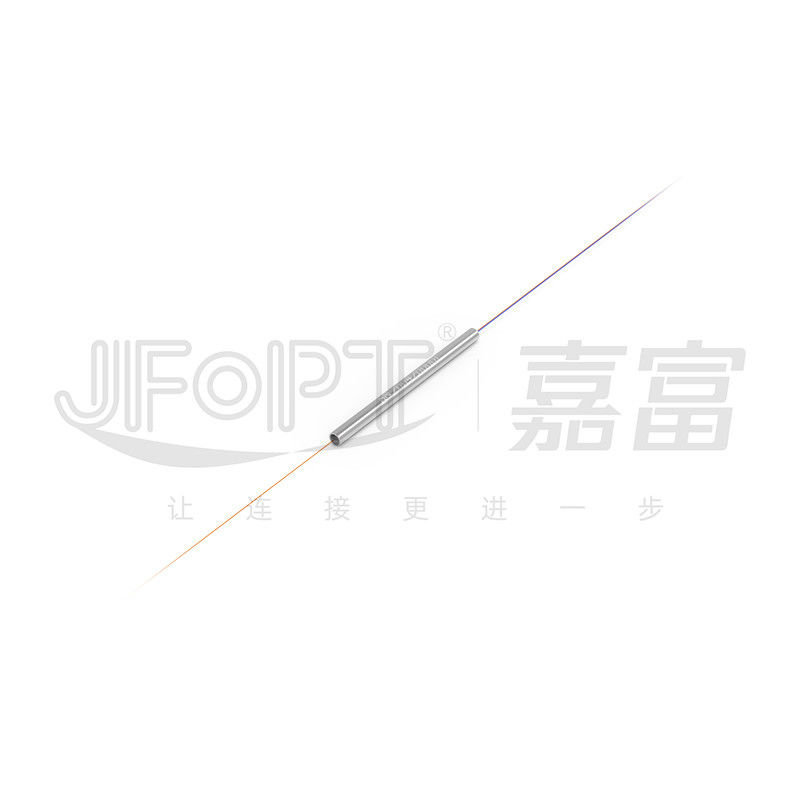

Steel Pipe 250μm bare fiber

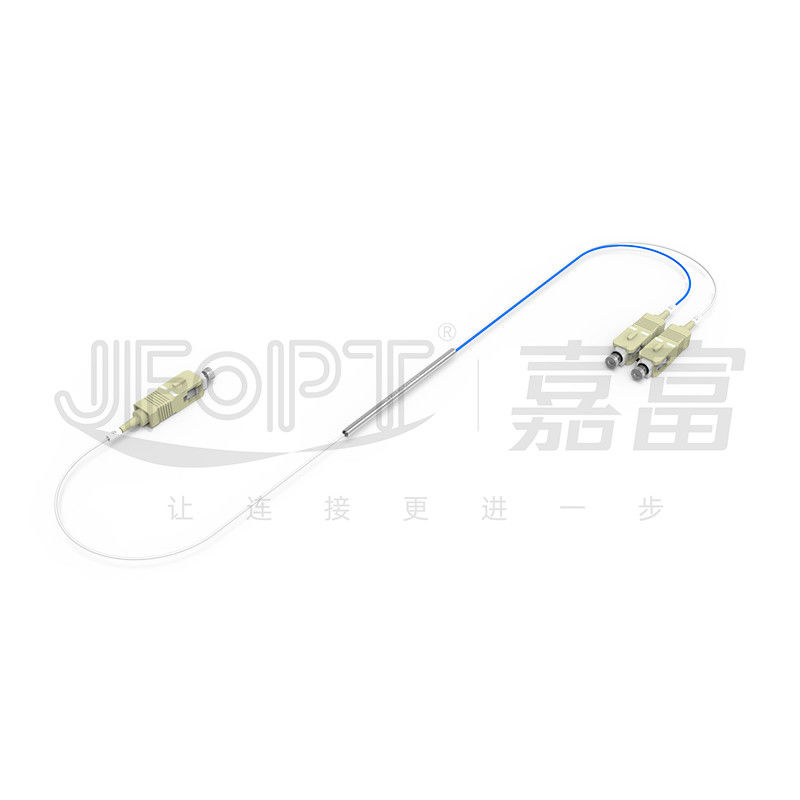

Steel Pipe 0.9mm Jacket

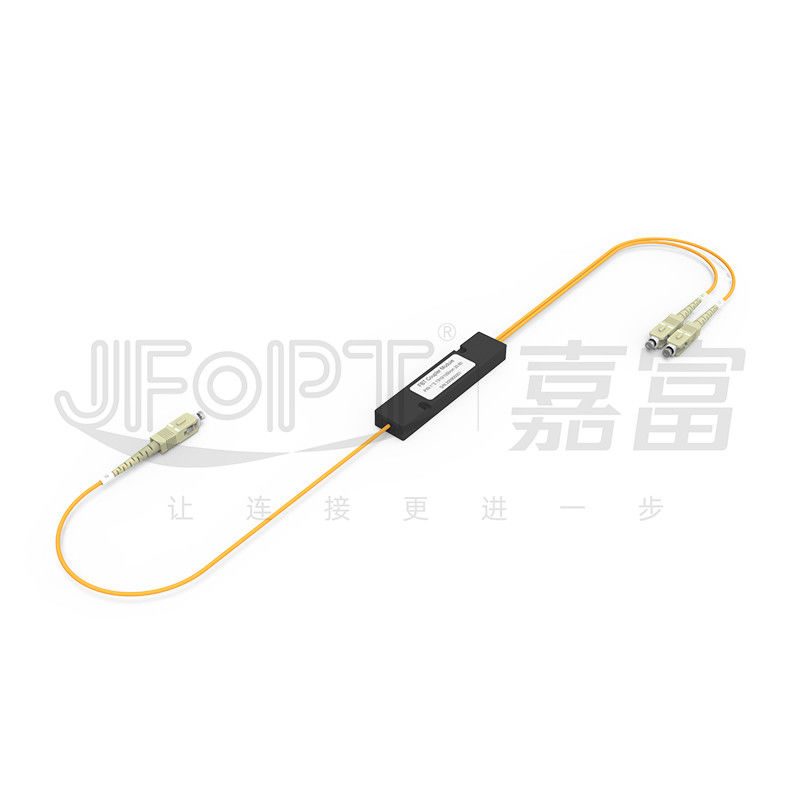

ABS box

Fiber length

1 meter or on request

Connector type

Connector model

SC, FC, LC, ST or on request

polishing

APC/UPC

Note: Other encapsulation size can be customized on request.

Packaged in blister packaging

placed in an outer box, and sealed
