Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MPO Trunk Cable 144C 12*12 Patch Cord
Contact Us

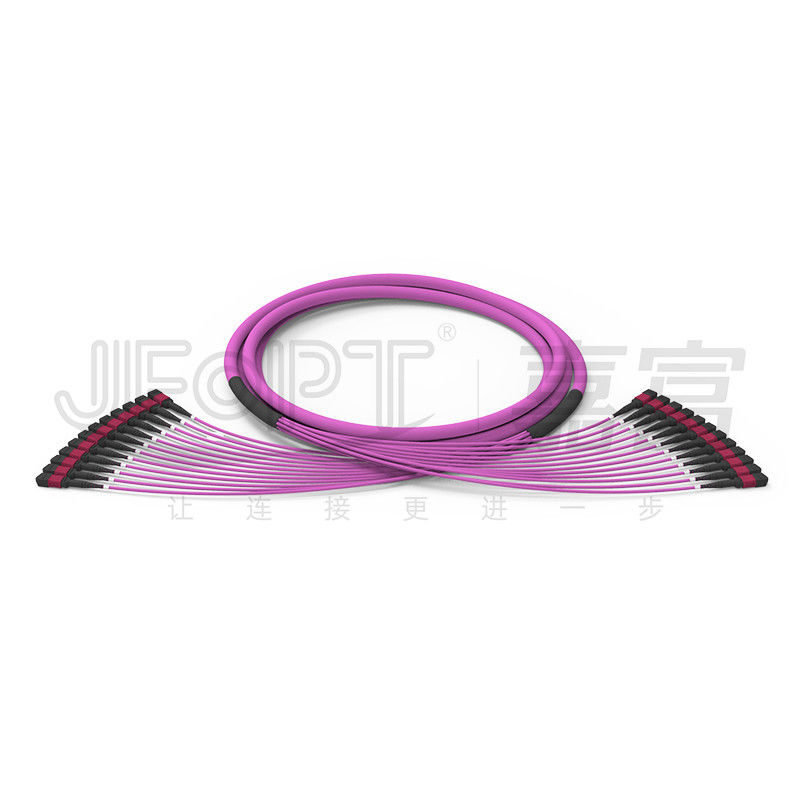

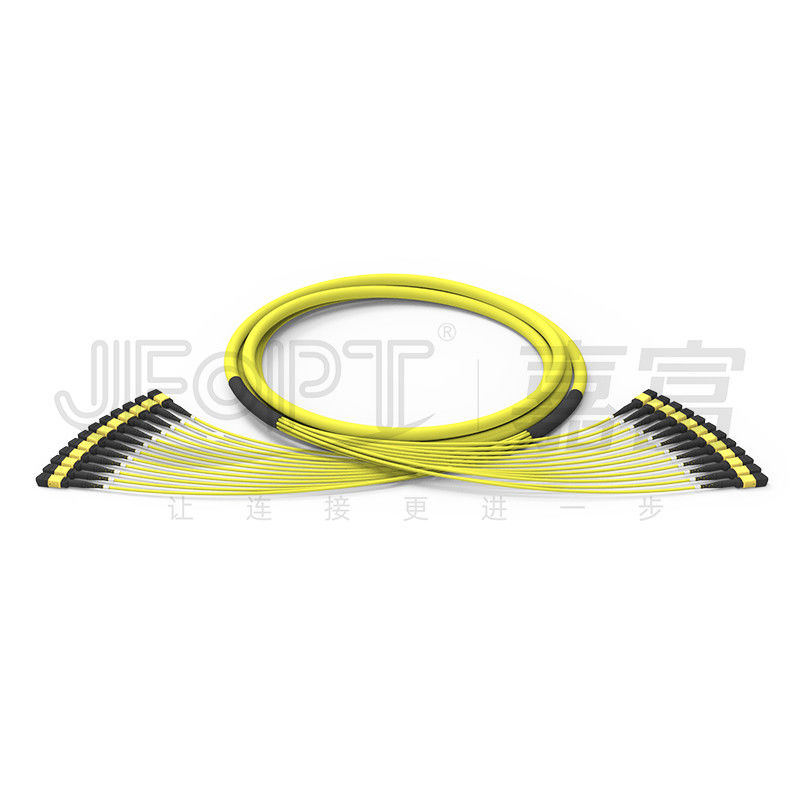

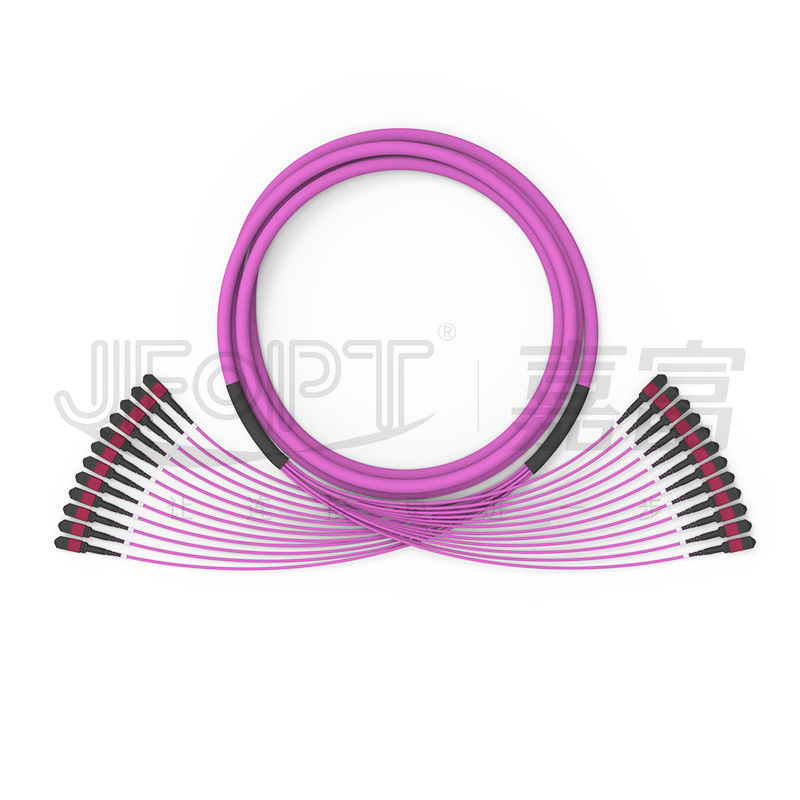

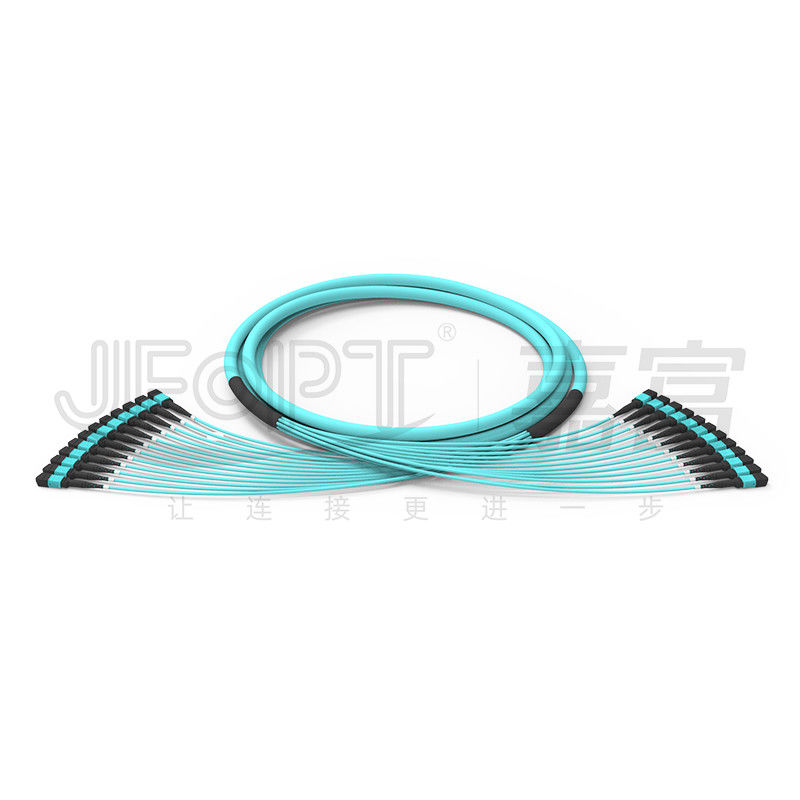

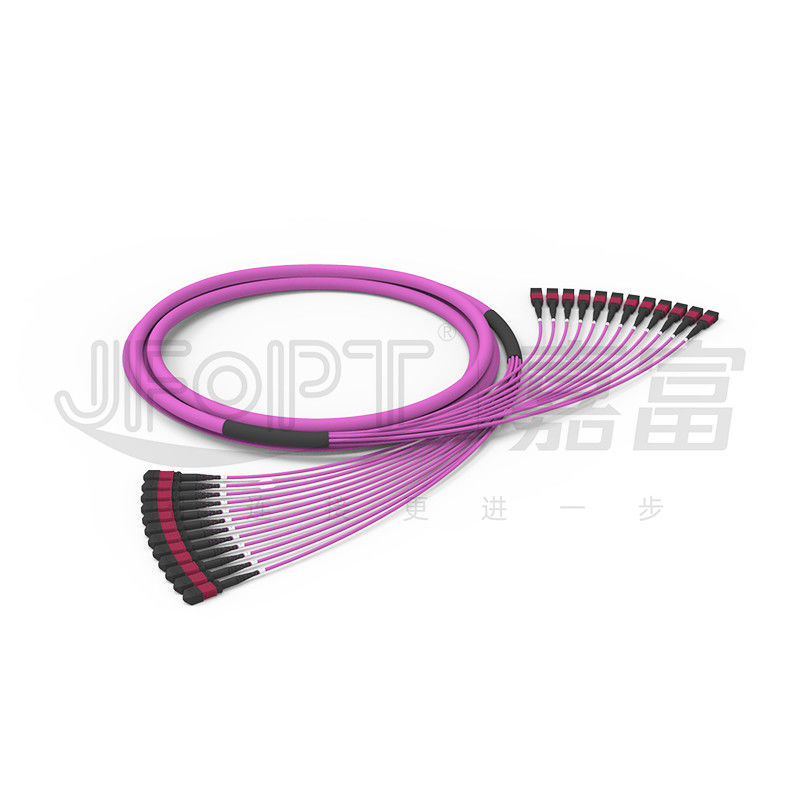

Trunk MPO Jumper 144 Cores 12 Units MPO Connectors * 24 Uneven Branch MPO Trunk Cable
JFOPT's 144-core trunk MPO jumpers are widely used for interconnections between data center server rooms and buildings. These jumpers typically utilize a mini cable with 12 subunits (12 fibers per subunit). The trunk jumper does not have any branches, making it more stable in structure. Each subunit of the mini cable is equipped with an MPO connector, which features high precision and low loss MT ferrules to ensure excellent return loss and insertion loss performance. JFOPT's MPO jumpers are manufactured by high precision equipment and undergo 100% testing in a clean room environment. Our in-house technical team can provide customized solutions to meet specific customer requirements.
♦ Features
|
①The use of a 144-core multi-unit structure mini cable allows for high-density wiring while reducing costs |
②Customizable identification rings enable quick identification of loss and polarity |
||||
|
|
|
||||
|
③Options for flame retardant ratings such as OFN/OFNP/OFNR are available to meet different budget requirements |
④ Branch lengths can be customized according to specific needs |
||||
|
|
|
||||
|
⑤ Excellent stability and repeatability |
- |
||||
|
|
- |
||||
♦ Applications
1.Fiber access networks
2.Fiber data transmission
3.Fiber communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male / Female |
Male : with Pin Female : without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Item |
Parameter |
||||||
|
Fiber Type |
G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 |
||||||
|
Fiber Count |
24 |
48 |
72 |
96 |
144 |
288 |
|
|
Unit Count |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
12 cores / unit |
24 cores / unit |
|
Central Strength Member |
/ |
/ |
FRP |
||||
|
Sub-Cable Unit Outer Diameter |
3.0mm |
||||||
|
Sub-Cable Unit Jacket Material |
PVC/LSZH |
||||||
|
Sub-Cable Unit Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Sub-Cable Unit Strength Member |
Aramid yarn |
||||||
|
Outer Jacket Diameter |
9.5mm |
9.5mm |
11.5mm |
13.5mm |
17.0mm |
||
|
Outer Jacket Material |
PVC/LSZH |
||||||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
||||||
|
Tensile Strength (Long-Term) |
300N |
200N |
400N |
800N |
1600N |
||
|
Tensile Strength (Short-Term) |
600N |
400N |
1000N |
1500N |
3000N |
||
|
Crush Resistance (Long-Term) |
300N/10cm |
||||||
|
Crush Resistance (Short-Term) |
1000N/10cm |
||||||
|
Minimum Bending Radius (Dynamic) |
20D |
||||||
|
Minimum Bending Radius (Static) |
10D |
||||||
|
Operating Temperature |
-20~60℃ |
||||||
|
Storage Temperature |
-20~60℃ |
||||||
|
Fire Rating |
OFN / OFNR / OFNP |
||||||
♦ Connector Boot Selection
|
MPO boot type |
||||
|
Type |
Specification |
Applicable cable OD |
Picture |
Drawings |
|
Round boot |
3.0 boot L=33mm |
3.0/3.2 |
|
|
|
3.0 boot L=17mm |
3.0/3.2 |
|
|
|
|
Square boot |
3.0 boot L=25mm |
3.0/3.2 |
|
|
|
Push-pull tab |
Universal for all boots |
Universal |
|
|
♦ Connector Housing Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-brand equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality, high-performance MPO jumpers. |
|
||||
|
Manufacturing capacity: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, IL&RL testing, and end-face inspection to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to MPO jumper production standards based on customer requirements to ensure product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performing MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and core count / Male or female connectors / Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% insertion loss testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male-to-female adapters, MT jumpers, and other MPO-related products.
