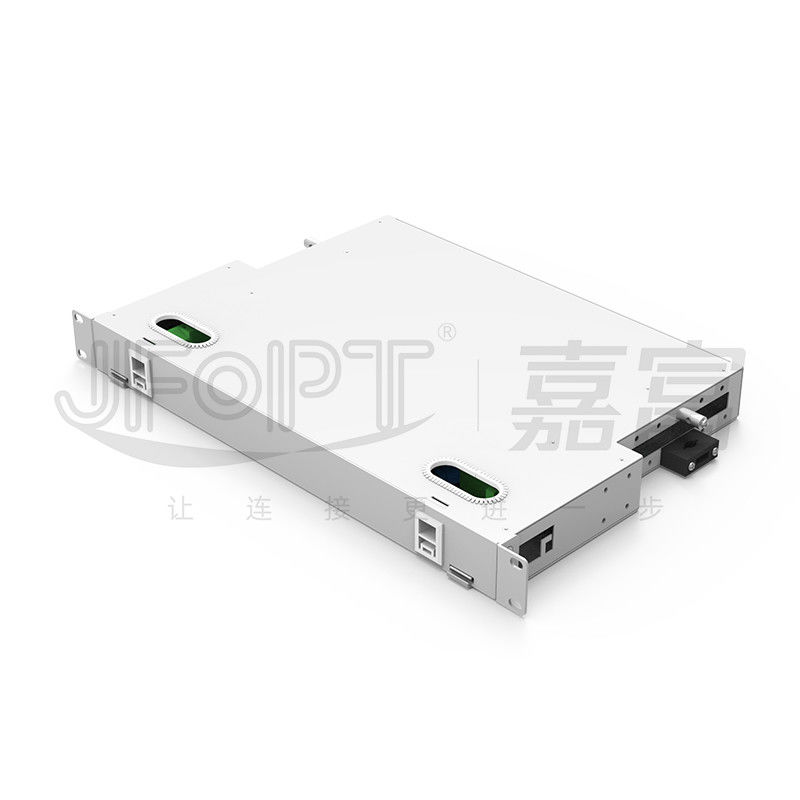

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF

FC Rack Mount Fiber Patch Panel

Standard 19 Inch Fiber Optic ODF

12 Core Rack Mount Fiber Patch Panel

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

1U 19Inch ODF Patch Panel SC/FC SX 12C

Contact Us

Request A Quote
Product Details
Minimum Order Quantity:
1PC
Product Model:
1U ODF Fiber Patch Panel
Maximum Core Count:
12 Cores
Fiber Type:
SM/MM
Adapter Type:
SC/FC Simplex
Material:
Cold-rolled Steel
Color:
Grey Or Customizable
Number Of Unit Modules:
1PC
Payment & Shipping Terms
Price
Price quotation based on the number of cores
Delivery Time
15 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
3000 units per month
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

1U 12-Core SC/FC ODF Fiber Patch Panel, Standard 19-Inch Rack Mount Optic Patch Panel



JFOPT's 12-core ODF is a standard 1U 19-inch fiber patch panel. It features an integrated unit module design, combining fusion splicing, patching, and fiber storage functions in one. It offers versatile compatibility and can accommodate various adapters such as FC and SC for different cabling needs. The adapters are installed at a 30° angle in the integrated module to prevent laser damage to the eyes. JFOPT's fiber patch panel is made of high-quality cold-rolled steel, and each production process, from material cutting to jumper installation, undergoes rigorous quality inspection.



♦ Product Features

①Various interface is available to accommodate different device interfaces

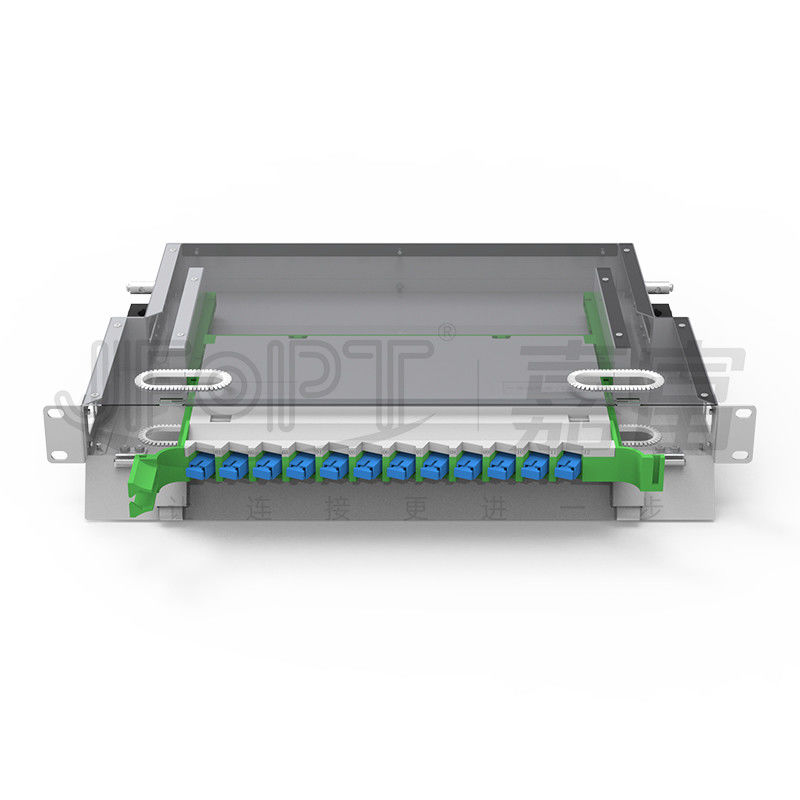

②The 12-core integrated module is designed with multiple functions and provides ample storage space

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 0

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 1

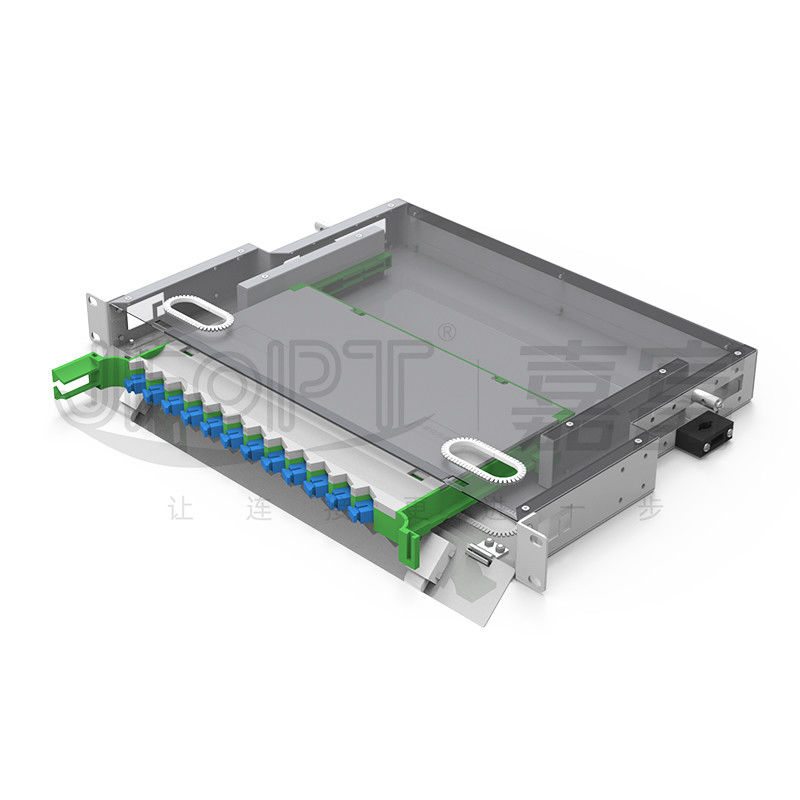

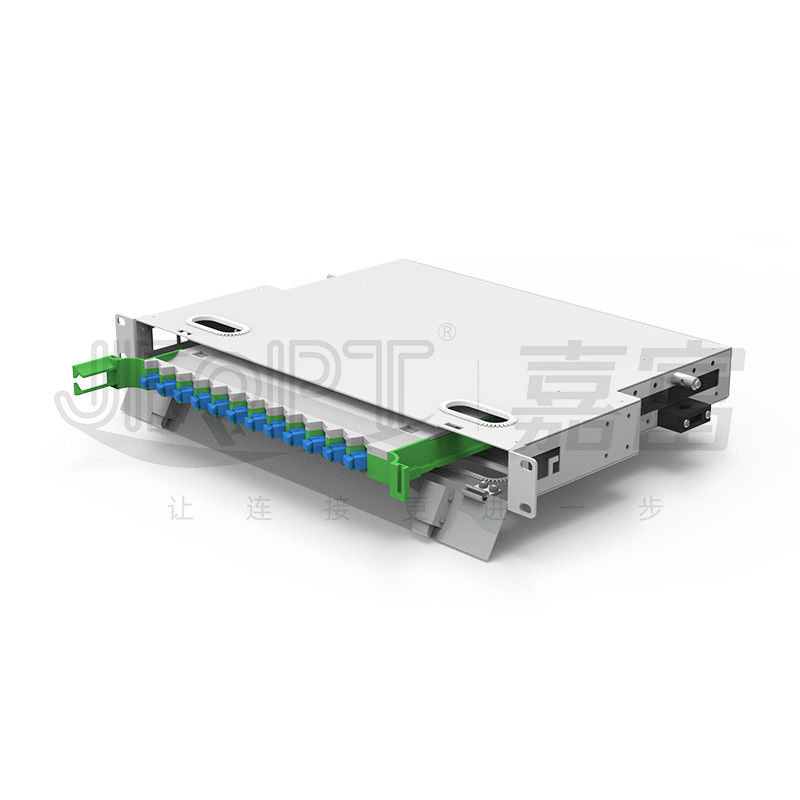

③The downward folding door panel protects the front wiring, preventing interference or damage

④The adjustable mounting ears allow for flexibility in meeting specific cabling requirements

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 2

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 3



♦ Applications

1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.



Distribution Box Size

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 4



Auxiliary Material Information

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 5

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 6

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 7

3*100mm cable ties

* 8 pieces

Rack mounting nuts and screws

* 4 sets

Single-core heat shrink tubing

* quantity based on the number of cores



♦ Product Packaging

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 8

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 9

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 10

Pearl cotton protection and bubble wrap for the four corners of the distribution box

Packed into inner boxes and sealed

Several inner boxes packed into outer boxes and sealed,
Protective corners added to the outer box



Factory Strength

Expertise:


JFOPT has been focusing on fiber distribution box production for over 10 years and has professional manufacturing techniques and equipment.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 11

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, metal stamping, and CNC bending equipment for manufacturing.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 12

Quality Control:


JFOPT implements strict quality control measures, including quality inspections at each stage of production, from raw material procurement to stamping, bending, and painting.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 13

Standards:


JFOPT can customize and strictly adhere to production standards based on customer requirements to ensure product consistency and performance stability.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 14

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 15

Service And Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction.

1U 12 Core SC/FC Rack Mount Fiber Patch Panel Standard 19 Inch Fiber Optic ODF 16



♦ Frequent Q&A

1.When selecting a distribution box, it is important to consider the following factors?
Ensure that it meets the requirements for wiring installation, including the thickness of the sheet metal and structural strength, to ensure a visually appealing and damage-free product.You can contact us for custom production based on your samples or technical drawings, or provide us with your requirements for us to design accordingly.



2.Can we purchase patch cords to go with our distribution box?
Yes, we can provide patch cords and pigtails according to your specific requirements to meet different wiring needs.



3.What is our delivery lead time?
For standard products, the lead time is typically 2 working days. For customized products, the lead time is usually 15 working days.
