12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box

48 Fibers Fiber Patch Panel

1U Fixed Fiber Distribution Box

Rack Mount 1U Fiber Distribution Box

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

1U Rack Mount Patch Panel 12-48C LC/SC/FC/ST

Contact Us

Request A Quote
Product Details
Installation Method:
Rack-mounted
Product Model:
1U Fixed Fiber Distribution Box
Number Of Fibers:
12~48 Fibers
Adapter Types:
LC/SC/FC/ST
Fiber Types:
SM/MM
Color:
Black
Material:
Cold-rolled Steel Plate
Payment & Shipping Terms
Minimum Order Quantity
50 units
Price
Price quotation based on the number of cores
Delivery Time
15 days
Payment Terms
T/T /Paypal/ Trade Assurance Order via Alibaba
Supply Ability
3000 units per month
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

1U Fixed Fiber Distribution Box With Front Cable Management Rack LC/SC/FC/ST 1U 12-48 Fibers

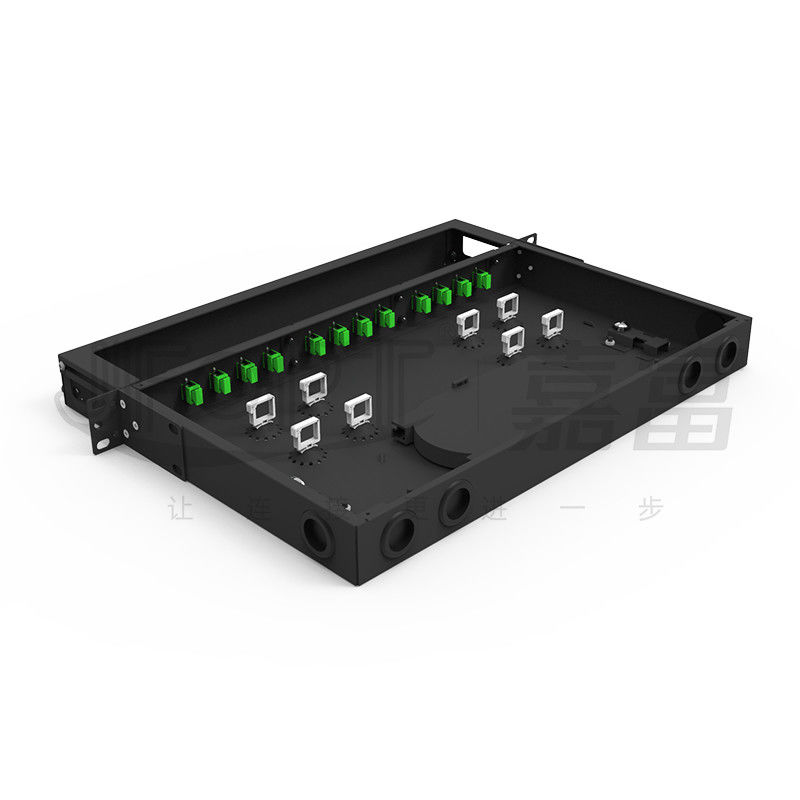

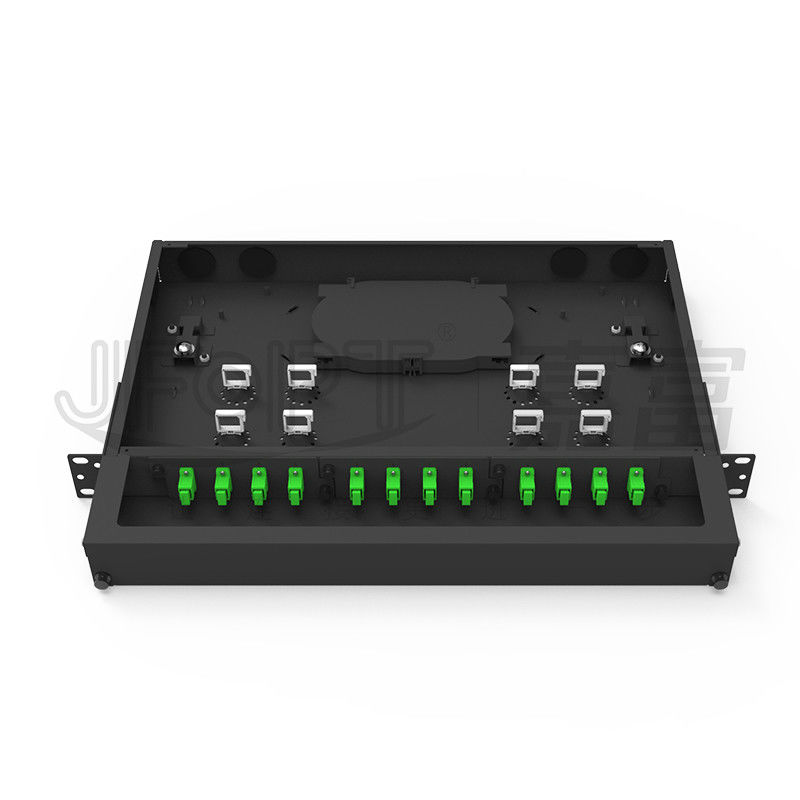

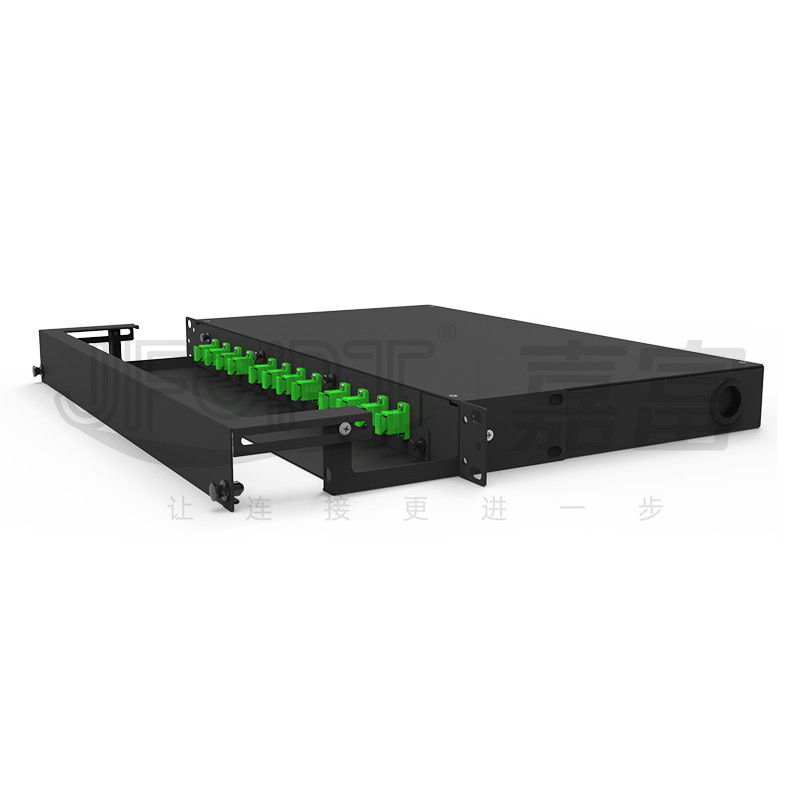

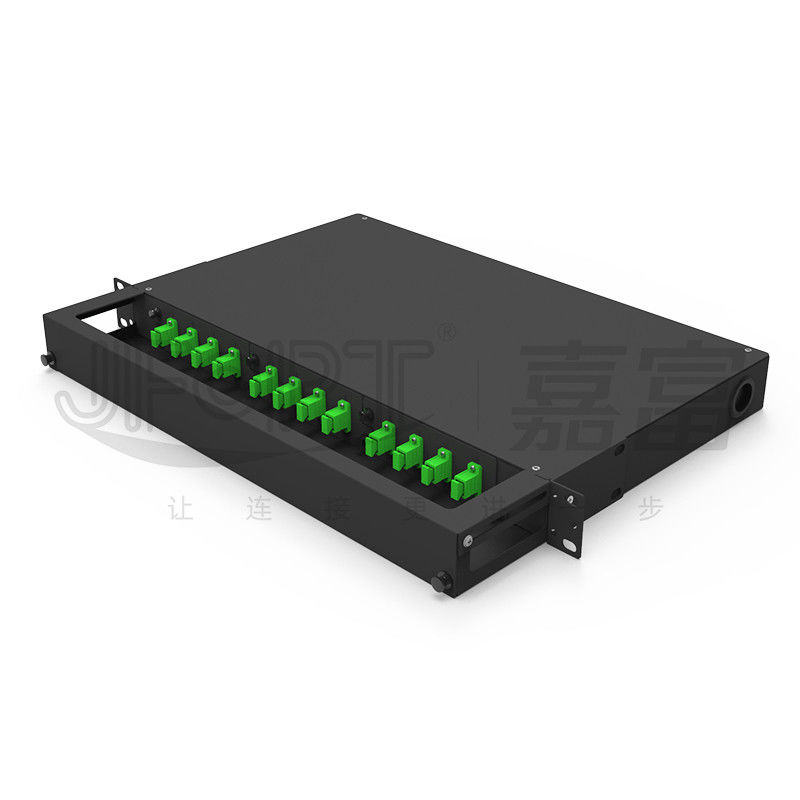

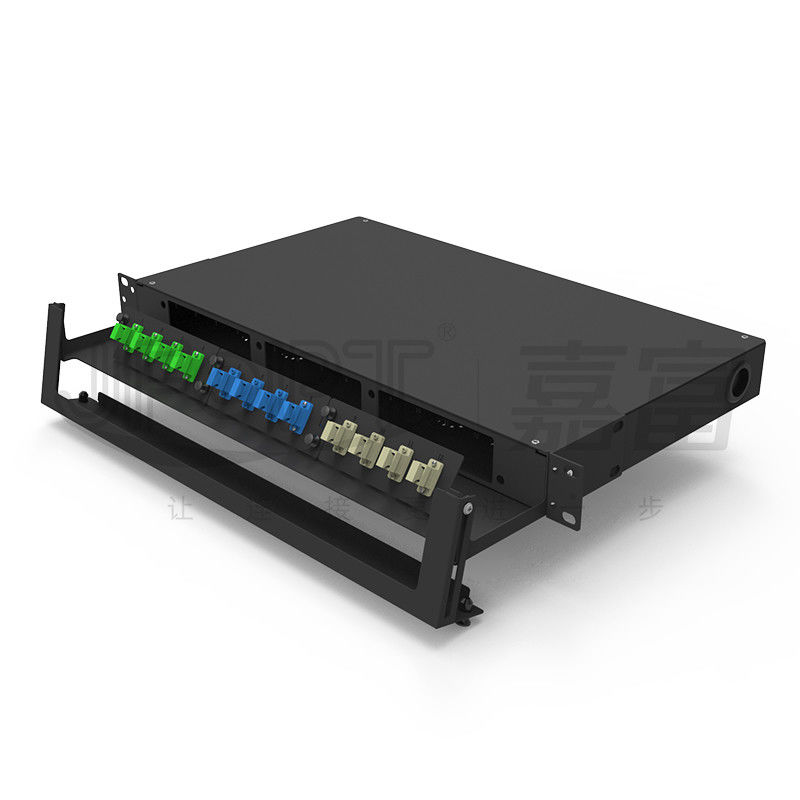

JFOPT 1U fixed fiber optic patch panel with optional front cable management rack meets the user's requirements for cable management and labeling. The patch panel features three removable panels, designed with different connector types and fiber counts, and can accommodate various adapters including LC/SC/FC/ST. The three panels can support different fiber counts ranging from 12 to 48 fibers, allowing for flexible configurations to meet different patching needs.



♦ Product Features

① Universal adapter panel for LC/SC/FC/ST connectors

②Excellent pressure resistance and impact resistance

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 0

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 1

③Matte surface treatment for a sleek and attractive appearance

-

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 2

-



♦ Applications

1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.



Dimension

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 3



Accessories

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 4

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 5

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 6

Cable tie 3*100mm Quantity

* 8 pcs

Screw and nut* 4 sets

Single fiber splicing Protector 1.5*60mm Quantity: same as fiber count



♦ Product Packaging

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 7

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 8

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 9

Pearl cotton protection and bubble wrap for the four corners of the distribution box

Packed into inner boxes and sealed

Several inner boxes packed into outer boxes and sealed,
Protective corners added to the outer box



Factory Strength

Expertise:


JFOPT has been focusing on fiber distribution box production for over 10 years and has professional manufacturing techniques and equipment.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 10

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, metal stamping, and CNC bending equipment for manufacturing.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 11

Quality Control:


JFOPT implements strict quality control measures, including quality inspections at each stage of production, from raw material procurement to stamping, bending, and painting.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 12

Standards:


JFOPT can customize and strictly adhere to production standards based on customer requirements to ensure product consistency and performance stability.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 13

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 14

Service And Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultations, product recommendations, and maintenance, to meet customer needs and ensure customer satisfaction.

12-48 Fibers Rack Mount Fiber Patch Panel LC SC FC ST 1U Fixed Fiber Distribution Box 15



♦ Frequent Q&A

1.When selecting a distribution box, it is important to consider the following factors?
Ensure that it meets the requirements for wiring installation, including the thickness of the sheet metal and structural strength, to ensure a visually appealing and damage-free product.You can contact us for custom production based on your samples or technical drawings, or provide us with your requirements for us to design accordingly.



2.Can we purchase patch cords to go with our distribution box?
Yes, we can provide patch cords and pigtails according to your specific requirements to meet different wiring needs.



3.What is our delivery lead time?
For standard products, the lead time is typically 2 working days. For customized products, the lead time is usually 15 working days.
