Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MTP-MT 12C OM3 Ribbon Patch Cord
Contact Us

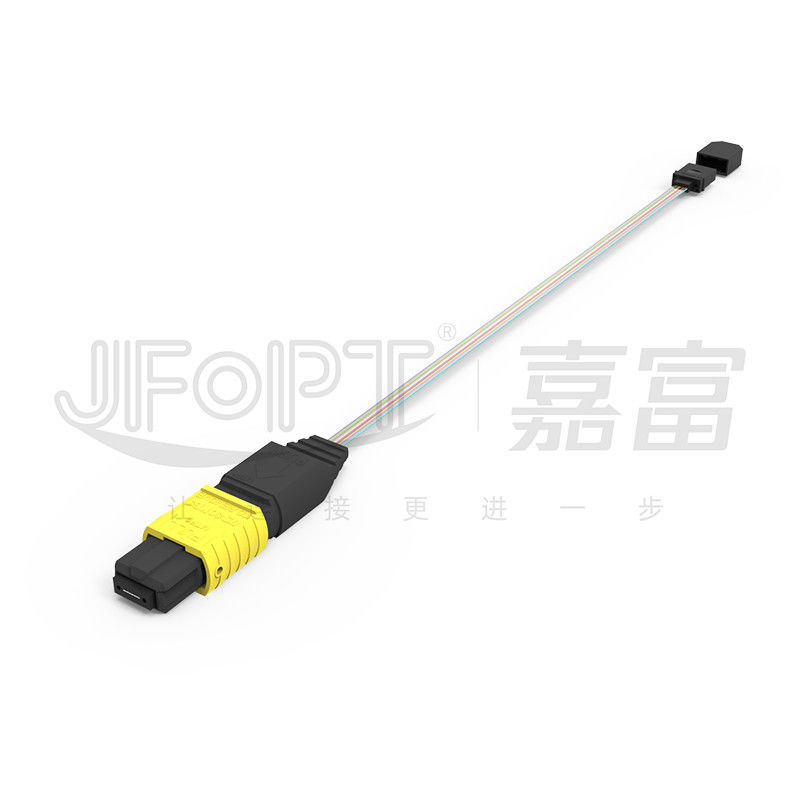

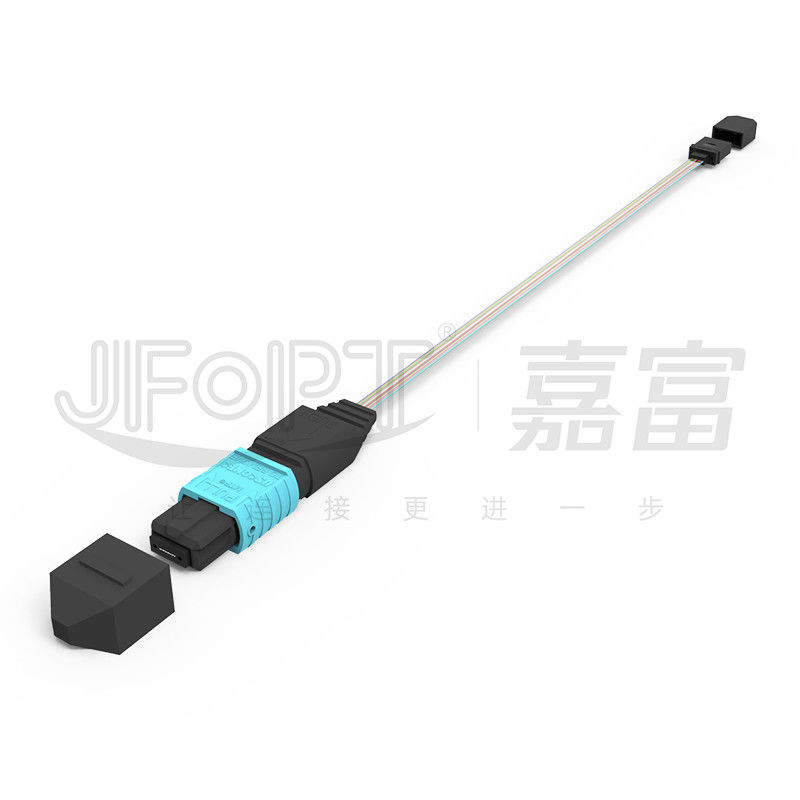

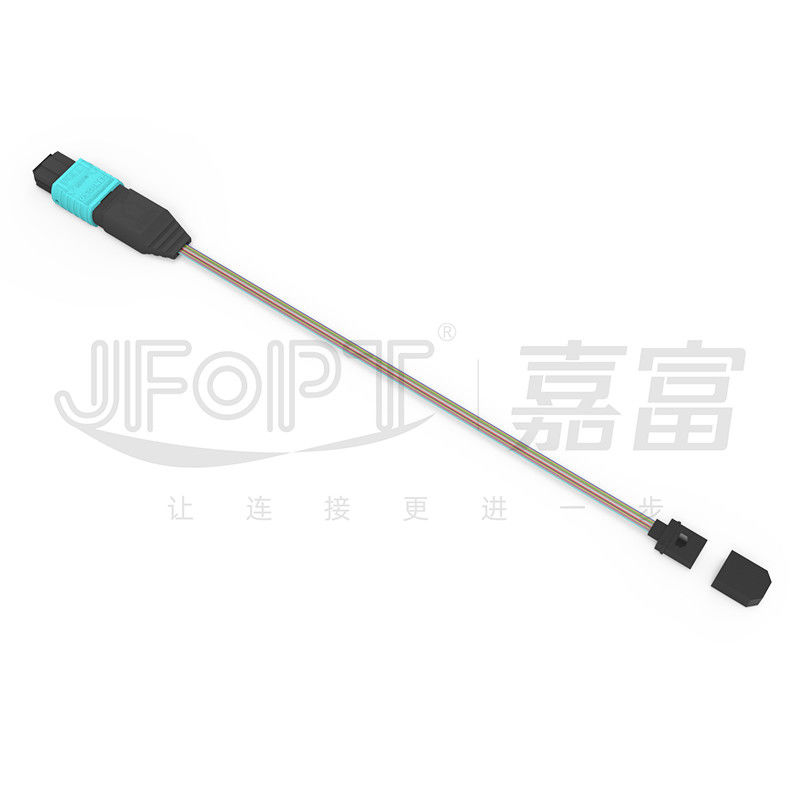

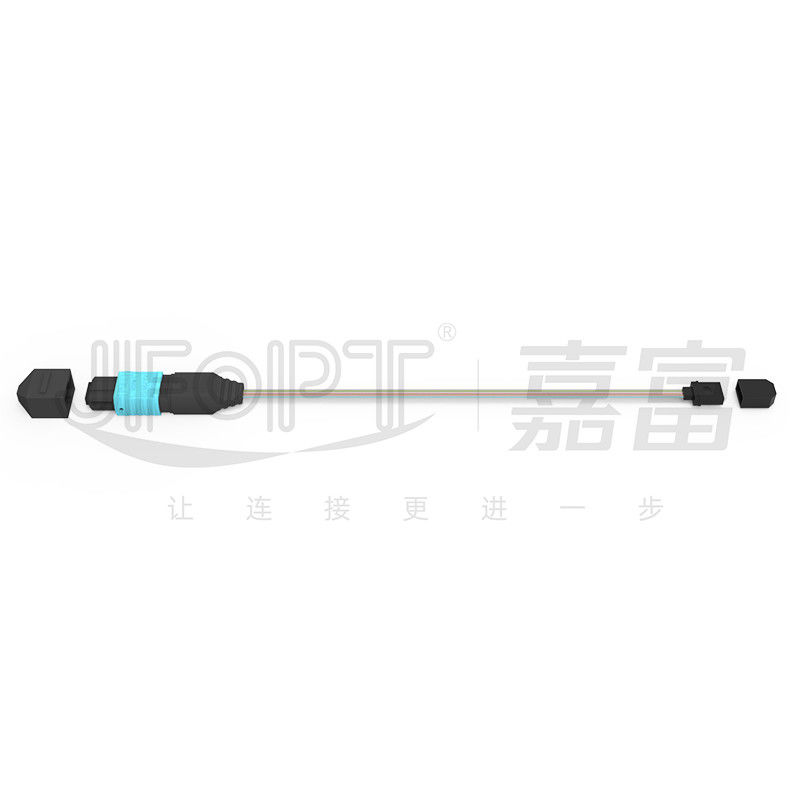

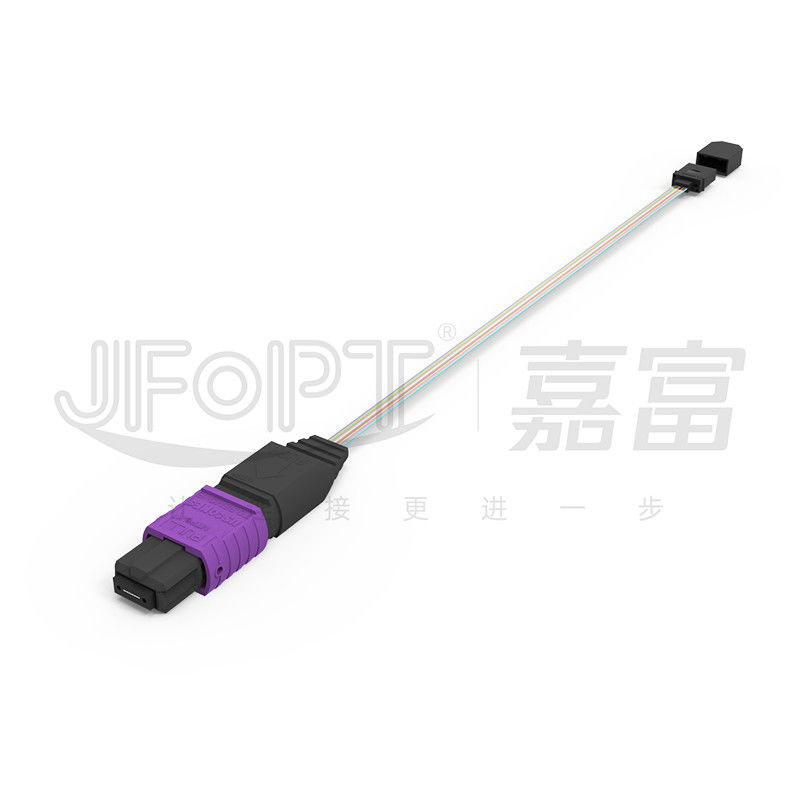

MTP Bare Ribbon Fiber Patch Cord 12 Fibers OM3 MTP-MT With Flat Boot
To meet the demands for higher density and higher data rates in connectivity, the internal space requirements of equipment have become more stringent. The MTP-MT bare ribbon fiber jumper is designed for this purpose, using ribbon fiber and MPO ribbon assemblies, with the other end terminated directly with an MT ferrule. JFOPT's MTP-MT bare ribbon fiber jumper features low-loss and high-precision ferrules, resulting in minimal optical insertion loss and more stable transmission. To meet the increasing demand for MPO-to-MT connections, JFOPT also offers a variety of MPO-MT adapter options. Additionally, all JFOPT MTP jumpers undergo rigorous testing including 3D interferometry, insertion loss testing, and end-face inspection, ensuring outstanding performance that meets industry-leading standards.
♦ Features
|
① High-quality and low-loss MT multi-fiber ferrules are used to ensure reliable and efficient connections |
②Premium-grade optical fibers from reputable brands like Corning or YOFC are utilized for superior performance and signal integrity |
||||
|
|
|
||||
|
③Equipped with high-quality dust caps to protect the ferrules, ensuring a longer lifespan and reducing the risk of contamination |
④Easy for wiring, saving time and effort during installation |
||||
|
|
|
||||
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professional: JFOPT has been focusing on the production of MTP jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 MTP production lines and equipment, allowing for fast and efficient production of a large number of MTP jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to MTP jumper production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
