Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
1U MPO Patch Panel 144C G657A1 MPO/APC-LC/APC LL
Contact Us

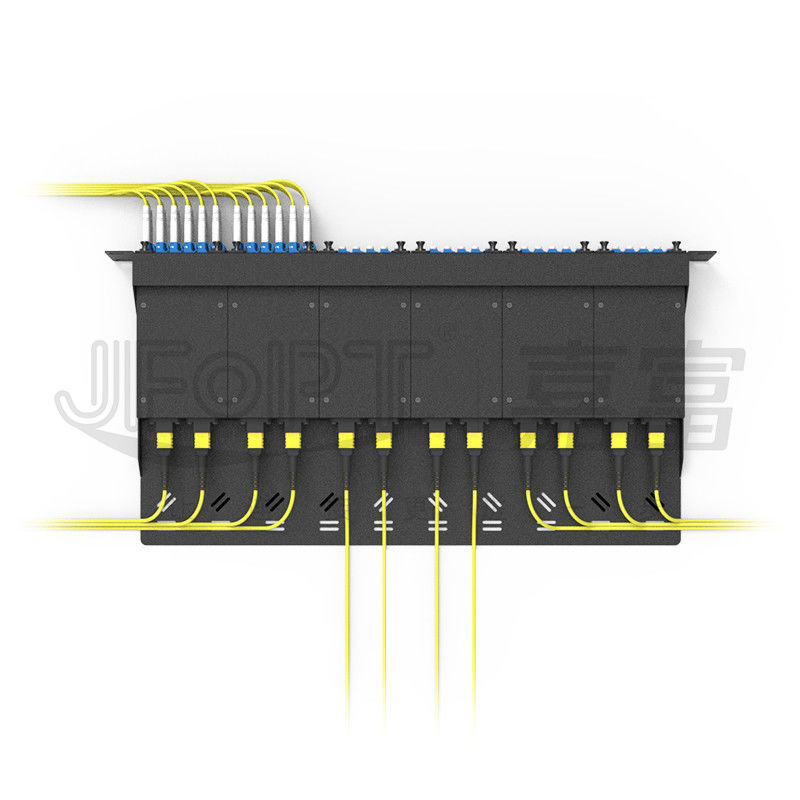

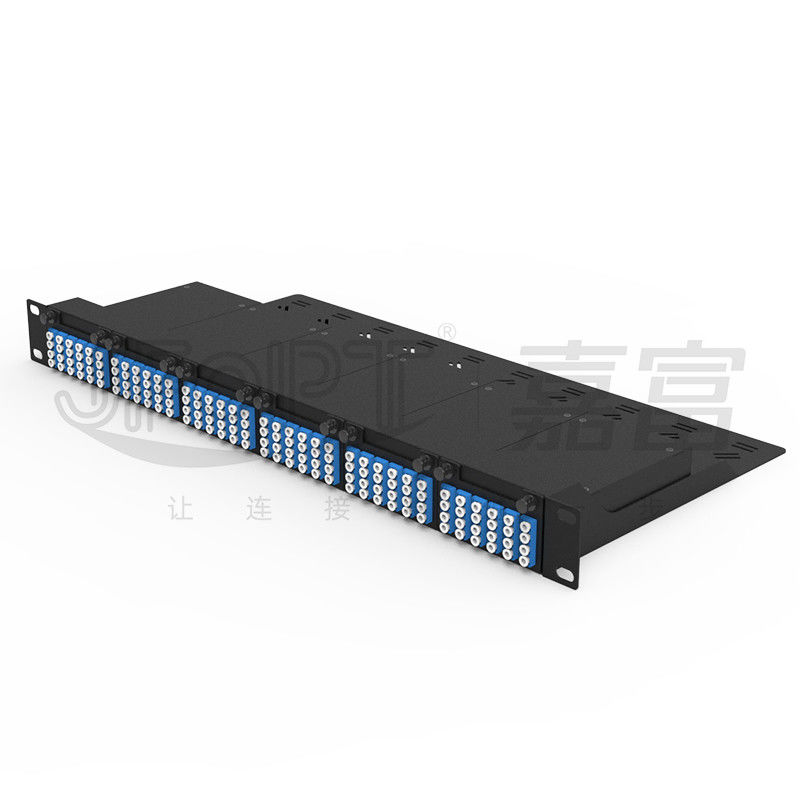

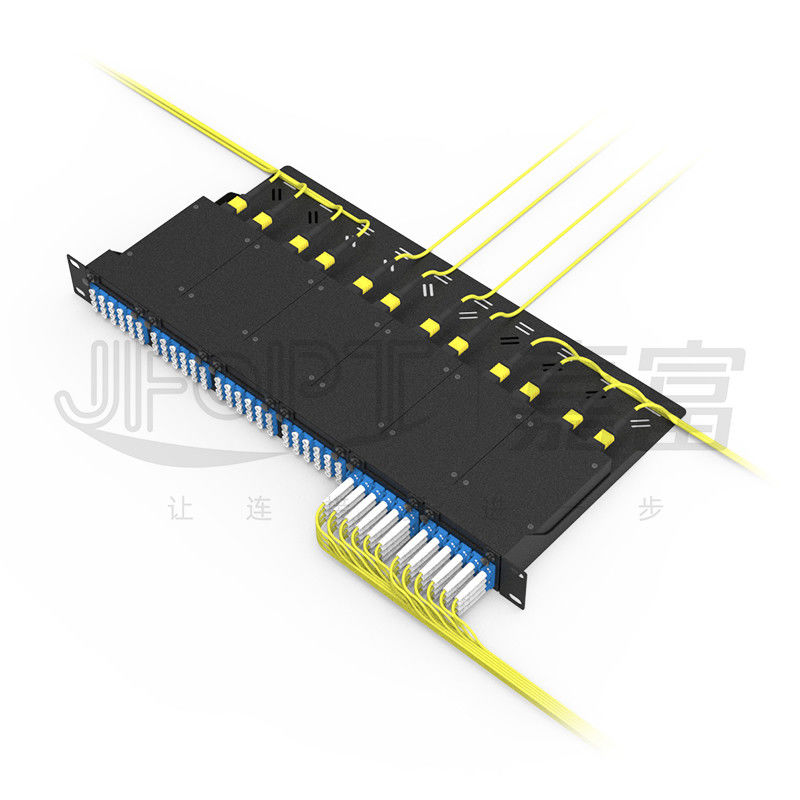

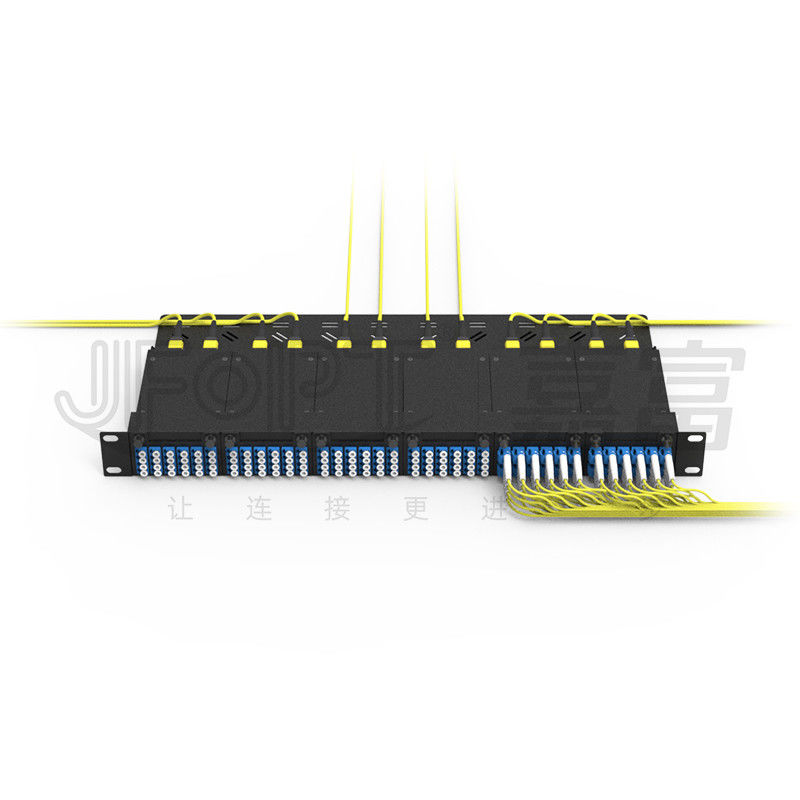

MPO Patch Panel 1U 144 Fibers G657A1 / A2 Single - Mode Low Loss MPO / APC - LC / APC Patch Cord Module Cassette / Box
The MPO patch panel is primarily used for high-density fiber optic cabling systems, rapid deployment systems, backbone networks, highly integrated equipment and devices, data centers, and SAN systems. The detachable MPO modular design allows for quick and easy cable management. Each MPO patch panel can accommodate up to 6 MPO module boxes, and each MPO module box can accommodate one 24-fiber MPO-LC breakout cable or two 12-fiber MPO-LC breakout cables. The standard 1U MPO patch panel can support a maximum capacity of 144 fibers. JFOPT provides a complete solution with the MPO patch panel and MPO jumpers, all of which are independently designed and manufactured by our company to ensure compatibility and product reliability.
♦ Product Features
|
① 1U design with a large capacity of 144 fibers |
②MPO module boxes are securely fixed with latches for easy removal |
|
|
|
|
③ Open design for convenient cable management and routing |
④Made of high-quality cold-rolled steel for compression resistance and impact resistance |
|
|
|
|
⑤Equipped with MPO/LC adapters and MPO-LC jumpers, allowing for plug-and-play installation on-site |
- |
|
|
- |
♦ Applications
1.Data centers
2.High-density fiber optic cabling systems
3.Backbone networks
4.FTTZ (Fiber to the Zone) and FTTB (Fiber to the Building) cabling systems
♦ Cassette Dimension
♦ Patch Panel Dimension
♦ Accessory
|
|
|
|
|
|
1. Cable ties (3*100mm)*8pcs |
Rack mounting brackets and screws * 4 sets |
Velcro (12*100mm)*10pcs |
Label (70*20mm) *12pcs |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Inner carton box |
Multiple inner boxes are packed into the outer box and sealed |
♦ Factory Strength
|
Specialization: JFOPT has over 10 years focused on the production of fiber optic patch panels, equipped with professional technology and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precision laser cutting, precision metal stamping, and precision CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including dedicated quality inspection processes for sheet metal material procurement, stamping, bending, and painting production processes. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for fiber distribution boxes based on customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to developing advanced and user-friendly fiber distribution boxes. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What factors should be considered when purchasing a distribution box?
First, it should meet the requirements of the wiring construction and pay attention to the thickness of the sheet metal and structural strength to ensure a visually appealing and undamaged product. Usually, you can contact us for customized production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.
2.Can our distribution box be compatible with MPO cassettes from other manufacturers?
Compatibility depends on having the same installation dimensions. If the dimensions are not the same, they cannot be used together.
3.Can our distribution box be paired with jumper cables?
We can provide jumpers and pigtails according to your different needs to meet various wiring requirements.
4.What is our delivery lead time?
For standard products, it is within 2 working days, and for customized products, it is within 15 working days.
