Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters

Single Layer Fiber Optic Termination Box

fiber termination box wall mount

SC SX Fiber Optic Termination Box

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product: CE/UL/ROHS/REACH Company: ISO9001/ISO14001

Model Number:

JFFTB-01-D1

Contact Us

Request A Quote
Product Details
Top Cover Type:
Fully Enclosed
Cable Fixing Method:
Cable Slot
Adapter Types:
SC SX Flanged / LC DX Flanged
Number Of Internal Layers:
Single Layer
Material:
ABS+PC
Compatible Fiber Cables:
2.0/3.0mm Simplex Cable And Drop Cable
Heat Shrink Tubing Slot:
Available
Fiber Spool Slots:
Available
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Welcome to contact our customer service
Delivery Time
1-5 days
Payment Terms
T/T /Paypal /Trade Assurance Order via Alibaba
Supply Ability
3000 PCS/days
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

 1-Core Plastic Terminal Box Single Layer Desk/Wall Mounting SC SX/LC DX Adapters



JFFTB-01-D1 terminal box is designed for FTTx project, desk mounted or wall mounted. It can function optical fiber splicing, storage and patch cord connection.



♦ Features

①Made of flame retardant materials: Made of PC and ABS, different flame retardant grades for option

②Easy to open or buckle the top cover: The top cover is fixed on botton by buckle, easy to operat

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 0

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 1

③Various termination methods: Supporting fusion splicing and fast connector

④Adapter capacity: 1*SC simplex or 1* LC duplex adapter can be installed

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 2

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 3

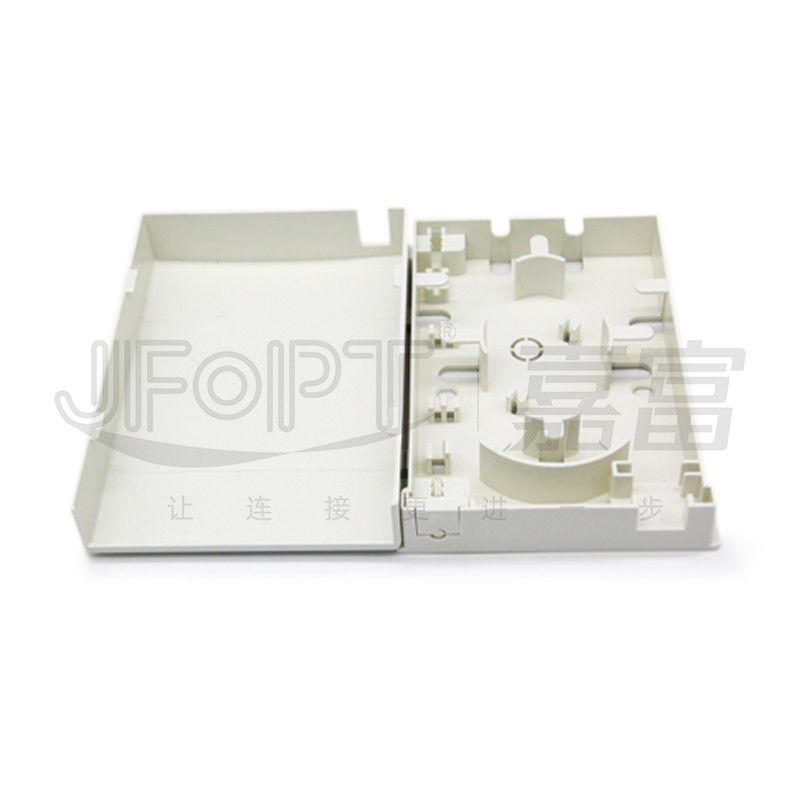

⑤Compact structure: There is dedicated cable channel at the bottom of the box fully meets the requirements of the bending radius of the fiber, and provides safety protection for the fiber in and out

⑥Cable entry: 1 cable entry port on the front, and the other cable entry port is reserved at the rear

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 4

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 5



Applications

1.CATV.
2.Telephone and rural communication network systems.
3.Data and image transmission systems.



Dimension

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 6

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 7

XYZ axis 45° oblique view

Back view

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 8

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 9

Top view

Side view



♦ Available Accessories

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 10

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 11

Screws for wall mounting * 2 sets

Heat shrinkable tube * 1 pc (40*1.0mm)



♦ Product Packaging

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 12

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 13

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 14

Pack the product into PE bags

Pack the product into inner boxes and seal the boxes

Pack multiple inner boxes into an outer box and seal the box



Factory Strength

Expertise:


JFOPT has been specializing in the production of fiber optic distribution boxes for over 10 years, with professional production techniques and equipment.

Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 15

Manufacturing Capacity:


JFOPT utilizes precision laser cutting, precision metal stamping, and precision CNC bending equipment for production.



Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 16

Quality Control:


JFOPT implements strict quality control, with dedicated quality testing processes for sheet metal raw material procurement, stamping, bending, and coating production processes.



Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 17

Standard Setting:


JFOPT has a professional and experienced R&D team that provides cost-effective overall solutions based on different requirements to meet your various needs.



Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 18

Technological Innovation:


JFOPT emphasizes technological innovation and conducts annual upgrades and improvements to its products, constantly introducing innovative products to meet the ever-changing market demands.



Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 19

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales repairs, to meet customer needs and ensure customer satisfaction.



Single Layer Fiber Optic Termination Box 1 Core Desk / Wall Mounting SC SX/LC DX Adapters 20



♦ Frequent Q&A

1.What should I consider when purchasing a terminal box?
Firstly, ensure that it meets your wiring installation requirements and pay attention to the thickness of the sheet metal and the structural strength to ensure a visually appealing and undamaged product. Typically, you can contact us for custom production based on your samples or technical drawings, or you can inform us of your requirements for us to design for you.



2.What tools are required for the installation of our terminal box?
The installation of our distribution box requires a fusion splicer, fiber stripping tool, fiber cleaning tools, and others.



3.Can our terminal box be paired with different types of patch cords?
We can match the terminal box with different types of patch cords according to your specific requirements to meet your usage needs.



4.What is our delivery lead time?
For standard products, delivery can be made within 2 working days. For customized products, the lead time is approximately 15 working days.
