MTP Single-Mode Standard Loss 12-Core 6-Channel Fiber Loopback

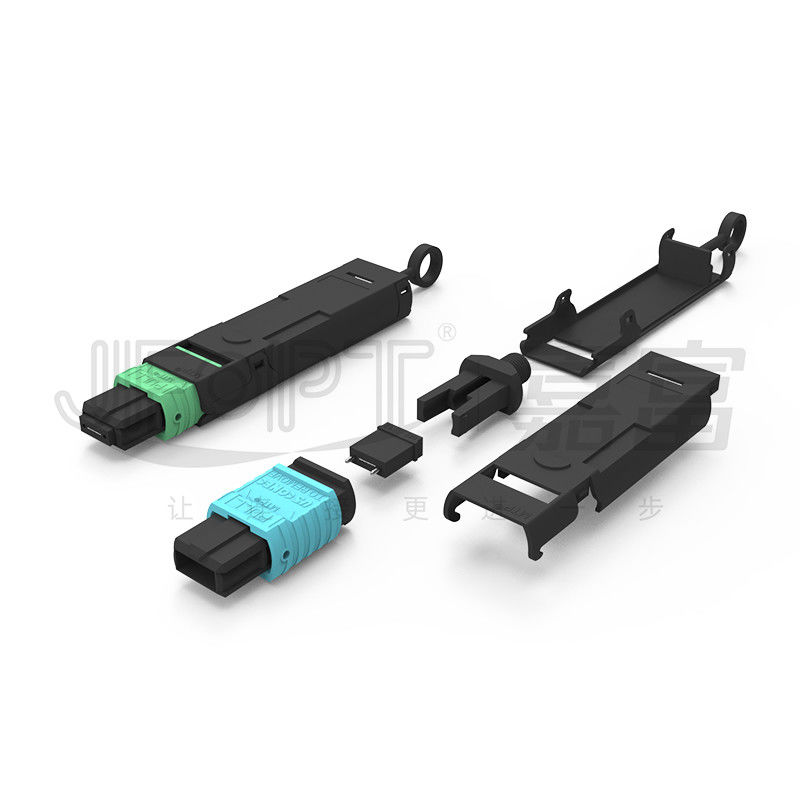

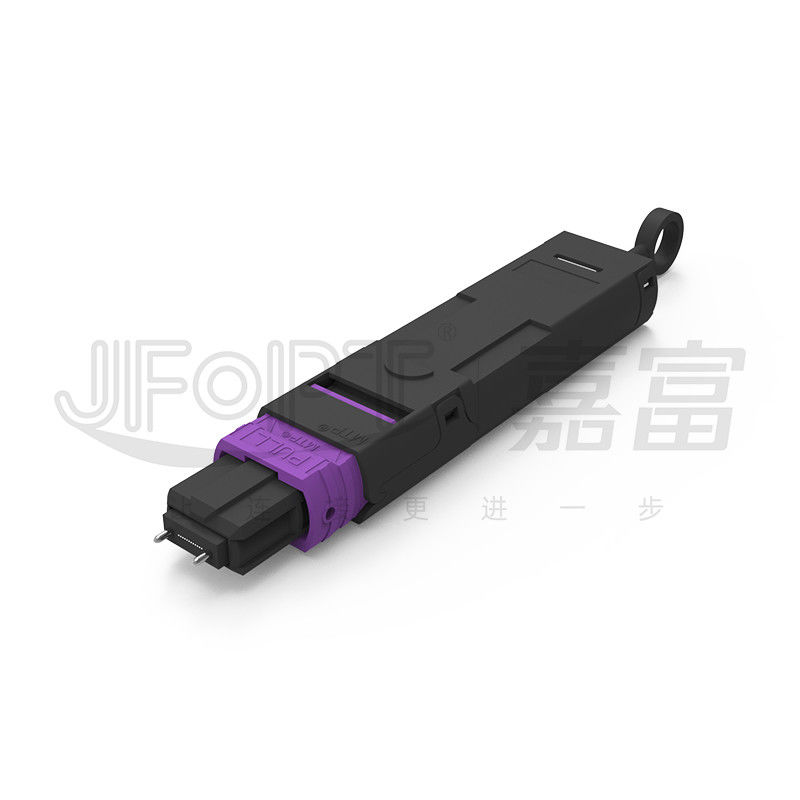

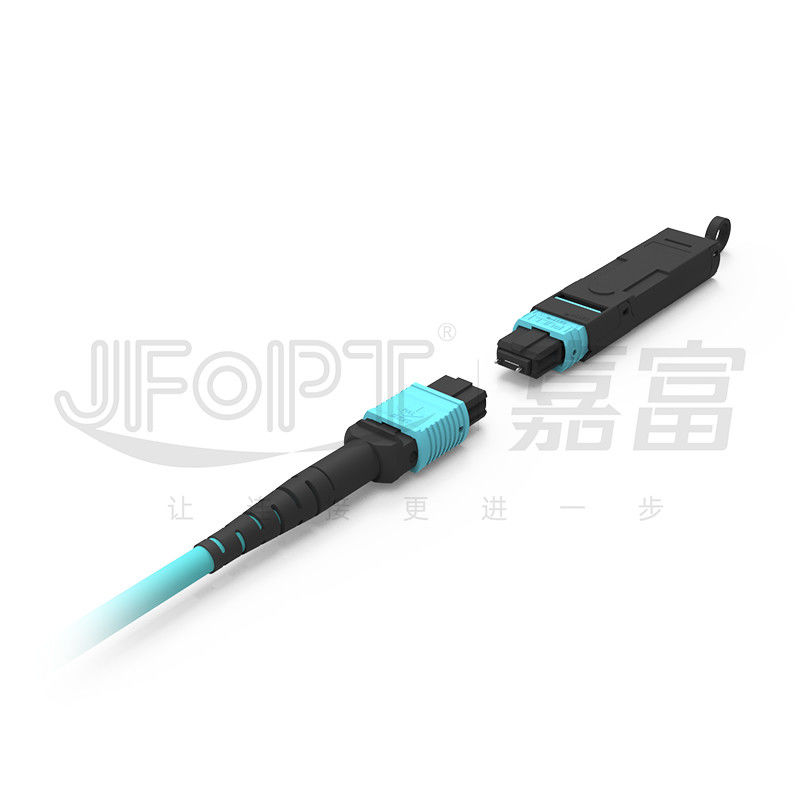

The MTP loopback adapter forms a loop between every two channels of an MTP connector. It is commonly used for signal feedback in testing systems or network systems. By utilizing the loopback signal, potential abnormalities in the network link can be detected. The MTP loopback adapter is compact in size, sturdy in structure, and equipped with a protective cap with a pull ring for easy removal. JFOPT MTP connectors are genuine USCONEC products, accompanied by high-quality fibers and advanced manufacturing techniques, ensuring reliable and stable quality. The channels can be selected from options like 6/8/12/16/24, and the connector gender and polarity can be customized. The fiber type can also be customized to match the ested cable.
♦ Product Features
|
① 12 cores for 6 channels |
② Utilizes bend-resistant fibers to reduce loss |
||||
|
|
|
||||
|
③Features a durable outer jacket and excellent protection |
④Connector housing color, polarity, connector gender, and other specifications can be customized according to requirements |
||||
|
|
|
||||
♦ Applications
1.Optical system debugging
2.Fiber fault troubleshooting
3.High-density data centers
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ MT Ferrule Options
|
Fiber Mode |
Performance |
Fiber count |
||
|
SM |
Standard SM |
4 channels(12 fibers) |
||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
SM MT |
4 channels(12 fibers) |
|||
|
6 channels(12 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
MM |
Standard SM |
4 channels(12 fibers) |
||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
|
MM MT |
4 channels(12 fibers) |
|||
|
6 channels(12 fibers) |
||||
|
8 channels(16 fibers) |
||||
|
12 channels(24 fibers) |
||||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference Color: PANTONE 346C |
Reference Color: PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference Color: PANTONE 7534U |
Reference Color: PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference Color: PANTONE 310C |
Reference Color: PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference Color: PANTONE 2587C |
Reference Color: PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference Color: PANTONE 375C |
||||
|
|
||||
♦ Polarity Selection
|
24F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Reinforced packaging |
♦ Factory Strength
|
Specialization: With over 10 years of focus on MTP jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MTP production lines and equipment to produce a large quantity of MTP jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RL testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MTP jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and fiber count / Male or female / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% IL&RL testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks / MTP attenuators / MPO Male-Female adapters / MT jumpers / among other MTP related products.
