MTP-SC 8C 3.0mm Fanout 0.9/2.0/3.0mm
Contact Us
MTP - SC 6 Core 8 Core 3.0mm Main Cable Branching SC Patch Cord

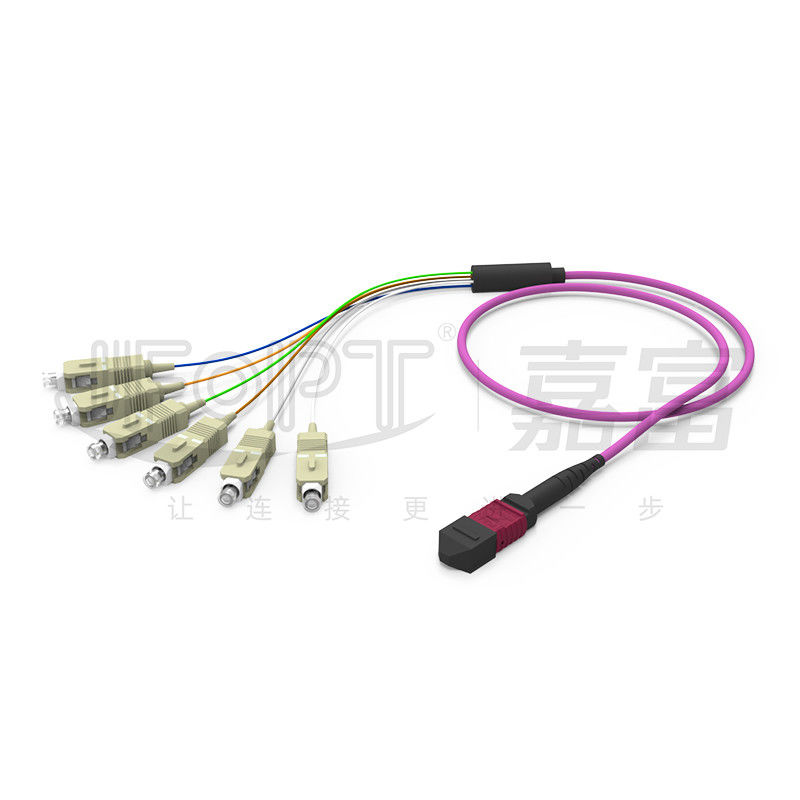

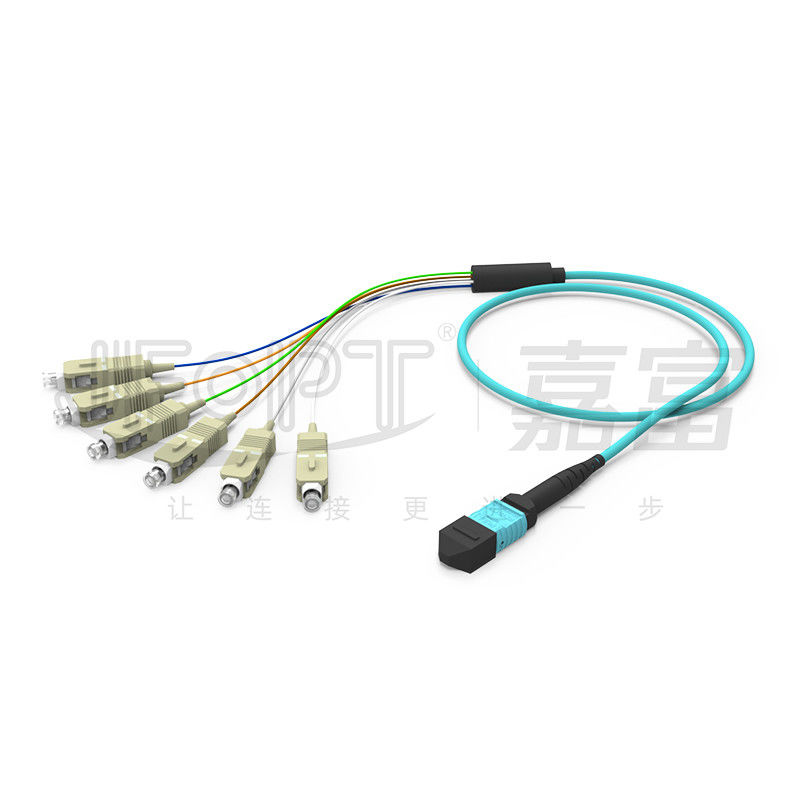

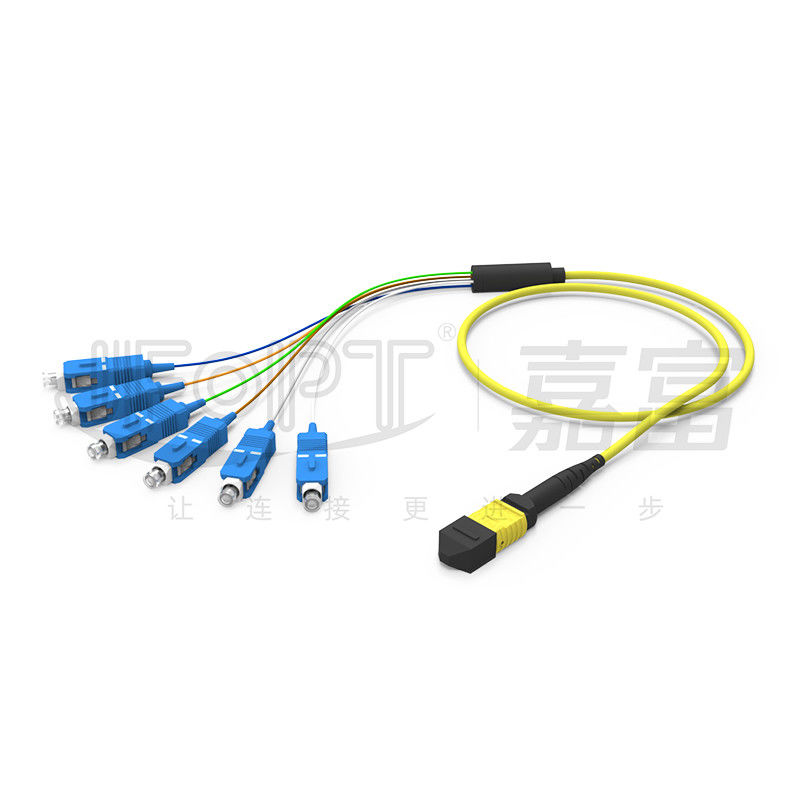

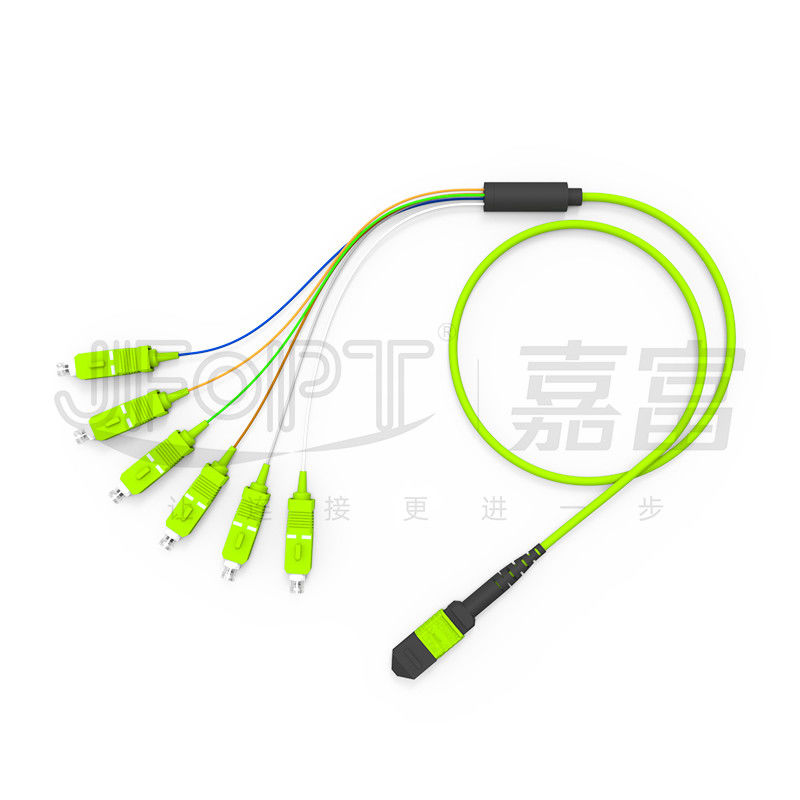

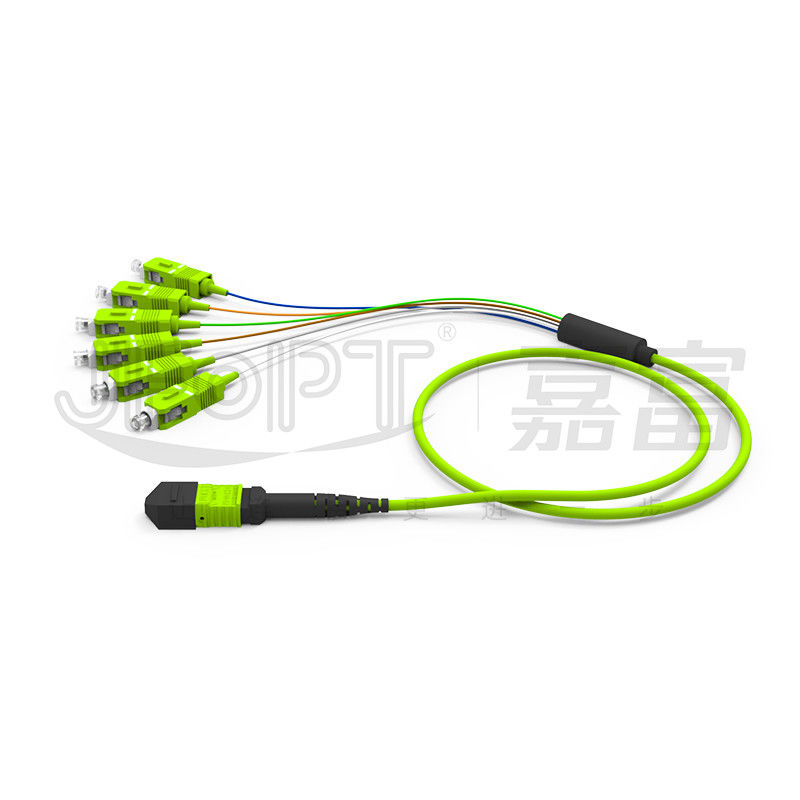

MTP-SC branch jumpers, also known as fan-out jumpers, have an MTP connector on one end and an SC connector on the other end. The main trunk fiber cable is divided into multiple branches with a diameter of 0.9mm/2.0mm/3.0mm using a fanout kit. In addition to SC connectors, the branch end can also be customized with LC, FC, ST, and other connectors. This fan-out jumper is often used for fiber optic link distribution, separating data signals from different channels concentrated in MPO connectors to SC connectors for easy connection with other link jumpers. It can be paired with JFOPT's QSFP+ modules to achieve network speed upgrades.
♦ Features
|
①0.9mm/1.8mm/2.0mm/3.0mm multiple branch diameter options |
②Customized fanout kit to ensure safety and reliability |
|
|
|
|
③The maximum capacity of the trunk 3.0mm fiber cable can reach up to 24 fibers |
④The trunk section has a small diameter of only 3.0mm, saving space in cable routing |
|
|
|
|
⑤The original USCONEC MTP connectors provide excellent mechanical performance and high reliability |
- |
|
|
- |
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ SC Connector Parameters
|
Connector characteristics |
Connector type |
SC |
|||
|
End face type |
Single mod : UPC / APC Multimode : UPC |
||||
|
Ferrule type |
A - grade zirconia ceramic ferrule |
||||
|
Connector color |
Blue / Green / Beige / Aqua / Violet / Lime Green |
||||
|
Insertion loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return loss |
Single mode : UPC≥50dB; APC≥60dB; Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Branch Kit Options
|
|
|
|
Main Cable Stripping Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Each branch 0.9mm |
|
|
|
|
|
Each branch 2.0/3.0mm |
|
♦ Polarity Selection
|
|
|
MPO |
|
|
|
LC |
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on the production of MTP jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 MTP production lines and equipment, allowing for fast and efficient production of a large number of MTP jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to MTP jumper production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
