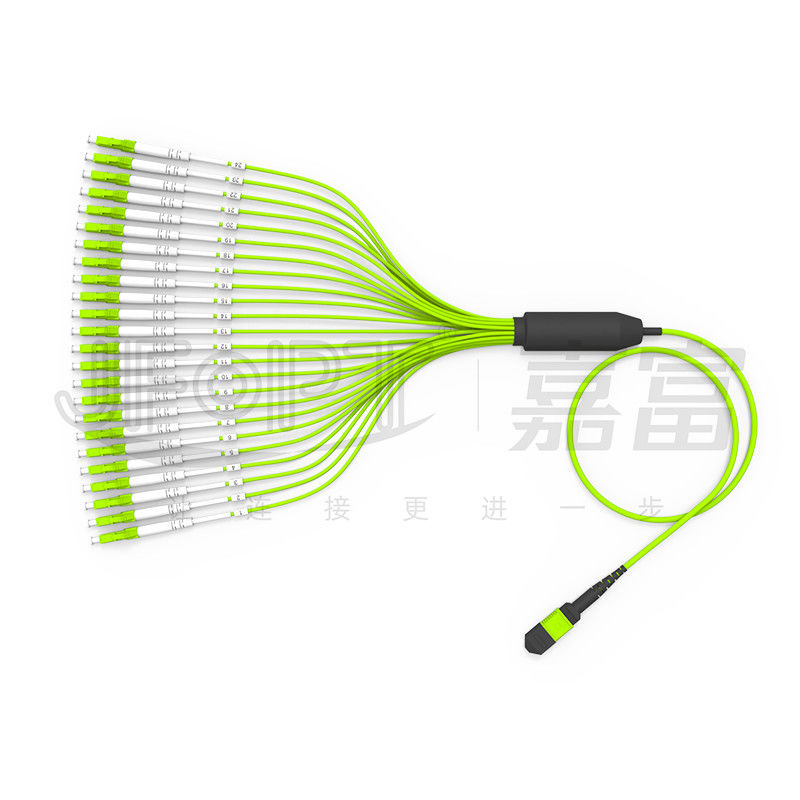

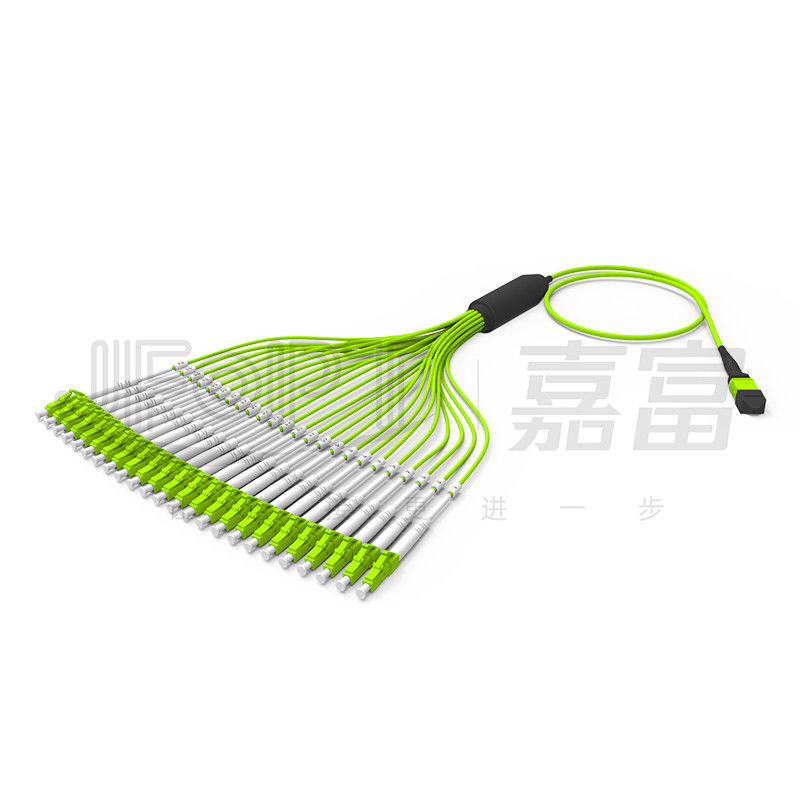

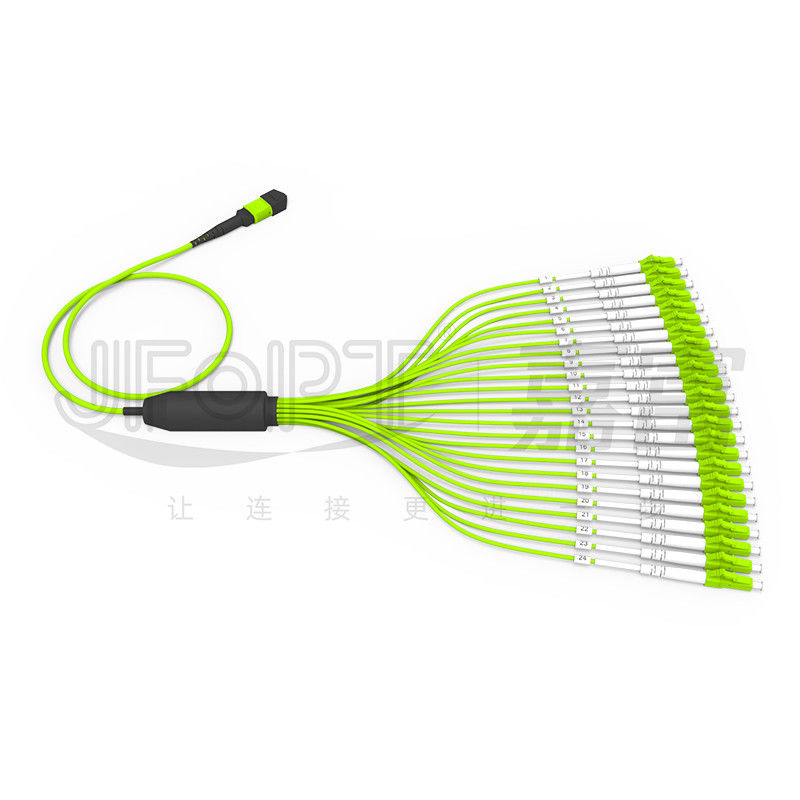

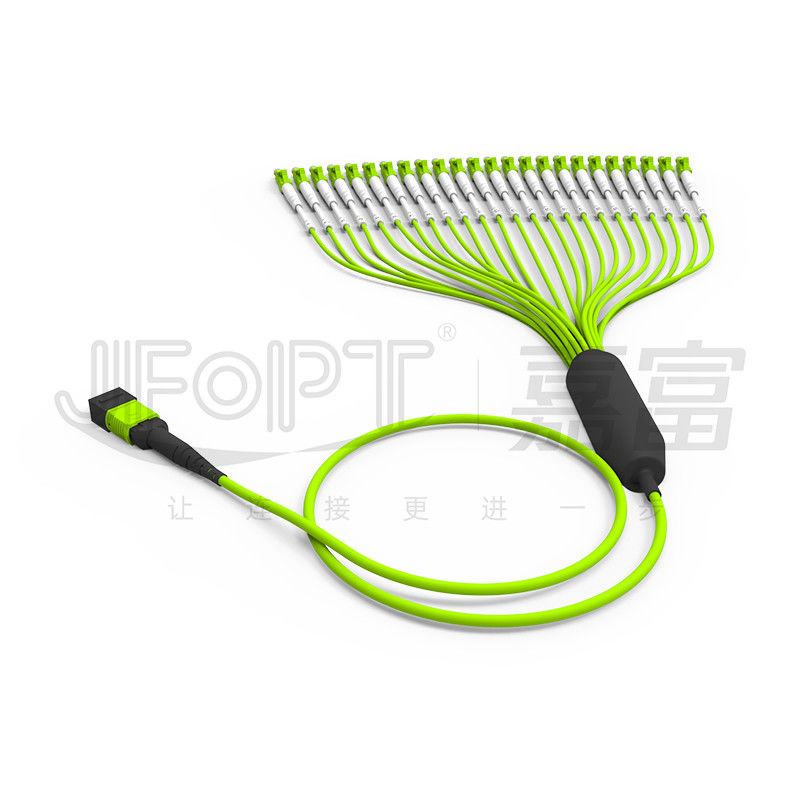

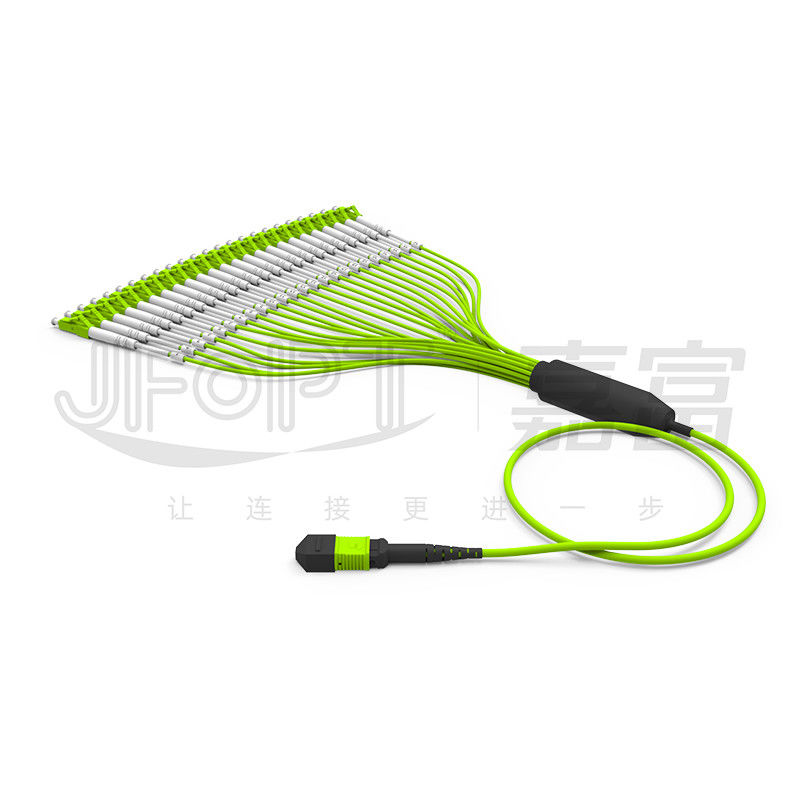

MPO-LC 24-Core 3.0mm OM5 Trunk Cable With LC/UPC 2.0mm Branch TypeB
MPO-LC branch jumpers are mainly used in high-density environments such as data centers. The MPO single connector can accommodate up to 24 fiber channels, significantly reducing installation space. The LC connector can be equipped with simplex parts or duplex with clip parts for easy installation and removal. The branch length, within 50cm, can be customized to be of equal length, unequal length, or gradient lengths. The fiber selected is multimode OM5, which can achieve a transmission distance of up to 150 meters at 100G rates. The cable choose mini round cable, with a 3.0mm small outer diameter for 24 fibers, making it the ideal choice for MPO/MTP high-density connectors.
♦ Features
|
①The branch tubing can be customized with identification rings for easy cable identification
|
②The single MPO connector with 24 fibers enables high-density connections, saving space
|
|
|
|
③ The LC branch can be customized with equal or unequal lengths
|
④ All products undergo 100% factory termination and testing to ensure optimal transmission performance
|
|
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ LC Connector Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End Face Type |
Single-mode: UPC/APC; Multimode: UPC |
||||
|
Ferrule Type |
Grade-A zirconia ceramic ferrule |
||||
|
Connector Housing Color |
Blue/Green/Beige/Aqua/Violet/Lime |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters (Optional)
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Project |
Parameters |
|||
|
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
Optional : 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Aqua / Magenta / Custom |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional : OFN / OFNR / OFNP |
|||
♦ Connector Housing Color Selection
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Fanout Options
|
|
|
|
Main Cable Structure |
|
|
|
|
|
Fanout with Equal Lengths |
Fanout with Unequal Lengths |
|
|
|
|
Fanout 0.9mm Branch |
|
|
|
|
|
Fanout 2.0/3.0mm Branch |
|
♦ Polarity Selection
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professionalism: JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment, allowing for fast and efficient production of a large number of MPO jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality. |
|
||||
|
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
Send your inquiry directly to us
