MPO-LC 0.9 Module Box Jumper
Contact Us

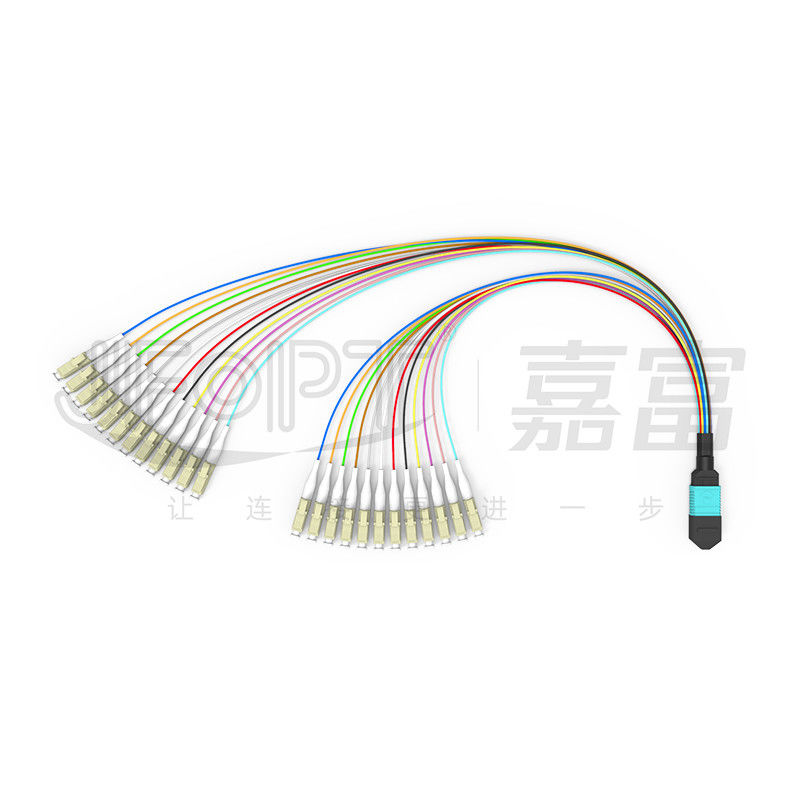

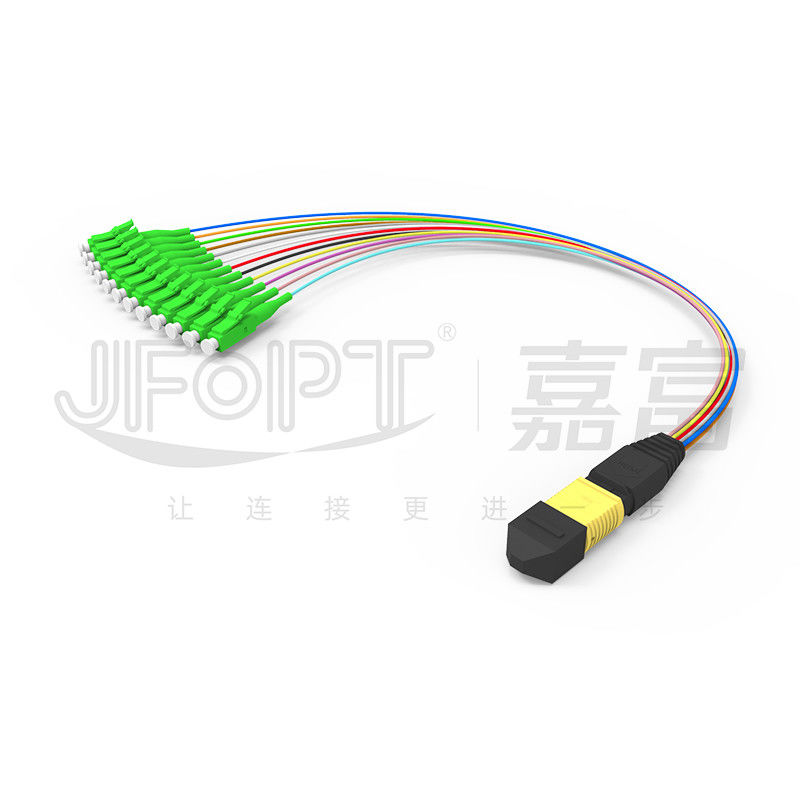

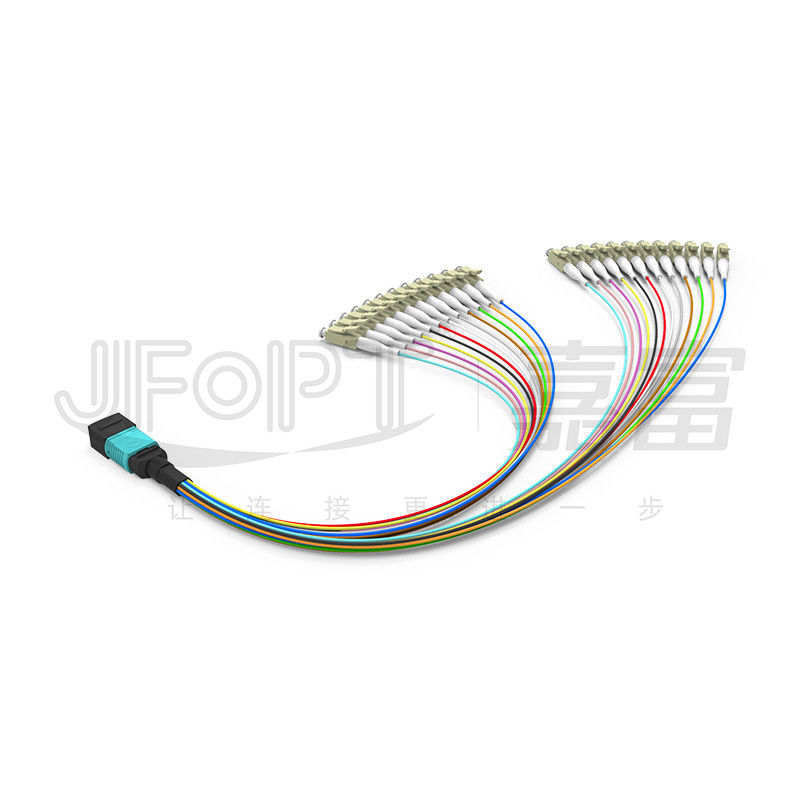

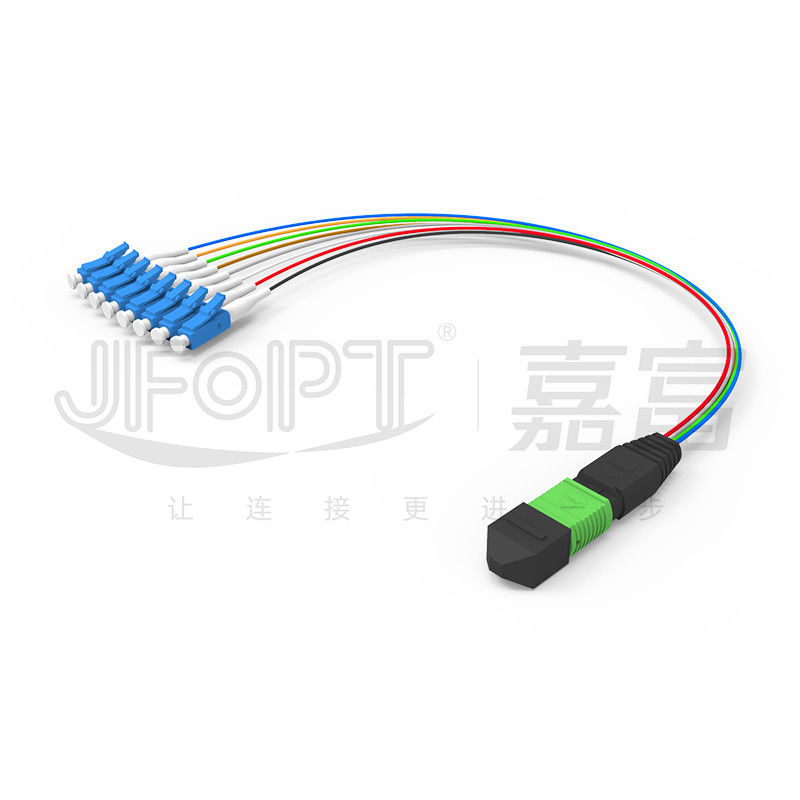

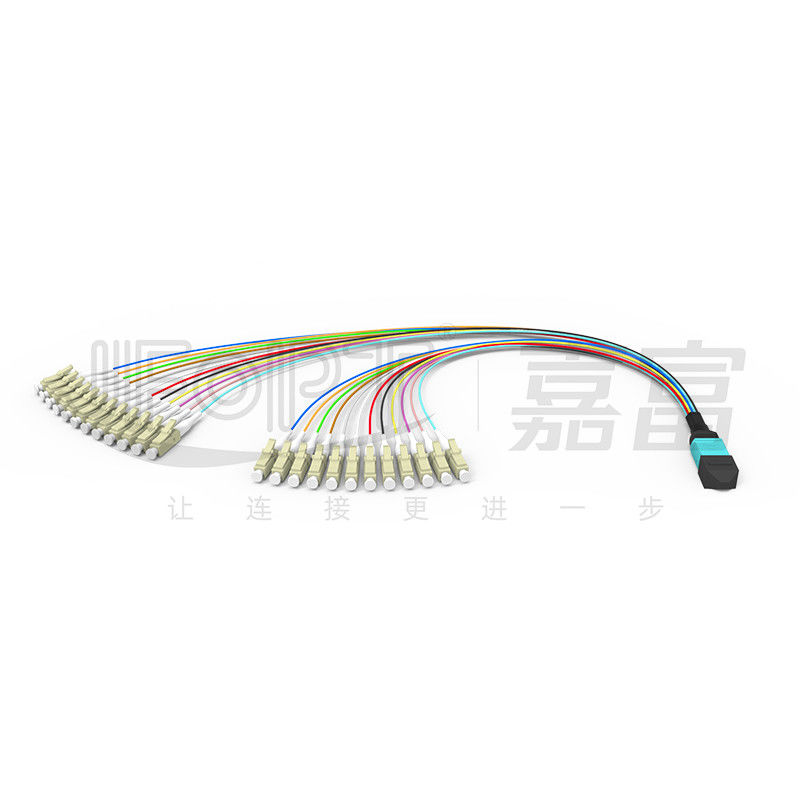

MPO - LC 0.9mm Termination Box with MTP / MPO Breakout Cable
MPO/MTP-LC branch jumpers are designed to connect high-density multi-fiber cables on one end to MPO/MTP connectors, while the other end is branched out and terminated with simplex connectors. These branch jumpers can be installed in MPO cassettes to meet integrated distribution requirements. By quickly replacing the MPO cassettes , it is possible to change fiber type, fiber count, polarity, and loss characteristics. JFOPT offers a range of MPO distribution frame, the fiber counts from 72 to 144 fibers.
♦ Features
|
①12-core MPO/MTP-LC simplex/duplex connection
|
②Made with bend-insensitive fibers to enhance transmission stability
|
|
|
|
③Utilizes high-quality, low-loss MT multi-fiber ferrules and high-quality, low-loss ceramic ferrules
|
④ Uses premium-grade fibers from renowned brands such as YOFC and Corning
|
|
|
|
⑤Offers various branch structures with 0.9mm/2.0mm/3.0mm tubing options
|
⑥ Enables high-density cabling, saving space
|
|
|
|
⑦Facilitates easy and efficient installation, saving time
|
-
|
|
-
|
♦ Applications
1.Data center cabling
2.40G/100G optical communication systems
3.Fiber optic communication systems, cable TV networks, telecom networks
4.Local area networks (LANs), wide area networks (WANs), FTTx
♦ MPO/MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ SC/LC/FC/ST Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|
|
SC/LC/FC/ST |
SM |
≤0.3dB |
APC≥60dB |
|
MM |
≤0.3dB |
UPC≥25dB |
|
♦ MPO/MTP 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ SC/LC/FC/ST 3D Geometric Parameters (Optional)
|
Items |
UPC |
APC |
||||
|
SC/FC/ST |
LC |
SC/FC |
LC |
|||
|
SM |
MM |
SM |
MM |
SM |
SM |
|
|
Radius of curvature (mm) |
10-25 |
7-25 |
5-12 |
|||
|
Apex offset (μm) |
≤50 |
≤30 |
||||
|
Fiber Depressed (nm) |
±100 |
|||||
|
Angle deviation (°) |
0 |
8±0.3 |
||||
|
Bond angle deviation (°) |
0 |
±0.5 |
||||
|
Fiber diameter (μm) |
123-135 |
|||||
♦ Connector Housing Color Selection
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
|
MTP connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
Multimode |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
|
LC connector |
||||
|
Single mode |
Blue |
Green |
||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
|
|
|||
|
Heather Violet |
Lime Green |
|||
|
|
|
|||
♦ Optical Cable Parameters
|
Project |
Parameters |
|||
|
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
Optional : 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Custom |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional : OFN / OFNR / OFNP |
|||
♦ LC Connector Options
|
Duplex product selection |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawing |
||
|
2.0mm |
Standard |
|
|
||
|
3.0mm |
Standard |
|
|
||
|
Single product selection |
|||||
|
Cable diameter |
Boot type |
Picture |
Drawing |
||
|
0.9mm |
Standard |
|
|
||
|
2.0mm |
Standard |
|
|
||
|
3.0mm |
Standard |
|
|
||
♦ Branching Options
|
|
|
|
Main Cable Stripping Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Branching of direct 0.9mm subunit |
|
|
|
|
|
Branching of direct 2.0/3.0mm subunit |
|
♦ Polarity Selection
|
MPO/MTP |
||||
|
|
||||
|
|
|
LC |
||||
|
|
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
