MPO/A-MPO/A 12F G657A1/2 LSZH LL 2-30M
Contact Us

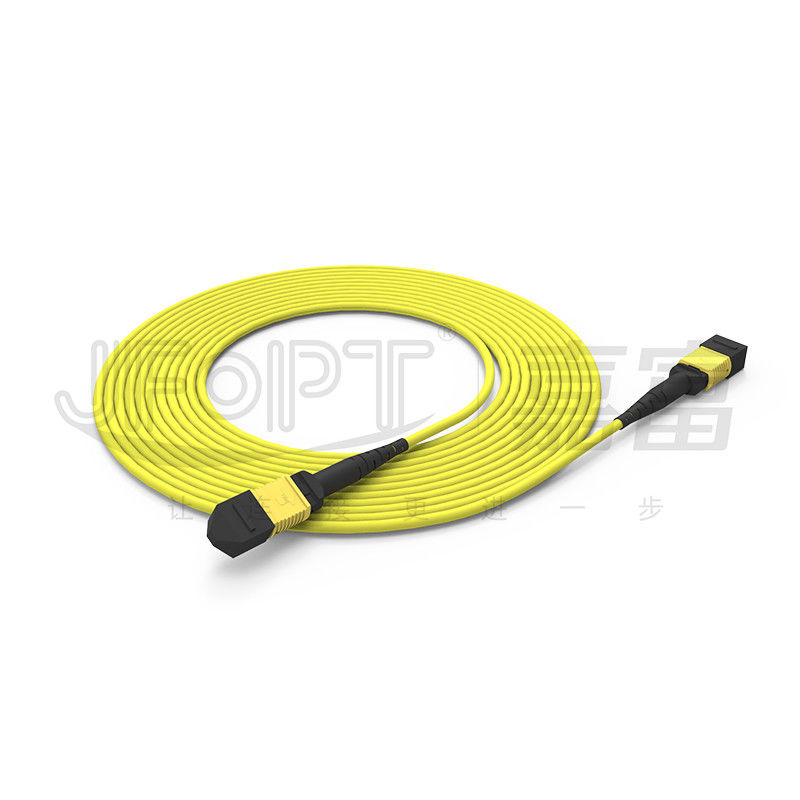

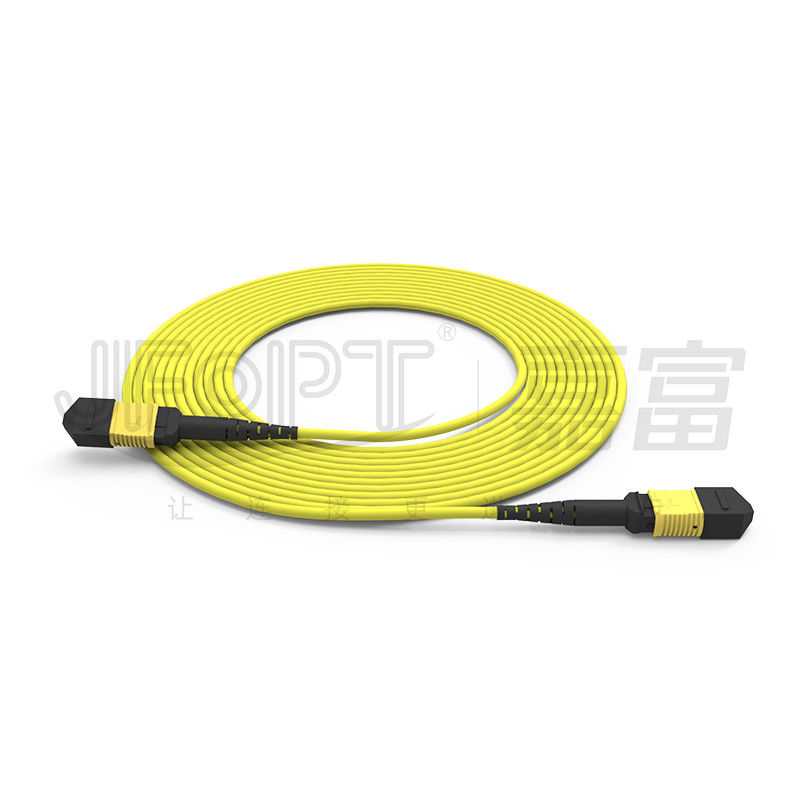

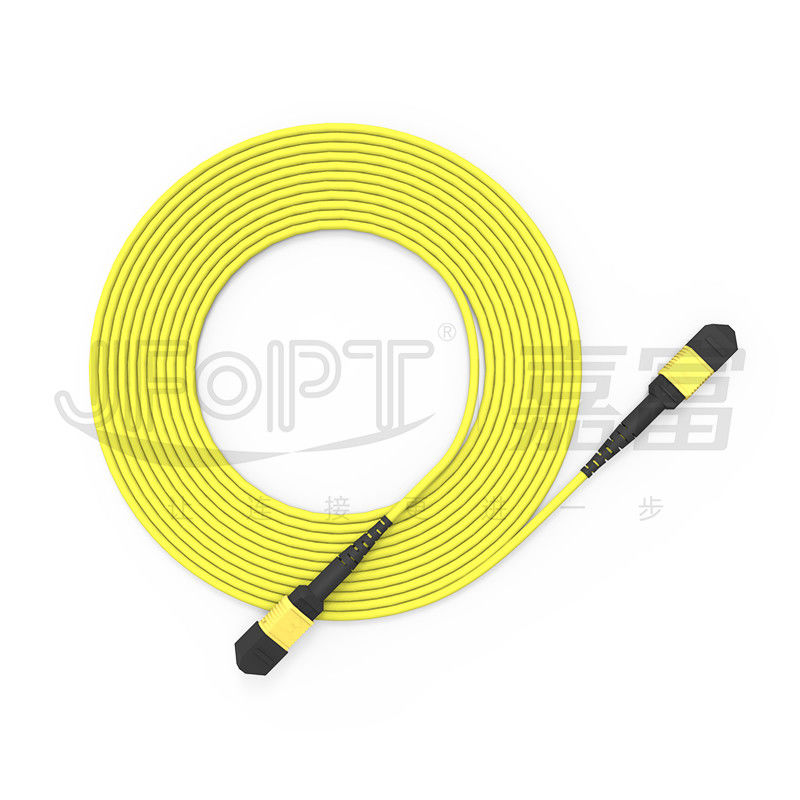

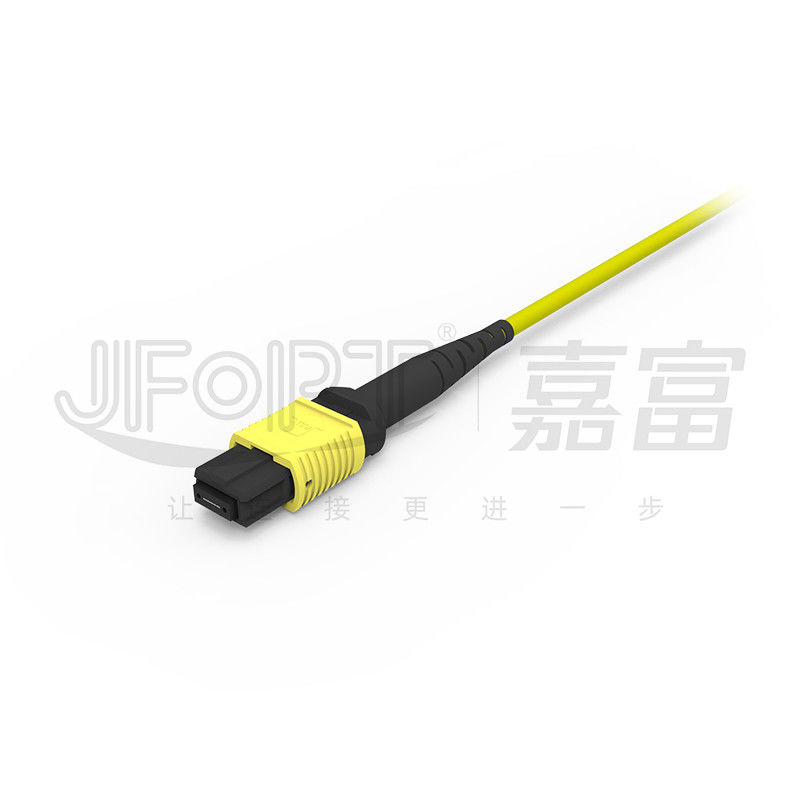

MPO-MPO 12-core single-mode low-loss trunk cable yellow LSZH G657A1/A2 MPO Trunk Cable
MPO-MPO backbone fiber jumpers are typically used for 40G/100G rate backbone transmission, allowing for a 4-10 times increase in signal transmission speed within the same wiring volume compared to traditional duplex fibers. JFOPT MPO backbone fiber jumpers are available in single-tube structure with options for 8/12/16/24 fibers, and the number of units and fibers per unit can be customized. JFOPT uses G657A1 bend-resistant single-mode fiber by default, effectively avoiding excessive loss caused by construction during wiring. JFOPT always calibrates its equipment and processes according to the IEC 3D standard, and all MPO fiber connectors produced undergo 100% testing based on the IEC standard.
♦ Features
① 12-fiber cable connection |
② Utilizes bend-insensitive G657A1 fiber |
||||
|
|
||||
③ High-quality, low-loss multi-fiber MT ferrules |
④100% factory termination and testing to ensure transmission performance |
||||
|
|
||||
⑤ Suitable for high-density wiring environments |
⑥Quick and easy installation, reducing operation time |
||||
|
|
||||
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO/MTP Connector Parameters
Connector Type |
Insertion Loss |
Return Loss |
|||
Typical |
Maximum |
||||
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
SM Low Loss |
0.1dB |
0.35dB |
|||
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
MM Low Loss |
0.1dB |
0.35dB |
|||
Male/Female |
Male: with Pin, Female: without Pin |
♦ 3D Geometric Parameters (Optional)
Items |
Max |
Min |
||
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
Y |
- |
5 |
||
Angle (°) |
X |
0.15 |
-0.15 |
|
Y(APC) |
8.2 |
7.8 |
||
Y(PC) |
0.2 |
-0.2 |
||
Radius of curvature of optical core (mm) |
- |
1 |
||
Fiber height (nm) |
3500 |
1000 |
||
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
Maximum negative coplanar (nm) |
300 |
N/A |
♦ Connector Color Options
MPO connector |
||||
Single mode |
Green |
Yellow |
||
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|||
Multimode |
Beige |
Aqua |
||
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|||
Violet |
- |
|||
Reference color number PANTONE 7641C |
||||
|
♦ Optical Cable Parameters
Project |
Parameters |
|||
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
Fiber Count |
Optional : 8/12/16/24 |
|||
Strength Member |
Aramid yarn |
|||
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
Outer Jacket Diameter |
3.0mm |
|||
Outer Jacket Color |
Custom |
|||
Tensile Strength (Long-term) |
80N |
|||
Tensile Strength (Short-term) |
150N |
|||
Crush Resistance (Long-term) |
100N/cm |
|||
Crush Resistance (Short-term) |
500N/cm |
|||
Minimum Bending Radius (Dynamic) |
20D |
|||
Minimum Bending Radius (Static) |
10D |
|||
Operating Temperature |
-20~60℃ |
|||
Storage Temperature |
-20~60℃ |
|||
Fire Rating |
Optional : OFN / OFNR / OFNP |
♦ Boot Options
MPO boot |
||||
Type |
Specification |
Applicable cable |
Picture |
Drawings |
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
Square boot |
3.0 boot length 25mm |
3.0/3.2 |
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
12F Patch Cord |
||||
|
♦ Product Packaging
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
Expertise: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
