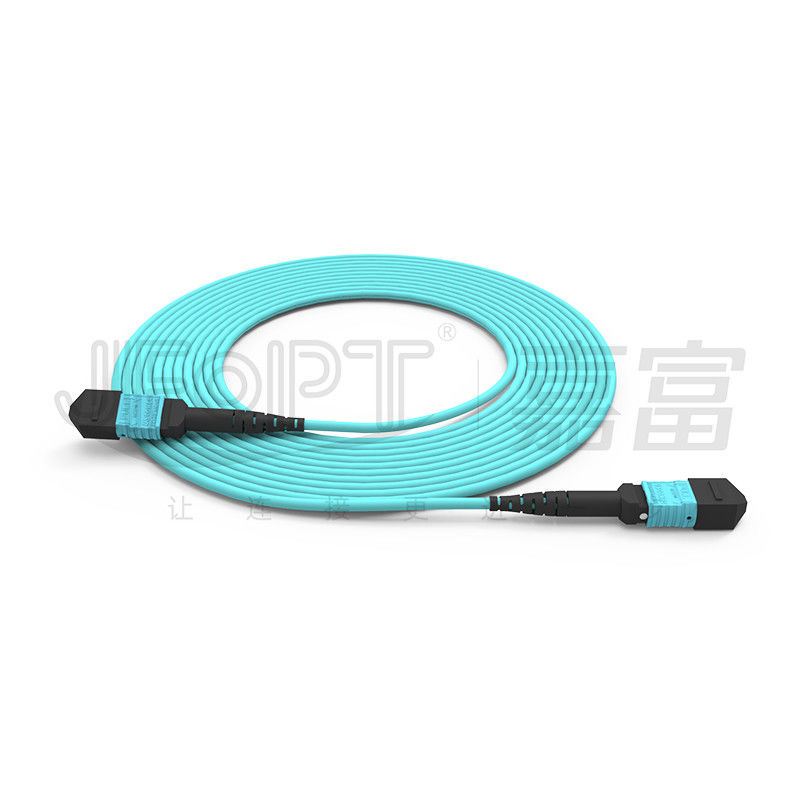

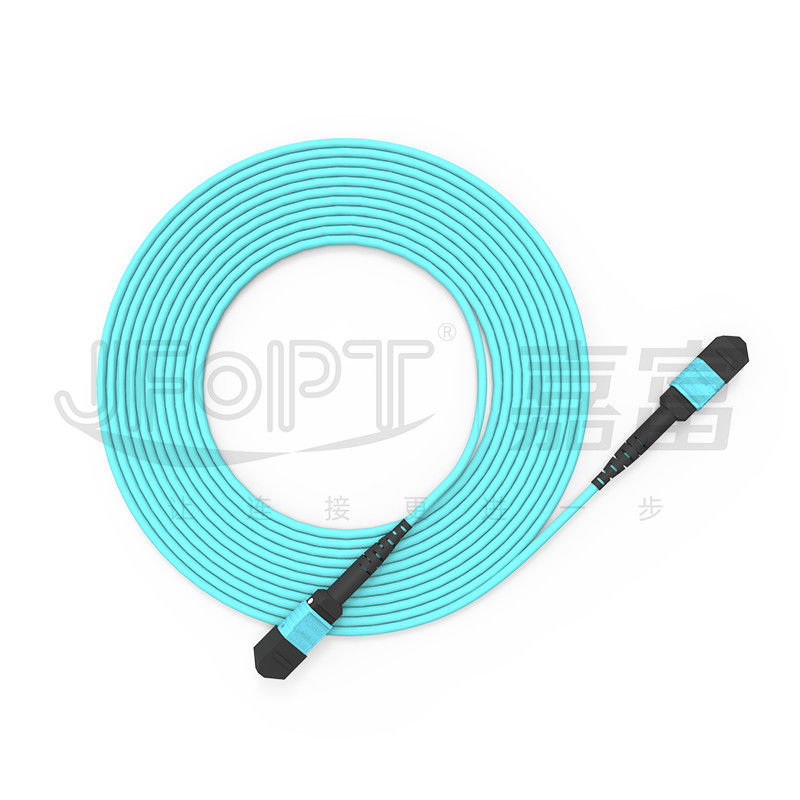

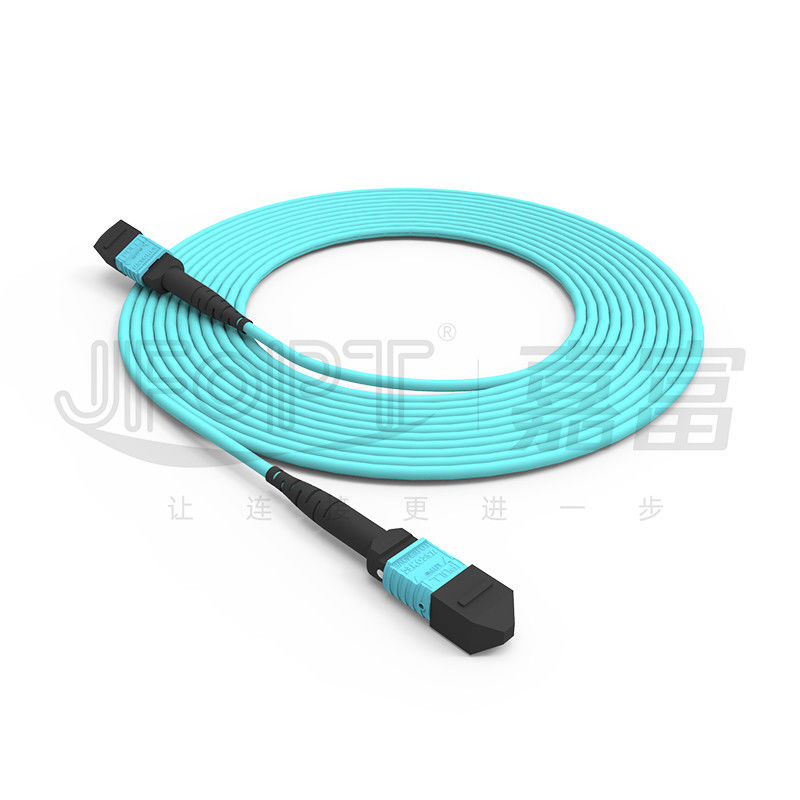

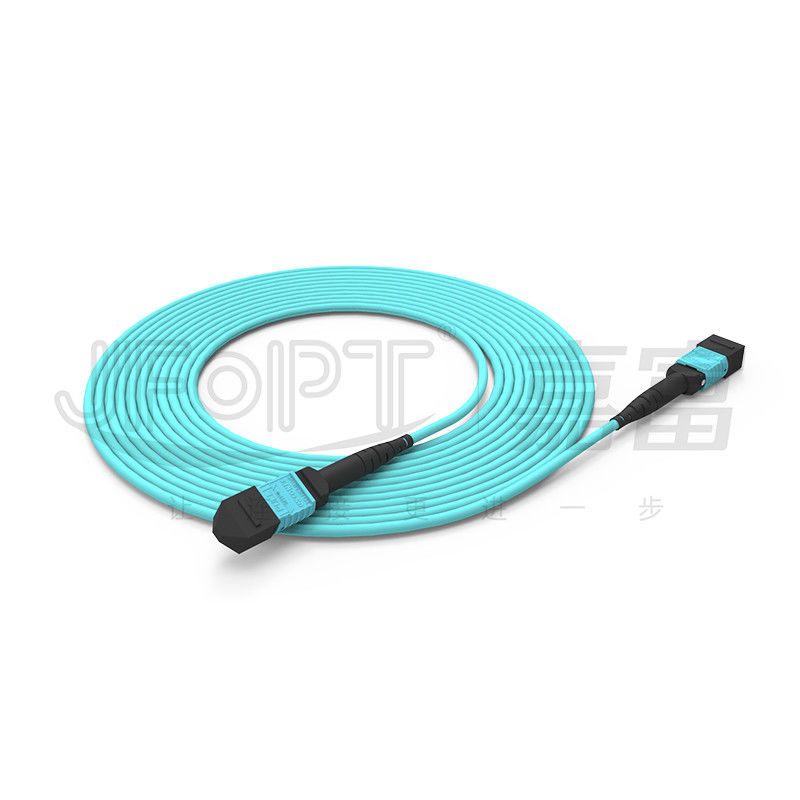

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper

Multimode OM3 MTP Patch Cord

12 Core Multimode OM3 Patch Cord

15m 20m MTP Backbone Jumper

Place of Origin:

CHINA

Brand Name:

JFOPT

Certification:

Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001

Model Number:

MTP 12C MM OM3 SL B

Contact Us

Request A Quote
Product Details
Connector Type:
MTP-MTP USCONEC
Number Of Cores:
12 Cores
Fiber Type:
MM OM3
Cable Jacket Material:
PVC/LSZH/Customizable
Cable Jacket Color:
Aqua
Fire Rating:
OFN/OFNR/OFNP
Length:
3m/5m/10m/15m/80m
Cable Structure:
Mini Round Cable/Ribbon Cable
Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Price negotiable
Delivery Time
1-5 Days
Payment Terms
T/T / PAYPAL / Trade Assurance Order Via Alibaba
Supply Ability
Regular head product capacity of 3000 connectors / day
RELATED PRODUCTS
Contact Us
86-755-83570641
Contact Now
Product Description

 12-Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m/5m/10m/15m/20m Backbone Jumper



MTP backbone jumpers do not require any field termination and can form the fiber backbone network after installation and connection. The MTP connectors produced by JFOPT are from the US Conec brand, known for their stable performance and excellent mechanical properties with minimal impact on insertion loss during repeated plug and play cycles. MTP connectors are also compatible with existing MPO connectors. These MTP jumpers feature multimode OM3 fiber with LSZH jacket, and the default jacket color is aqua. Customers can customize the polarity and length of the jumpers.



♦ Features

① USConec MTP connectors

② Suitable for 40/100G networks

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 1

③Various connector boots available to match different cable structures

④ 100% interferometer testing for connectors

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 2

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 3

⑤ Customizable lengths available

-

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 4

-



♦ Applications

1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.



♦ MTP Connector Parameters

Connector Type

Insertion Loss

Return Loss

Typical

Maximum

MTP Connector

SM Standard

0.25dB

0.5dB

APC≥60dB
PC≥50dB

SM Low Loss

0.12dB

0.25dB

MM Standard

0.2dB

0.45dB

PC≥25dB

MM Low Loss

0.12dB

0.25dB

Male / Female

Male : with Pin , Female : without Pin



♦ Cable Parameters

Items

Parameters

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

Optional 8/12/16/24

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

3.0mm

Outer Jacket Color

Customization

Tensile Strength (Long-term)

80N

Tensile Strength (Short-term)

150N

Crush Resistance (Long-term)

100N/cm

Crush Resistance (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

20D

Minimum Bending Radius (Static)

10D

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



Items

Parameters

Fiber Type

Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5

Fiber Count

2~12 cores

Strength Member

Aramid yarn

Outer Jacket Material

Optional LSZH/PVC/TPU

Outer Jacket Diameter

2.5x5.0mm

Outer Jacket Color

Yellow / Orange / Green / Heather Violet / Customization

Tensile Strength (Long-term)

100N

Tensile Strength (Short-term)

200N

Crush Resistance (Long-term)

200N/cm

Crush Resistance (Short-term)

500N/cm

Minimum Bending Radius (Dynamic)

50mm

Minimum Bending Radius (Static)

30mm

Operating Temperature

-20~60℃

Storage Temperature

-20~60℃

Fire Rating

Optional OFN/OFNR/OFNP



♦ 3D Geometric Parameters

Items

Max

Min

Radius of curvature (mm)

X

2000

-10000

Y

-

5

Angle (°)

X

0.15

-0.15

Y(APC)

8.2

7.8

Y(PC)

0.2

-0.2

Radius of curvature of optical core (mm)

-

1

Fiber height (nm)

3500

1000

Height difference of adjacent fiber (nm)

500

N/A

Maximum negative coplanar (nm)

300

N/A



Connector Housing Color Selection

MTP connector

SM

Green

Yellow

Reference color number PANTONE 346C

Reference color number PANTONE 106C

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 5

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 6

MM

Beige

Black

Reference color number PANTONE 7534U

Reference color number PANTONE Black 6C

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 7

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 8

Aqua

Heather Violet

Reference color number PANTONE 310C

Reference color number PANTONE 1905C

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 9

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 10

Violet

Magenta

Reference color number PANTONE 2587C

Reference color number PANTONE 208C

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 11

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 12

Lime Green



Reference color number PANTONE 375C

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 13



♦ Connector Boot Selection

MTP boot type

Type

Specification

Applicable cable OD


Drawings

Round boot

2.0 boot L=33.2mm

2.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 14

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 15

3.0 boot L=33.2mm

2.5/3.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 16

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 17

3.0 boot L=16mm

3.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 18

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 19

3.0 bendable boot L= 33.6mm

3.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 20

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 21

3.6 boot L=33.2mm

3.6

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 22

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 23

3.6 boot L= 16mm

3.6

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 24

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 25

3.6 bendable boot L= 33.6mm

3.6

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 26

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 27

4.5 boot L=33.2mm

4.0/4.5

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 28

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 29

5.5 boot L= 33.2mm

5.0/5.5

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 30

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 31

Ribbon Cable boot

3.0*6.0 boot L=33.2mm

3.0*6.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 32

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 33

2.5*5.0 boot L= 21.3mm

2.5*5.0

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 34

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 35

Bare ribbon fiber boot

Bare ribbon fiber boot L=19mm

Bare Ribbon Fiber

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 36

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 37

Push-pull tab

Universal for all boots

Universal

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 38

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 39



♦ Polarity Selection

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 40



♦ Product Packaging

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 41

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 42

Thickened anti-static bag

Thickened carton



 Factory Strength

Specialization:


JFOPT has been focusing on fiber jumpers production for over 20 years and possesses professional manufacturing techniques to produce high-quality and high-performance fiber jumpers.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 43

Manufacturing Capability:


JFOPT has 5 production lines and equipment, allowing for fast and efficient production of a large quantity of fiber jumpers to meet customer demands.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 44

Quality Control:


JFOPT implements strict quality control measures, including professional quality inspections and monitoring at every stage from raw material procurement to production processes. Insertion loss testing and end-face inspection are conducted to ensure product quality.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 45

Standardization:


JFOPT can develop and strictly adhere to fiber jumper production standards according to customer requirements, ensuring consistency and performance stability of the products.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 46

Technological Innovation:


JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and high-performance fiber jumpers.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 47

Service and Technical Support:


JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales maintenance, to meet customer needs and ensure customer satisfaction.

12 Core Multimode OM3 MTP Patch Cord Aqua Polarity Type B Standard Loss 3m 5m 10m 15m 20m Backbone Jumper 48



♦ Frequent Q&A

1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.



2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.



3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.



4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks, MTP attenuators, MTP gender changers, and MT jumpers, among other MTP-related products.
