Trunk Cable MPO-MPO 6/8F SM OS2 LSZH LL
Contact Us

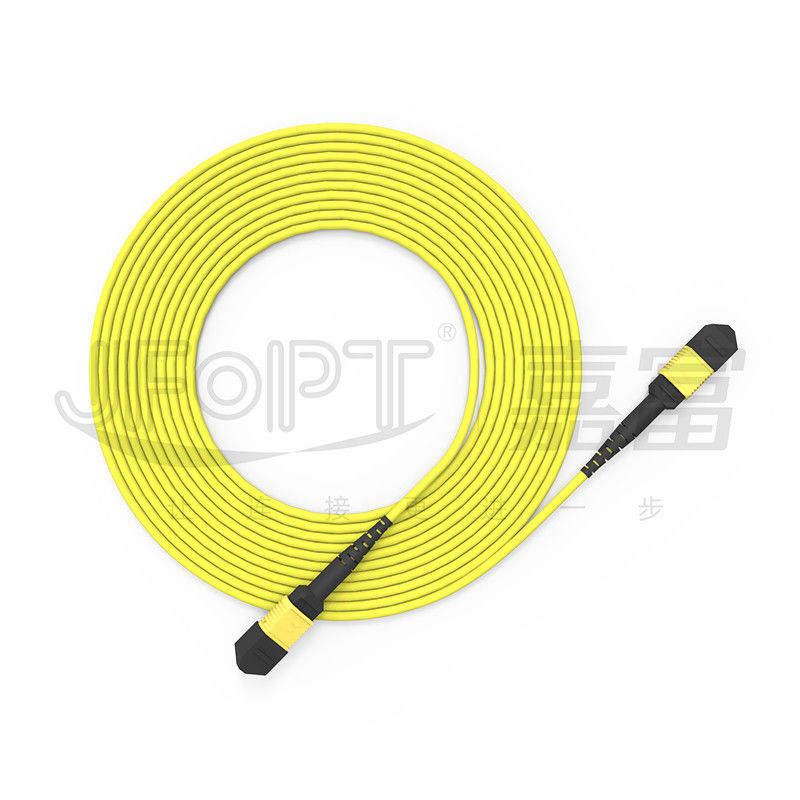

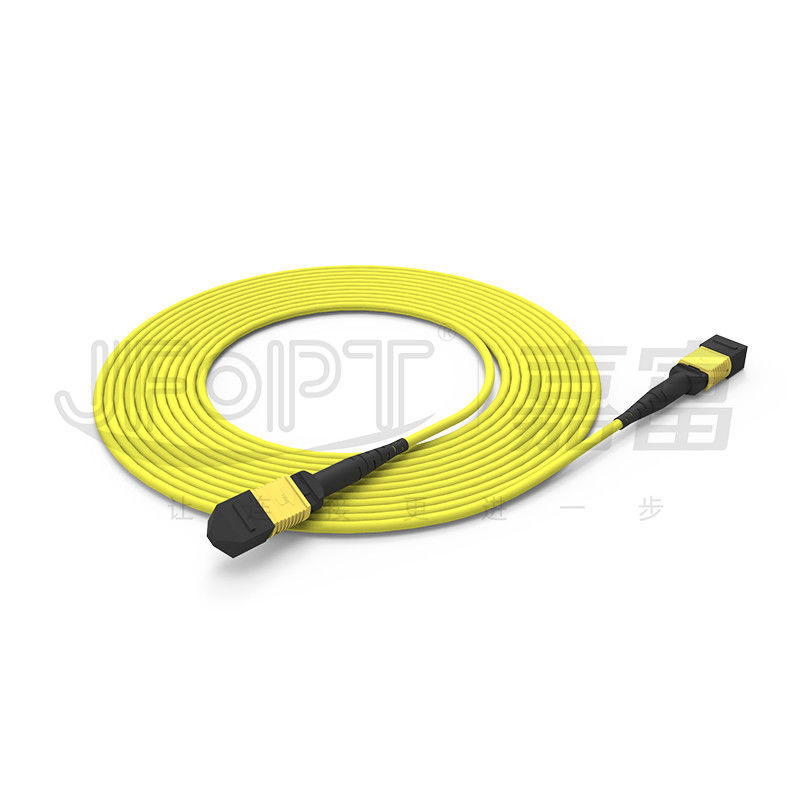

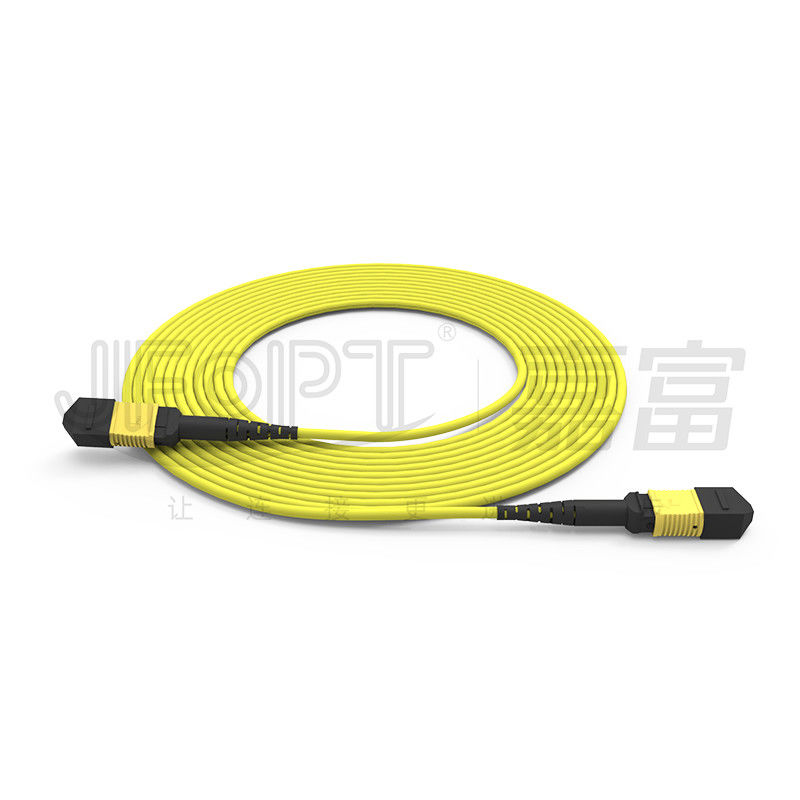

MPO-MPO Low Loss MPO Trunk Cable IL≤0.3 6core / 8core Single-mode OS2 LSZH Yellow

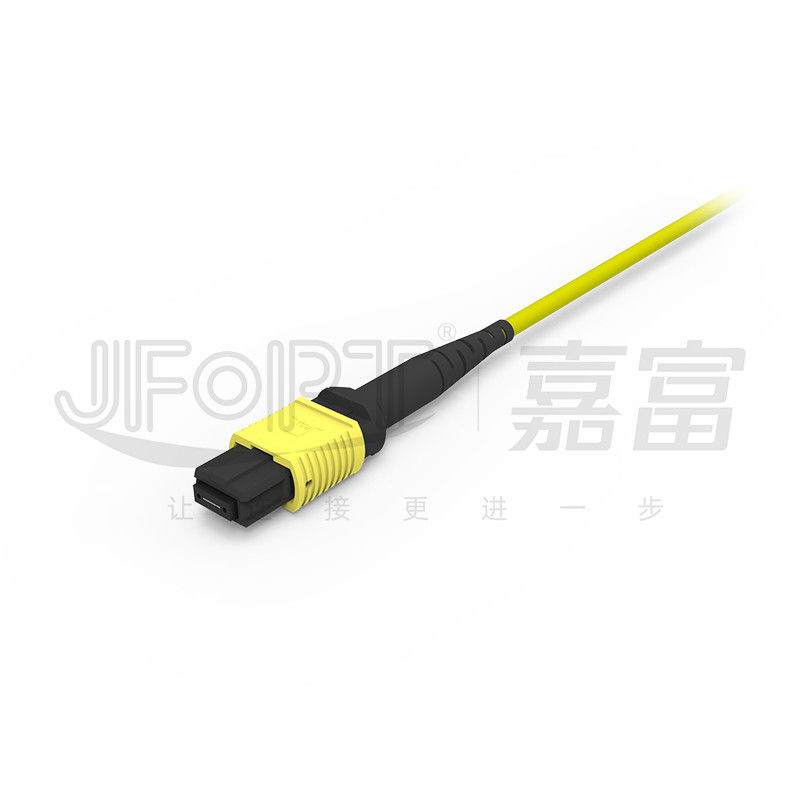

MPO backbone jumper cables have MPO connectors on both ends and utilize low-loss ferrules with an insertion loss as low as 0.3dB or below, ensuring minimal link loss. The 6-core/8-core backbone jumpers can be used for fiber distribution using MPO-LC jumpers, and the 8-core MPO jumpers can be directly connected to 40G optical transceiver. JFOPT's single-mode MPO backbone jumpers default to using G657A1 fibers, which ensure that multi-fiber cables meet the loss requirements within a small outer diameter. MPO jumpers are ideal for reducing installation time and cost in data centers or other high-density environments. They can be designed with miniaturized round cables or ribbon cables, and various boot shapes such as round, square, oval, or pull-tab can be customized to minimize bend radius and optimize weight and size.
♦ Features
|
①Customizable mini round cables, ribbon cables, or ribbon bare fibers based on installation space |
②Utilizes low-loss connectors for reliable data transmission |
||||
|
|
|
||||
|
③Single connector with multiple cores, saving installation and maintenance costs |
④Max fire resistance rating of the optical cable sheath can reach OFNP |
||||
|
|
|
||||
|
⑤100% factory termination and testing to ensure product quality |
- |
||||
|
|
- |
||||
♦ Applications
1.Data center room wiring.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Optical Cable Parameters
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Strength (Long-term) |
100N/cm |
|||
|
Crush Strength (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
|
Item |
Parameter |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
2~12 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
2.5x5.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Green / Heather Violet / Customization |
|||
|
Tensile Strength (Long-term) |
100N |
|||
|
Tensile Strength (Short-term) |
200N |
|||
|
Crush Strength (Long-term) |
200N/cm |
|||
|
Crush Strength (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
50mm |
|||
|
Minimum Bending Radius (Static) |
30mm |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Housing Color Options
|
MPO connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
MM |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Boot Options
|
MPO boot |
||||
|
Type |
Specification |
Applicable cable |
Picture |
Drawings |
|
Round boot |
3.0 boot length 33mm |
3.0/3.2 |
|
|
|
3.0 boot length 17mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 33mm |
3.8/4.0 |
|
|
|
|
Square boot |
2.0 boot length 25mm |
3.0/3.2 |
|
|
|
3.0 boot length 25mm |
3.0/3.2 |
|
|
|
|
4.0 boot length 17mm |
3.8/4.0 |
|
|
|
|
Ribbon Cable boot |
2.5*5.0 boot length 22mm |
2.5*5.0 |
|
|
|
Bare Ribbon fiber boot |
Bare Ribbon fiber boot length 19mm |
Bare Ribbon Fiber |
|
|
|
Pull tab |
Universal for all boots |
Universal |
|
|
♦ Polarity Selection
|
12F Patch Cord |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Expertise: With over 10 years of focus on MPO jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment to produce a large quantity of MPO jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/return loss testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MPO jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be paid attention to when customizing MPO jumpers?
MPO jumper length/cable material/fiber type and number of cores/connector male/female/insert loss standard/color/label and other customized requirements.
2.How does our MPO jumper ensure stable parameters?
JFOPT's MPO jumper 100% passed the 3D interference test and 100% passed the insertion return loss test to ensure stable parameters.
3.Our lead time?
We can produce 30000+ MPO connectors per month, which can fully guarantee your fast shipment.
4.What other MPO derivative products do we do?
We can also produce MPO related products such as MPO circuit breaker/MPO attenuator/MPO male-to-female transition connector/MT jumper wire.
