Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
Rack Mount Patch Panel MM OM1/2/3/4/5 Pigtail
Contact Us

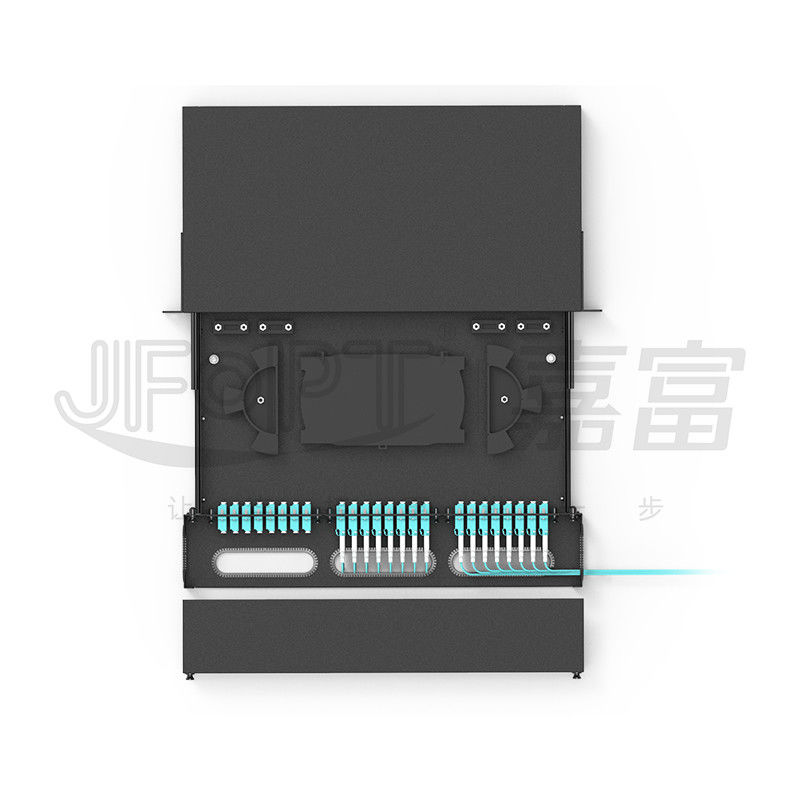

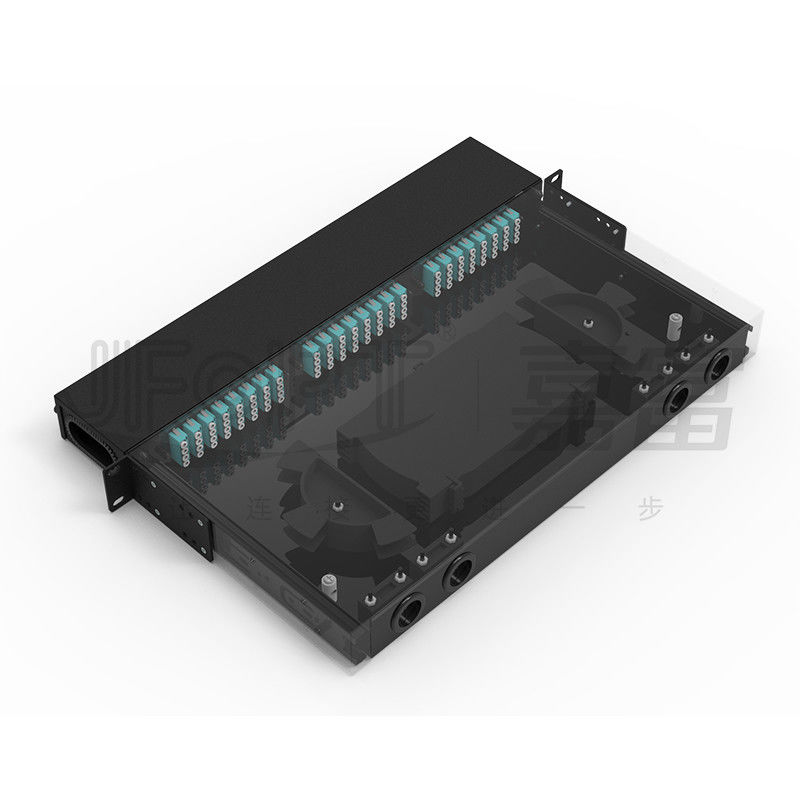

Sliding Distribution Box Full Loaded with Multimode OM1/2/3/4/5 Pigtial Optional Cable Management
JFOPT has independently developed a variety of fiber optic distribution boxes, and this rack-mounted distribution box with sliding rails has been widely recognized by customers. In terms of design, its structure is more conducive to cable routing and splicing, while offering a cost-effective solution. This distribution box uses replaceable adapter panels, making it compatible with various fiber interfaces. The sliding rail design facilitates installation and maintenance. Multiple cable entry ports have been designed, each equipped with dust plugs and cable fixation components. JFOPT can provide fully equipped cabinets and customize multimode fiber optic patch cords (OM1/OM2/OM3/OM4/OM5) according to customer requirements, including length, color, data, and 3D specifications.
♦ Product Features
|
①Drawer type opening and closing for easy installation and maintenance |

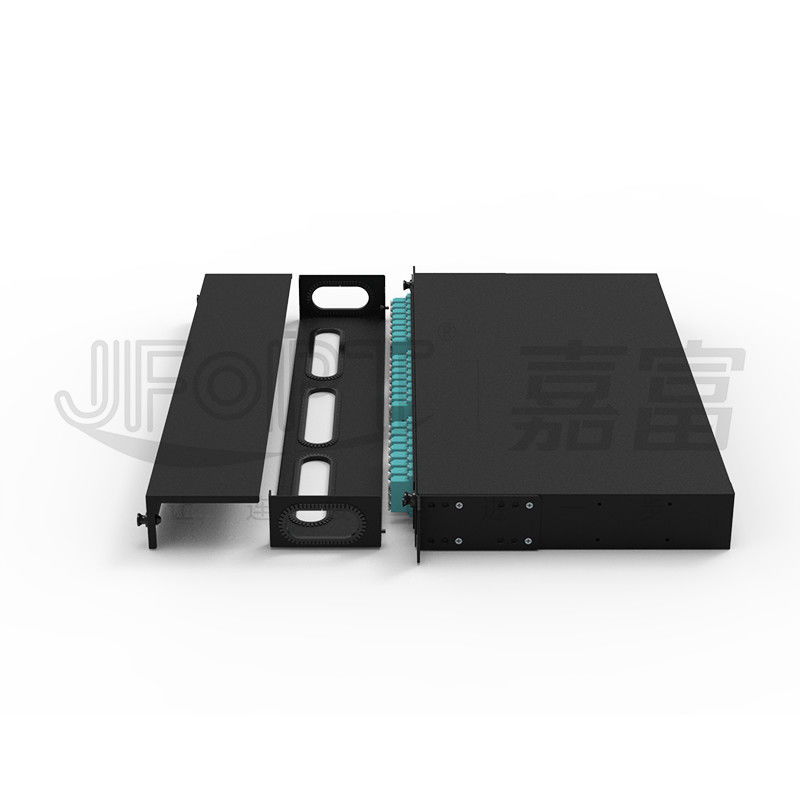

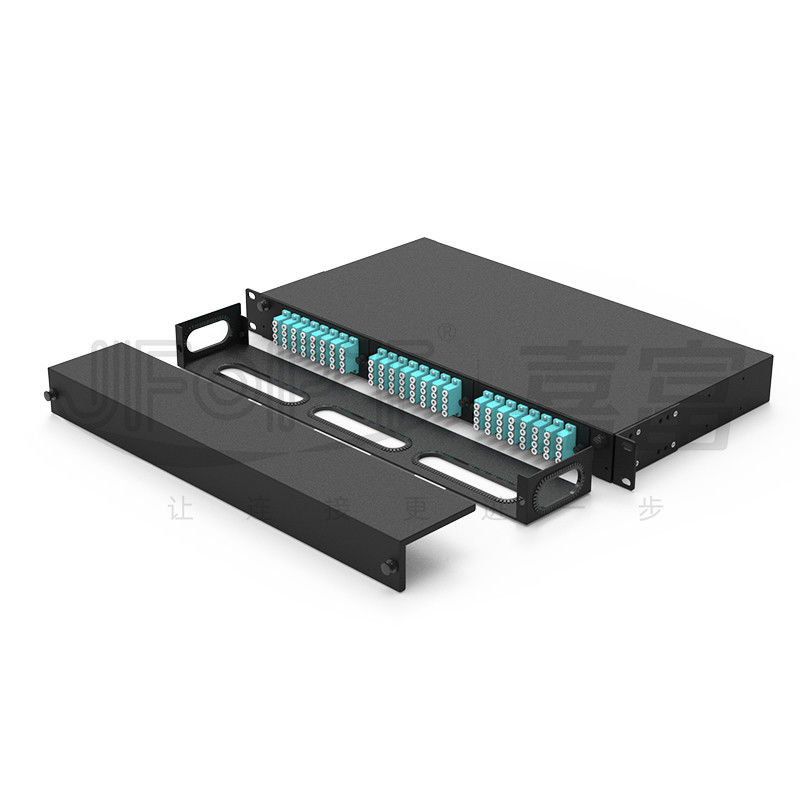

② Equipped with a cable management rack for neat cable routing |
|
|
|
|
③2U capacity can accommodate up to 192 fibers |
④ Modular adapter panle for easy replacement |
|
|
|
|
⑤Equipped with smooth and silent sliding rails for quiet and smooth opening and closing |
- |
|
|
- |
♦ Applications
1.Data centers.
2.Backbone networks.
3.FTTZ and FTTB cabling systems.
♦ Dimension of Distribution Box
|

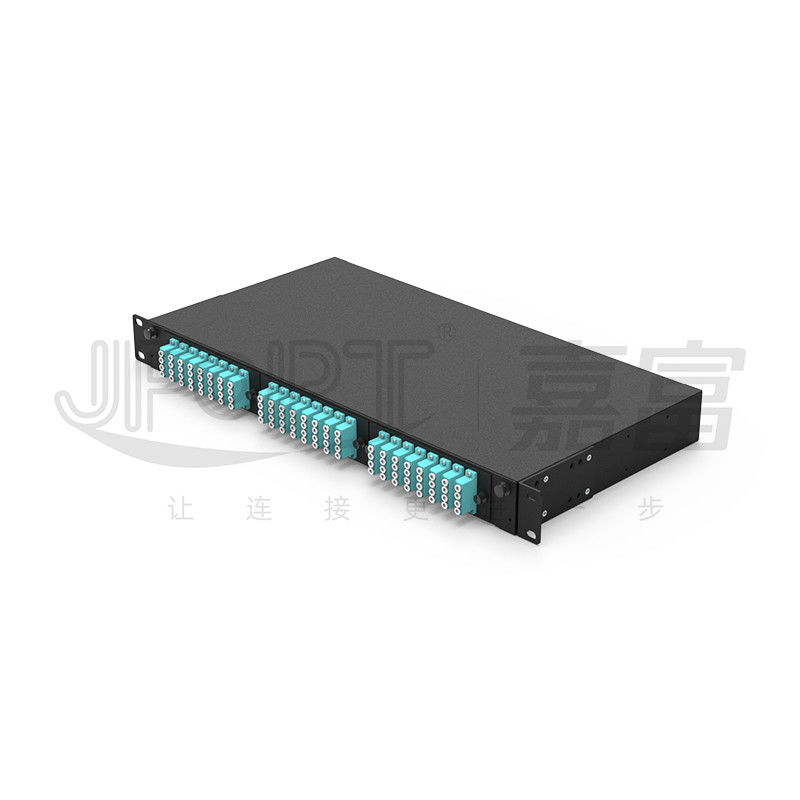

1U |
|
|
|
2U |
|
|
♦ Accessory
|
|
|
|
|
3 * 100mm cable ties |
Cage screw and nut |
1.5 * 60mm (steel rod OD * heat shrink tube length) heat shrink tube * core count |
♦ Product Packaging
|
|
|
|
|
Patch panel each corner protected by foam tape and wrapped with bubble tape |
Multiple inner boxes packed into an outer box and sealing it |
Outer carton box has corner protector |
♦ Factory Strength
|
Expertise: JFOPT has been specializing in the production of fiber distribution box for over 10 years, with professional techniques and equipment. |
|
||||
|
Manufacturing Capacity: JFOPT utilizes precise laser cutting, metal stamping, and CNC bending equipment for manufacturing. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality inspections at each production stage, from sheet metal material procurement to stamping, bending and spray coating. |
|
||||
|
Standard-setting: With a professional and experienced R&D team, JFOPT provides cost-effective overall solutions based on different needs, meeting diverse requirements. |
|
||||
|
Technological innovation: JFOPT focuses on technological innovation, regularly upgrading and improving products, as well as introducing innovative solutions to meet evolving market demands. |
|
||||
|
Service and technical Support: JFOPT offers comprehensive pre-sales and after-sales services, including technical consultation, product recommendations and post-sales maintenance, to ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1. What should be considered when purchasing a distribution box?
Firstly, ensure that it meets your wiring installation requirements. Pay attention to the thickness of the sheet metal and structural strength to ensure the product has an attractive appearance without any damage. Typically, you can contact us to customize the production based on your samples or technical drawings, or you can inform us of your requirements for us to design it for you.
2.What tools are required for the installation of the distribution box?
Our distribution boxes are usually fixed by screws on the rack column and are compatible with all 19-inch cabinets. For the fusion of fiber pigtail, only the tools like fiber stripper, fusion splicer and fiber cleaning tools are needed.
3.Can our distribution box be installed with different types of patch cords?
We can provide different options for your different types of patch cord requirements. The adapters and patch cords, like SC/FC/ST/LC/E2000, can be chosen to meet your specific needs.
4.What is the delivery time for our products?
For regular products, the delivery time is within 2 working days. For customized products, the delivery time is within 15 working days.
