MTP-LC 0.9mm Patch Cord
Contact Us

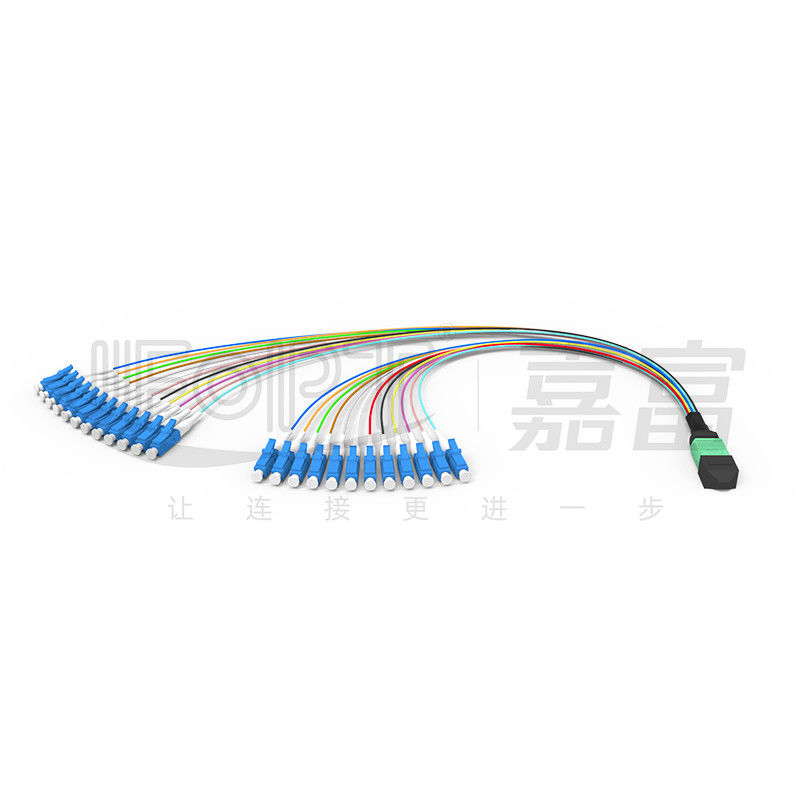

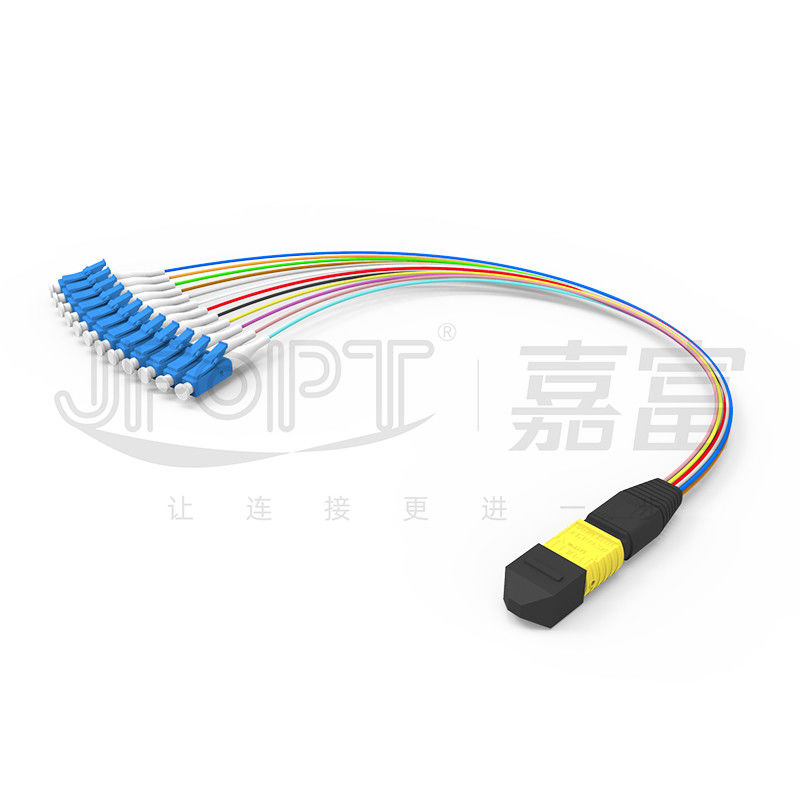

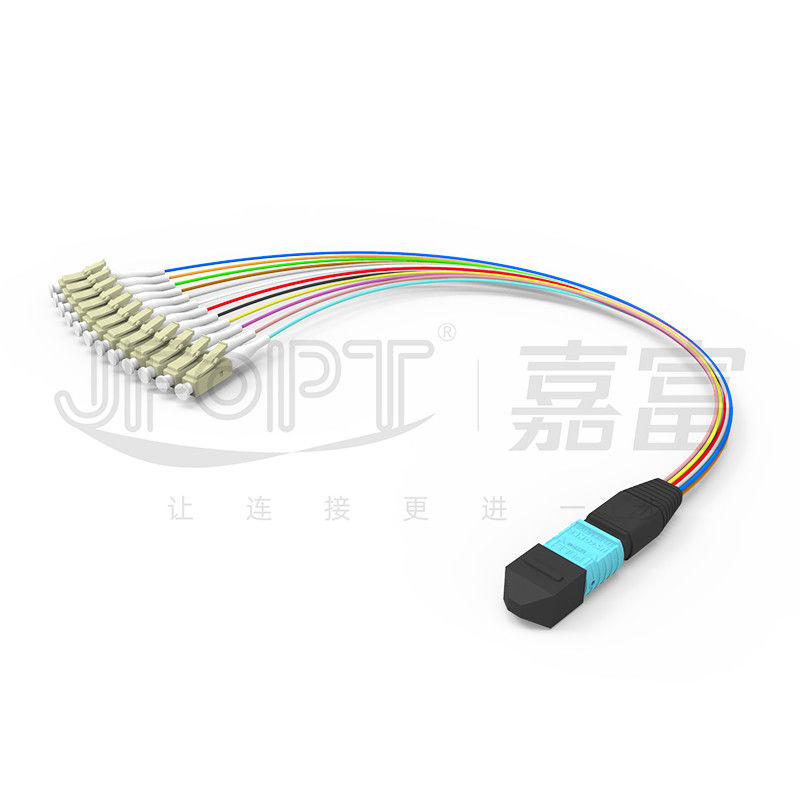

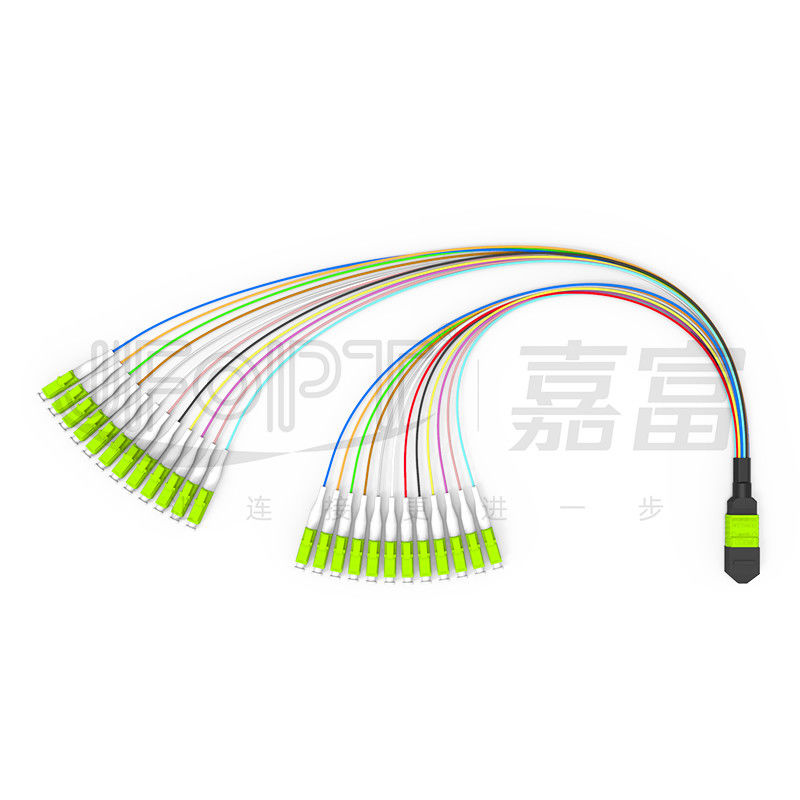

MTP-LC 0.9mm Termination Box MTP/MPO Branching Patch Cord

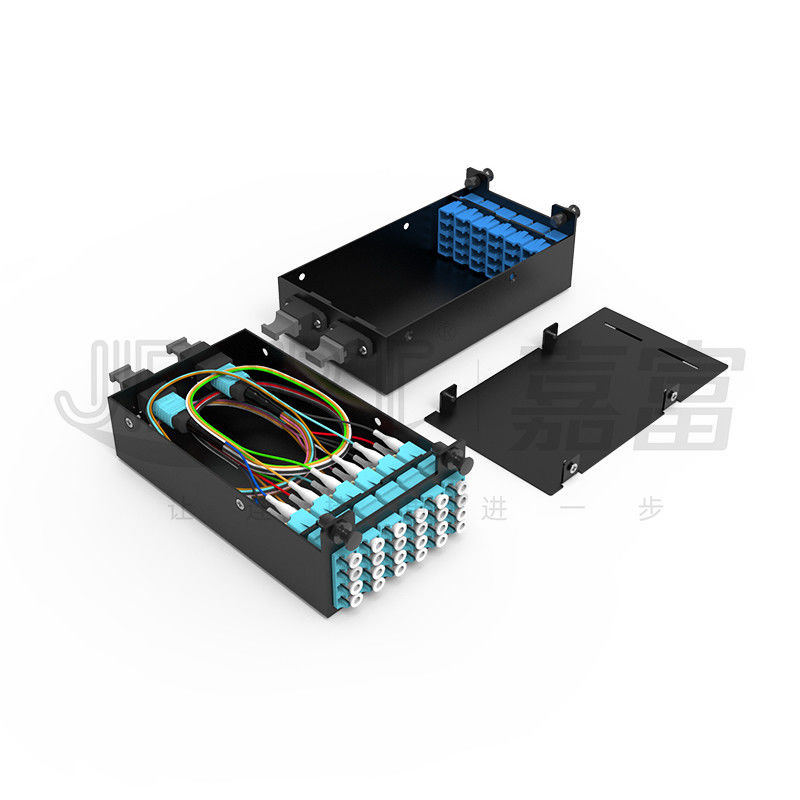

The MTP-LC branch jumpers are designed for use in MTP/MPO cassettes. They feature a 0.9mm small outer diameter branch, allowing for a safe bending radius in limited spaces. Typically, the MTP/MPO cassettes can accommodate two 12-fiber or one 24-fiber breakout jumpers. JFOPT's multi-fiber connector jumpers use high-quality, bend-insensitive single-mode/multimode fibers from brands like Corning and YOFC to minimize optical loss. All JFOPT connectors undergo rigorous testing to ensure that the product quality meets international standards or customer-specific requirements.
♦ Features
|
①MTP connectors offer superior performance compared to MPO connectors while maintaining compatibility with MPO
|
② Customizable polarity options: A/B/C
|
|
|
|
③Branches with color-coded 12/24 fibers for easy maintenance
|
④ Short length and small outer diameter ensure a safe bending radius
|
|
|
|
⑤Perfectly compatible with JFOPT MPO cassettes for seamless integration
|
- |
|
-
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ LC Connector Parameters
|
Connector characteristics |
Connector type |
LC |
|||
|
End face type |
Single mod : UPC / APC Multimode : UPC |
||||
|
Ferrule type |
A - grade zirconia ceramic ferrule |
||||
|
Connector color |
Blue / Green / Beige / Aqua / Violet / Lime Green |
||||
|
Insertion loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return loss |
Single mode : UPC≥50dB; APC≥60dB; Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Polarity Selection
|
MPO/MTP |
||||
|
|
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 20 years of experience in MPO and conventional fiber optic jumper production, JFOPT has a professional R&D team and production equipment dedicated to meeting various installation needs. Our products have passed multiple international certifications and tests. |
|
||||
|
Manufacturing Capability: JFOPT has multiple production lines for MPO and conventional connectors, as well as cable and branching equipment, ensuring fast delivery. |
|
||||
|
Quality Control: JFOPT has strict quality control measures in place, including factory end-face inspection and 100% testing, using professional testing equipment to ensure stable transmission performance. |
|
||||
|
Standardization: JFOPT can provide various customization services for connector types, cable types, outer diameters, color, wire sequences, packaging, and more, and also support custom production based on customer-provided designs or samples, ensuring consistency and performance stability to meet different wiring requirements. |
|
||||
|
Technological Innovation: JFOPT focuses on technological innovation and has a professional R&D team dedicated to the development and production of various high-performance fiber optic jumpers, meeting the changing market demands. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks / MTP attenuators / MTP gender changers / and MT jumpers / among other MTP-related products.
