Place of Origin:
CHINA
Brand Name:
JFOPT
Certification:
Product : CE / UL / ROHS / REACH , Company : ISO9001 / ISO14001
Model Number:
MPO-LC 3.0-2.0mm
Contact Us

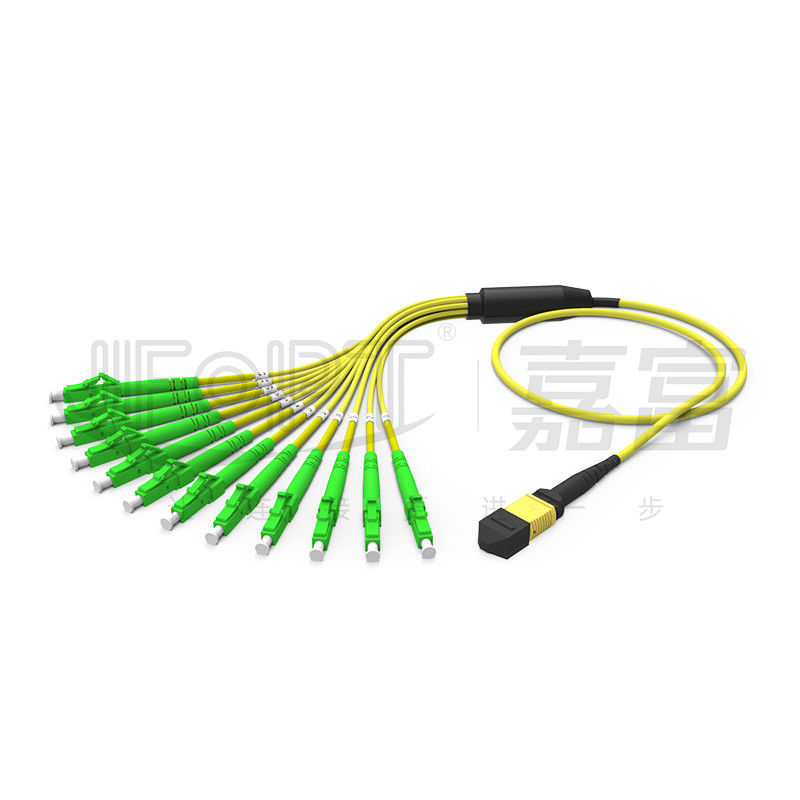

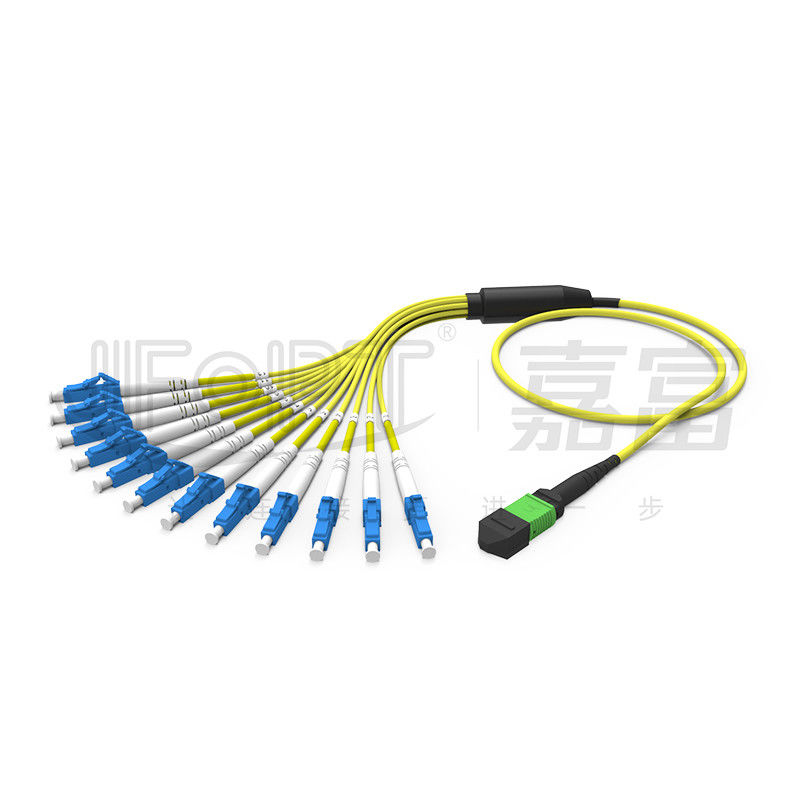

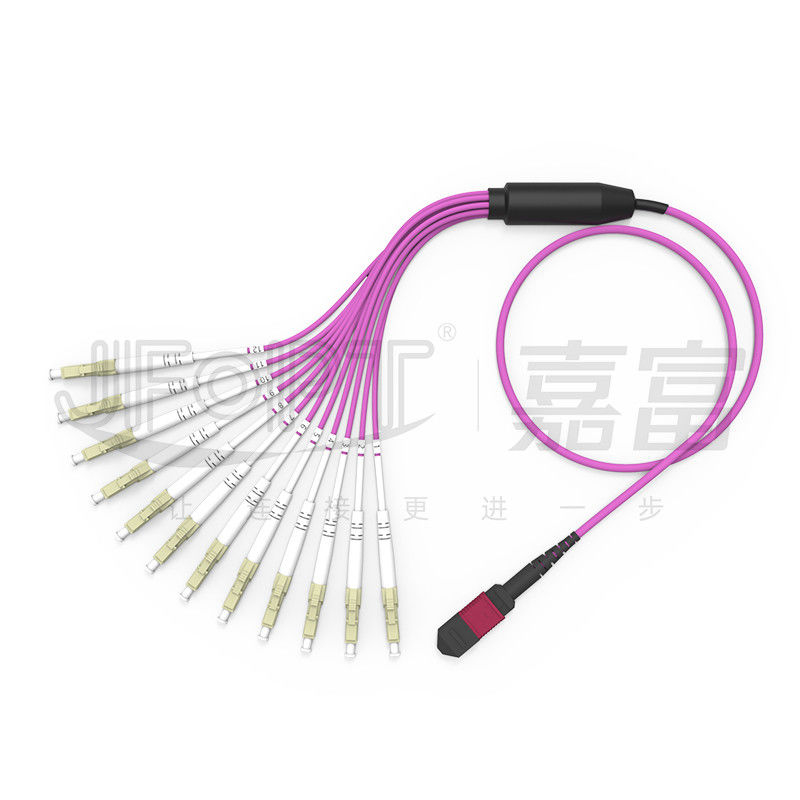

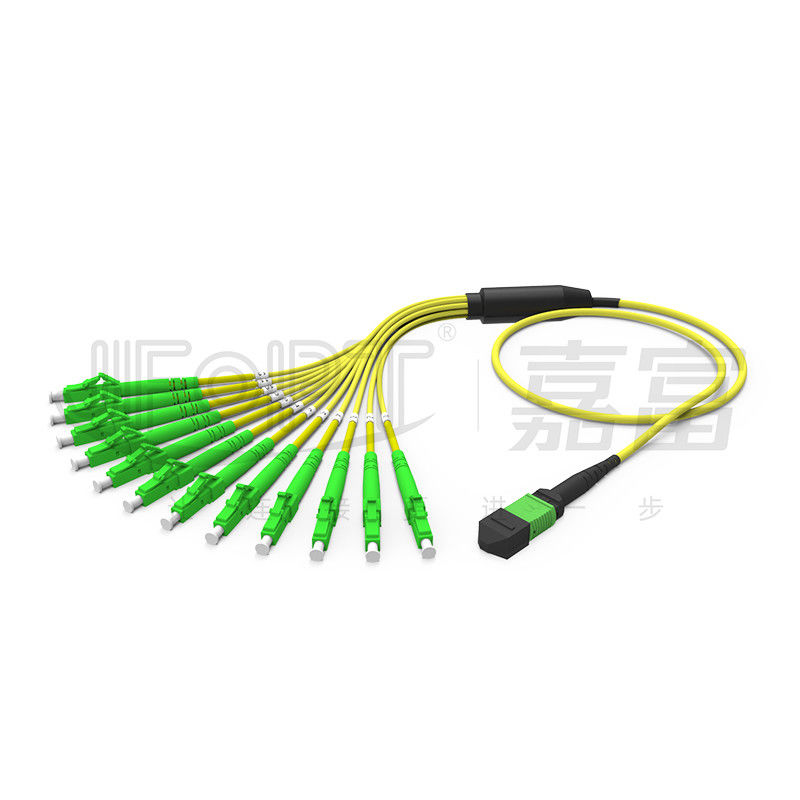

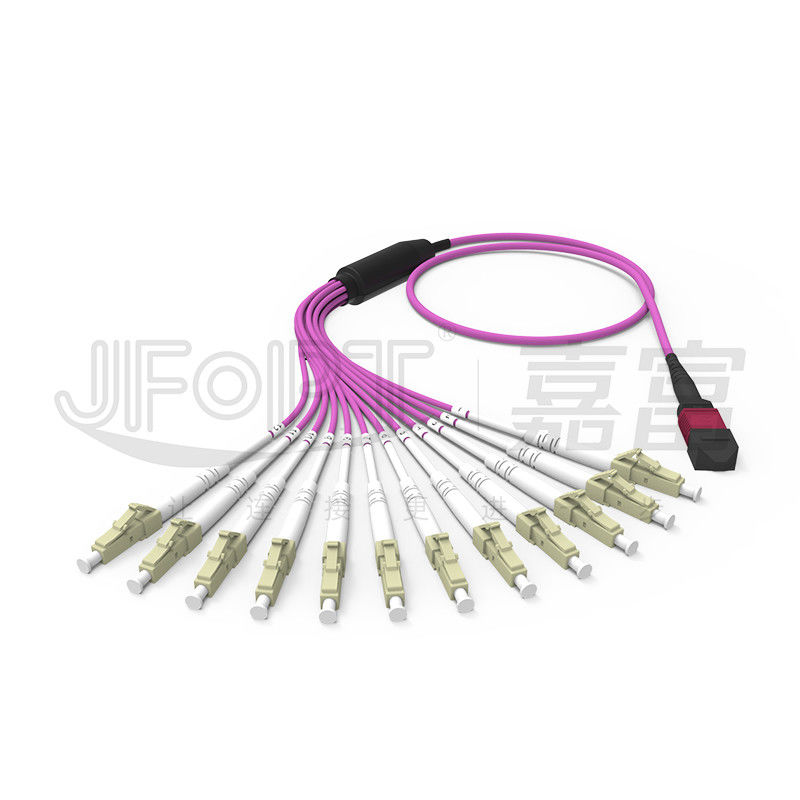

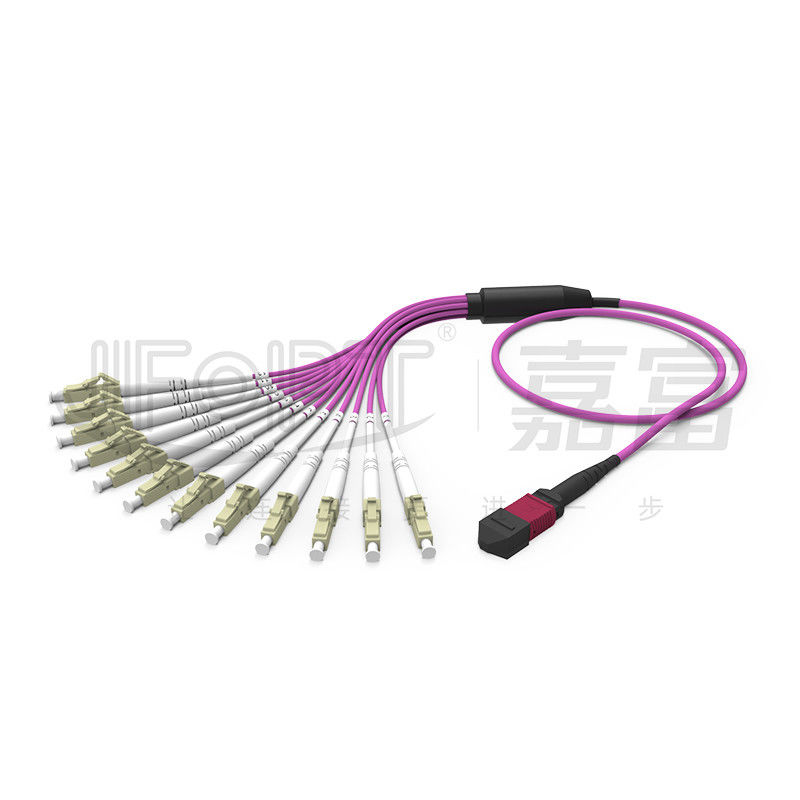

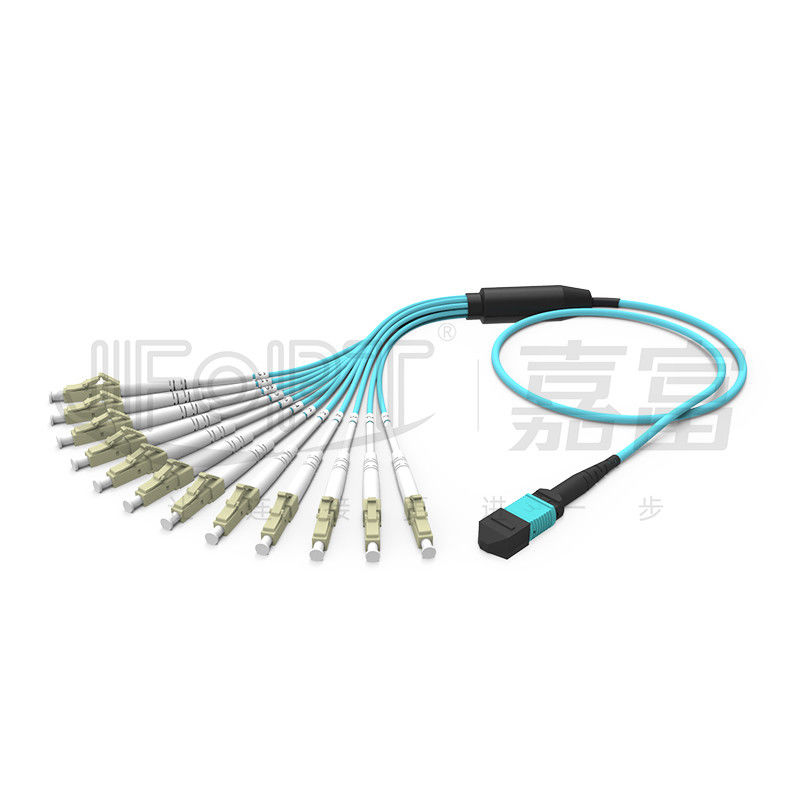

MPO-LC 3.0 Mini Cable 2.0mm Branch Patch Cord
The MPO-LC Branch Patch Cord is designed for optical signal convergence in distribution frames or signal splitting in optical modules, commonly used in the upgrade of 40G/100G networks. The MPO to 2.0mm LC Branch Patch Cord is available in configurations of 8/12/16/24 fibers. The MPO connector can be customized with male or female connectors, while the LC connector can be selected as simplex or duplex (TX/RX channel customization). The branch length can be customized for equal length, fan-out, or gradient lengths, among other options.
♦ Features
|
①Branch with 2.0mm sheath for easy installation and protection
|
②Customizable fanout kit to match other outer diameter single/dual jacket mini cables
|
|
|
|
③LC branch can be selected as equal length or unequal length for flexible deployment
|
④100% factory termination and testing to ensure reliable transmission performance
|
|
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MPO Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MPO Connector |
SM Standard |
0.2dB |
0.75dB |
APC≥60dB |
|
|
SM Low Loss |
0.1dB |
0.35dB |
|||
|
MM Standard |
0.2dB |
0.6dB |
PC≥25dB |
||
|
MM Low Loss |
0.1dB |
0.35dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ LC Connector Parameters
|
Connector Characteristics |
Connector Type |
LC |
|||
|
End Face Type |
Single-mode: UPC/APC; Multimode: UPC |
||||
|
Ferrule Type |
Grade-A zirconia ceramic ferrule |
||||
|
Connector Housing Color |
Blue/Green/Beige/Aqua/Violet/Lime |
||||
|
Insertion Loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return Loss |
Single-mode: UPC≥50dB; APC≥60dB; Multimode: ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Project |
Parameters |
|||
|
Fiber Type |
Optional : G652D / G657A1 / OM1 / OM2 / OM3 / OM4 / OM5 |
|||
|
Fiber Count |
Optional : 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional : LSZH / PVC / TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Yellow / Orange / Aqua / Magenta / Custom |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional : OFN / OFNR / OFNP |
|||
♦ Connector Color Options
|
MPO connector |
||||
|
Single mode |
Green |
Yellow |
||
|
Reference color number PANTONE 2270C |
Reference color number PANTONE 100C |
|||
|
|
|
|||
|
Multimode |
Beige |
Aqua |
||
|
Reference color number PANTONE 7534C |
Reference color number PANTONE 2226C |
|||
|
|
|
|||
|
Violet |
- |
|||
|
Reference color number PANTONE 7641C |
||||
|
|
||||
♦ Branching Options
|
|
|
|
Main Cable Structure |
|
|
|
|
|
Fanout with Equal Lengths |
Fanout with Unequal Lengths |
|
|
|
|
Fanout 0.9mm Branch |
|
|
|
|
|
Fanout 2.0/3.0mm Branch |
|
♦ Polarity Selection
|
MPO |
||||
|
|
|
LC |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Professionalism: JFOPT has been focusing on the production of MPO jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MPO jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MPO production lines and equipment, allowing for fast and efficient production of a large number of MPO jumpers to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to MPO jumper production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MPO jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What issues should be considered when customizing MPO jumpers?
Jumper length / Cable material / Fiber type and fiber count / MPO Male or female/ Insertion loss standards / Color requirements / Labels and customization requests.
2.How do we ensure stable parameters for our MPO jumpers?
JFOPT's MPO jumpers undergo 100% 3D interferometer testing and 100% IL&RL testing, ensuring stable parameters.
3.What is our delivery lead time?
We have a monthly production capacity of 30,000+ MPO connectors, ensuring prompt delivery.
4.What other MPO-related products do we offer?
In addition to MPO jumpers, we also produce MPO loopbacks, MPO attenuators, MPO male to female adapters, MT jumpers, and other MPO related products.
