MTP-LC 16C G657A1/A2 3.0mm MINI Cable 0.9mm Fanout
Contact Us

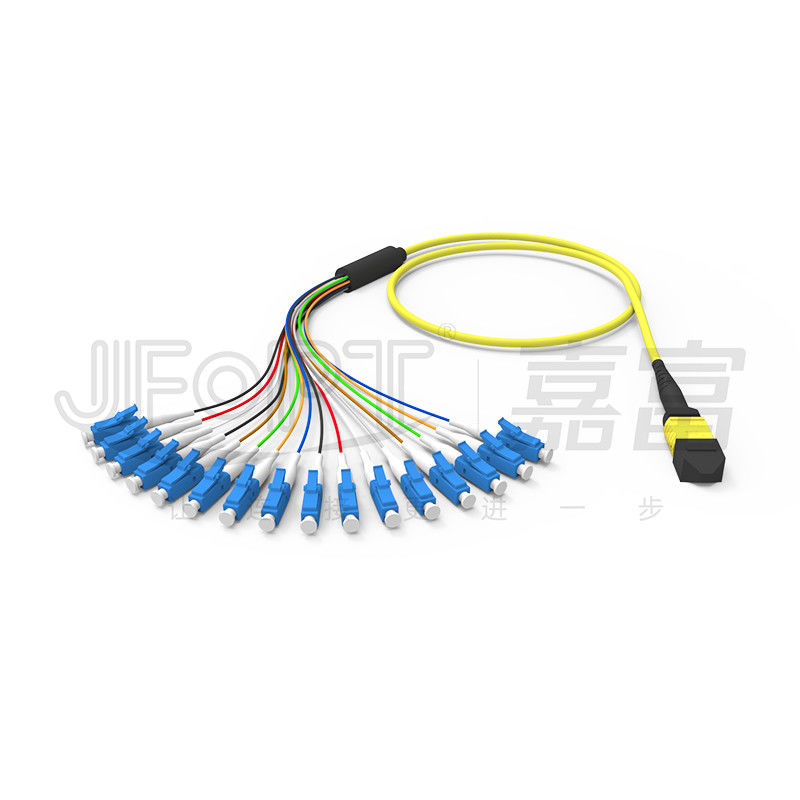

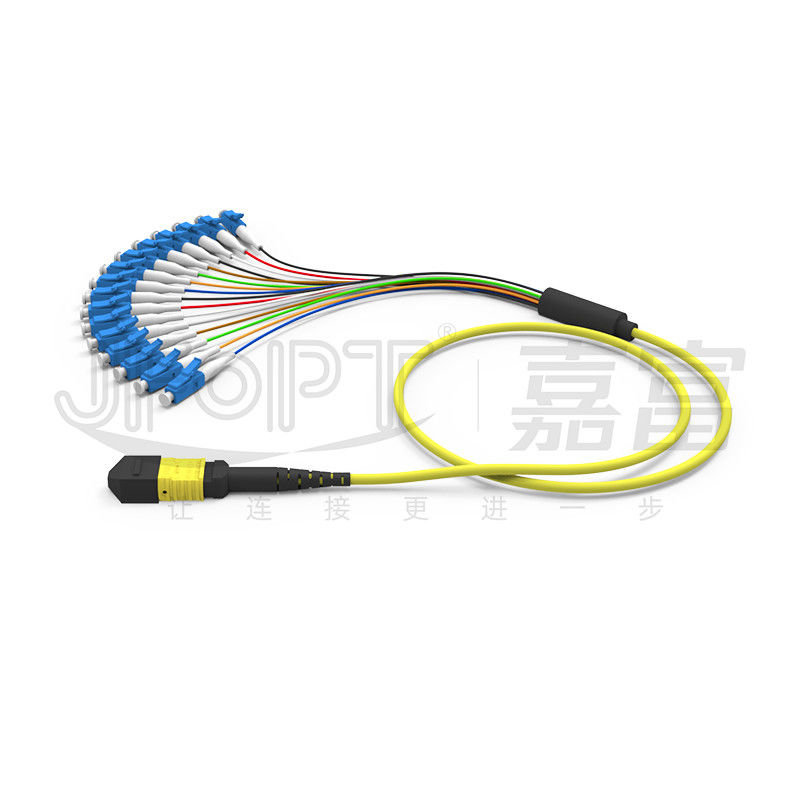

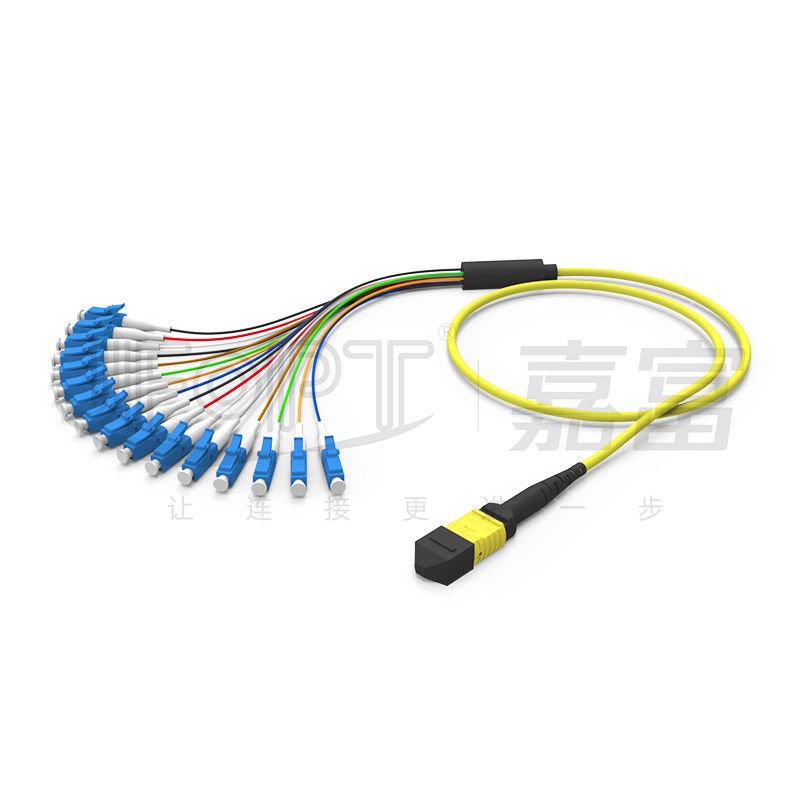

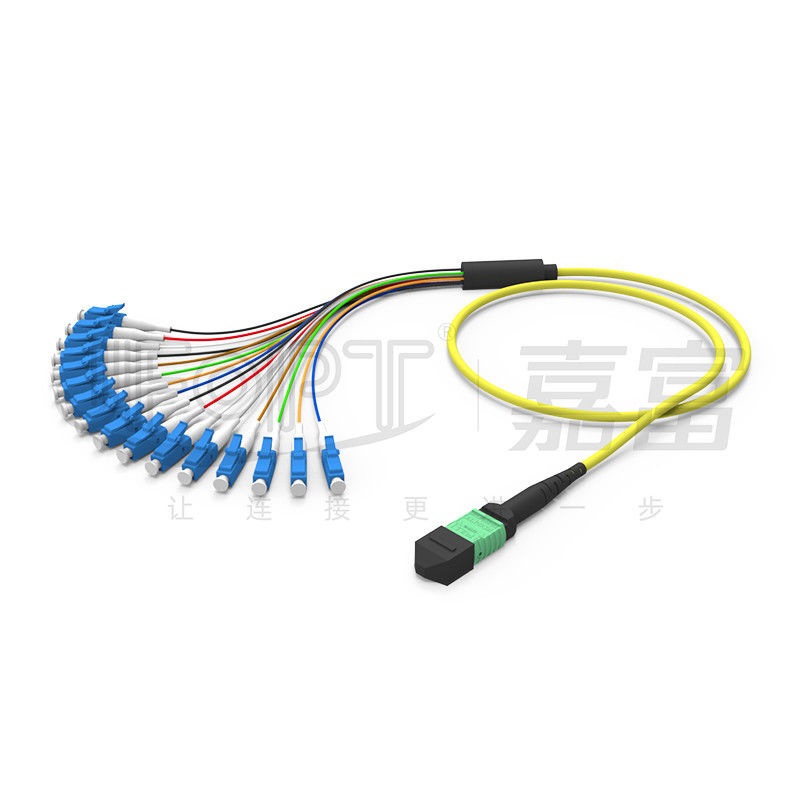

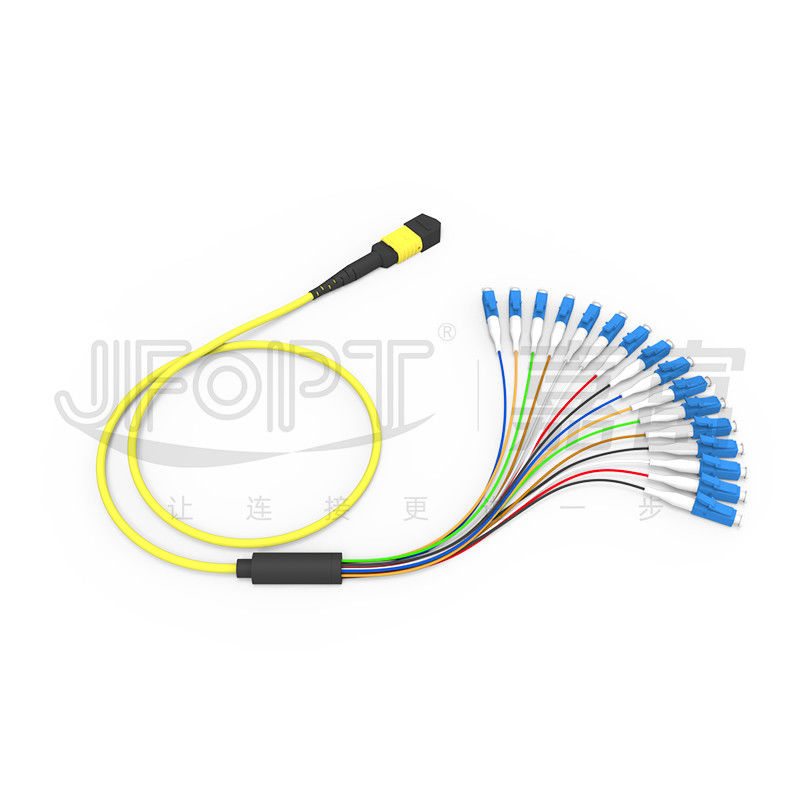

USCONEC MTP-LC Breakout Cable 16-Core Single-Mode G657A1/A2 Standard Loss 3.0mm To 0.9mm
JFOPT offers MTP breakout patch cable with original USCONEC MTP connectors and fiber optic cables from renowned brands like YOFC and Corning. Our production lines and testing standards are built according to international standards, ensuring that all connectors undergo thorough testing before leaving the factory. The MTP-LC jumper is designed for connecting MTP trunk cables with LC single/dual fiber jumpers, making it an ideal choice for high-density wiring or expansion in data centers. In addition to the 3.0mm mini cable branch with LC connectors, JFOPT also provides MPO-LC short jumpers for MPO module boxes, allowing for quick replacement and reducing overall costs in terms of wiring and management. Furthermore, JFOPT offers MT and LC connector cleaners to help maintain the reliability of connector end faces during installation and maintenance processes.
♦ Features
|
① USCONEC original MTP Connector |
②Bend-insensitive fiber to improve transmission stability |
|
|
|
|
③The individual connector has 16 fibers and is designed with a keying mechanism |
④MTP and LC connectors are available in multiple colors for selection |
|
|
|
|
⑤The single-jumper with 16 fibers has a small outer diameter, making it easy for cable management |
⑥100% factory termination and testing ensure transmission performance |
|
|
|
♦ Applications
1.Data center network cabling.
2.40G/100G optical communication systems, QSFP optical modules.
3.Fiber optic communication systems, cable TV networks, telecom networks.
4.Local area networks (LANs), wide area networks (WANs), FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male/Female |
Male: with Pin, Female: without Pin |
||||
♦ LC Connector Parameters
|
Connector characteristics |
Connector type |
LC |
|||
|
End face type |
Single mod : UPC / APC Multimode : UPC |
||||
|
Ferrule type |
A - grade zirconia ceramic ferrule |
||||
|
Connector color |
Blue / Green / Beige / Aqua / Violet / Lime Green |
||||
|
Insertion loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return loss |
Single mode : UPC≥50dB; APC≥60dB; Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Cable Parameters
|
Items |
Parameters |
|||
|
Fiber Type |
Optional G652D/G657A1/OM1/OM2/OM3/OM4/OM5 |
|||
|
Fiber Count |
Optional 8/12/16/24 |
|||
|
Strength Member |
Aramid yarn |
|||
|
Outer Jacket Material |
Optional LSZH/PVC/TPU |
|||
|
Outer Jacket Diameter |
3.0mm |
|||
|
Outer Jacket Color |
Customization |
|||
|
Tensile Strength (Long-term) |
80N |
|||
|
Tensile Strength (Short-term) |
150N |
|||
|
Crush Resistance (Long-term) |
100N/cm |
|||
|
Crush Resistance (Short-term) |
500N/cm |
|||
|
Minimum Bending Radius (Dynamic) |
20D |
|||
|
Minimum Bending Radius (Static) |
10D |
|||
|
Operating Temperature |
-20~60℃ |
|||
|
Storage Temperature |
-20~60℃ |
|||
|
Fire Rating |
Optional OFN/OFNR/OFNP |
|||
♦ Connector Housing Color Selection
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
|
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Branch Kit Options
|
|
|
|
Main Cable Structure |
|
|
|
|
|
Fanout with equal length |
Fanout with unequal length |
|
|
|
|
Branching of fber with 0.9mm loos tube |
|
|
|
|
|
Branching of fber with 2.0/3.0mm loos tube |
|
♦ Polarity Selection
|
|
|
MPO |
|
|
|
LC |
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: JFOPT has been focusing on the production of MTP jumpers for over 10 years, with professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), can produce high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capacity: JFOPT has 5 MTP production lines and equipment, allowing for fast and efficient production of a large number of MTP jumpers to meet customer demands. |
|
||||
|
QC: JFOPT implements strict quality control measures, including professional quality testing and monitoring at every stage from raw material procurement to production processes. We conduct 100% 3D interference testing, insertion loss testing, and end-face inspection to ensure product quality. |
|
||||
|
Standard Development: JFOPT can develop and strictly adhere to MTP jumper production standards according to customer requirements, ensuring product consistency and performance stability. |
|
||||
|
Technological Innovation: JFOPT places emphasis on technological innovation and has a professional R&D team continuously developing more advanced and higher-performing MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and post-sales repairs, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and fiber count / Male or Female / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% IL&RL testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks / MTP attenuators / MTP Male-Female adapters/ and MT jumpers / among other MTP-related products.
