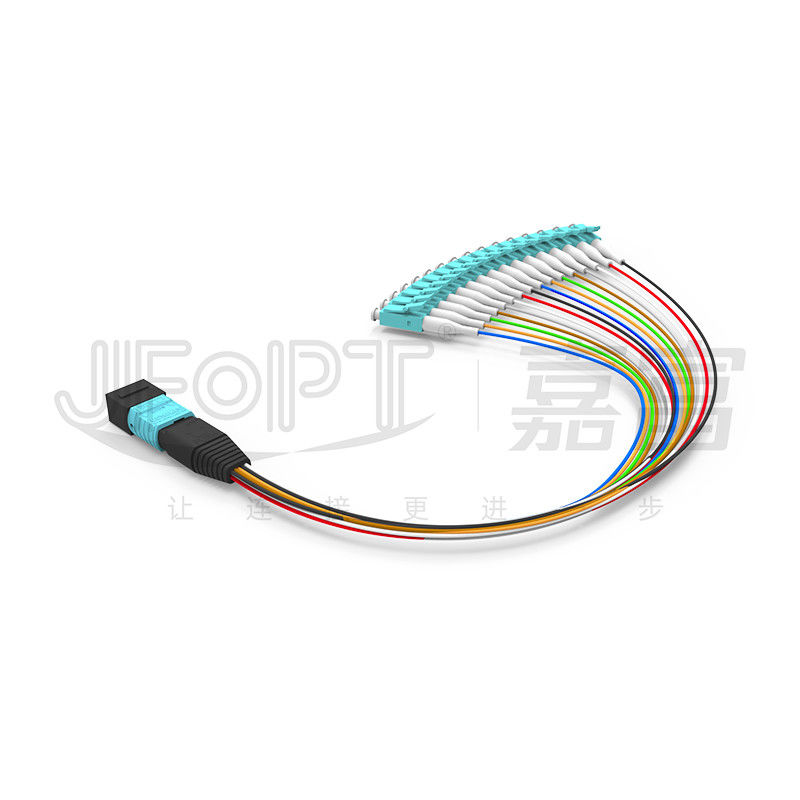

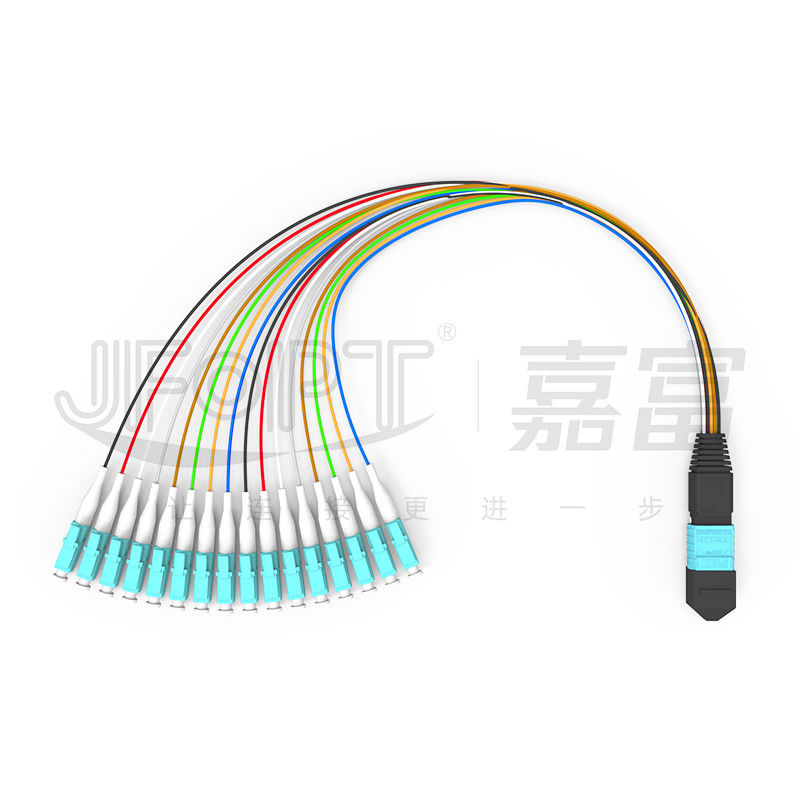

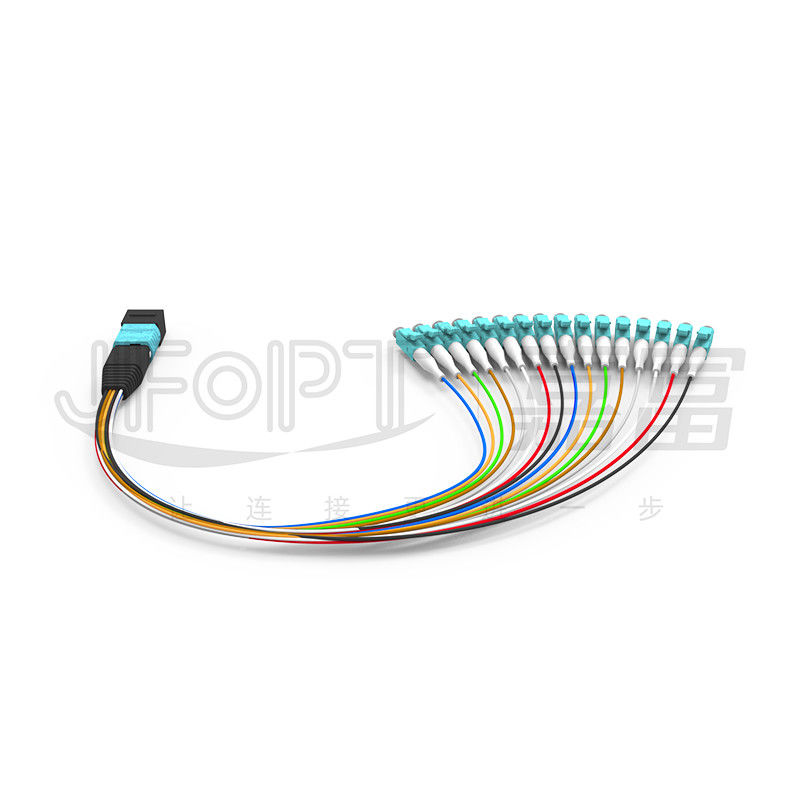

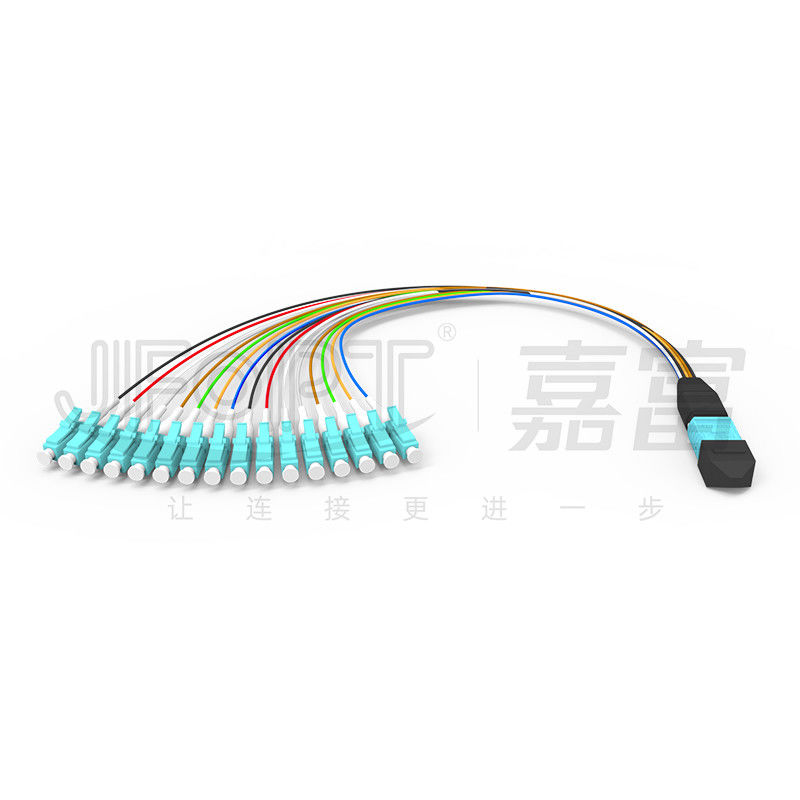

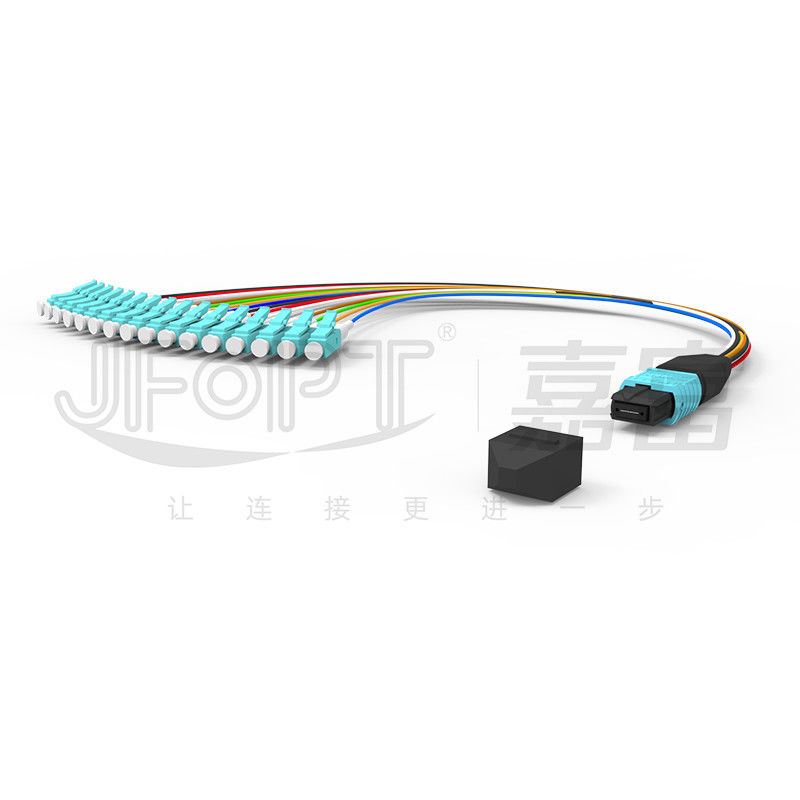

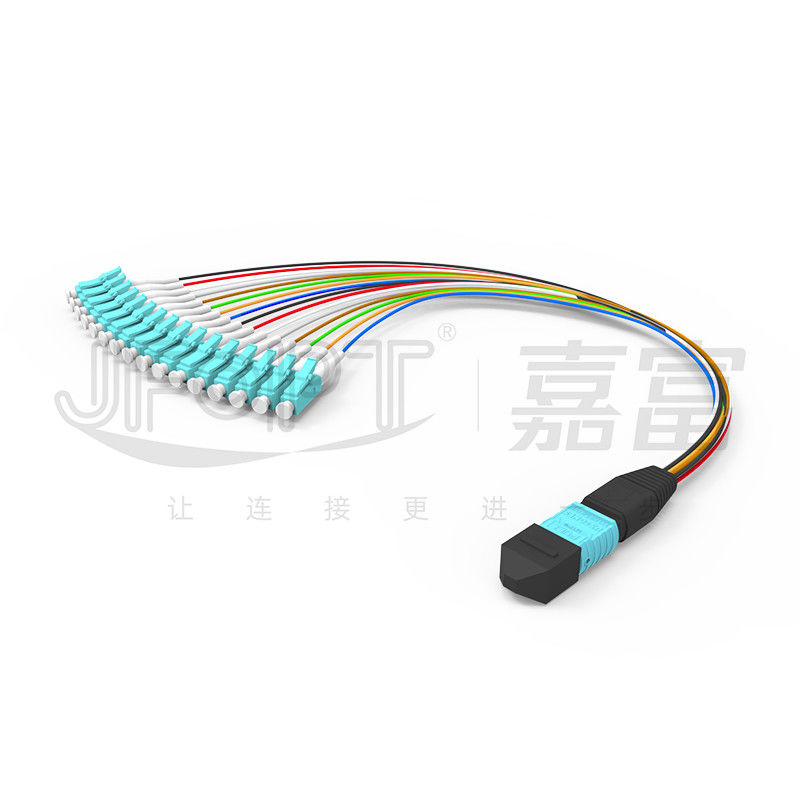

MTP-LC Patch Cord 16 Cores Multimode Low Loss OM3/OM4 PolarityA/AF For MPO Cassette
MPO-LC patch cord is primarily used for MPO cassette inside MPO cabinets. Therefore, JFOPT utilizes bend-resistant fibers in all MPO-LC fiber patch cords to ensure signal transmission even under very small bending radius. Our MPO-LC adapter patch cords can be customized to match the MPO module box polarity based on customer requirements (typically Type A with Type AF). JFOPT provides a complete solution of distribution cabinets and MPO patch cords, with all related products designed and manufactured in-house to ensure compatibility and product reliability.
♦ Features
|
① Single-row 16-core MTP connector with a compact size
|
② 0.9mm small outer diameter, suitable for MPO module box installation
|
|
|
|
③Multiple polarity options and loss options to meet different wiring requirements
|
④Utilizes genuine MTP connectors for high transmission performance and excellent stability
|
|
|
|
⑤100% factory tested, accompanied by inspection reports for quality assurance
|
- |
|
-
|
♦ Applications
1.Fiber access networks.
2.Fiber data transmission.
3.Fiber communication systems, cable TV networks, telecommunications networks.
4.Local area networks (LANs) , wide area networks (WANs) , FTTx.
♦ MTP Connector Parameters
|
Connector Type |
Insertion Loss |
Return Loss |
|||
|
Typical |
Maximum |
||||
|
MTP Connector |
SM Standard |
0.25dB |
0.5dB |
APC≥60dB |
|
|
SM Low Loss |
0.12dB |
0.25dB |
|||
|
MM Standard |
0.2dB |
0.45dB |
PC≥25dB |
||
|
MM Low Loss |
0.12dB |
0.25dB |
|||
|
Male / Female |
Male : with Pin , Female : without Pin |
||||
♦ LC Connector Parameters
|
Connector characteristics |
Connector type |
LC |
|||
|
End face type |
Single mod : UPC / APC Multimode : UPC |
||||
|
Ferrule type |
A - grade zirconia ceramic ferrule |
||||
|
Connector color |
Blue / Green / Beige / Aqua / Violet / Lime Green |
||||
|
Insertion loss |
≤0.3dB/≤0.2dB/≤0.15dB |
||||
|
Return loss |
Single mode : UPC≥50dB; APC≥60dB; Multimode : ≥25dB |
||||
|
Repeatability |
≤0.2dB |
||||
|
Interchangeability |
≤0.2dB |
||||
♦ 3D Geometric Parameters
|
Items |
Max |
Min |
||
|
Radius of curvature (mm) |
X |
2000 |
-10000 |
|
|
Y |
- |
5 |
||
|
Angle (°) |
X |
0.15 |
-0.15 |
|
|
Y(APC) |
8.2 |
7.8 |
||
|
Y(PC) |
0.2 |
-0.2 |
||
|
Radius of curvature of optical core (mm) |
- |
1 |
||
|
Fiber height (nm) |
3500 |
1000 |
||
|
Height difference of adjacent fiber (nm) |
500 |
N/A |
||
|
Maximum negative coplanar (nm) |
300 |
N/A |
||
♦ Connector Color Options
|
MTP connector |
||||
|
SM |
Green |
Yellow |
||
|
Reference color number PANTONE 346C |
Reference color number PANTONE 106C |
|||
|
|
|
|||
|
MM |
Beige |
Black |
||
|
Reference color number PANTONE 7534U |
Reference color number PANTONE Black 6C |
|||
|
|
|
|||
|
Aqua |
Heather Violet |
|||
|
Reference color number PANTONE 310C |
Reference color number PANTONE 1905C |
|||
|
|
|
|||
|
Munsell Violet |
Magenta |
|||
|
Reference color number PANTONE 2587C |
Reference color number PANTONE 208C |
|||
|
|
|
|||
|
Lime Green |
- |
|||
|
Reference color number PANTONE 375C |
||||
|
|
||||
♦ Polarity Selection
|
MTP |
||||
|
|
♦ Product Packaging
|
|
|
|
Thickened anti-static bag |
Thickened carton |
♦ Factory Strength
|
Specialization: With over 10 years of focus on MTP jumpers, JFOPT has professional expertise and a complete set of top-notch equipment (SUMIX/JRG/OPTOTEST), enabling the production of high-quality and high-performance MTP jumpers. |
|
||||
|
Manufacturing Capability: JFOPT has 5 MTP production lines and equipment to produce a large quantity of MTP jumpers quickly and efficiently to meet customer demands. |
|
||||
|
Quality Control: JFOPT implements strict quality control measures at every stage, from raw material procurement to production processes, with professional quality inspection and monitoring. We conduct 100% 3D interferometer testing/IL&RL testing/end-face inspection to ensure product quality. |
|
||||
|
Standardization: JFOPT can customize and strictly adhere to production standards for MTP jumpers according to customer requirements, ensuring consistency and performance stability of the products. |
|
||||
|
Technological Innovation: JFOPT emphasizes technological innovation and has a professional R&D team dedicated to developing more advanced and higher-performance MTP jumpers. |
|
||||
|
Service and Technical Support: JFOPT provides comprehensive pre-sales and after-sales services, including technical consultation, product recommendations, and after-sales maintenance, to meet customer needs and ensure customer satisfaction. |
|
||||
♦ Frequent Q&A
1.What should be considered when customizing MTP jumpers?
Length of MTP jumper / Cable material / Fiber type and core count / Connector gender (male/female) / Insertion loss specifications / Color preferences / Labeling requirements and customization.
2.How do we ensure the stability of our MTP jumpers?
JFOPT's MTP jumpers undergo 100% 3D interference testing and 100% insertion loss testing to ensure parameter stability.
3.Our delivery lead time?
We have a monthly production capacity of 30,000+ MTP connectors, ensuring prompt delivery of your orders.
4.What other MTP derivative products do we offer?
We also manufacture MTP loopbacks / MTP attenuators / MTP gender changers / and MT jumpers / among other MTP-related products.
